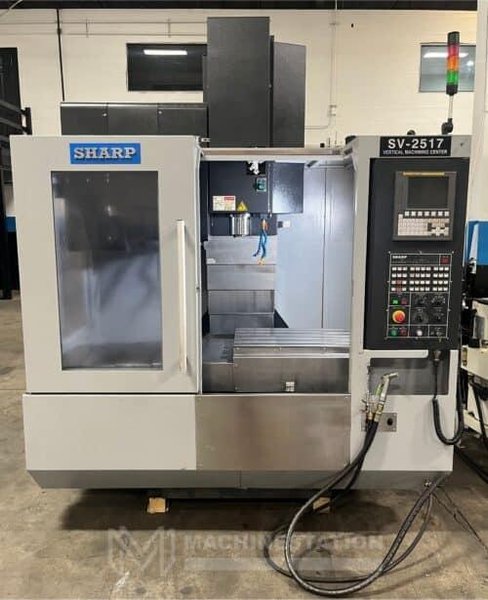

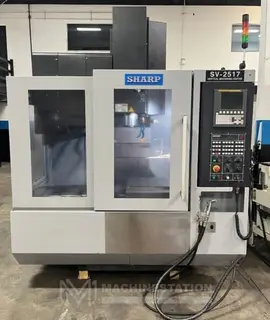

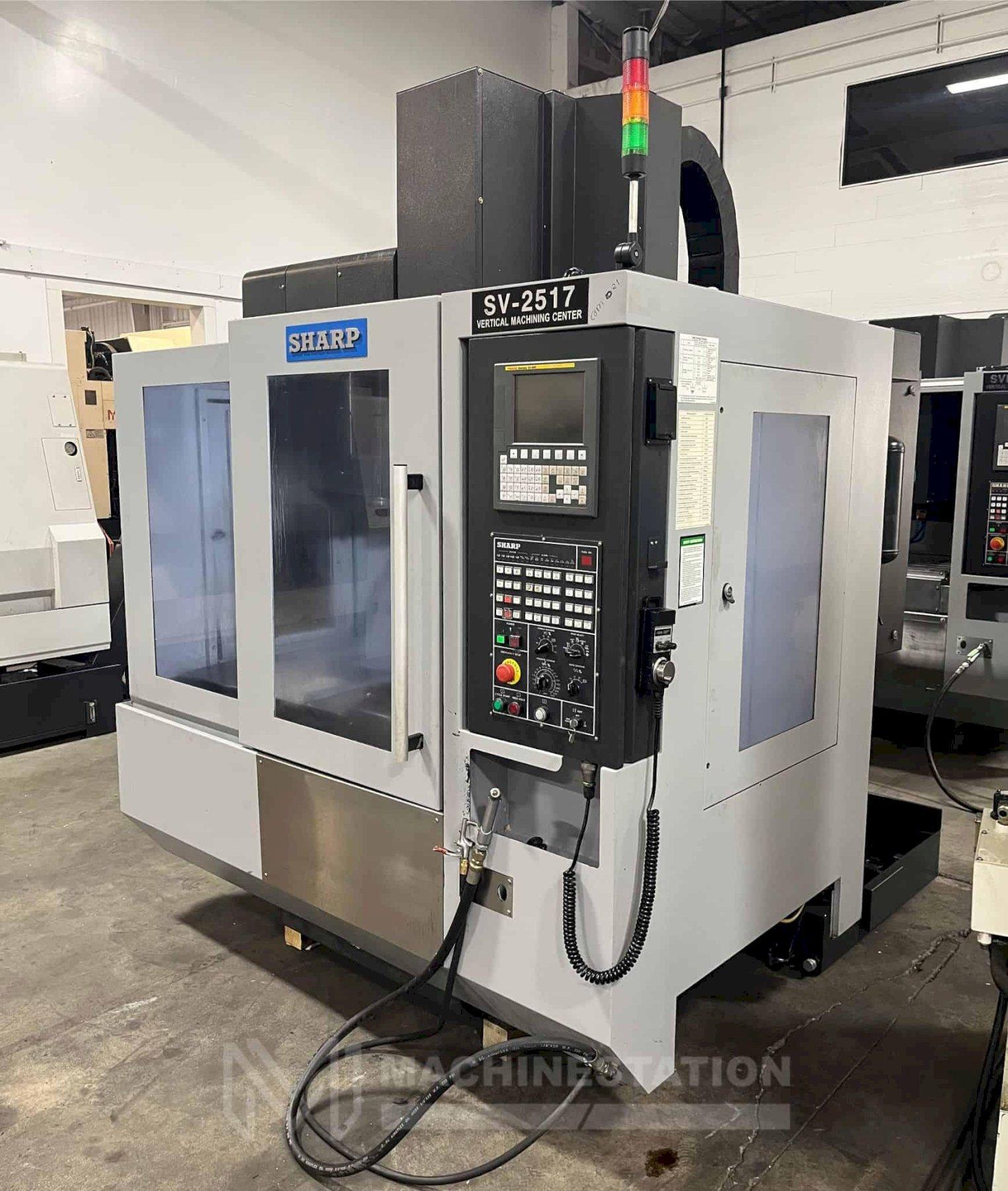

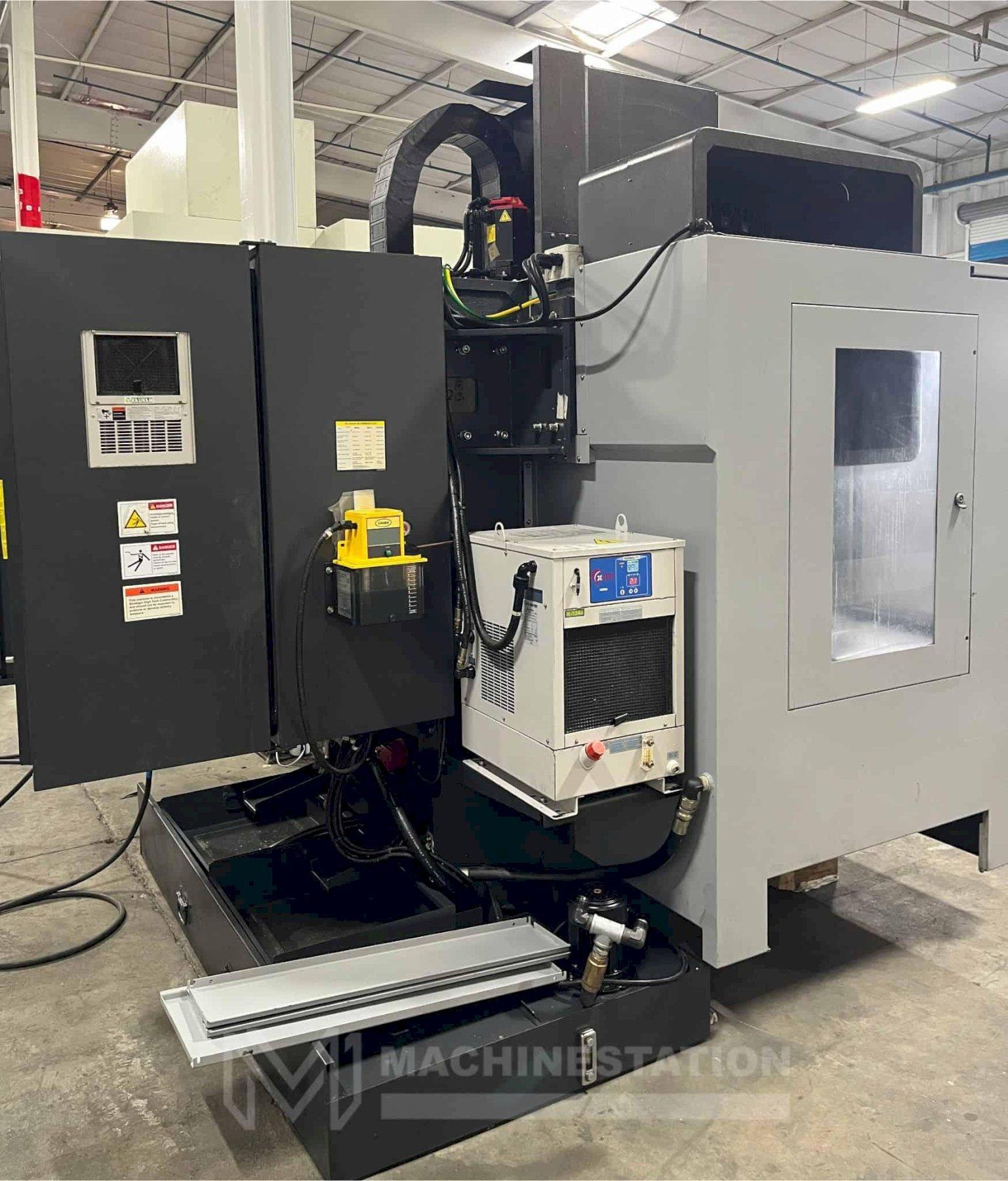

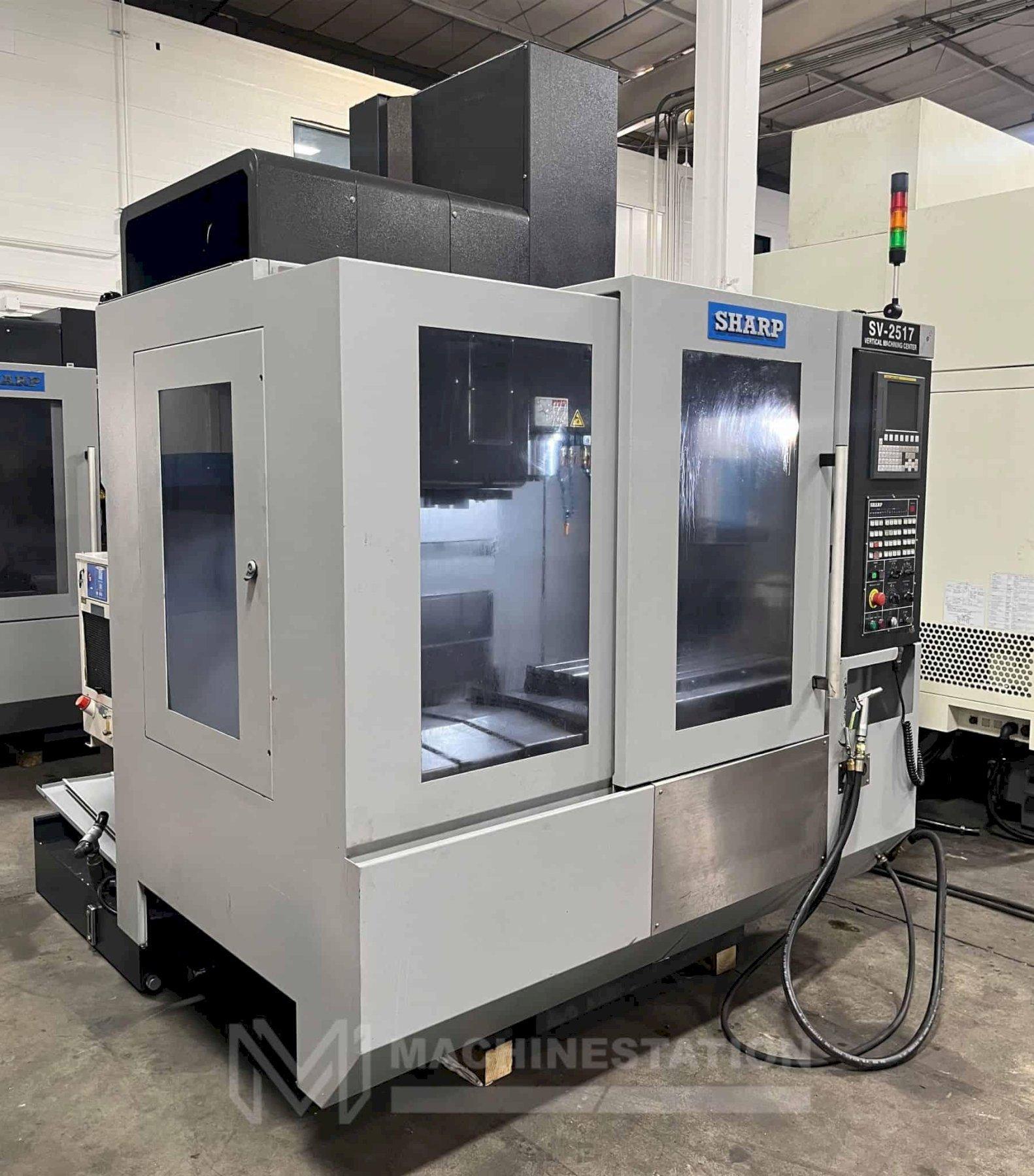

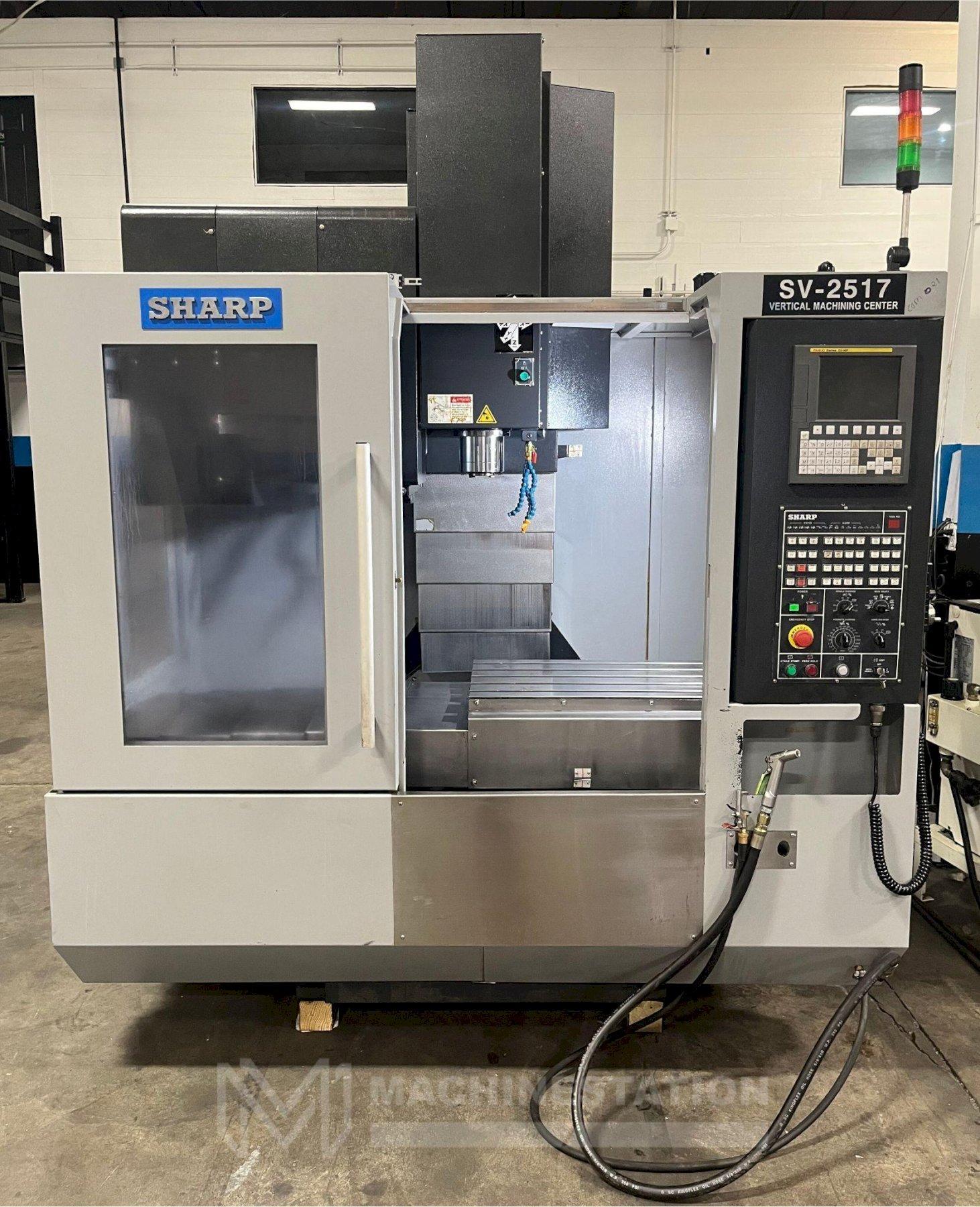

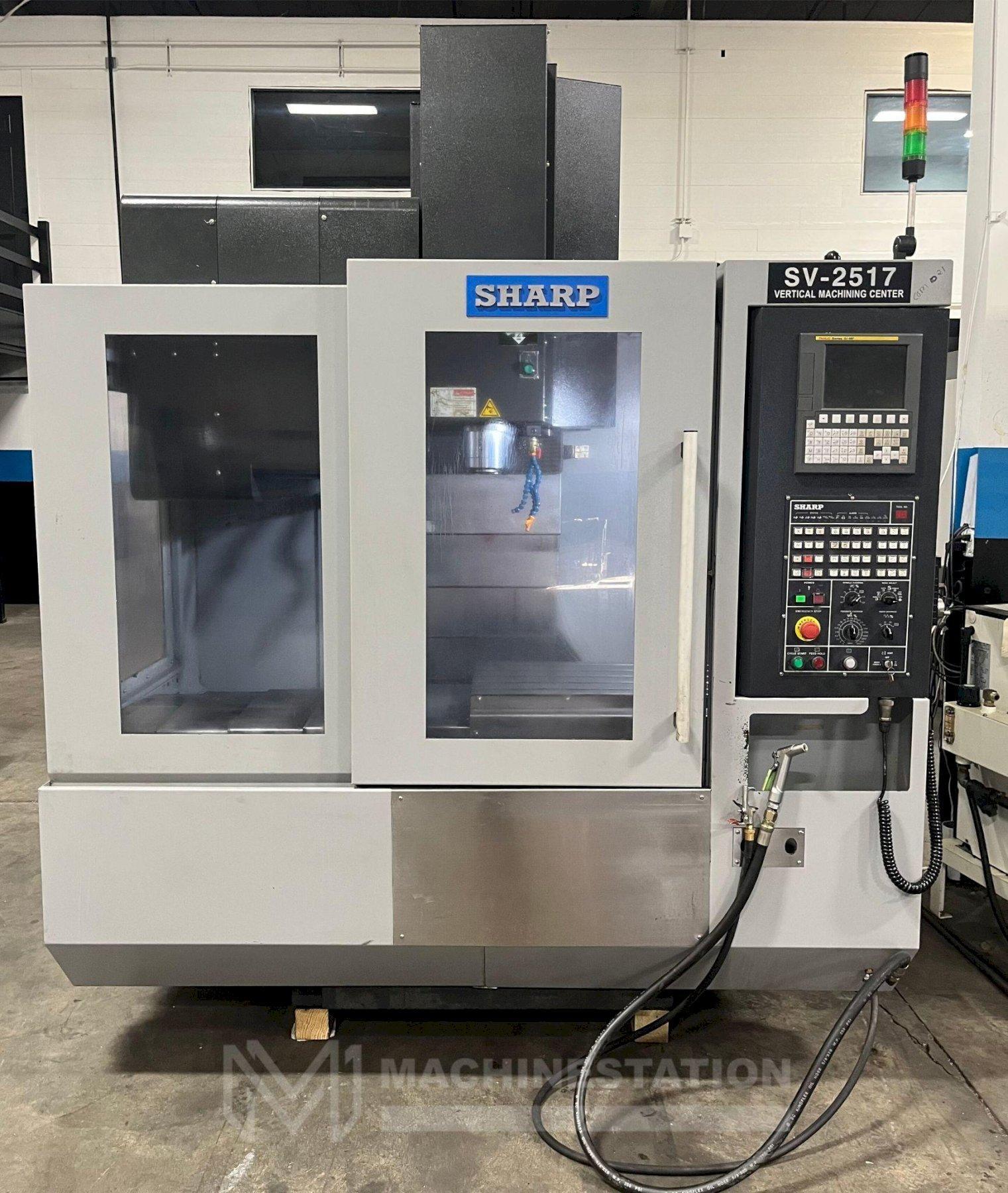

Sharp SV-2517 SX-F CNC Vertical Machining Center – Mini Mill

Brand
SHARP
Category
Machining Centers
Type
Vertical Machining Centers
Model
Sharp SV-2517 SX-F
Stock #
112786
Year
2018
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Sharp
Model: SV2517 SX-F
Year: 2018
Condition: Used – Excellent
Features:

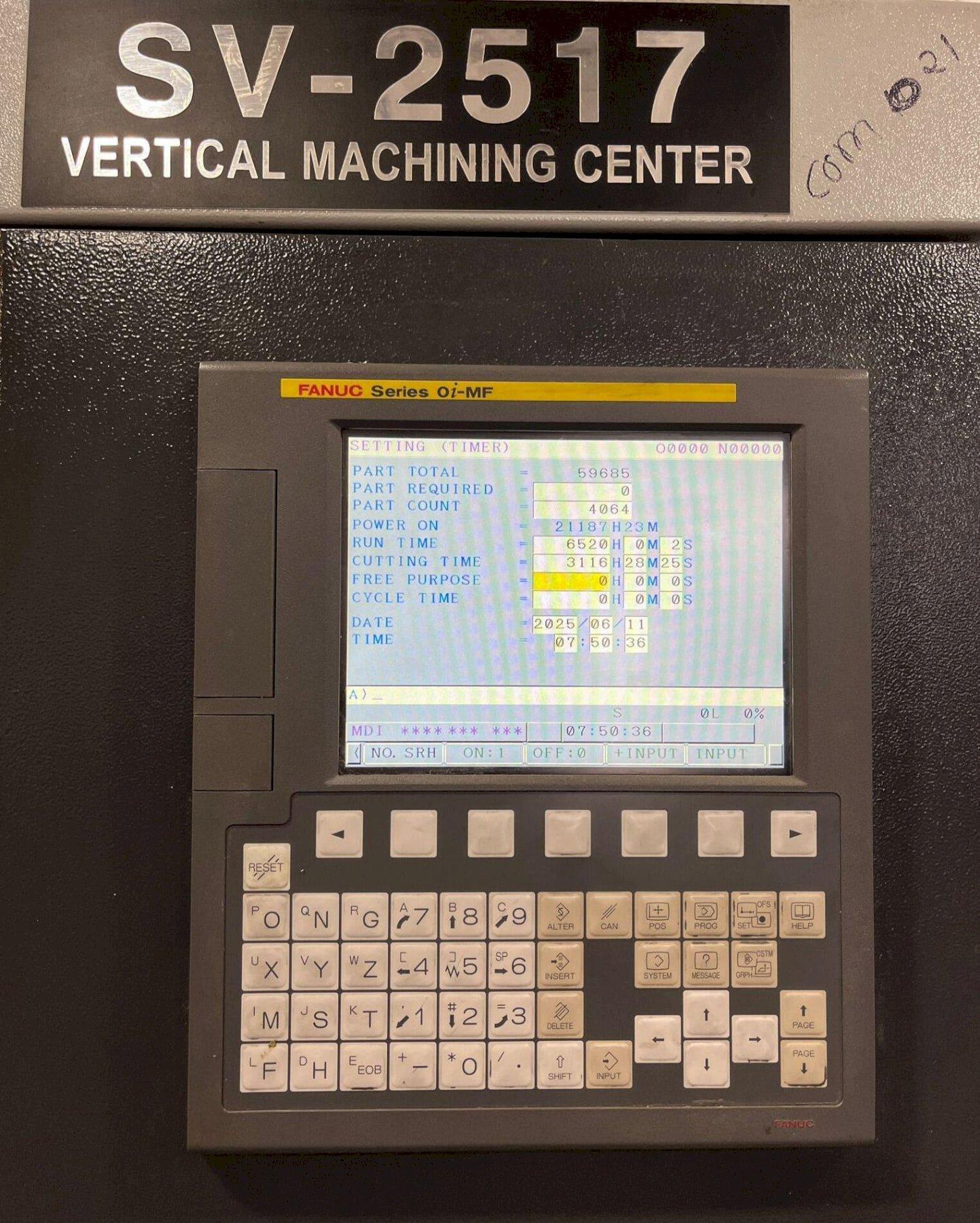

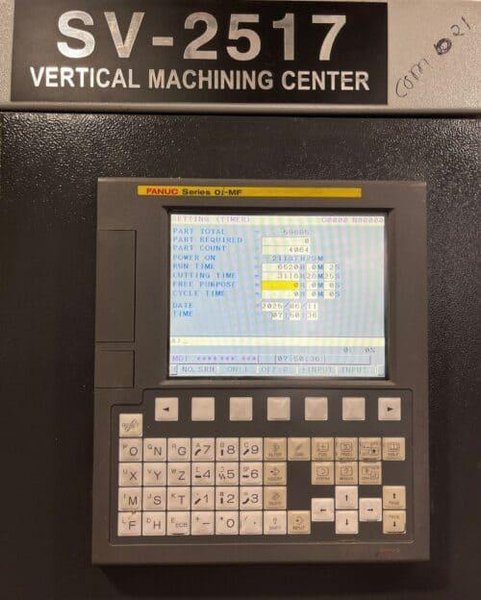

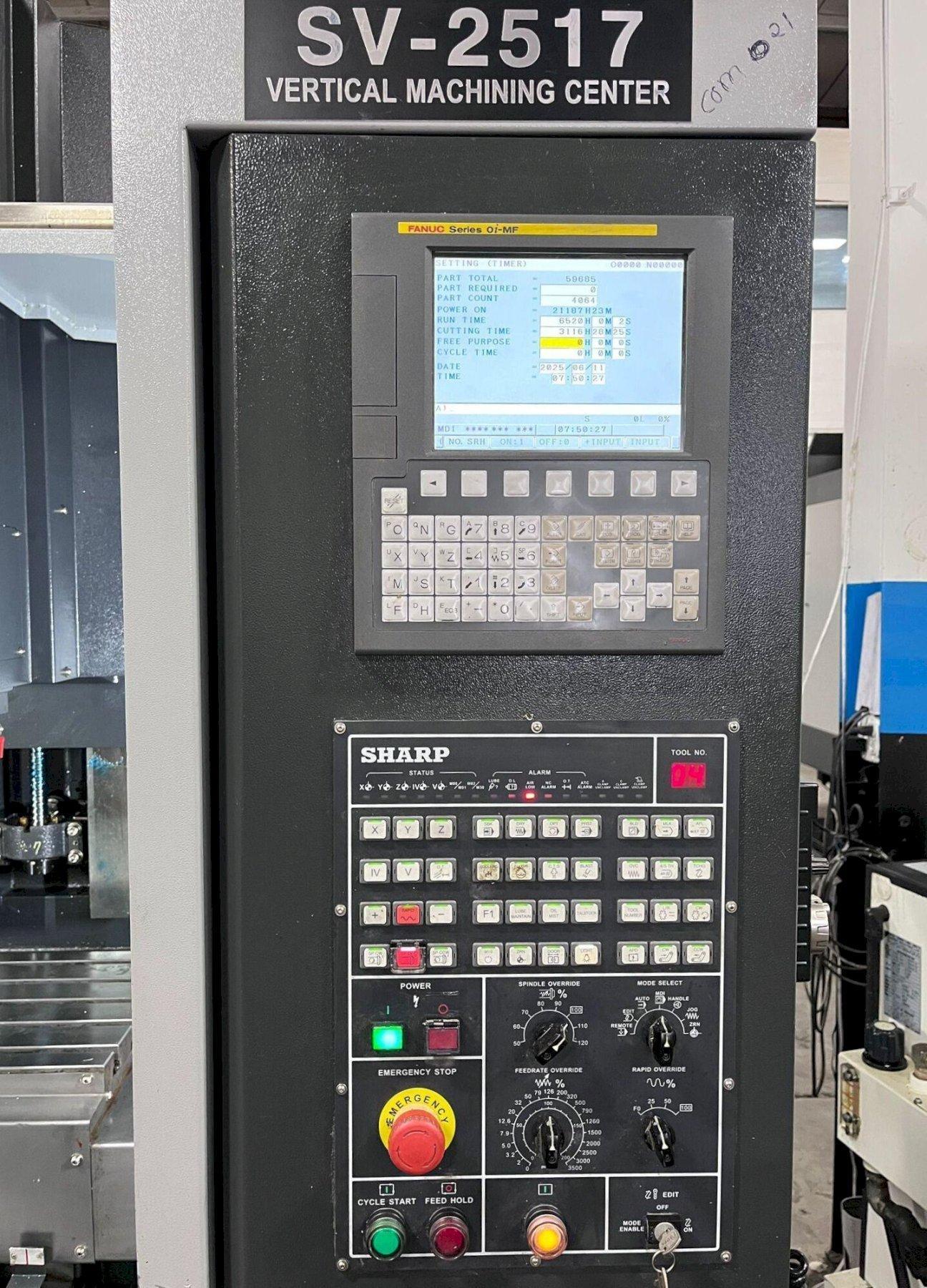

Fanuc 0i-MF CNC Control
Box Way Construction All Axis
12,000 RPM High Speed Spindle
24 Station Side Mounted Automatic Tool Changer
CAT-40 Taper Spindle
10 HP  Spindle Motor
Rigid Tapping
USB Port & RS-232 Port
PCMCIA Card Slot
MPG Handwheel Control

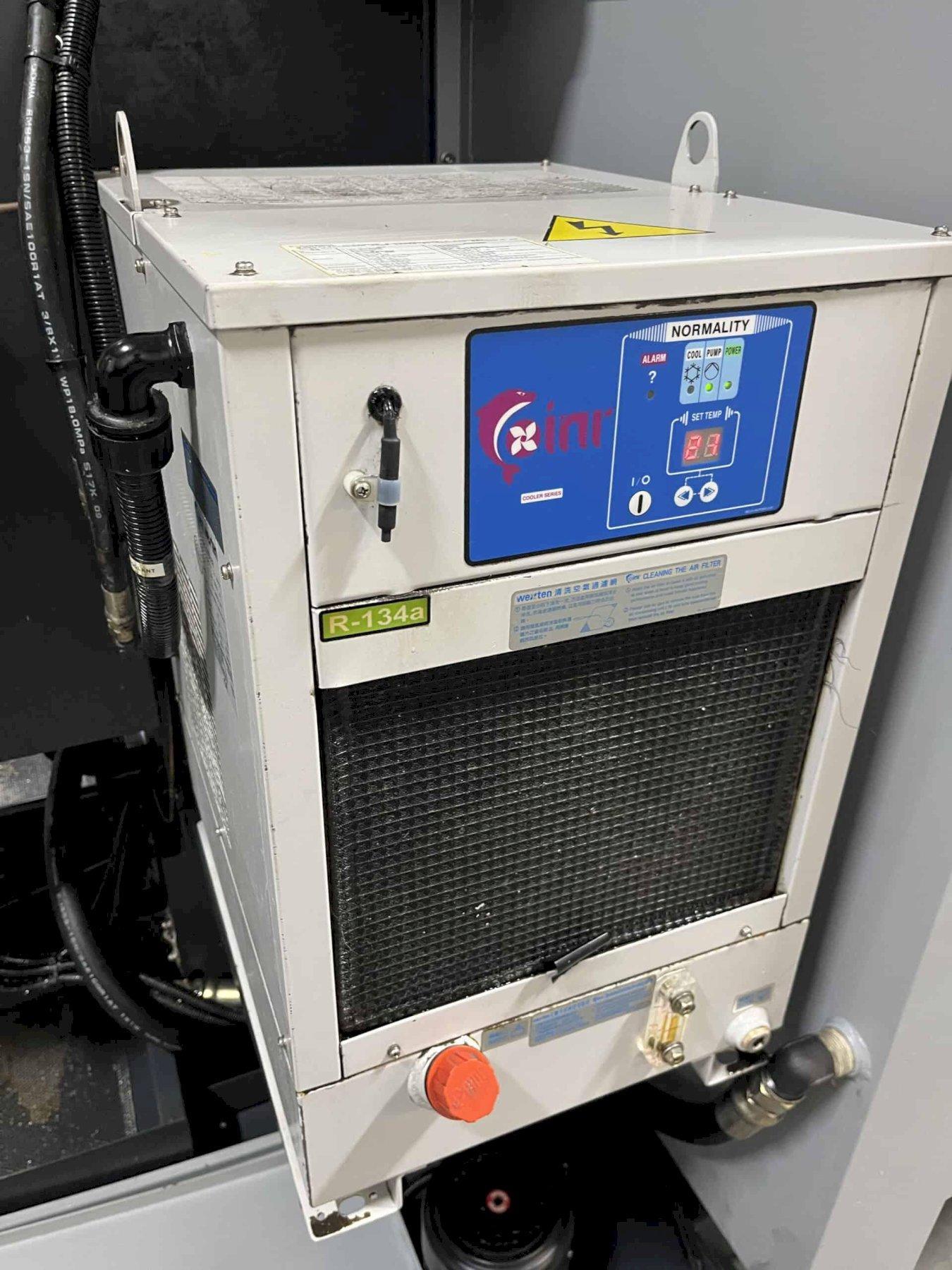

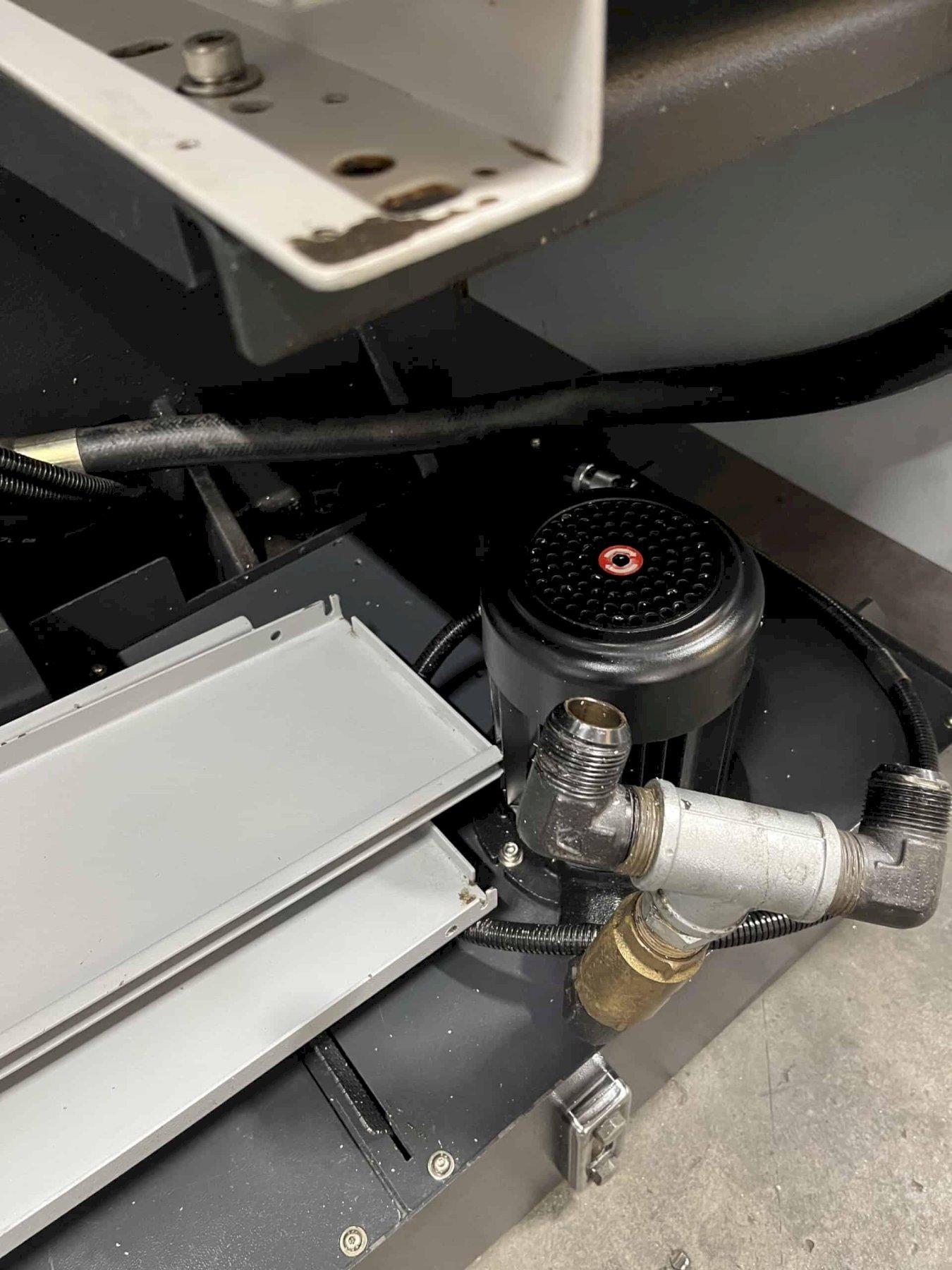

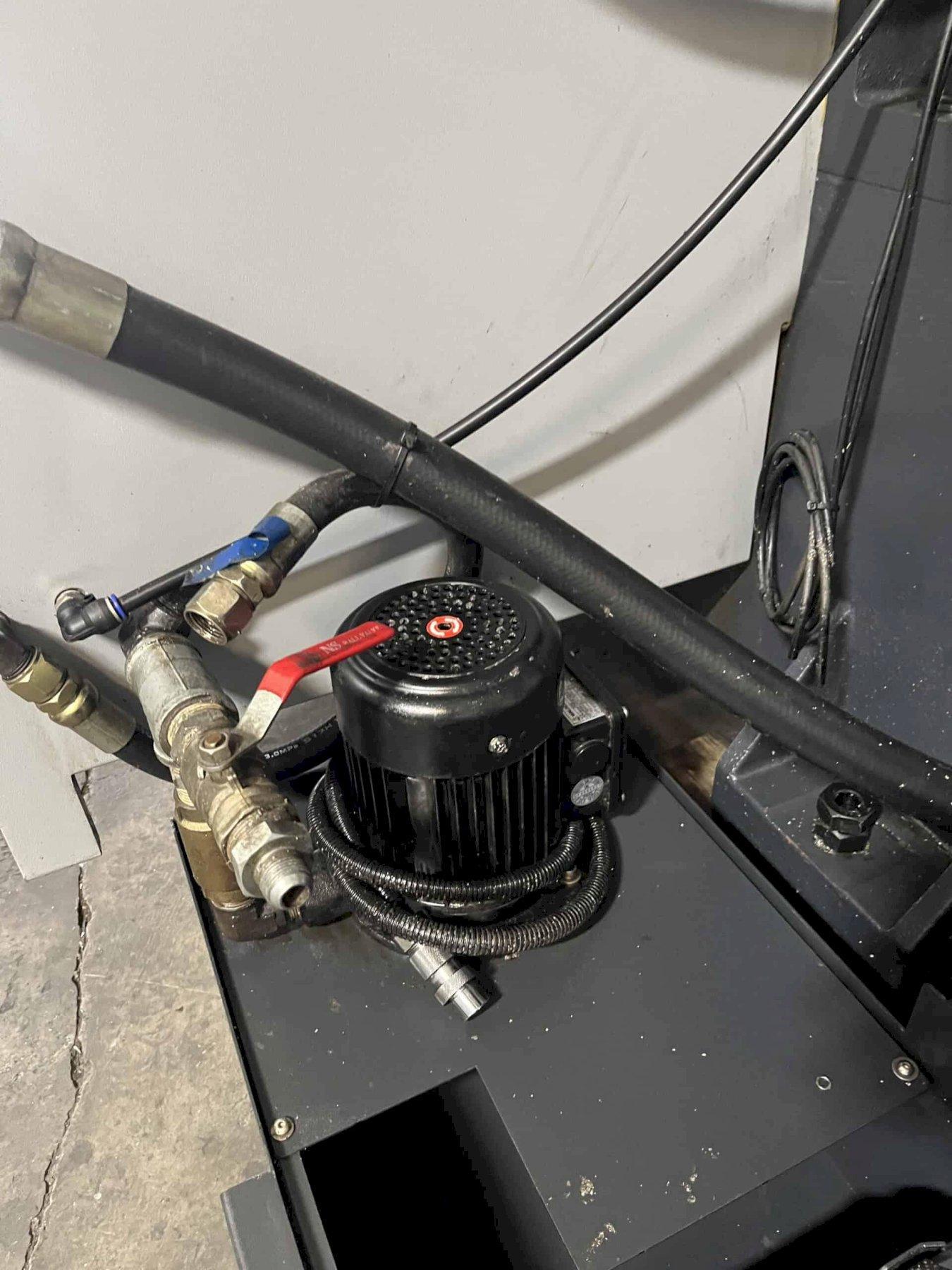

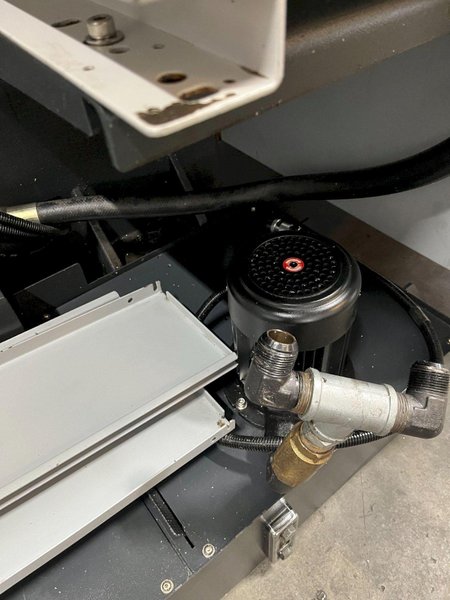

Coolant System
Chip Tray
Levelling Pads
Travels:
X-Axis: 25.2″
Y-Axis: 16.9″
Z-Axis: 18.1″
Rapid Traverse Rates: 787 IPM
Cutting Feed Rates: 394 IPM
Spindle Nose to Table (Min.- Max.): 3.1″ – 21.2″

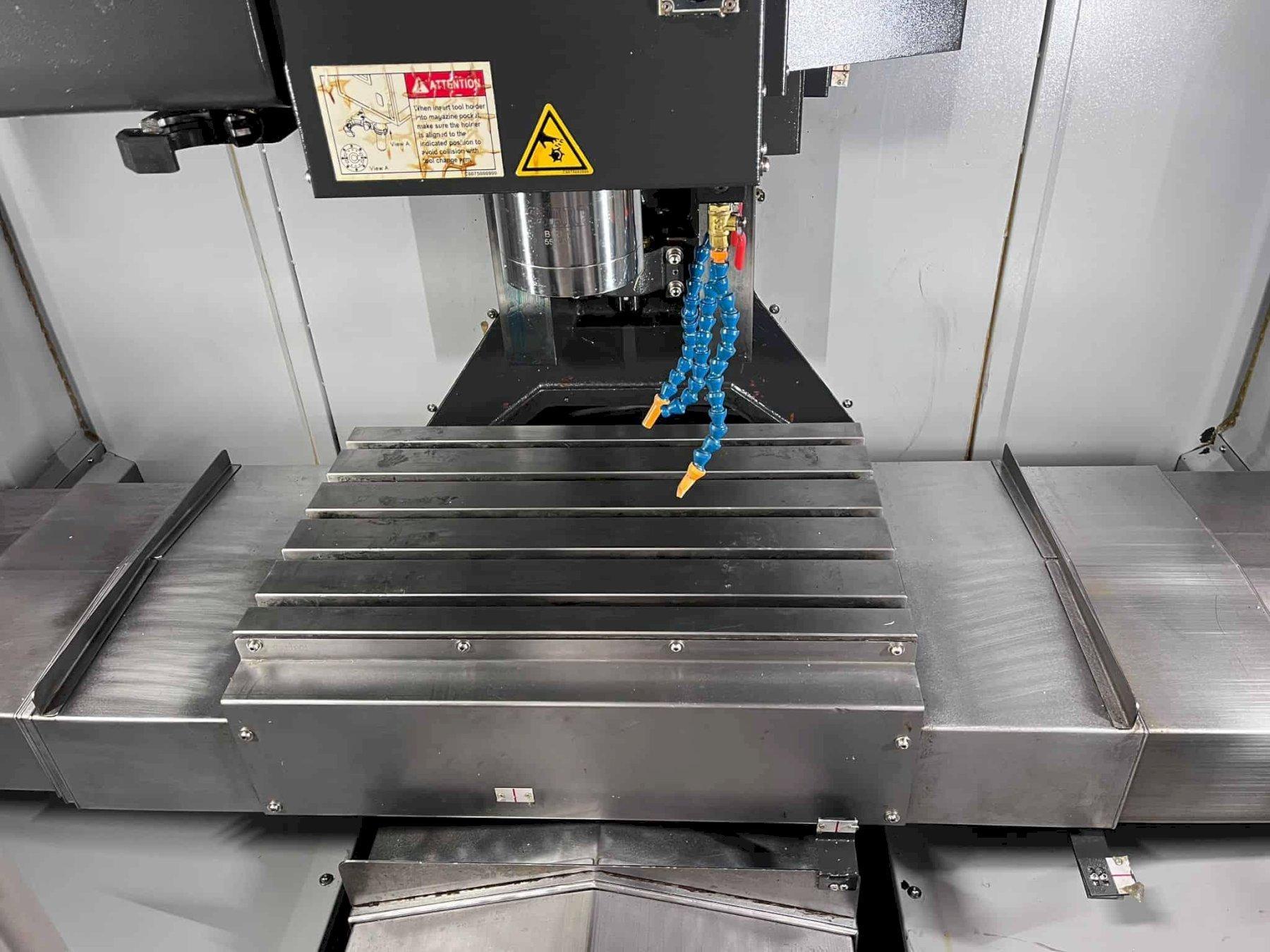

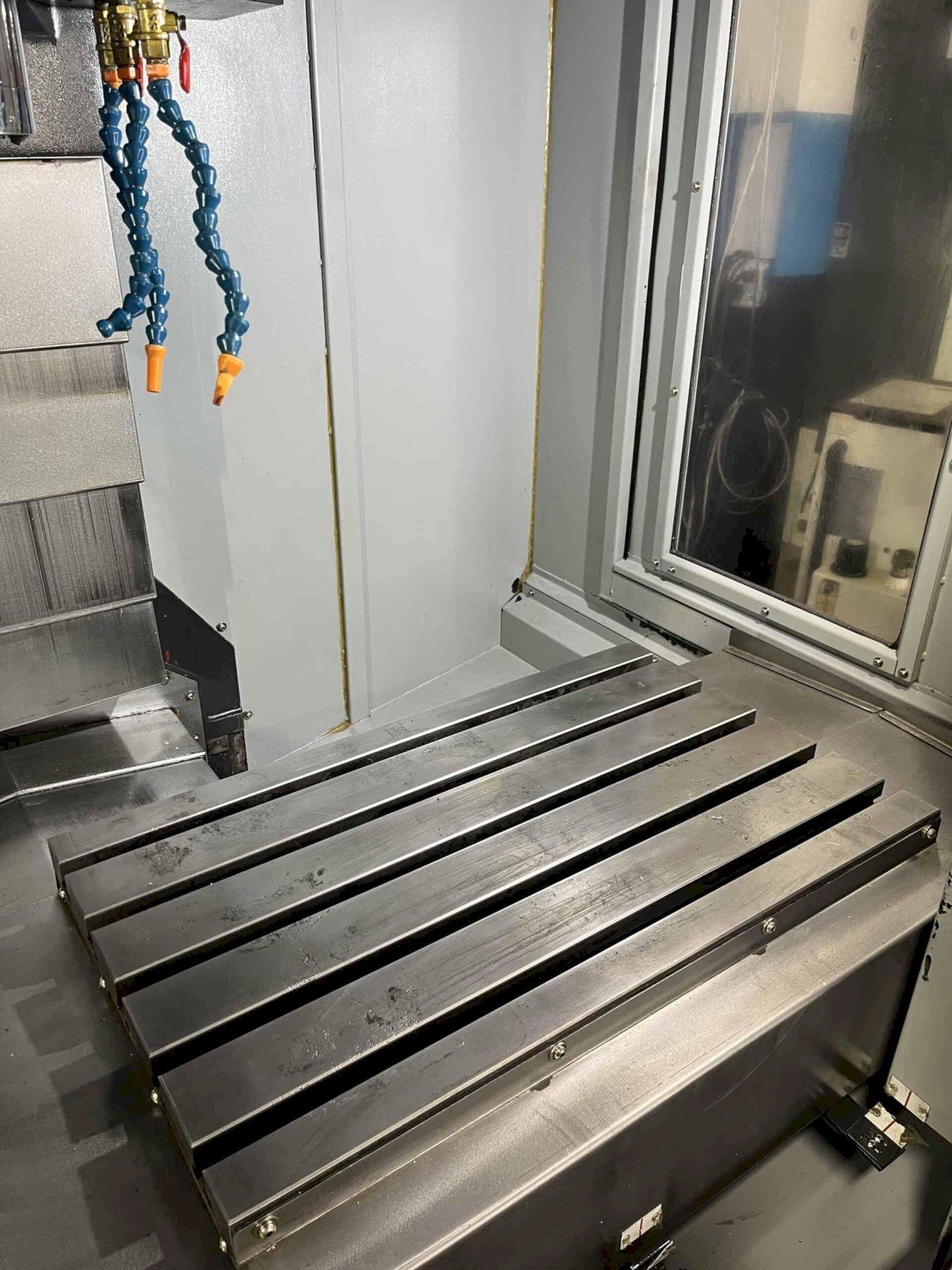

Table:
Length: 27.5″
Width: 16.5″
T-slot (no. x width x pitch): 5 x 0.7″ x 3.14″
Max Weight on Table: 660 lbs

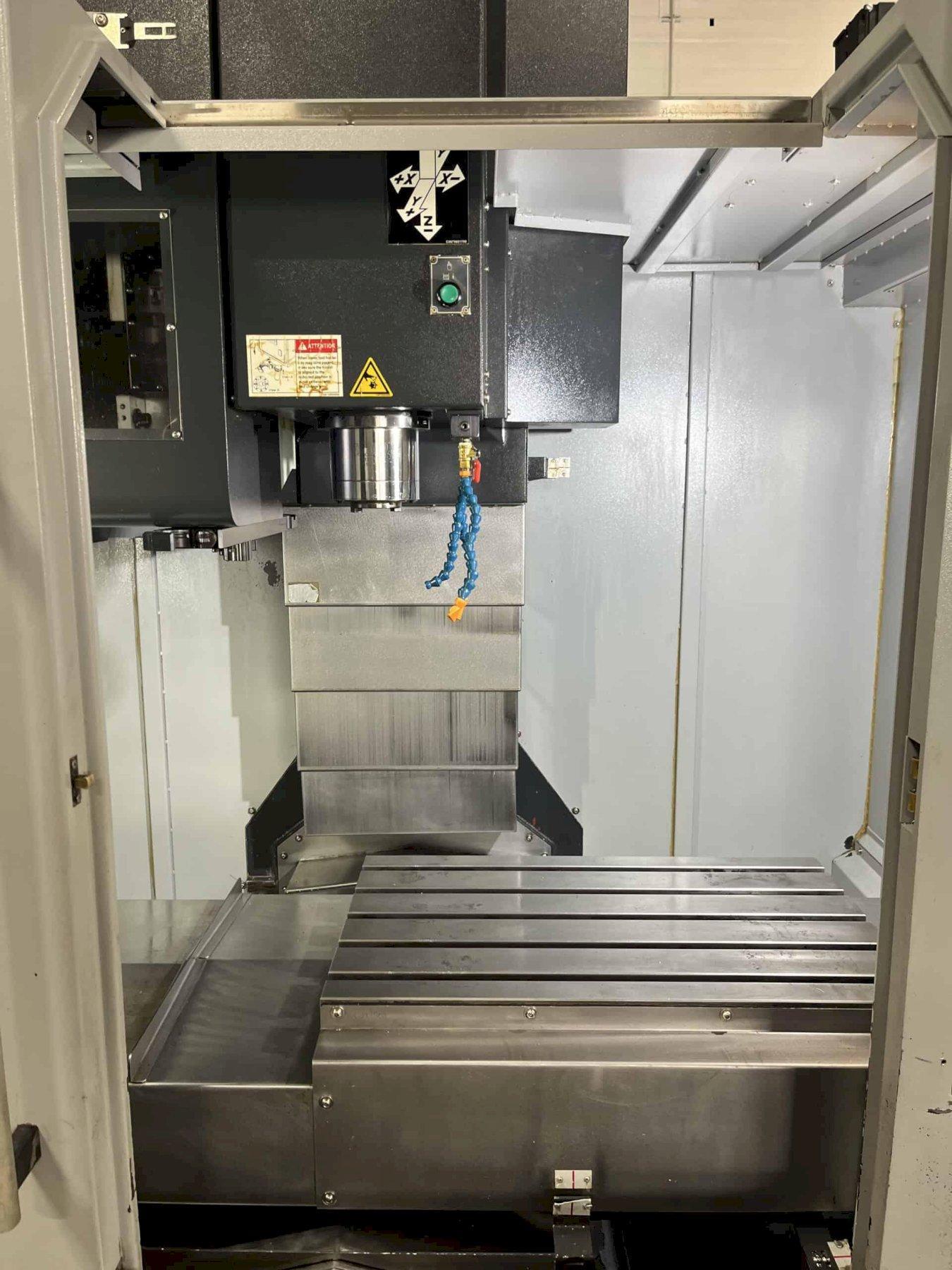

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 10 HP
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 15.4 lbs
Max Tool Dia: 2.9″ – 5.9″
Max Tool Length: 11.8″
General:

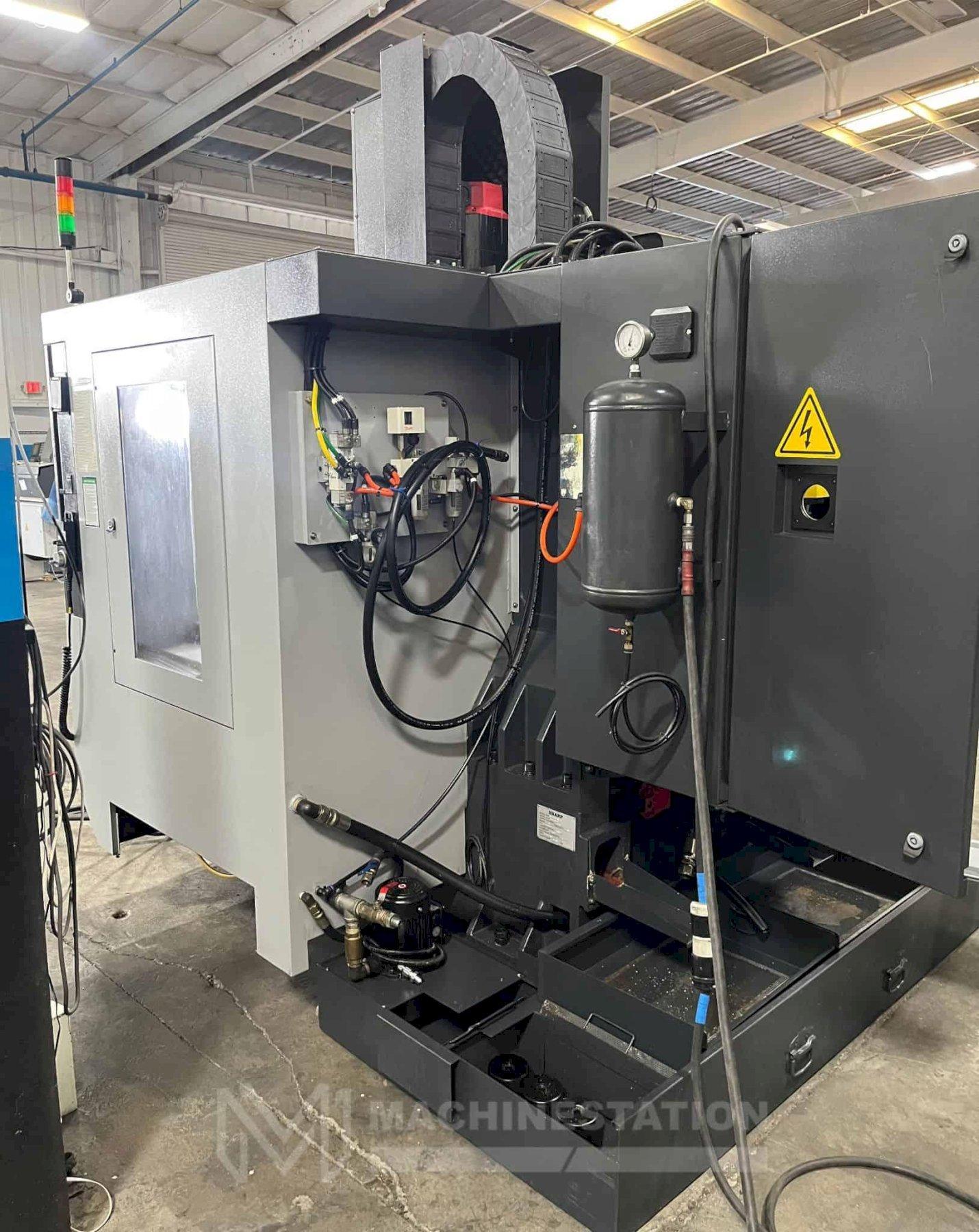

Air Required: 80 psi, 4 scfm
Power: 220v / 60 Hz / 3-Phase
Overall Dimensions: 79″ x 101″ x 100″ High Approx.
Weight: 8,272 lbs Approx.
