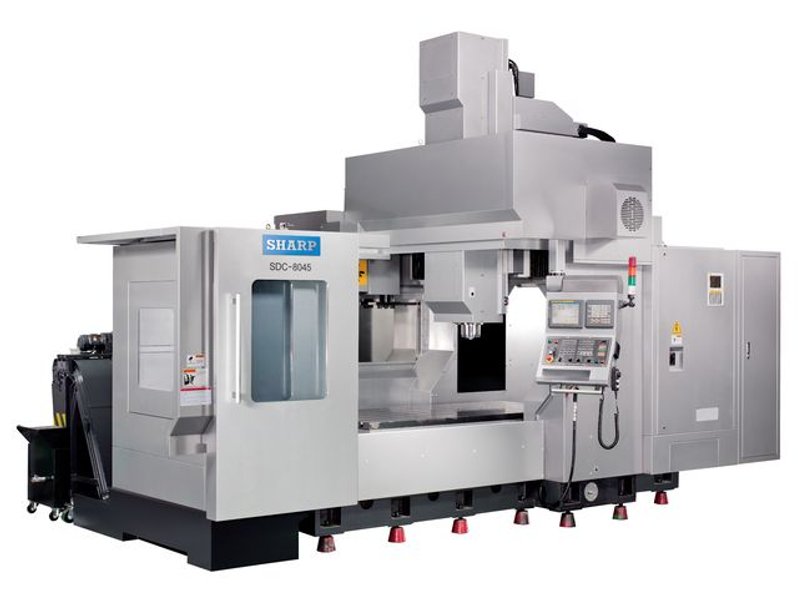

NEW SHARP SDC-8045A-F LINEAR WAY CNC VERTICAL MACHINING CENTER

Brand
SHARP
Category
Machining Centers
Type
Machining Centers, Vertical
Model
SDC-8045A-F
Stock #
14641
Year
Not specified
Condition
New
Location
Not specified
NEW SHARP SDC-8045A-F LINEAR WAY CNC VERTICAL MACHINING CENTER

  • Double column design
  • Cross Roller Linear Guideways
  • 35 HP, 10,000 rpm spindle  CAT 50
  • Fanuc Oi-MF control and drive
  • Wt over 48,000 lbs
Work Table Area                   86.6" x 39.4"
Travels
     X Axis 80.7"
     Y Axis 45.3"
     Z Axis 27.6"
Spindle Nose To Table 7.87" - 35.43"
Distance Between Columns                                  47.2"
Max Workpiece Weight 6600 Lbs
Spindle Taper Cat 50
Spindle Speed 10,000 RPM
Spindle Motor 30 / 35 HP
Spindle Torque 103 Ft/Lb @ 1500 RPM
Transmission Direct Drive
Automatic Tool Charger Arm Type ATC
Tool Capacity 32 ATC
Max Tool Diameter 5"
Max Tool Diameter (W/O Adjacent Tool) 9"
Max Tool Length 15.74"
Max Tool Weight 33.06 Lbs
Tool Change Time
     Tool To Tool 3.5 Sec
     Chip To Chip 6.8 Sec
Method Of Tool Selection Random
Rapid Traverse
     X & Y Axes 1181 IPM
     Z Axis 630 IPM
Cutting Feed Rate 0.04 - 393.7 IPM
Feed Motors
     X Axis 9.4 HP
     Y & Z Axes 5.4 HP
Positioning Accuracy 0.0006
Repeatability Accuracy 0.0002
Coolant Tank Capacity 158 Gal
Floor Space 230.9" x 136.7"
Machine Weight 48,620 Lbs
Operator Door Opening 80.7"
Electrical 220V/ 3 Phase / 60Hz / 35 KVA
Air 8 CFM @ 100 PSI

  • Fanuc Oi-MF (type 1) control
  • Remote electronic handle (MPG)
  • Fully enclosed metal covers
  • Cross Roller Guideways
  • Doble anchored, pre-tensioned high precision ball screws
  • Spindle chiller
  • Heat exchange for electric cabinet
  • Dual auger on each side of machine
  • Auto lube system with alarm
  • Rigid taping
  • 158 gallon coolant tank
