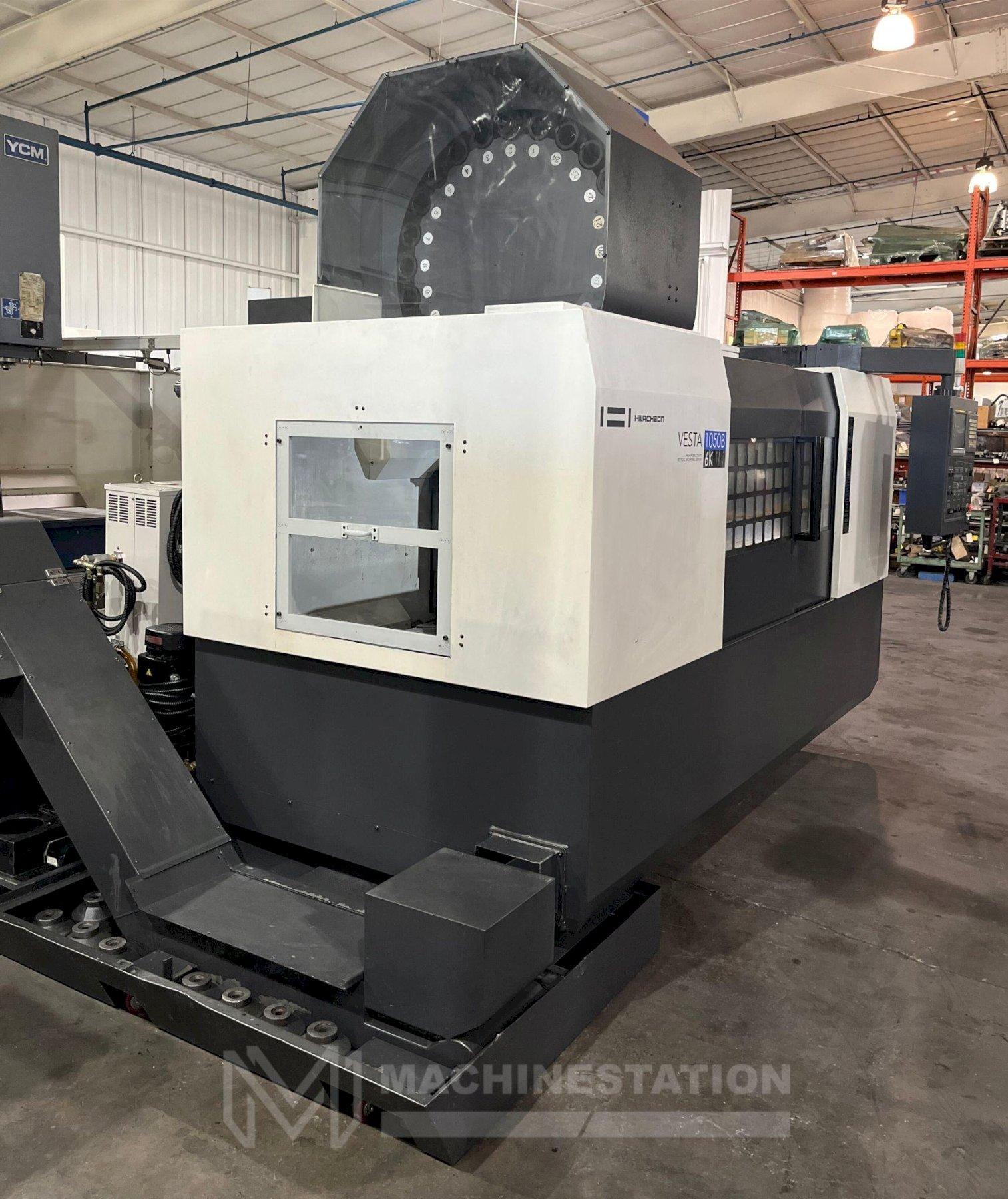

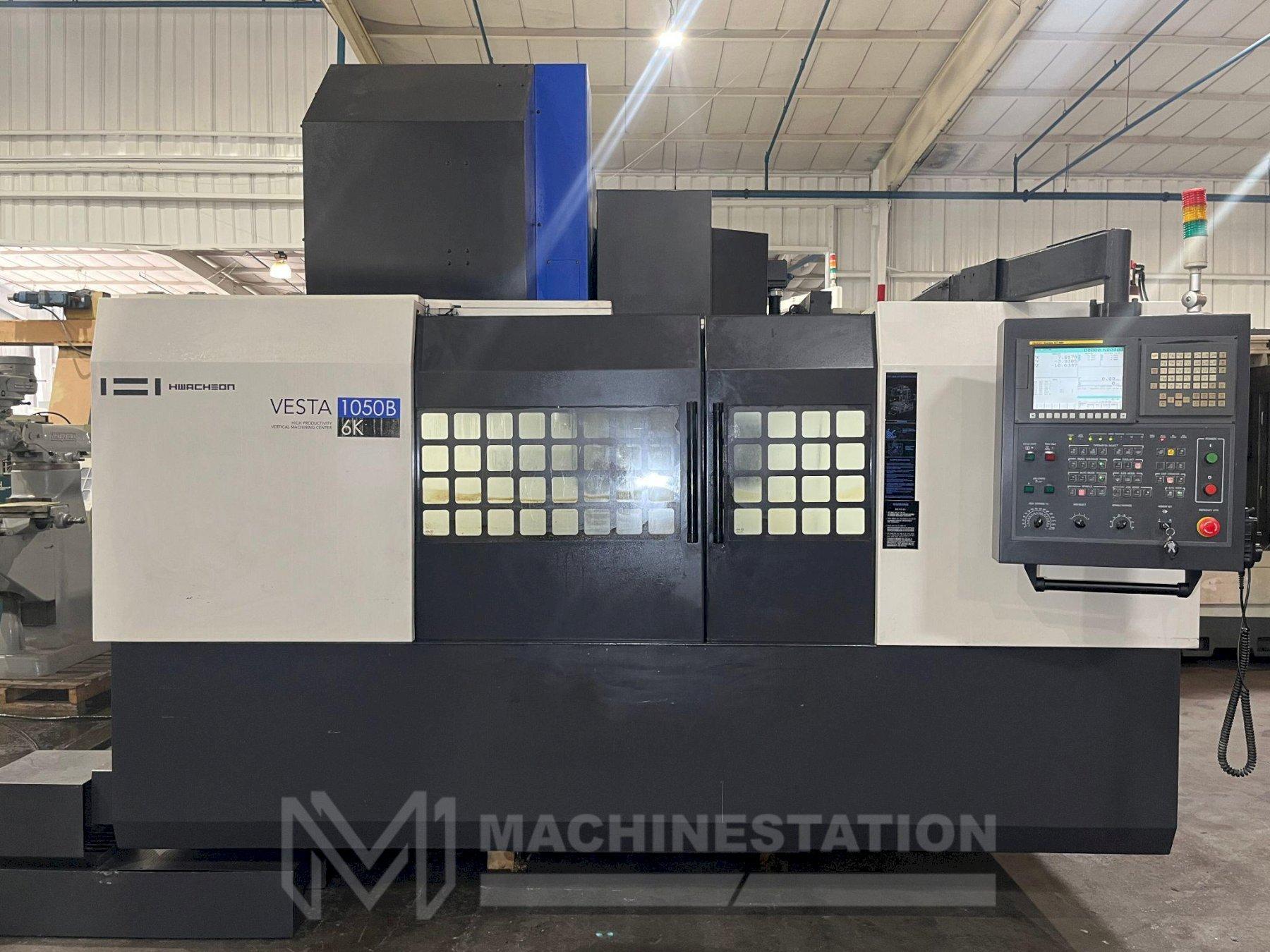

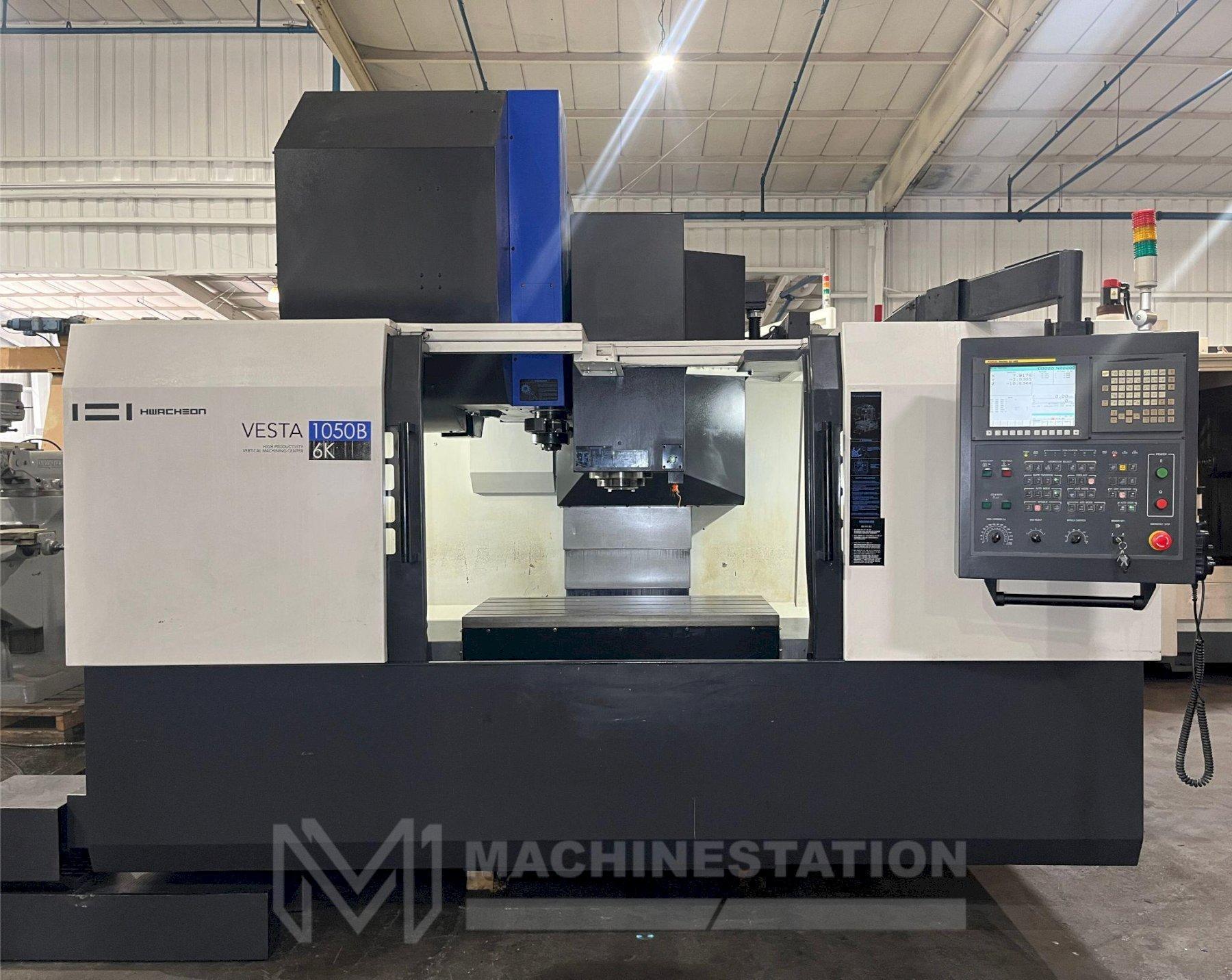

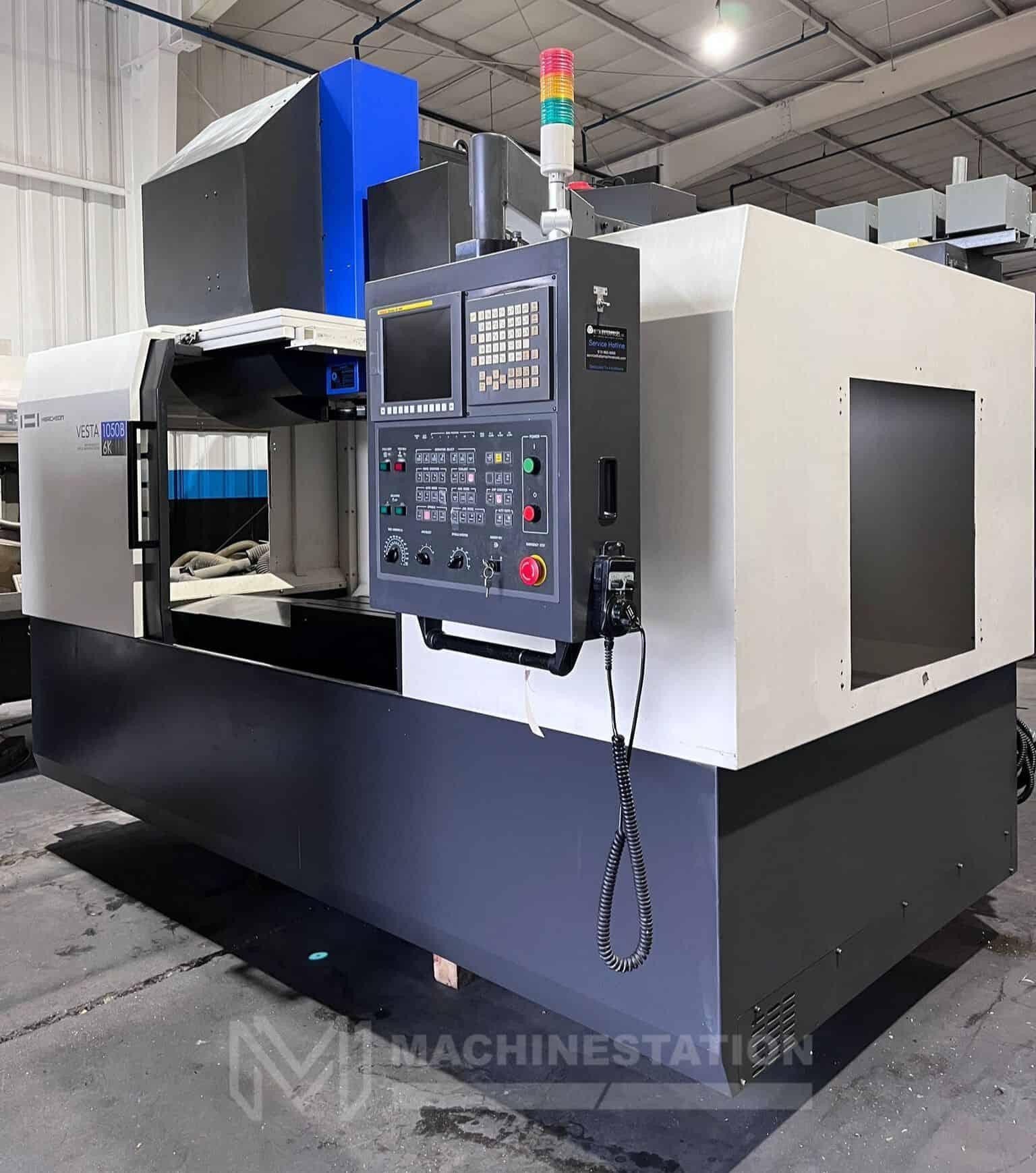

Hwacheon Vesta 1050B CNC Vertical Machining Center – 50 Taper Mill

Brand
HWACHEON
Category
Machining Centers
Type
Machining Centers, Vertical
Model
Hwacheon Vesta 1050B
Stock #
112776
Year
2010
Condition
Not specified

Location

Not specified
REQUEST FINANCING

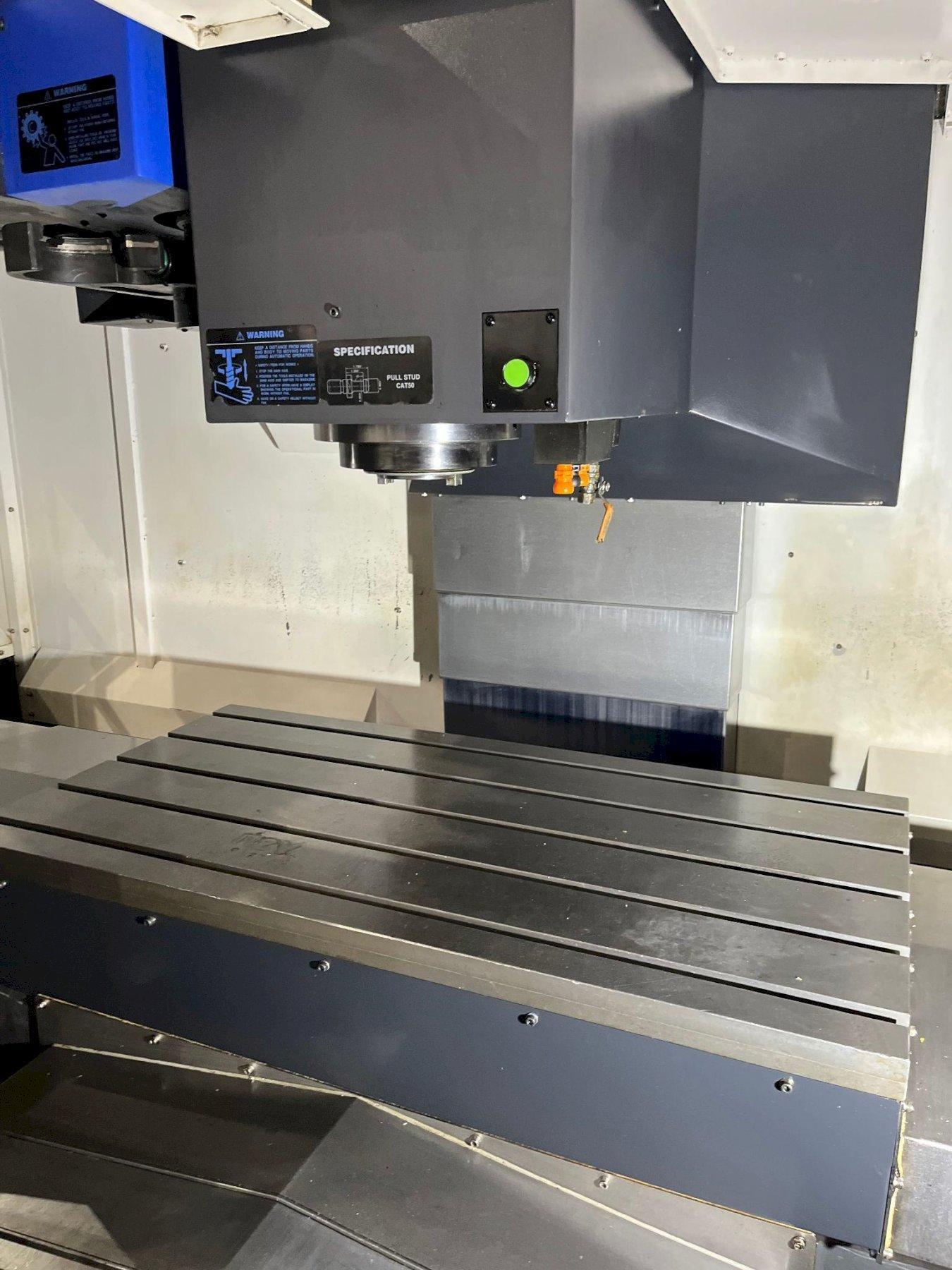

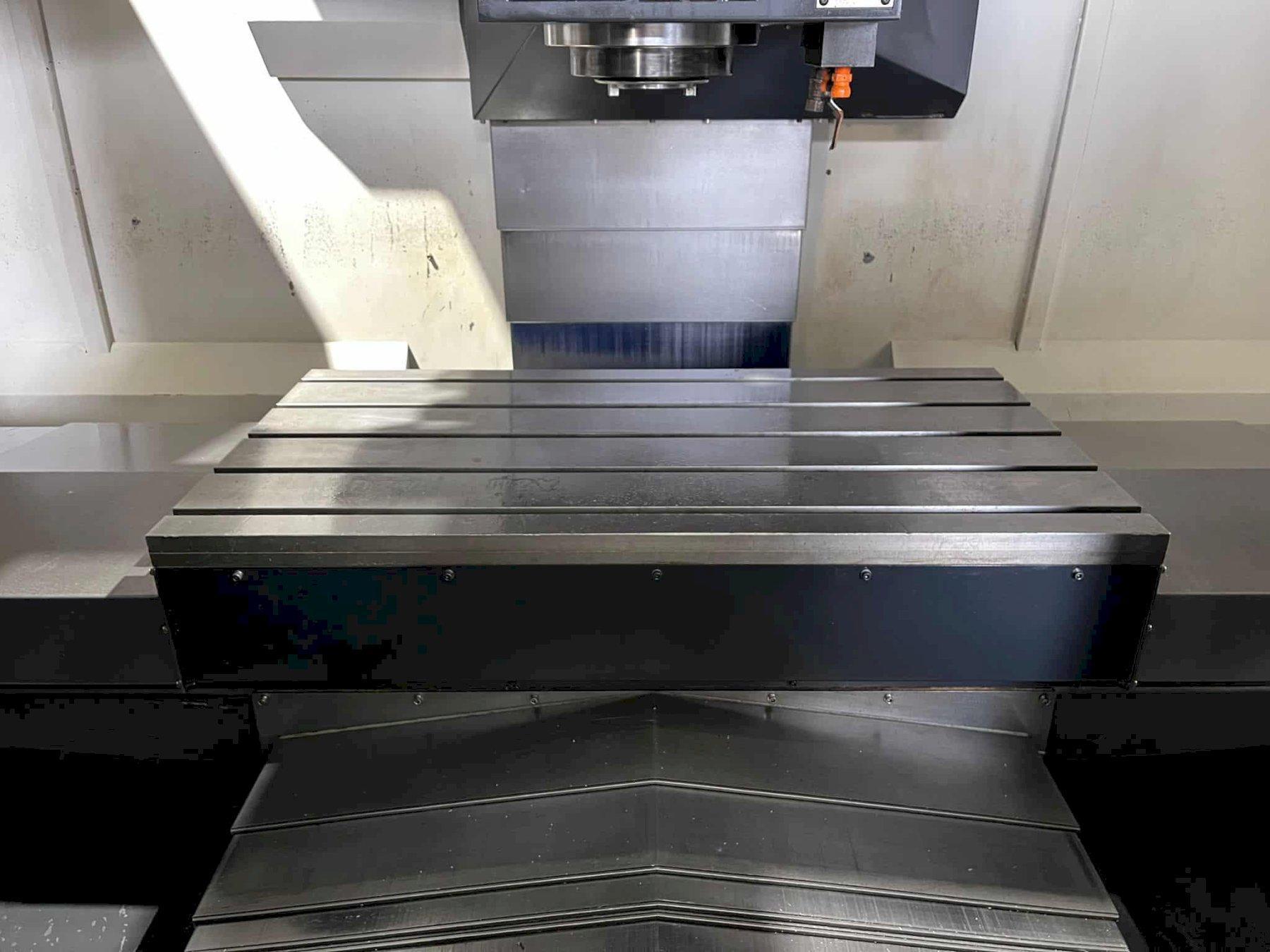

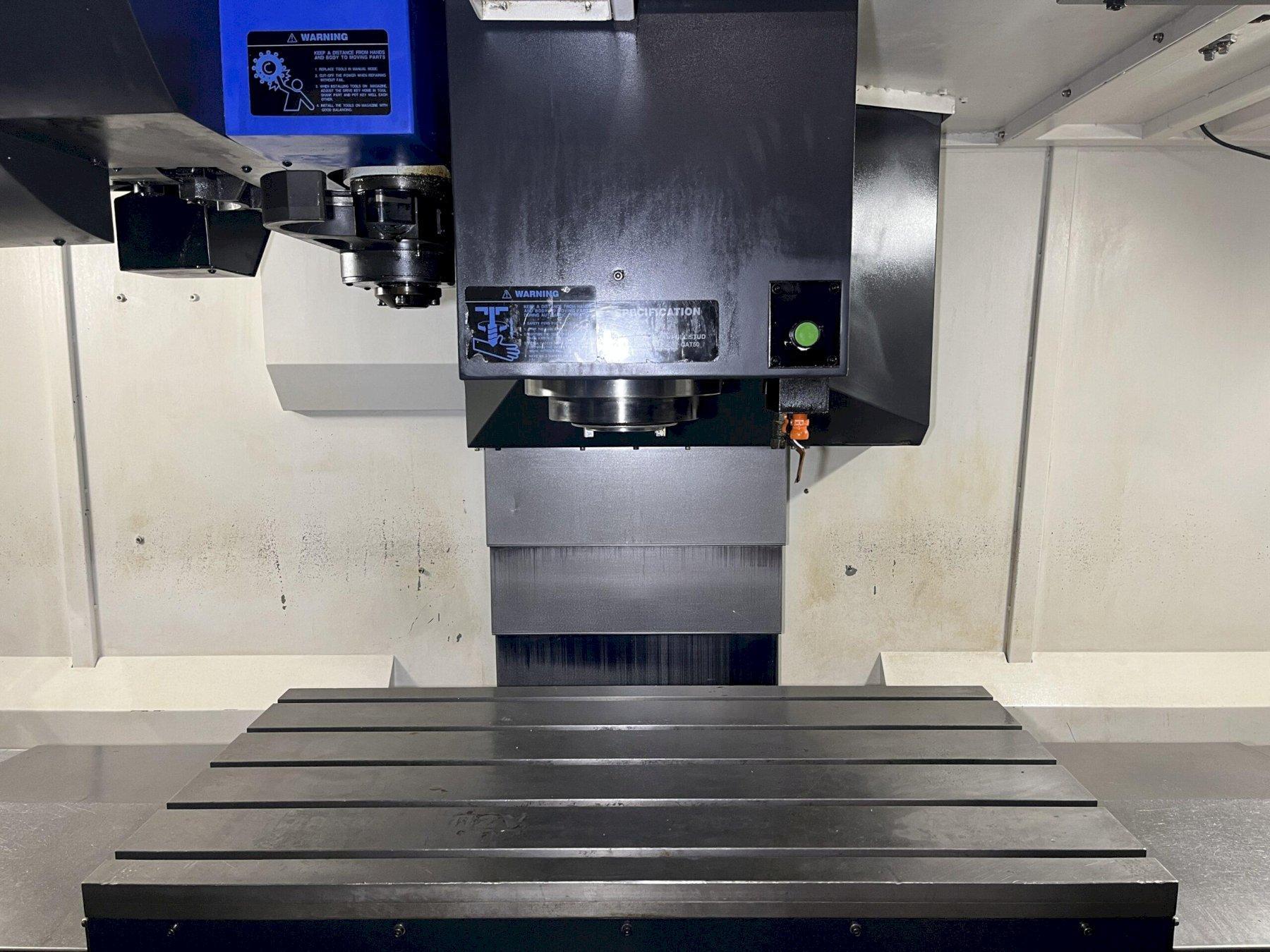

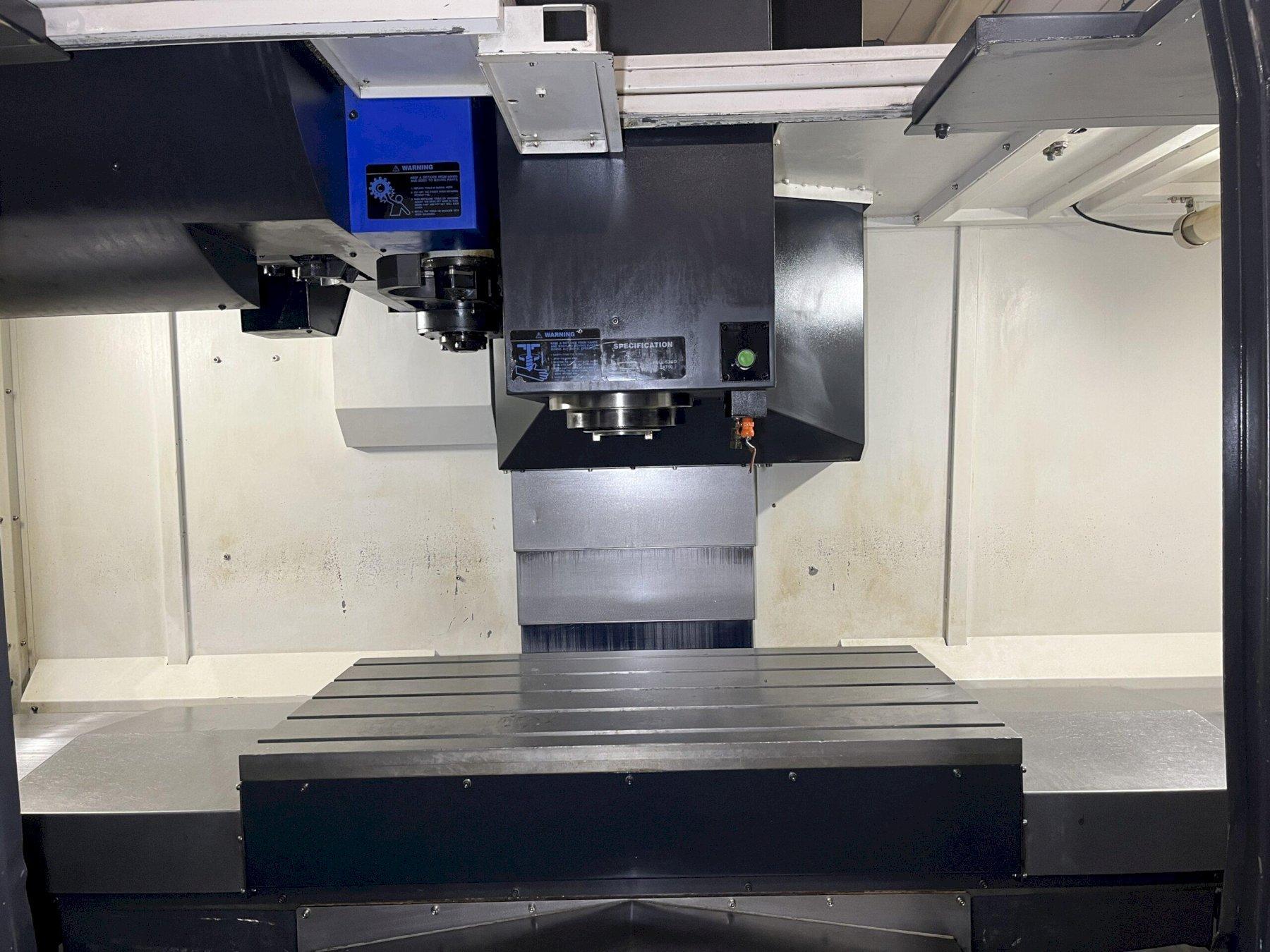

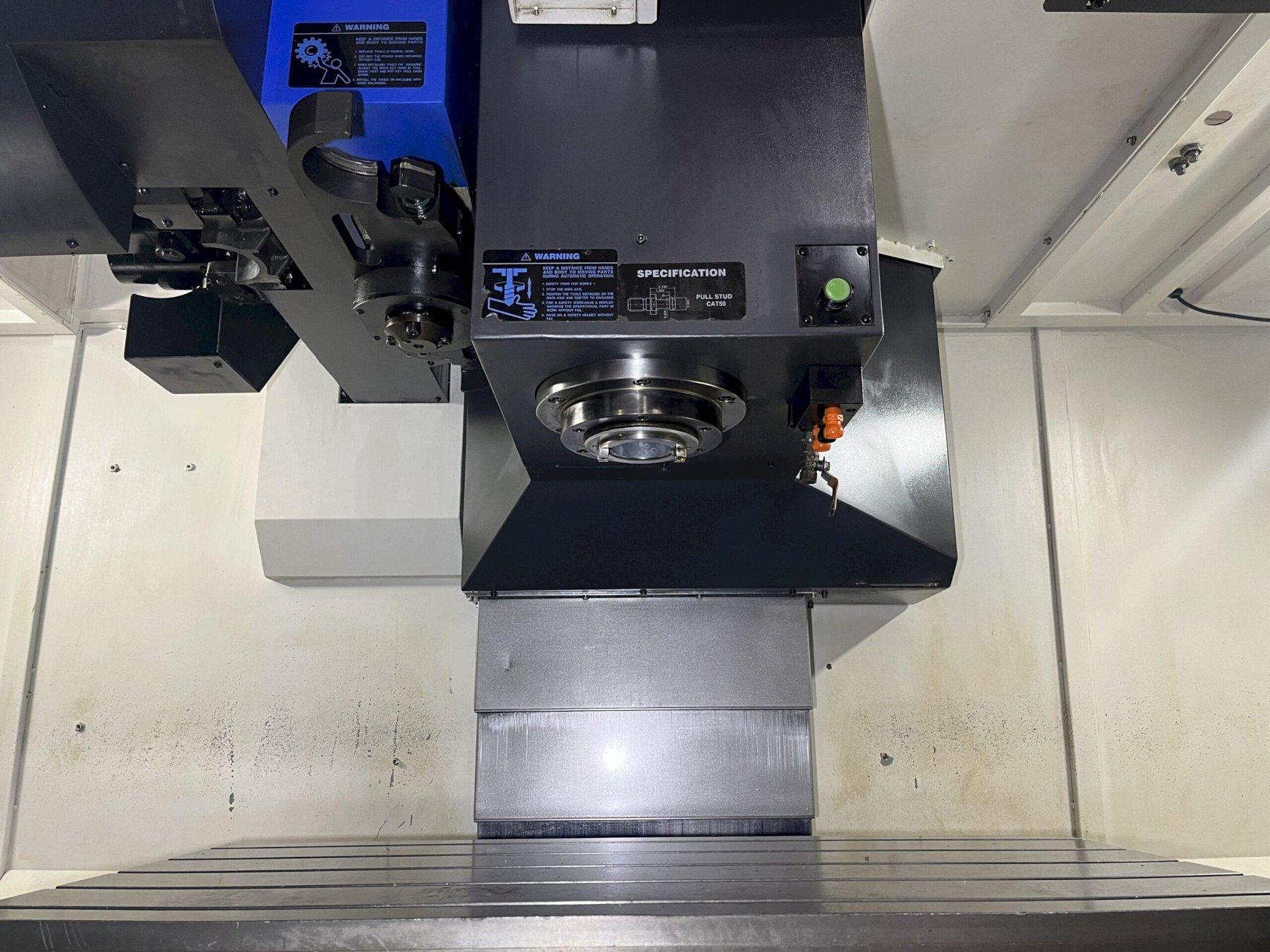

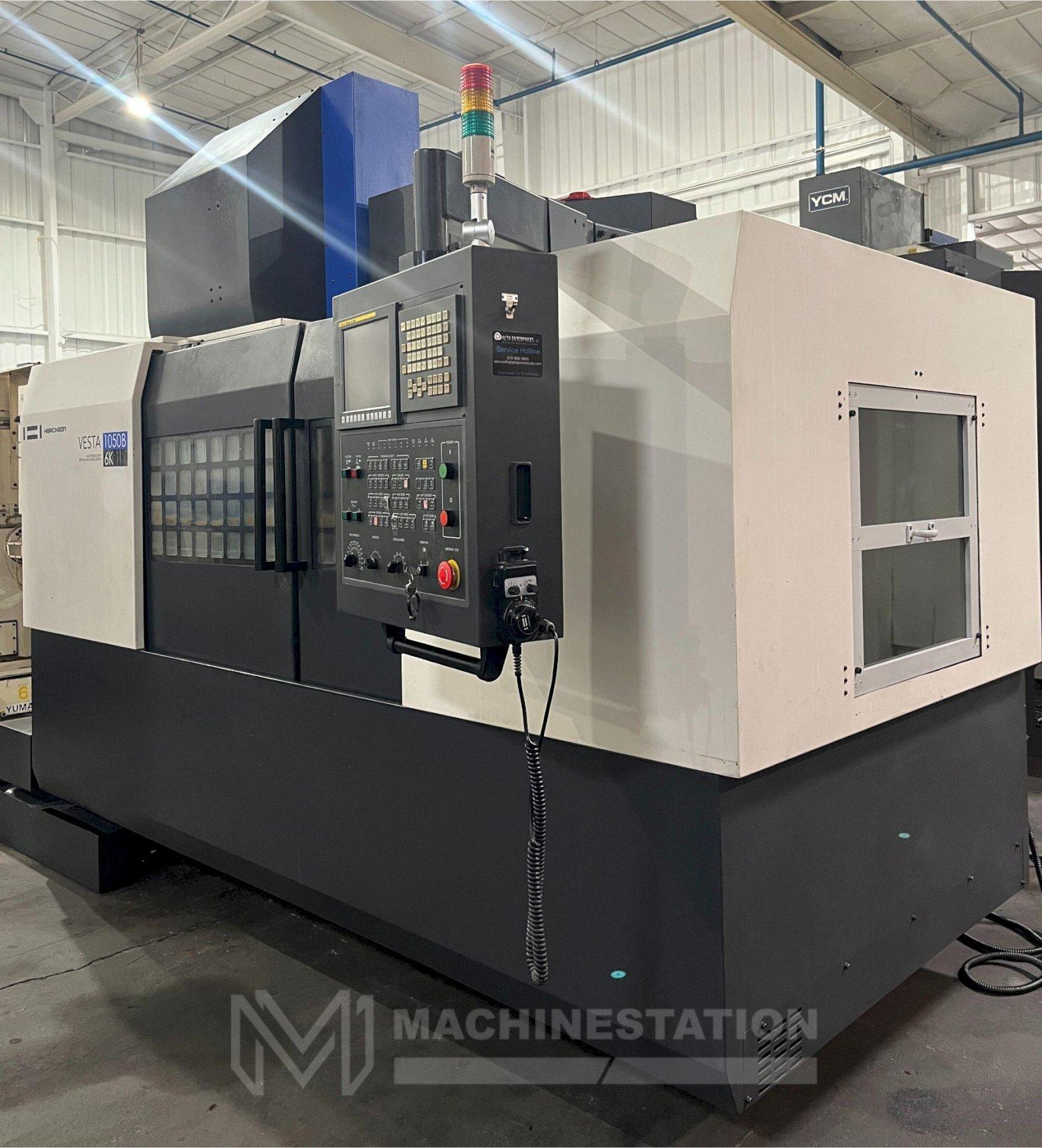

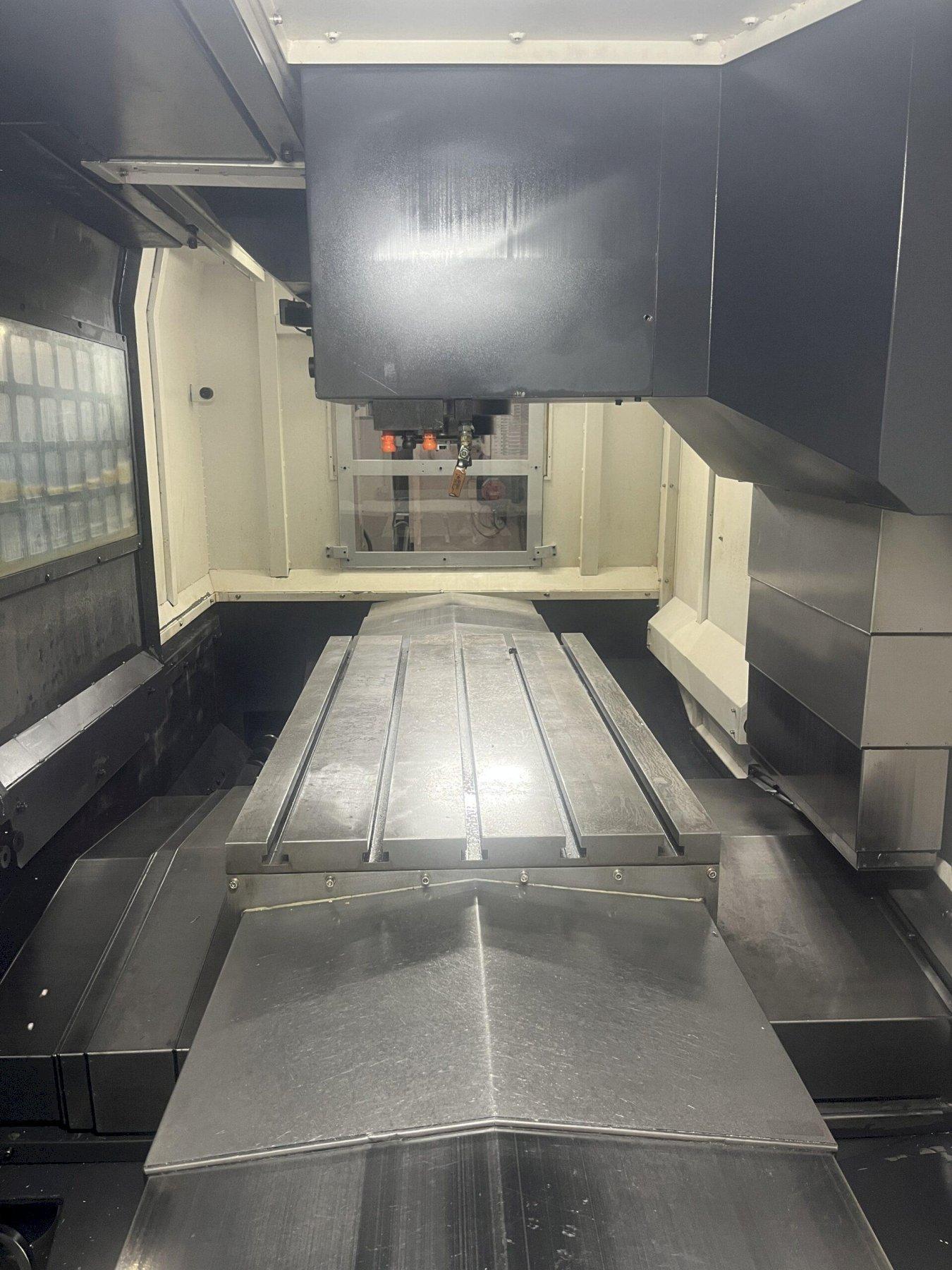

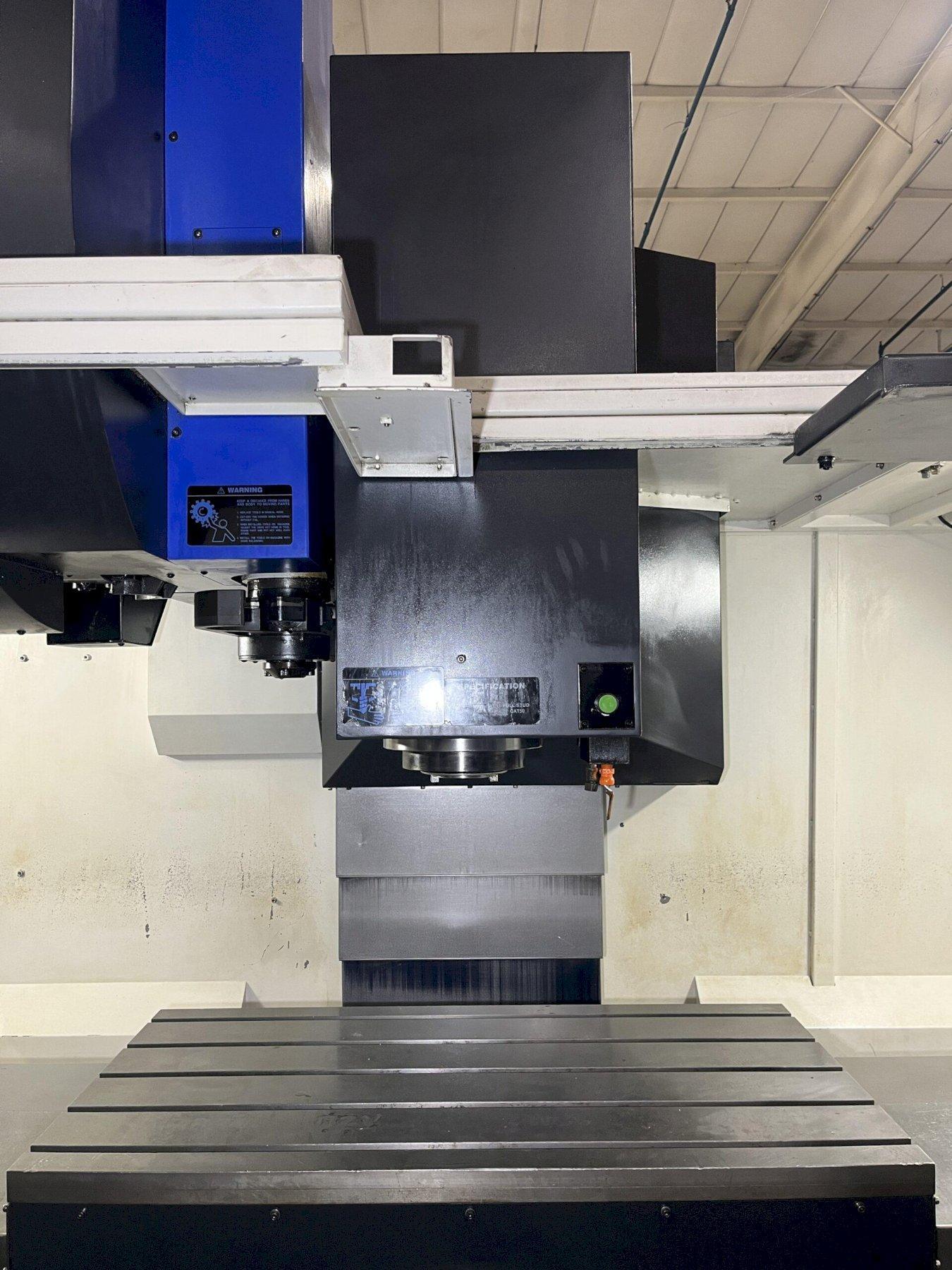

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:112776
Make:Hwacheon
Model No.:Vesta 1050B
Year of Manufacture:2010
ConditionUsed –  Good
Equipped With:

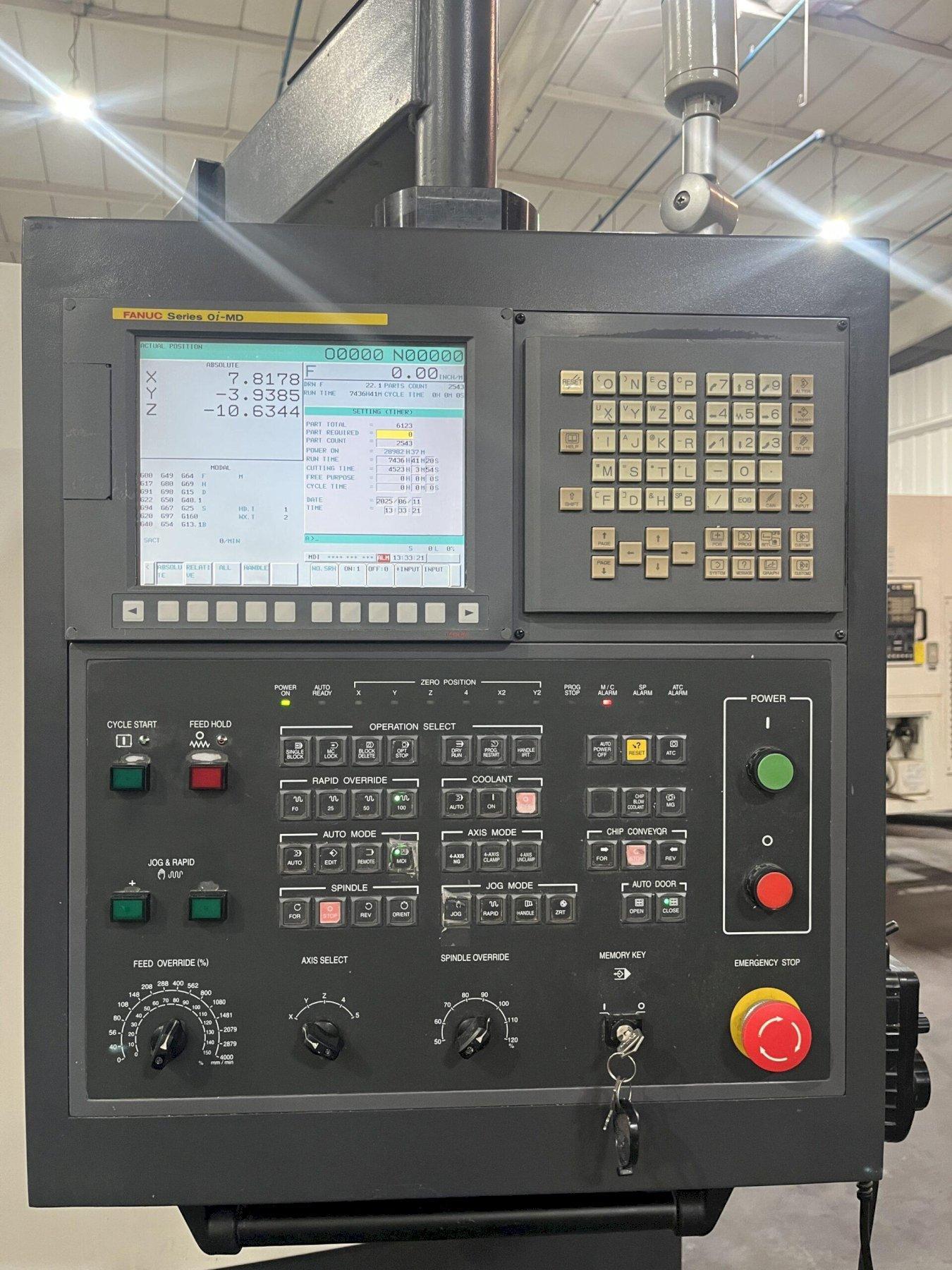

Fanuc Oi-MD Series CNC Control
Heavy Duty Box Way Construction
Through Spindle Coolant
6,000 RPM Gear Head Spindle
CAT-50 Taper Spindle
24 Station Automatic Tool Changer
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic Way Covers
Oil Chiller
Coolant system
Chip Conveyor
Travels:
X-Axis: 41.34″
Y-Axis: 23.62″
Z-Axis: 23.62″
Rapid Traverse Rates X & Y Axis: 945 Inch Per Minute
Rapid Traverse Rates Z Axis: 709 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.92″ – 28.54″

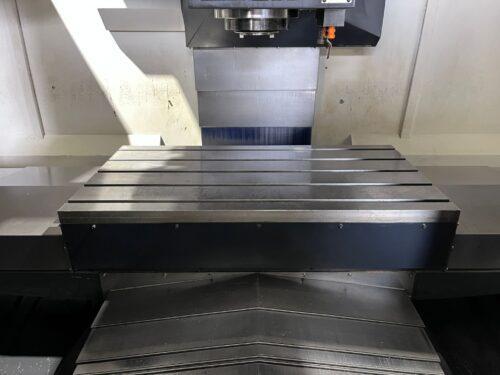

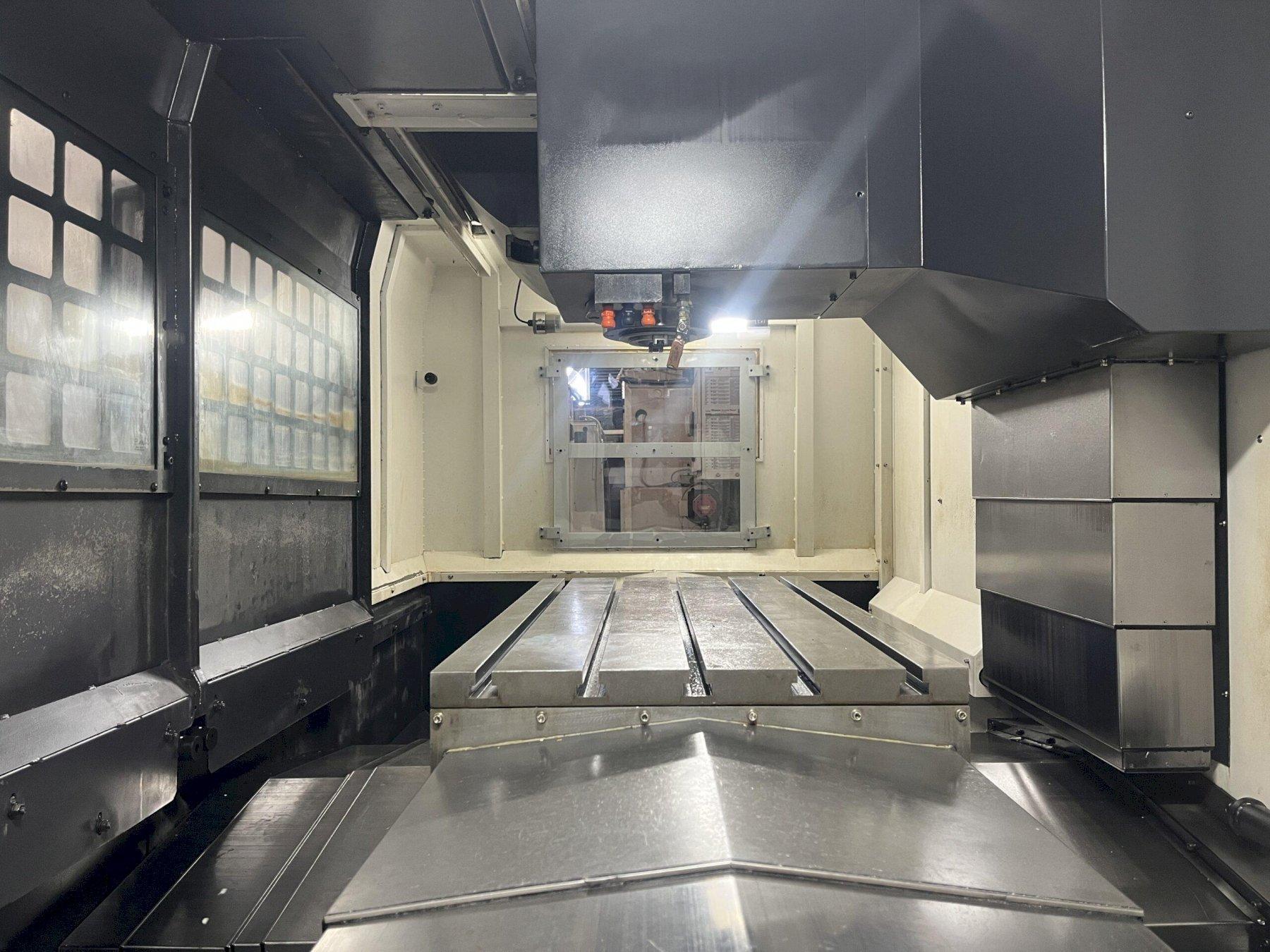

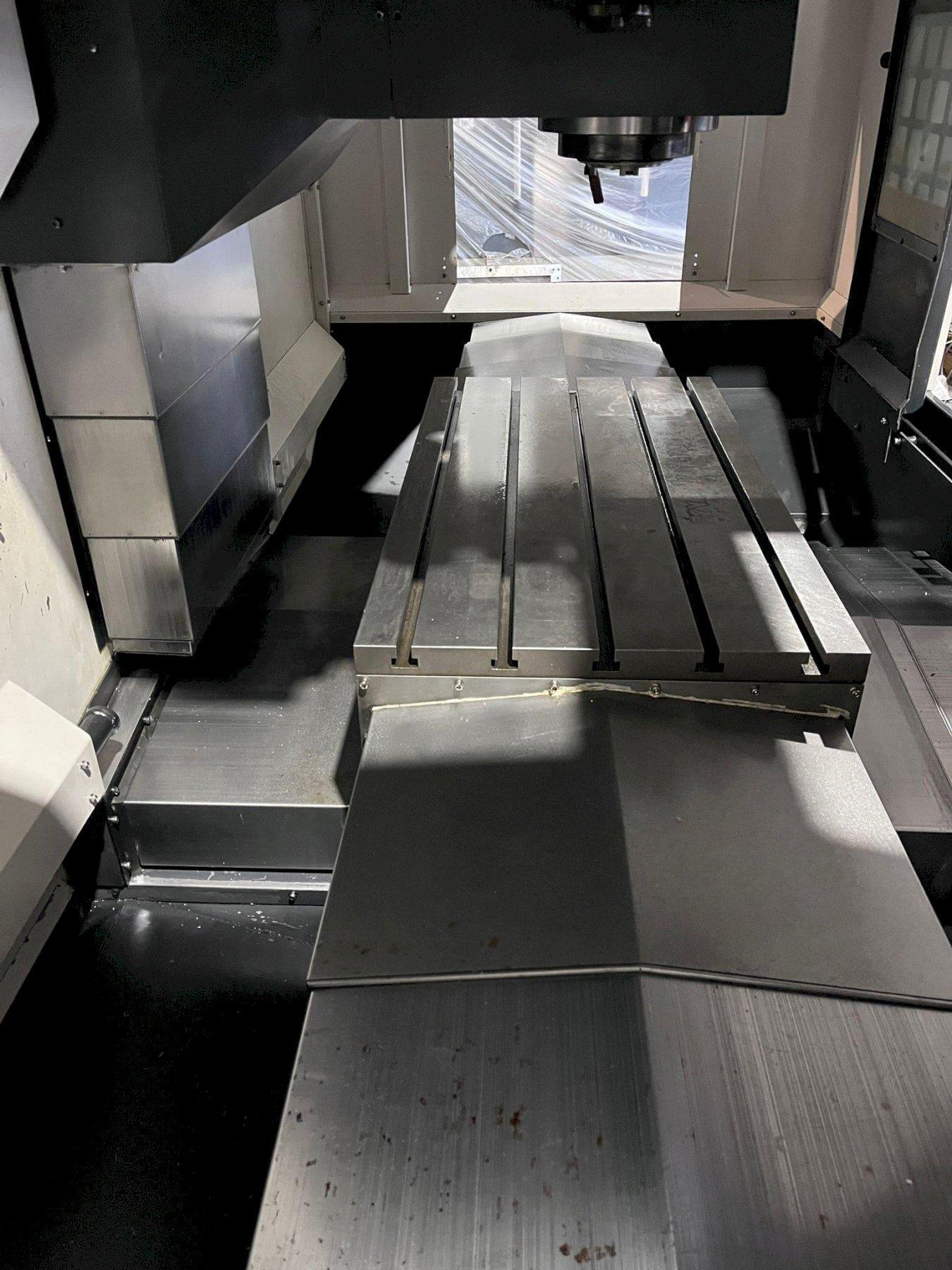

Table:
Length: 45.28″
Width: 23.62″
Number of Std T-Slots: 5
T-Slot Width: 0.71″ x 4.72″
Max Weight on Table: 2205 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 6,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 44.09 lbs
Max Tool Dia: 4.92″ – 9.65″
Max Tool Length: 13.78″
Tool Changing Time: 2.5 Seconds
General:
Air Required: 80 psi 4 scfm
Power: 220v / 40 kva / 3-Phase
Overall Dimensions: 166″ x 85″ x 114″ High Approx.
Weight: 16,535 lbs Approx.
