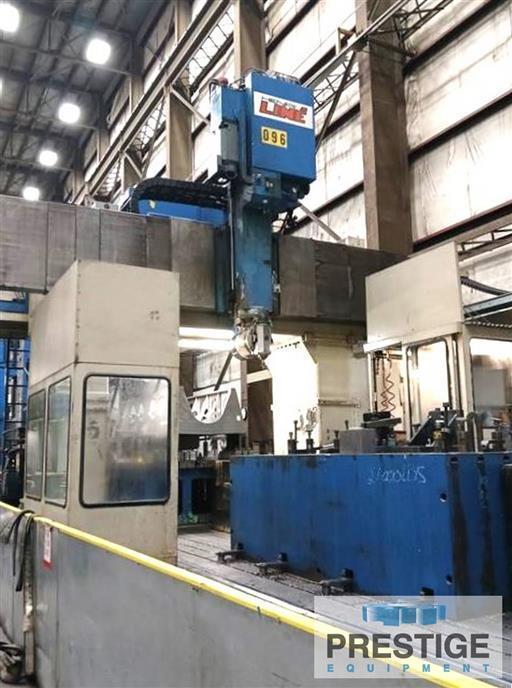

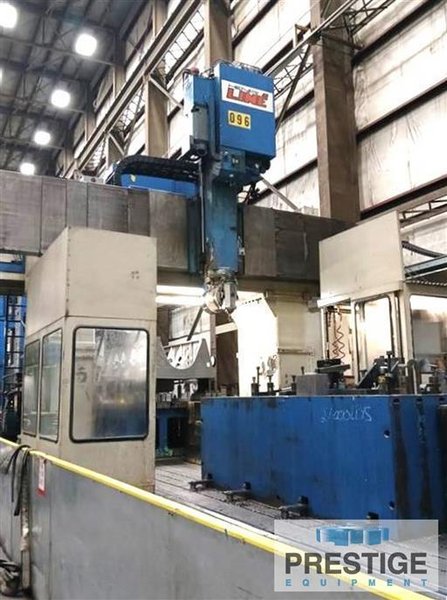

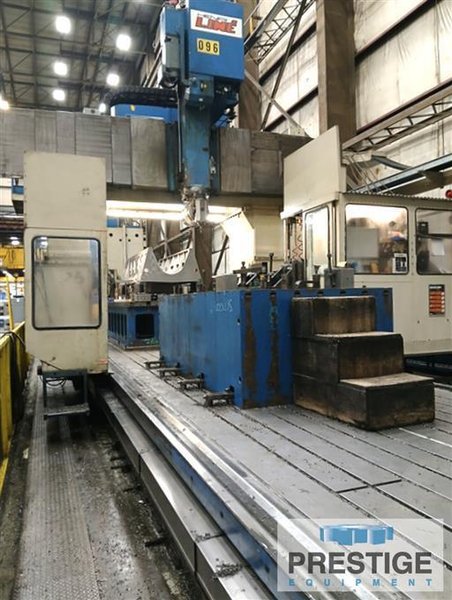

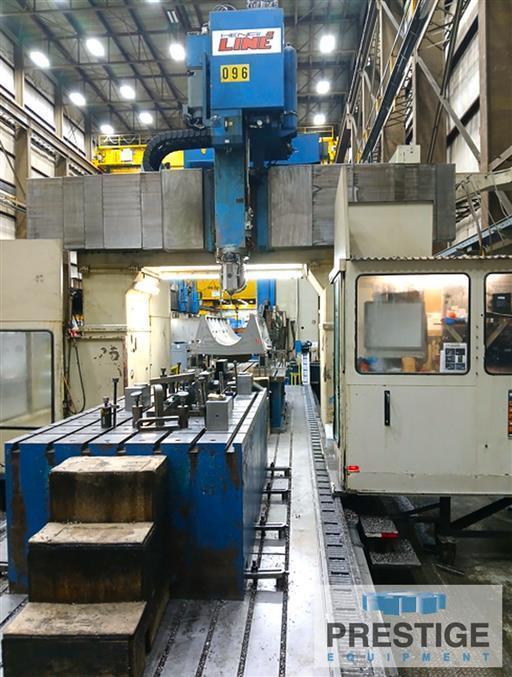

Henri Line Gicamill 29 LS/3 CNC Gantry Mill
Brand
Category
Model
Gicamill 29 LS/3
Stock #
44205
Year
1997
Condition
Not specified
Location
Not specified
|
CAPACITY:
Gantry Travel, X-Axis 551" Head Travel, Y-Axis 135" Ram Stroke, Z-Axis 49" Height Under Rail w/ out Riser 68.7" Height Under Rail w/ Riser 104.4" C-Axis 0-360 degrees A-Axis +/- 110 Degrees Spindle Motor 50 HP (37 KW) Spindle Taper CAT 50 Table Size, T-Slotted 629" x 98" Distance Between Columns 120" Spindle Speeds, Max (2-Range) 3000 RPM Low Speed Range 0-899 RPM High Speed Range 900-3000 RPM Floor Space 629" x 98" Machine Height w/ Riser 243" Machine Height w/out Riser 207" Equipped With: Fanuc 15M-B CNC Control Traveling Gantry Design 2-Axis RM40 Head 629" x 98" T-Slotted Table Note: Inspect In Plant Under Power! Fixture/Riser tables in photos are not included |
