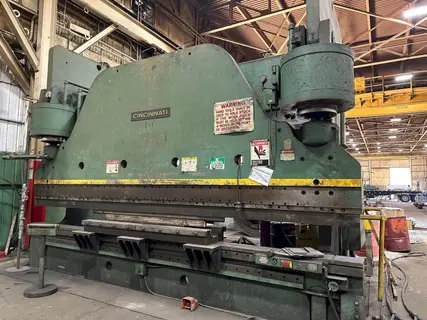

1,000 TON x 20' CINCINNATI HYDRAULIC PRESS BRAKE: STOCK #23424
Brand
Category
Type
Model
Not specified
Stock #
23424
Year
Not specified
Condition
Good
Location
Ohio
| Weight | 161700 pounds |
|

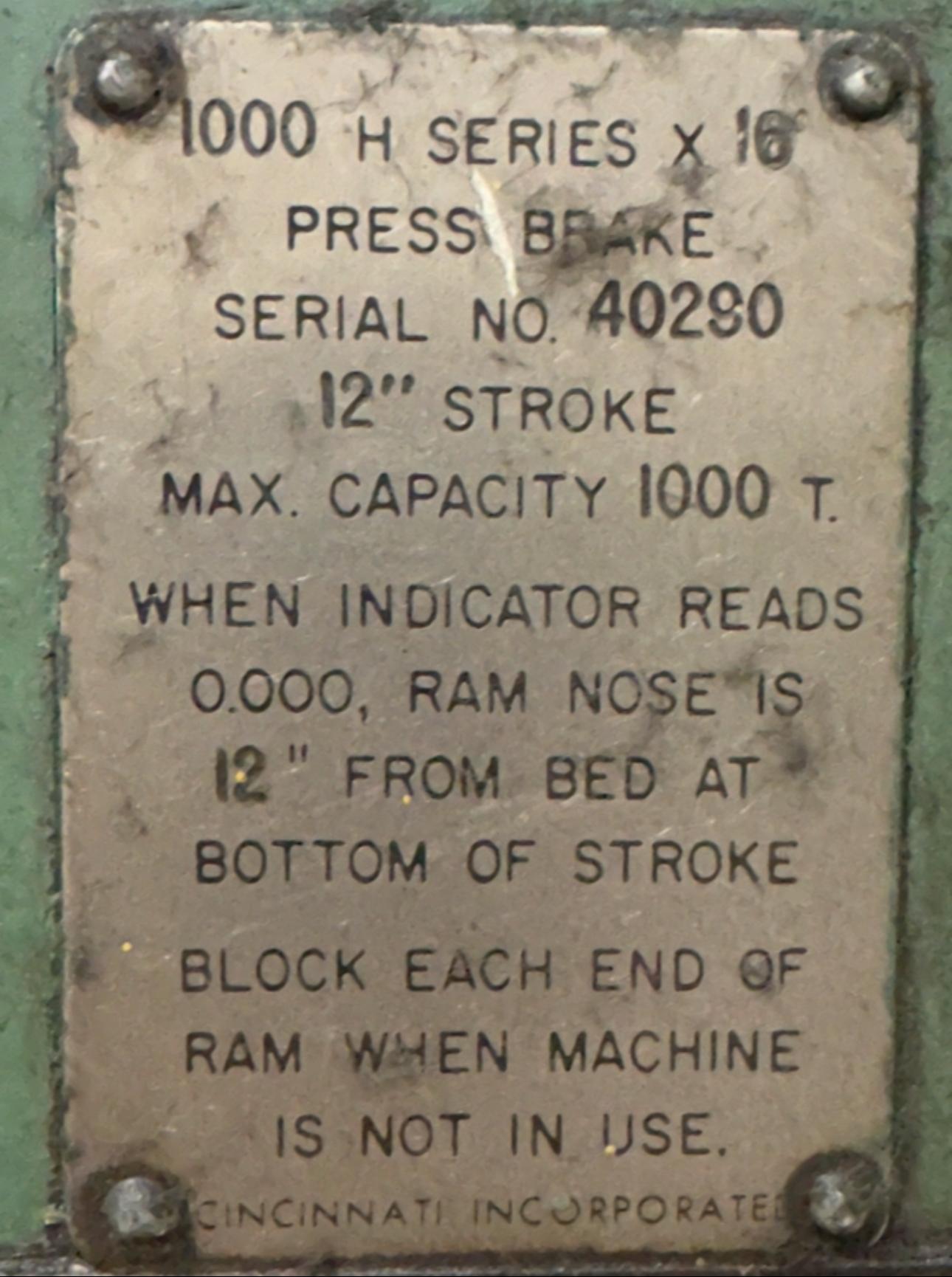

SERIAL ...................... 40290
YEAR NEW .................... 1976 MODEL ....................... 1000Hx16
CAPACITY .................... 1000 TONS
OVERALL LENGTH OF BED ....... 20'
DISTANCE BETWEEN HOUSINGS ... 16'6"
STROKE ...................... 12"
MAXIMUM DAYLIGHT ............ 24"
MINIMUM DAYLIGHT ............ 12"
THROAT ...................... 16"
SPEED RAPID ADVANCE ......... 62 IPMSPEED FAST PRESS ............ 34 IPM SPEED FULL TONNAGE .......... 15 IPM SPEED RETURN ................ 27 IPM SPEED FAST RETURN ........... 50 IPM HOUSING PLATES .............. 6" THICK BED PLATES .................. 6" THICK RAM PLATES .................. 6" THICK WIDTH OF BED ................ 10-1/2"
MAIN MOTOR .................. 60 HP
|
|
