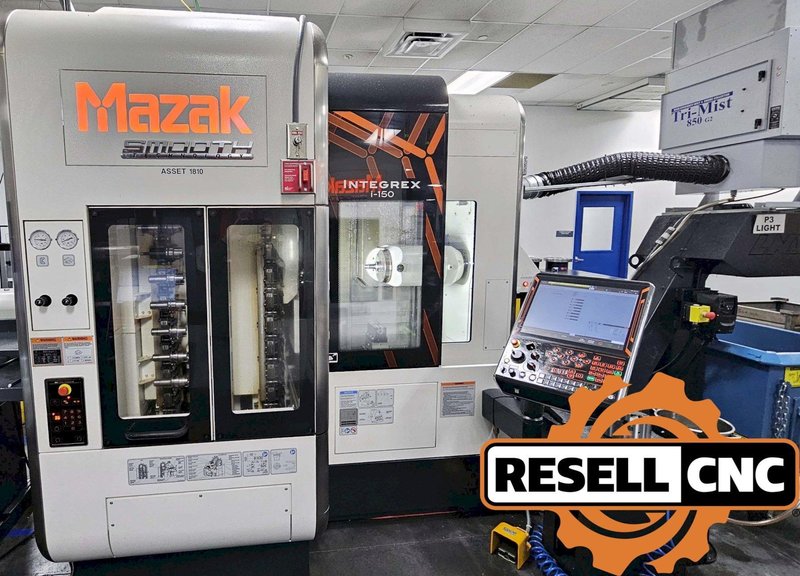

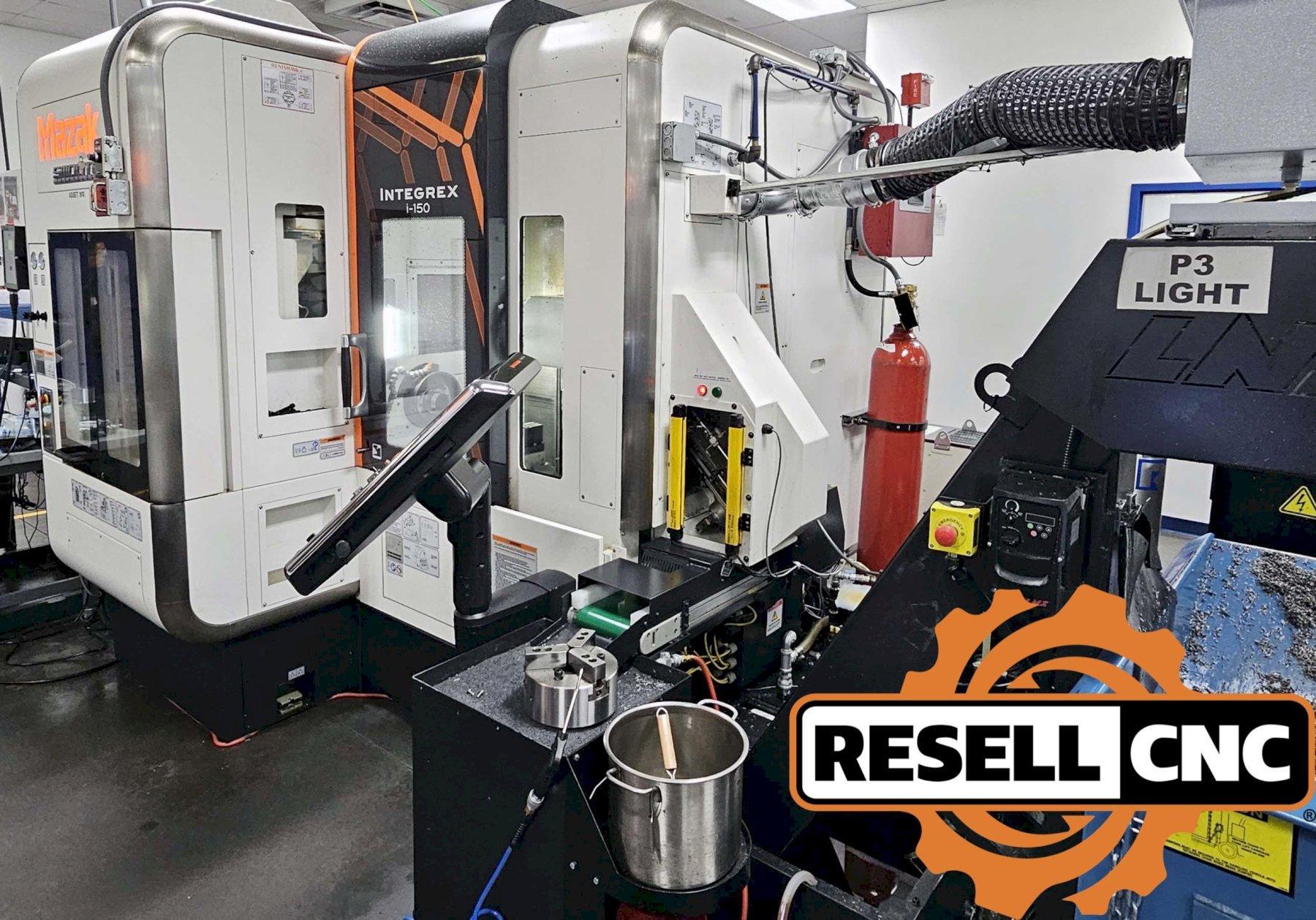

2018 Mazak Integrex i-150 Multi-Axis CNC Lathe w/ Bar-Feeder
Brand
Category
Type
Model
Integrex i-150
Stock #
14844
Year
2018
Condition
Used
Location
Florida

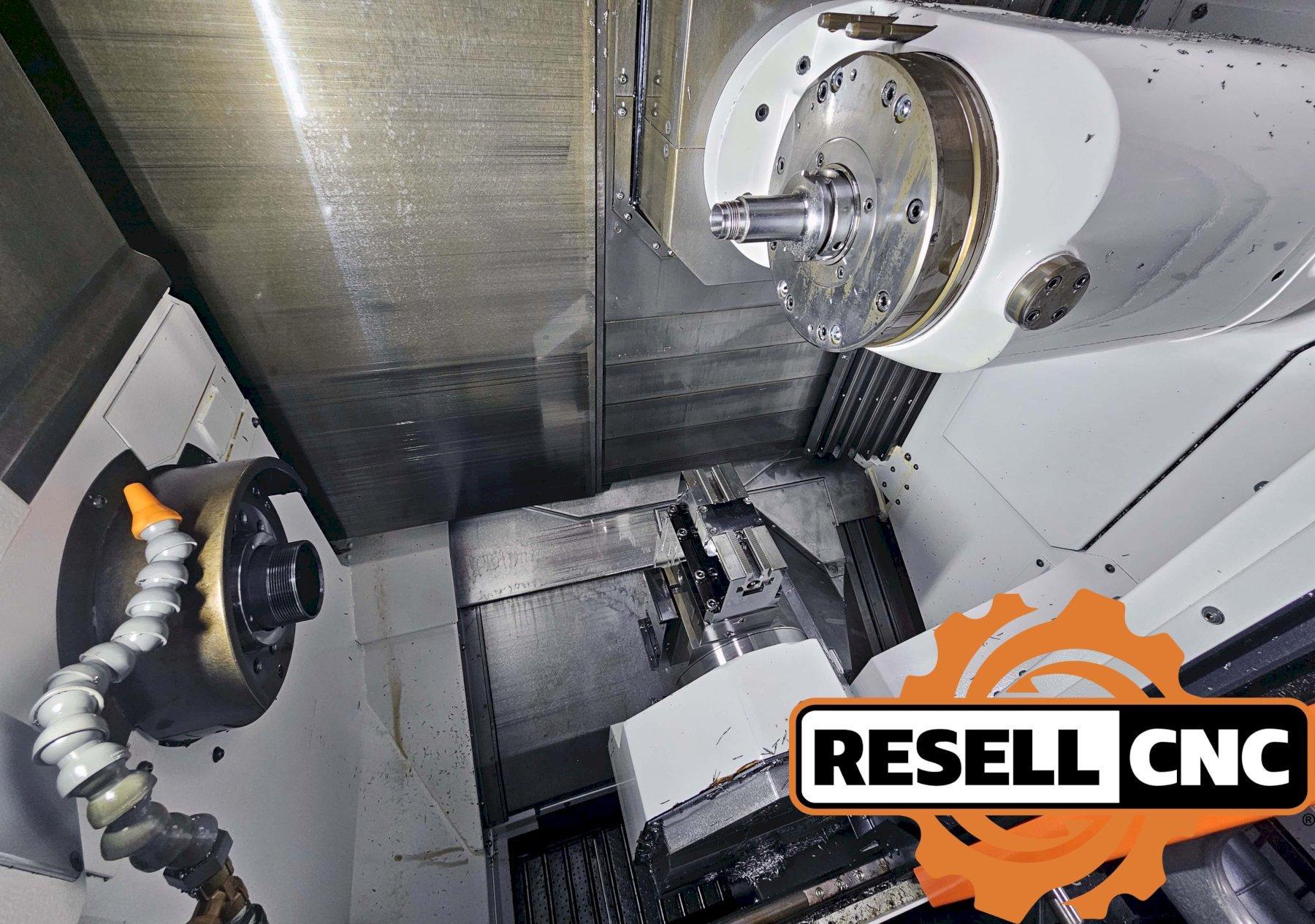

ABOUT THIS MACHINESurplus 5 Axis CNC multitasking high precision turning and milling center with bar feeder from medical manufacture!
**All descriptions and specifications are preliminary and must be confirmed by buyer prior to purchase.** LIVE TOOLING / MILLINGC-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
B-Axis: Equipped With
B-Axis Travel: -10 Degrees to 190 degrees"
SPECIFICATIONSX-Travel: 14.67"
Z-Travel: 17.13"
Distance Between Centers: 16"
Max Swing Over Bed: 16.76"
Max Turning / Cutting Length: 15.16"
Max Cutting / Turning Diameter: 13.39"

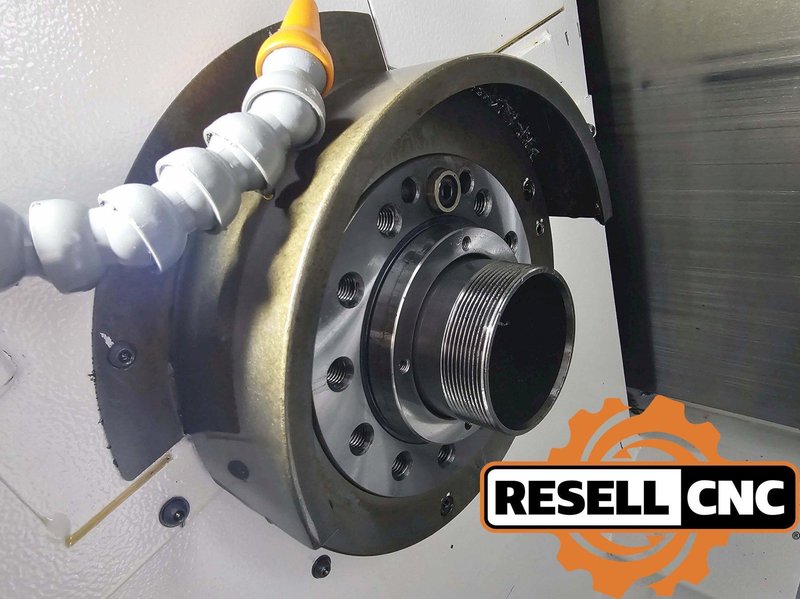

SPINDLEBar Capacity: 2.50"
Chuck Size: 8.0"
Chuck Type: Hydraulic
Spindle Bore: 2.65"
Spindle Speed: 5,000 RPM
Spindle Motor: 15 HP
SECOND SPINDLETotal Spindles: 2

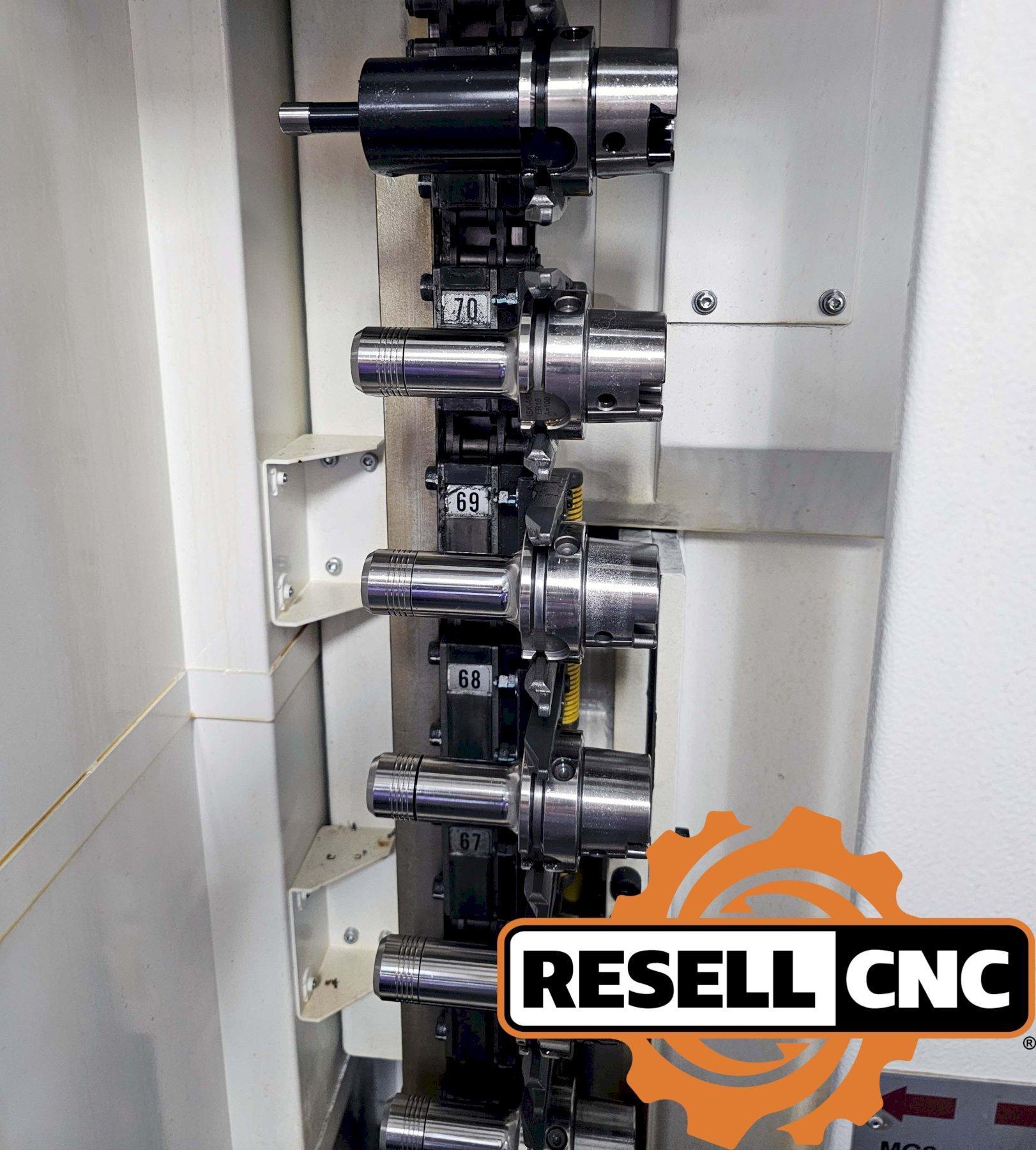

TURRETTool Positions: 72

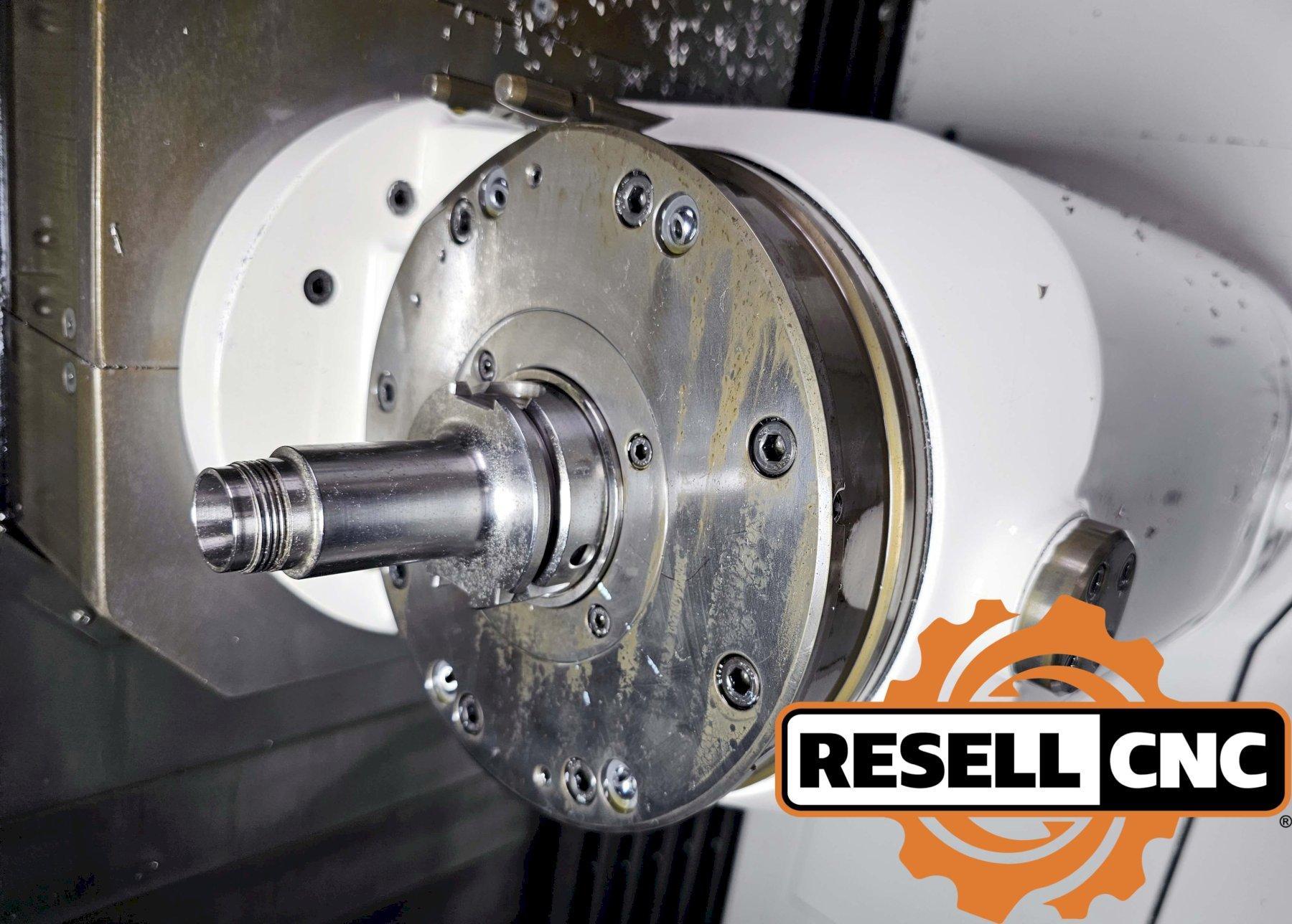

Live Milling Max RPM: 20000 RPM
CONTROLControl Make/Model: Mazatrol Smooth CNC Control
Control Options: High Speed Machining;Synchronized Tapping;Inch/Metric Conversion;Rotation and Scaling;EIA/ISO Code Input Function;Expanded Memory
Additional Control Options: High Smoothing Control
Spiral EIA 3D Comp Geometric Ext-Data I/O Shape Comp Thread Inverse Time Dynamic Compensation – Floating ZERO 3D Co-Or Rot Polar Coordinates Input Comparison Stop Spline Work Setting Error Compensation – G-54.1 Rot-Axis Shape G00 Slope EIA Herical Tap Cycle EIA Pattern Cycle 2nd AUX Function Tilted Working Plane 5-Axis Tool Comp Tool Center Point Control 20 Gigs of Program Storage 32 Megs of Ram Absolute Encoders 5-Axis Machining Package (Software For Full Contouring) F-Tool Radius 5-Axis Software TAILSTOCK / STEADYRESTTailstock: Equipped With
Programmable Tailstock: Equipped With

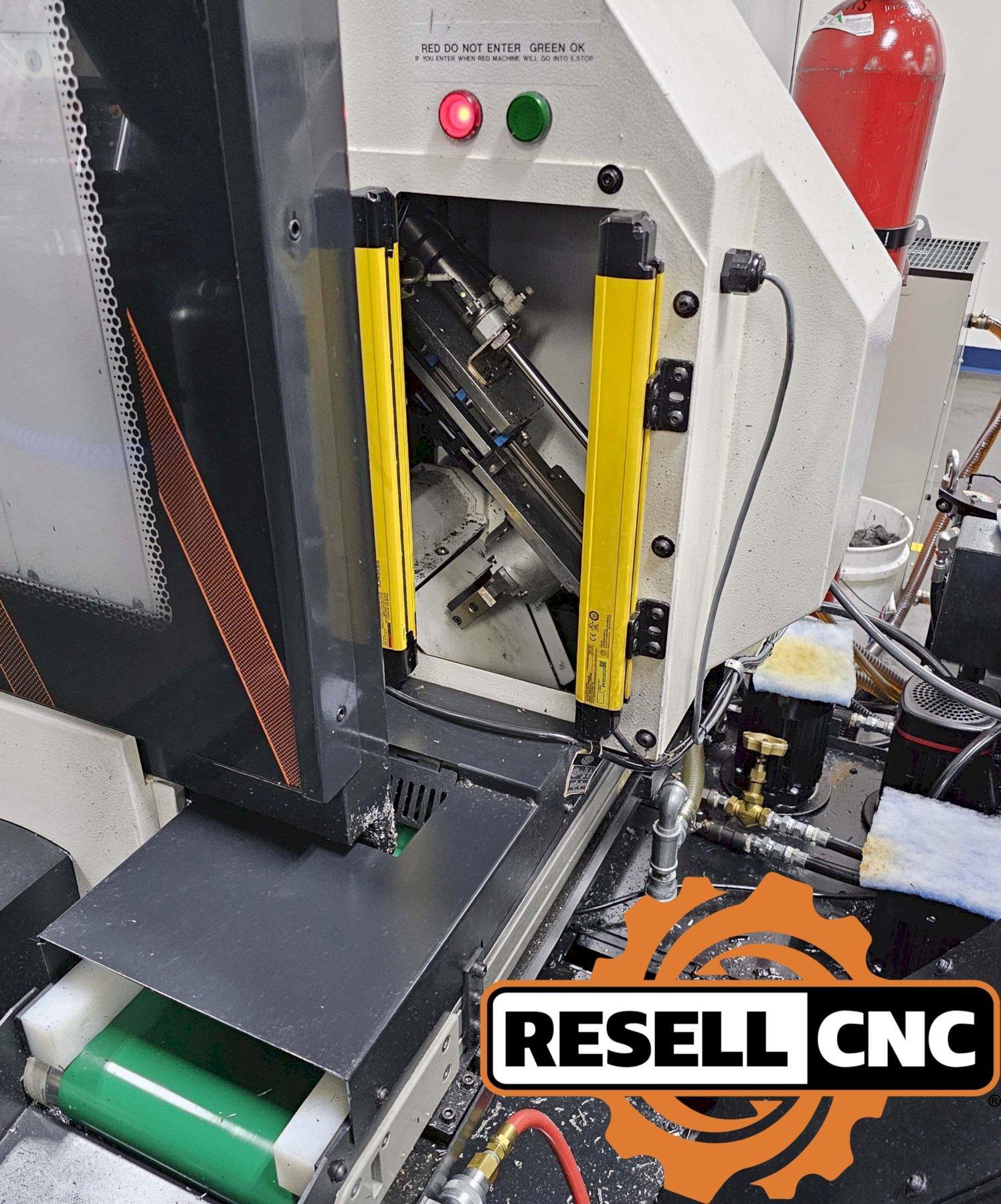

OPTIONSMachine Options: Parts Catcher;Tool Presetter;Automatic Tool Length Measurement System;Tool Eye
Additional Machine Specs: Y-Axis Stroke: 8.27"
HSK-63 LNS S80 barfeeder Coolant Through the Mill-Head Tail Center attachment 5 Axis machining Pkg (software for full contouring) lower unit with tailstock and vise configuration Preparation for 1,000 PSI Coolant Pressure Work Hand (2-Jaw Vice) Work unloading hand - parts catcher Y-Axis Ballscrew Cooling Package Workpiece Cleaning Coolant Turret Air Blast Magazine Side Tool Breakage Detection Chip Conveyor Side Discharge Mist Collector F-Tool Radius 5 Axis Software Dynamic Compensation - Floating ZERO Work setting error compensation G 54.1 Signal Tower 3-Colors MT-Connect Adaptor Fire Suppression Not Included Tool Holders Not Included Coolant Types: High Pressure Coolant
Coolant PSI: 1,000 PSI
High Pressure Coolant PSI: 1,000 PSI
Chip Removal: Chip Conveyor
Probe Make/Model: Renishaw RMP600 Probe with Inspection Plus

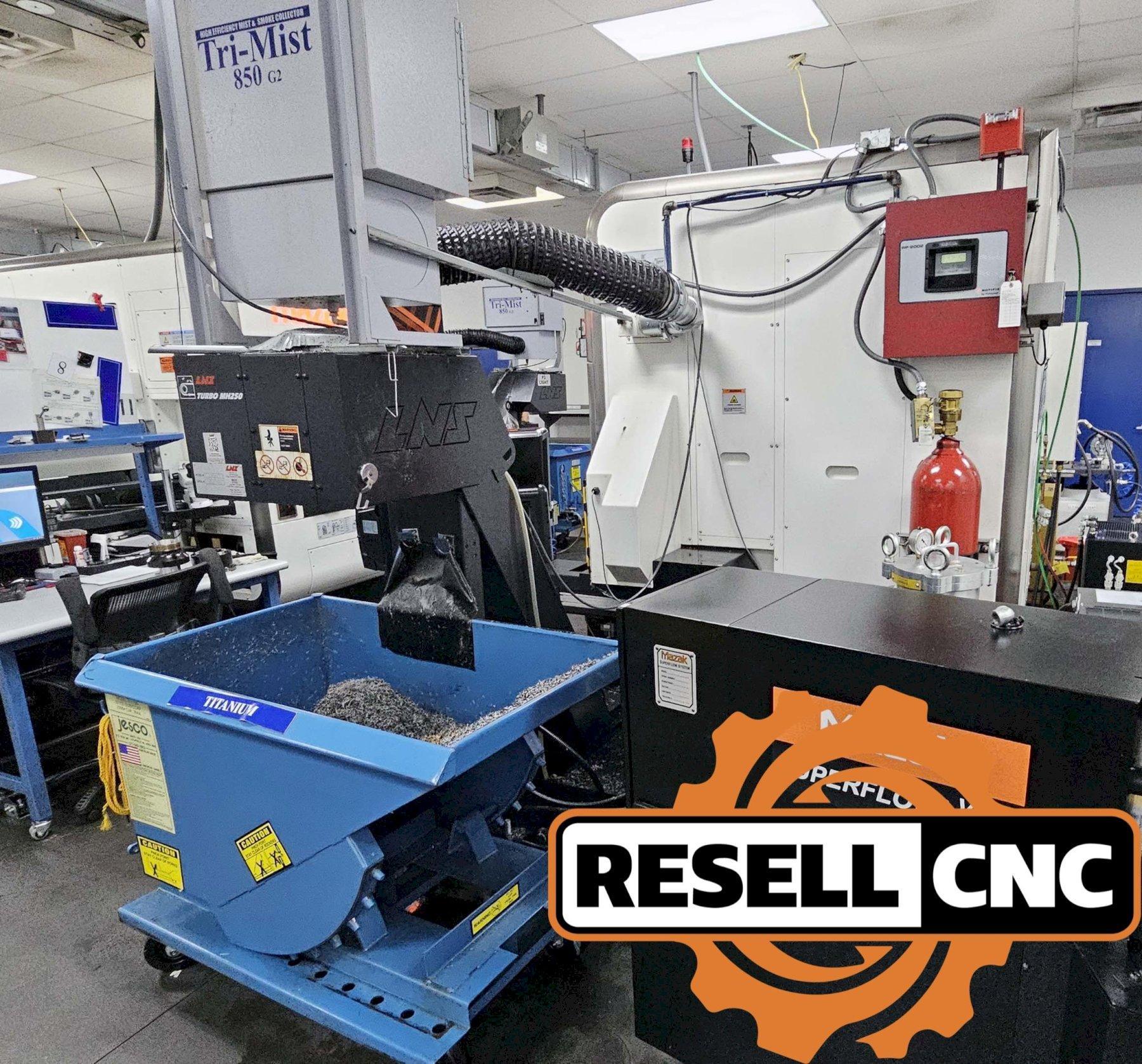

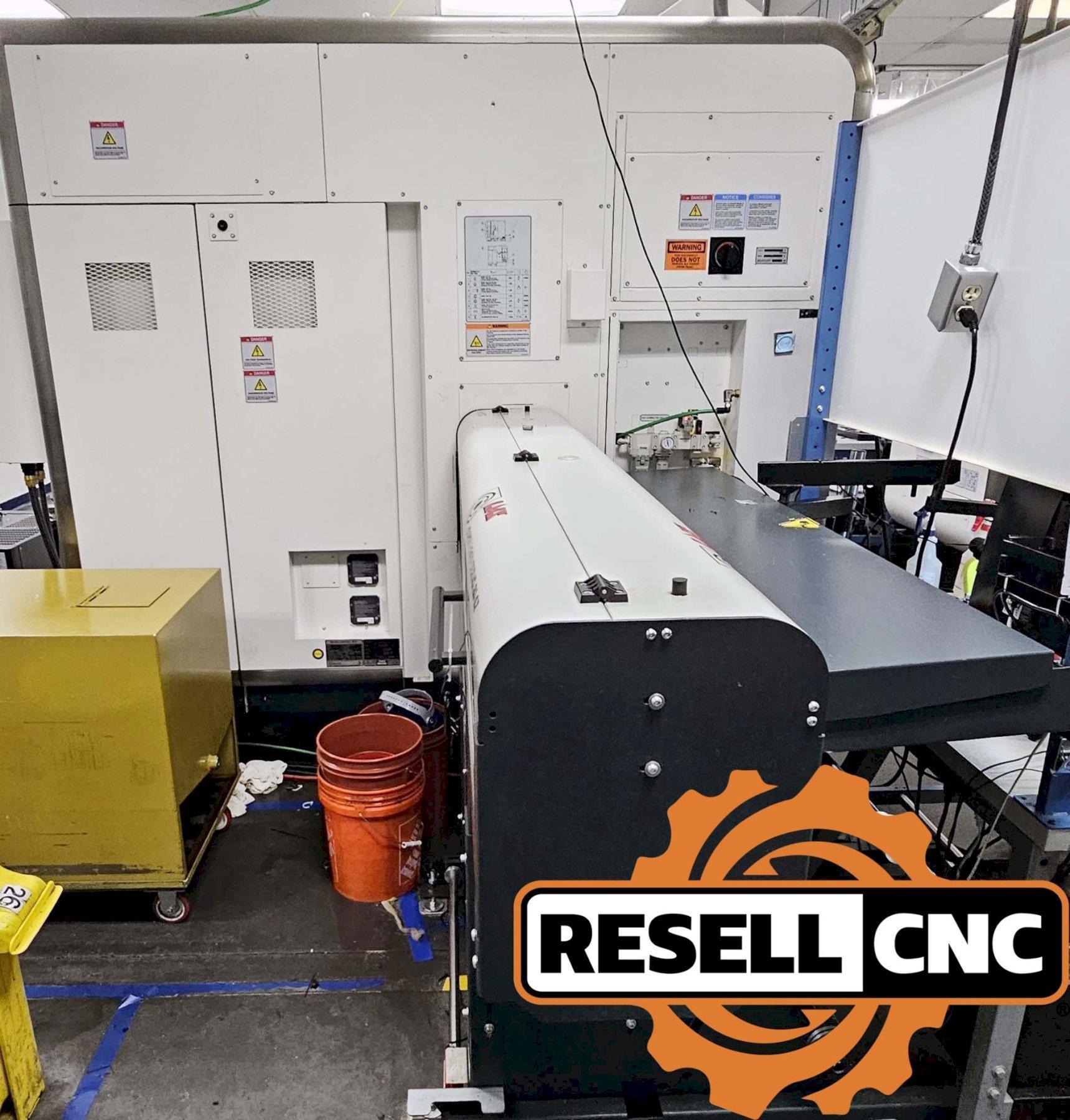

Barfeeder Make/Model: LNS S80 Barfeeder
|
