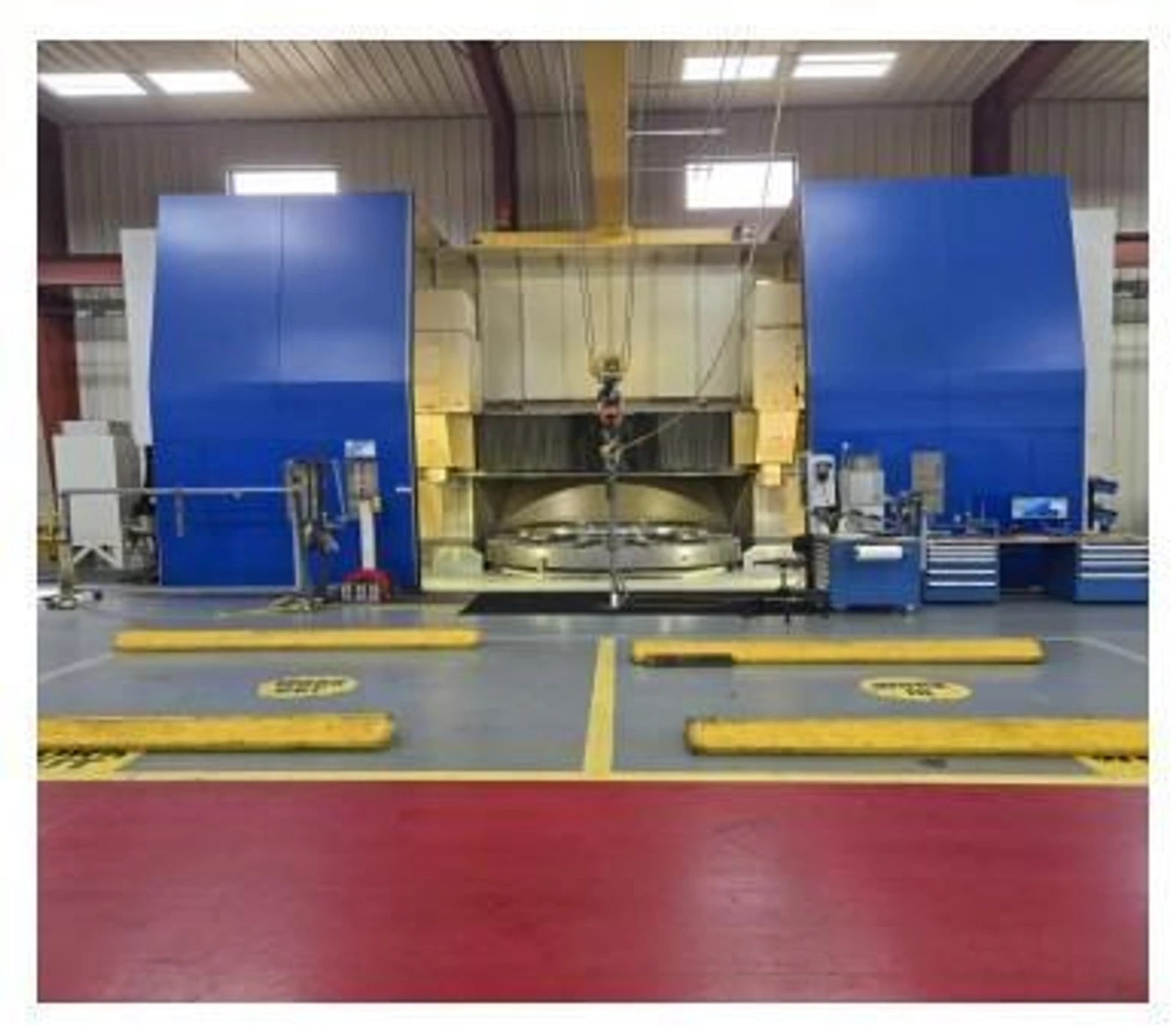

(2009) 118" GIDDINGS & LEWIS VTC 3000 VERTICAL BORING MILL. STOCK # 0667325
Brand
Category
Model
VTC-3000
Stock #
0667325
Year
Not specified
Condition
Used
Location
Ohio
|
MANUFACTURER...................: GIDDINGS & LEWIS
MODEL..........................: VTC 3000 [CNC] YEAR...........................: 2009 TABLE TYPE.....................: ROHM TABLE OUTER DIAMETER...........: 118.11" MAX. RING OUTER DIAMETER.......: 137.8" TABLE BEARING SYSTEM...........: HD TAPER ROLLER THRUST TABLE LOAD CAPACITY............: 132,277 LBS. LOW TABLE RPM RANGE............: 1–37 HIGH TABLE RPM RANGE...........: 1–120 C–AXIS AVAILABLE TORQUE........: 111.116 NM C-AXIS LIVE TABLE POSITIONS....: 360,000 POSITIONING ACCURACY...........: 10 ARC SECONDS POSITIONING REPEATABILITY......: 5 ARC SECONDS FIXED RAIL ABOVE TABLE.........: 39.37" C-AXIS CONTOURING TABLE........: YES RAM SPINDLE QUANTITY...........: 2 RAM SIZE.......................: 9.84" X 9.84" SPINDLE TAPER..................: MAG LAUNCH PLATE SL250 2-SPEED GEAR BOX SPINDLE RPM...: 4,000 LIVE SPINDLE TOOLING TAPER.....: KM–80 RAM TRAVEL AC DRIVE MOTOR S640%: 33 kW RAM AC LIVE SPINDLE POWER......: 22kW CONTINUOUS MAXIMUM TOOL DIAMETER..........: 7.087" MAXIMUM TOOL LENGTH............: 19.685" MAXIMUM TOOL WEIGHT............: 39.68 LBS. MIN. DISTANCE BETWEEN RAM LINES: 47.244" MAX DRILLING BOLT HOLE DIAMETER: 3.15" MIN DRILLING BOLT HOLE DIAMETER: 1 mm X-AXIS RAM TRAVEL..............: 81.1" Z-AXIS RAM TRAVEL..............: 49.2" TOOL MAGAZINE QUANTITY.........: 2 TOOL POCKET POSITIONS..........: 31 EACH TOOL MAGAZINE COOLANT FLUSH PSI: 203 TOOL MAGAZINE COOLANT FLUSH GPM: 20 EQUIPPED WITH..................: FANUC 31I INTEGRATED PC CONTROLS 15" COLOR DISPLAY LEAF TYPE CHIP CONVEYOR TCV50 CHIPBLASTER 1000psi FULL WALLED ENCLOSURE W/ ROOF CONTROL CABINET LUBRICATION SYSTEM CHIP BLASTER MIST COLLECTOR KM–80 MODULAR TOOL HOLDING SYSTEM C-AXIS CONTOURING TABLE MACHINE WIDTH..................: 47' MACHINE DEPTH..................: 24' MACHINE HEIGHT.................: 22' MACHINE WEIGHT.................: 160,000 LBS. RAIL HEIGHT ABOVE TABLE........: 48-1/2" CONSTRUCTION...................: HEAVY DUTY WELDED BALL SCREWS....................: 3.15" FOUNDATION PIT DEPTH...........: 18" MAXIMUM FOUNDATION DEPTH.......: 56.1" |
