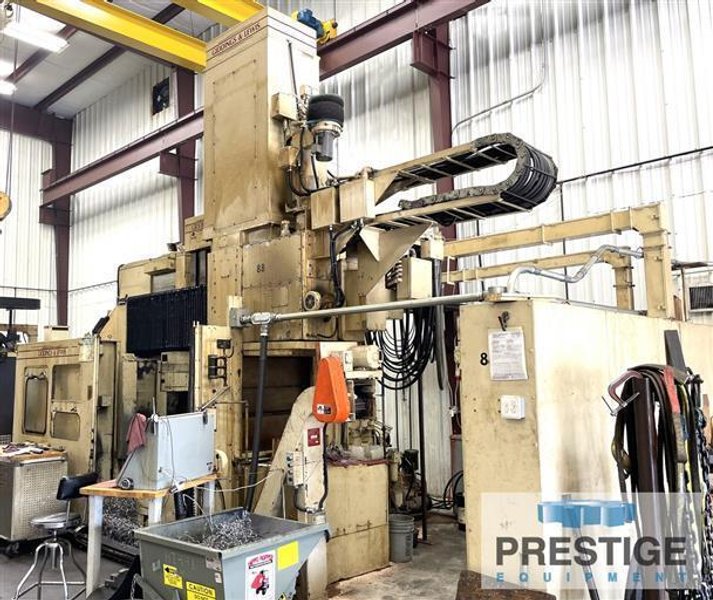

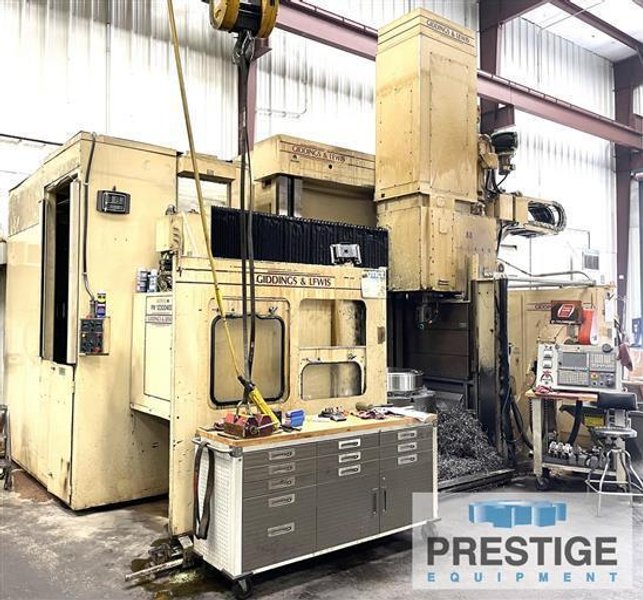

Boring Mills Vertical CNC
Brand
Category
Model
Milling
Stock #
44423
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

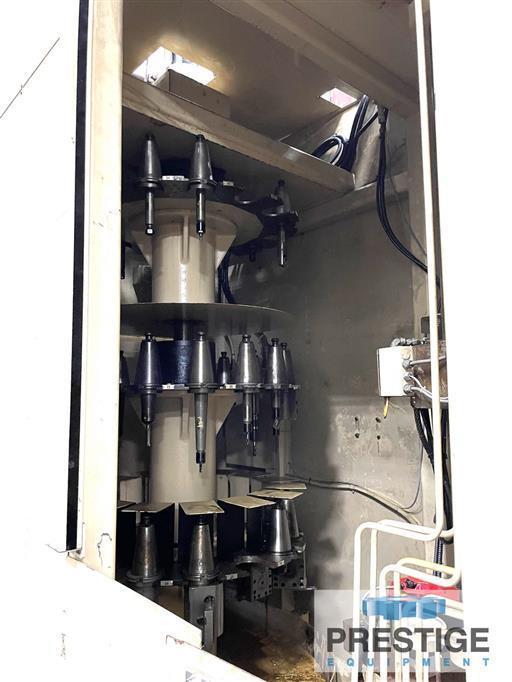

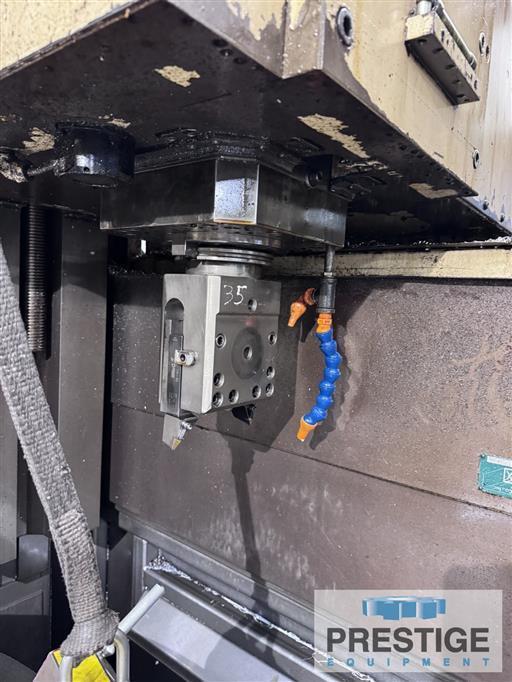

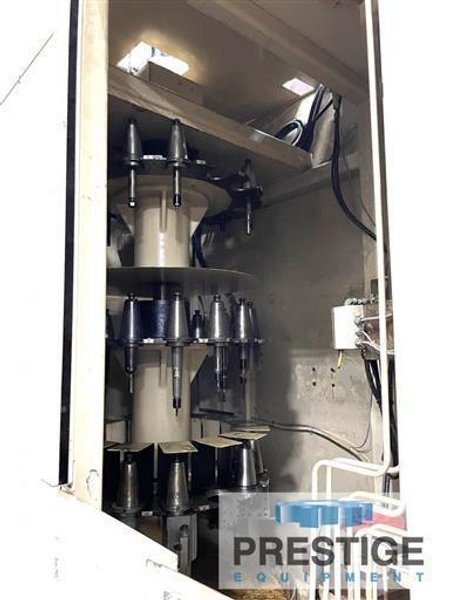

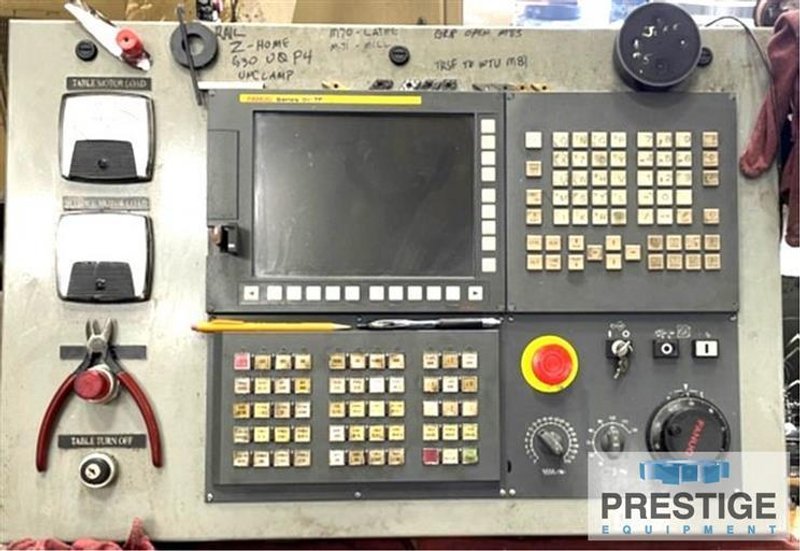

Table Diameter 48" Maximum Swing 60" Ram Stroke 42" Maximum Work Under Rail 60" Table Speeds: (Inf. Variable) 3.8-400 RPM Spindle Taper #60 ANSI B5.50 Table Indexing, C-Axis .001 degrees Table Motor 75 HP Milling Spindle Speeds 15-2200 RPM Milling Spindle Motor 25 HP Machine Electrics 460/3/60 Equipped With: Fanuc OI-TD CNC CNC Control Retrofit in 2017 48" 4-Jaw Chuck Vertical Ram with Live Milling C-Axis Table for Milling & Drilling Operations 45-Station Automatic Tool Changer Hardened Box Ways on Cross Rail Note: Inspect In Plant Under Power! |
