Mori Seiki SL-403C/2000 CNC Turning Center – Big Bore Long Bed Lathe

Mori Seiki SL-403C/2000 CNC Turning Center – Big Bore Long Bed Lathe

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	SL-403C/2000
Year:	2005
Condition:	Used – Good

Equipped With:
Mori Seiki MSX-501III (Fanuc) CNC Control
Heavy Duty Box Way Design
21″ 3-Jaw Kitagawa Chuck With 5.5″ Bore
7.28″ Big Bore Capable – With Existing Chuck Setup Spindle Bore is 5.5″
A2-15 Spindle
Tool Presetter
50 HP 2 Speed Gear Head Spindle
SMW Autoblock Steady Rest

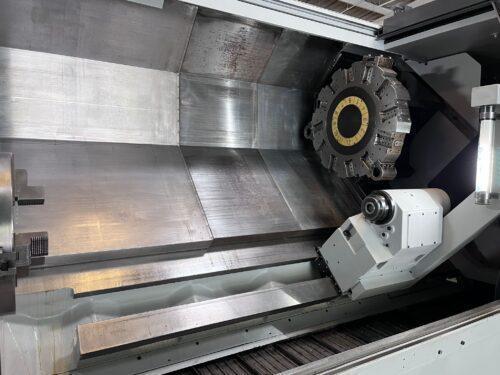

12 Station Automatic Turret
Spindle Chiller Unit
Hydraulic Tailstock
Rigid Tapping
Coolant System
Chip Conveyor
Automatic Lubrication System
Foot Switch
(2) Boring Tool Holders, (1) Turning Tool Holder Equipped on Turret (As shown in the images)

Capacity:
Max Turning Diameter: 25.6″
Max Turning Length: 81.42″
Swing Over Bed: 36.81″
Swing Over Cross Slide: 29.06″
Bar Capacity: 6.50″ Capable – With Existing Chuck Setup Bar Capacity is 5.0″ (Please Refer the Pictures)
Distance Between Centers: 91.54″

Travels:
X Axis Travel: 13.58″
Z Axis Travel: 86.42″

Feedrate:
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.28″ Capable – With Existing Chuck Setup Spindle Bore is 5.5″
Spindle Speed: 4-1500 RPM
Spindle Motor: 50 HP

Turret:
Turret Capacity: 12 Stations
Square Shank Height of Tool: 1.25″
Shank Diameter of Boring Bar: 2.36″
Tool Holders Type: BMT

Tailstock:
Tailstock Travel: 78.74
Tailstock Quill Diameter: 5.90″
Tailstock Quill Travel: 5.90″
Tailstock Taper: MT-5

General:
Power: 220v / 3-Phase / 60 Hz / 52 kva
Overall Dimensions: 244.09″ x 132.36″ x 99.92″ High
Weight: 30,800 lbs
