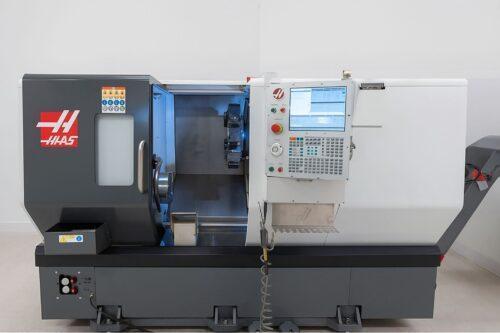

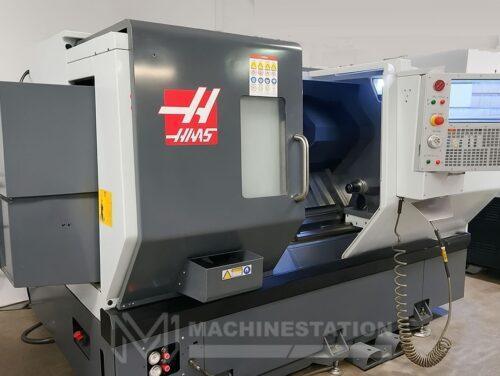

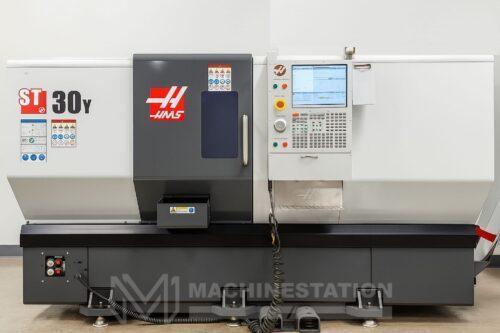

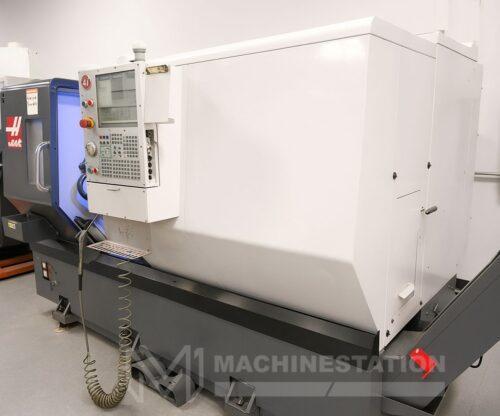

Haas ST-30Y CNC Turning Center – C & Y Axis 10″ Chuck Tailstock Lathe

Haas ST-30Y CNC Turning Center – C & Y Axis 10″ Chuck Tailstock Lathe

Name: Used HAAS ST-30Y For Sale 115089
Brand: HAAS
SKU: 115089

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	ST-30Y
Year:	2018
Condition:	Used – Excellent

Equipped With:
Haas CNC Control

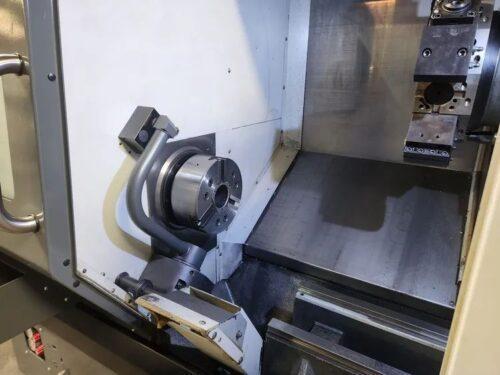

10″ 3-Jaw Hydraulic Chuck
12 Station Live Tool Turret – 24 Positions (Upgraded $5,895 value Included)
C & Y Axis Capability
6,000 RPM Live Tool Spindle Speed (Upgraded $2,995 value Included)
30 HP Vector Dual Drive
Tool Presetter (Upgraded $5,895 value Included) – Speeds up Changeovers and Setup
Part Catcher (Upgraded $3,595 value Included) – Catch a finished part as it is cut off
A2-6 Spindle
3.5″ Big Bore Spindle
Rigid Tapping
Spindle Orientation
Visual Part Programming System & User-Definable Macro
Media Display
1 GB Max Memory
Compensation Tables
USB Port
Programmable Hydraulic Tailstock (Upgraded $10,495 value Included) – Provides additional support for long workpieces
Coolant System
Belt Type Chip Conveyor (Upgraded $5,295 value Included) – For Efficient Chip Removal
Automatic Lubrication system
Foot Switches

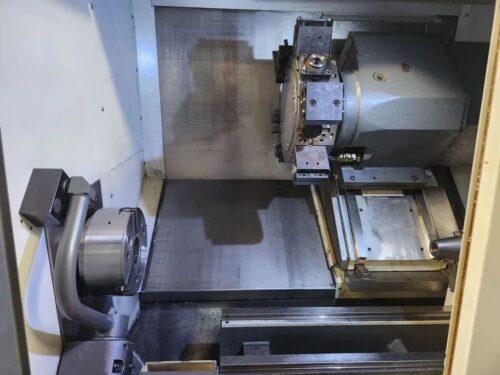

Live & Statics Tool Holder Mounted on Turret (As shown in the Images)

Capacity:
Max Turning Diameter : 13.75″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″
Distance Between Centers : 32.5″

Travels:
X Axis Travel : 9.4″
Y Axis Travel : ± 2.0″
Z Axis Travel : 32.5″
C Axis : 0.01 °

Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations – 24 Positions
Live Tool Speed: 6,000 RPM
Turret Type: BMT-65

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″

General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 11,340 lbs Approx.
