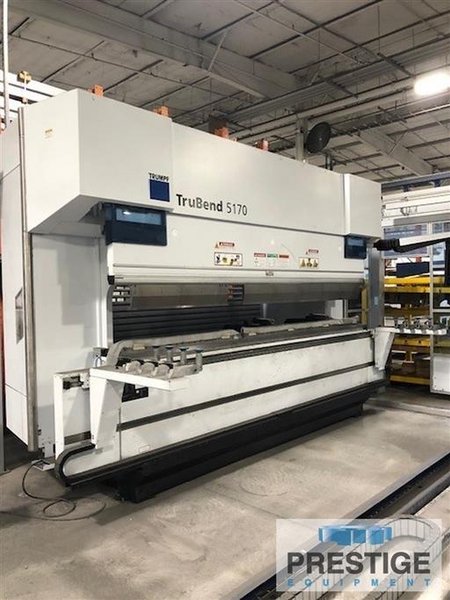

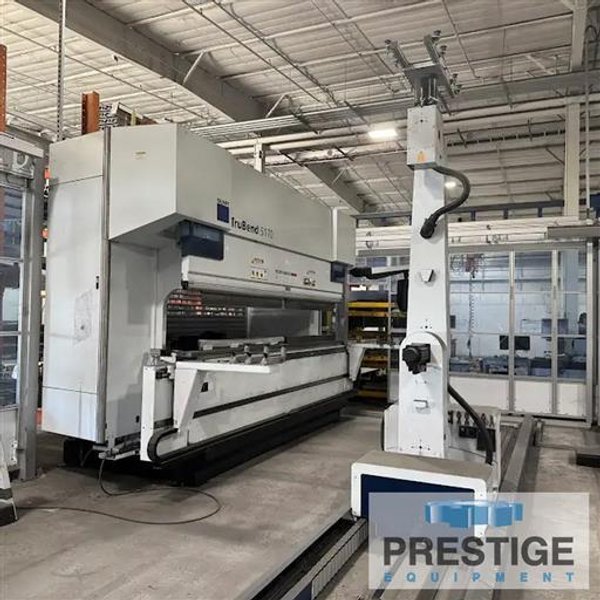

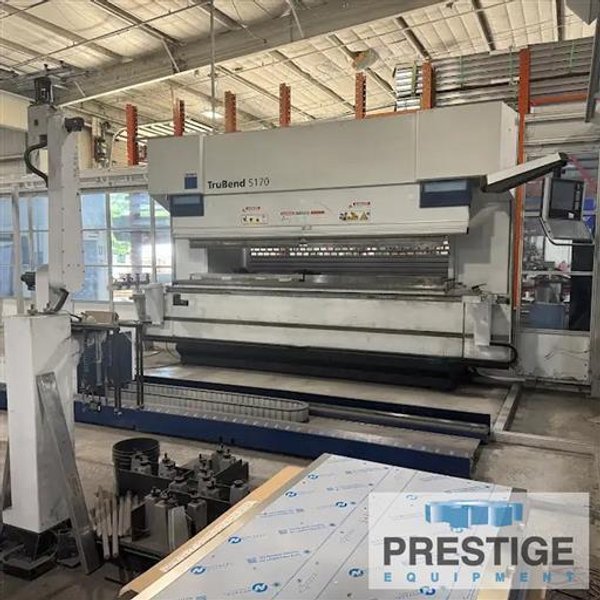

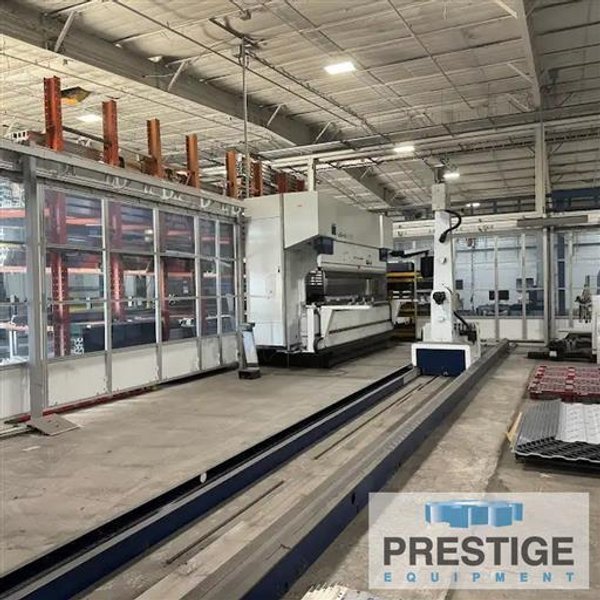

Brakes Press Hydraulic

CAPACITY:
Maximum Tonnage Capacity 187 Ton
Maximum Bending Length 167"
Distance Between Housings 145"
Stroke Length (Extended) 17.52"
Throat Depth 16.50
Open Height (Extended) 24.2"
Travel in X Axis 24"
Travel in R Axis 10"



Equipped With:
Trumpf CNC Control with Windows XP, Touch Screen, Pentium 4, 3D Controller
6-Axis Back Gauge (X1,X2,Z1,Z2,R1,R2)
Upper Hydraulic Tool Clamping
CNC Crowning
Extended Stroke and Open Height
Lower Hydraulic Tool Clamping
CNC Pneumatic I-Axis
Optical Setup & Positioning Aid
Mobile Control
Electrical Cabinet AC
Oil Cooler
Bendguard Safety Device (for manual operation)

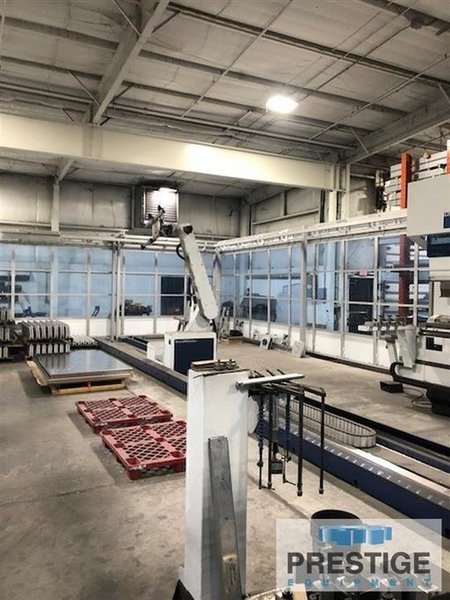

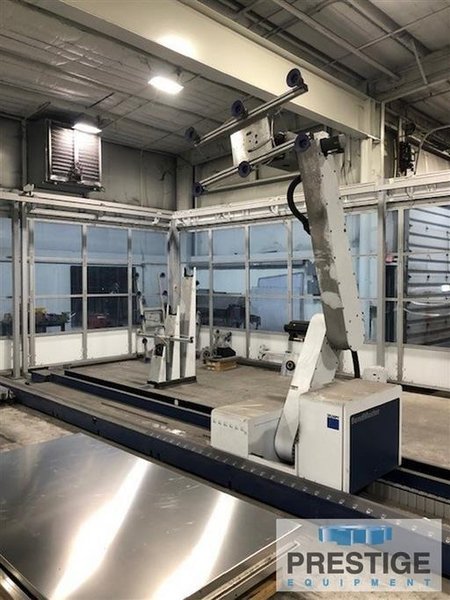

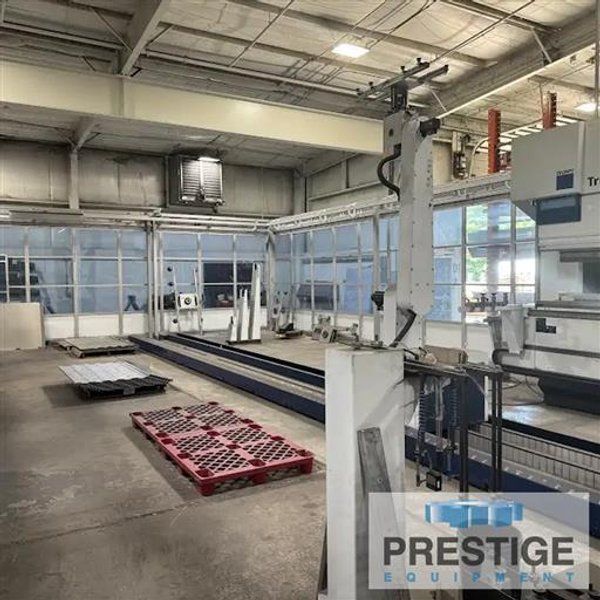

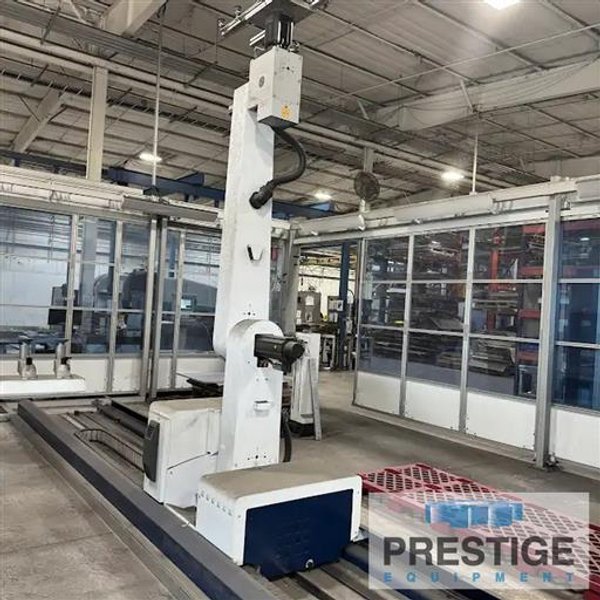

BENDMASTER 150 & ASSOICATED OPTIONS: 6 Meters of Additional Track Length & Fencing (14 meters total)
Small Parts Load Station with Rotary
Small Parts Mechanical Gripper with Rotary Axis
6-Axis Back Gauge Sensor
(2) Gripper Kit to make Additional Grippers w/o sep.
Automatic Gripper Changer
ToolMaster Preparation
CNC Repositioning Stations
Double Sheet Detector
18" Flat Screen Monitor, Mouse, Keyboard, PC
(2) Standard Gripper & Pneumatic Couplings

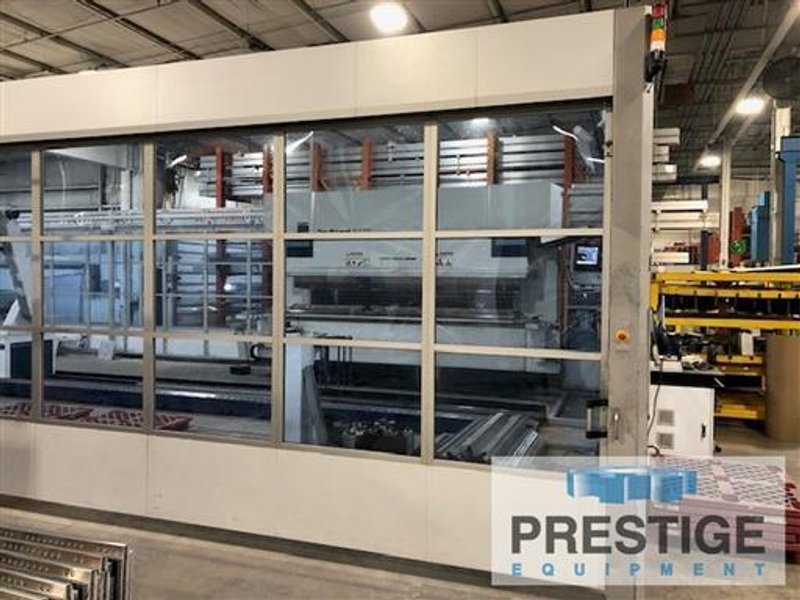

Safety Fencing
6 Meters of Track Length
