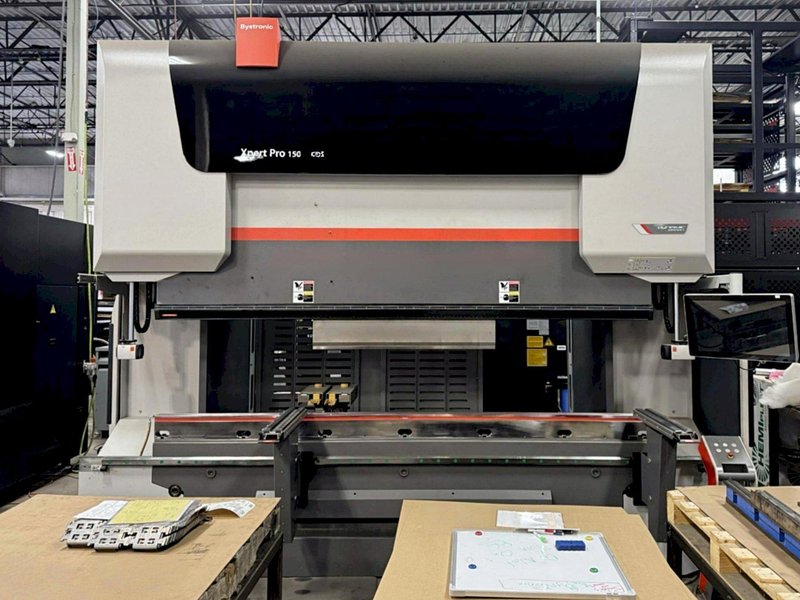

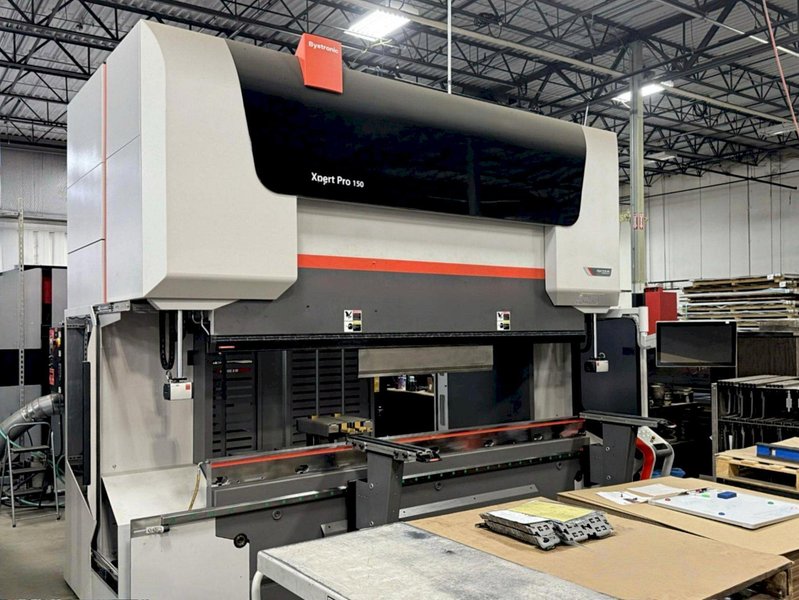

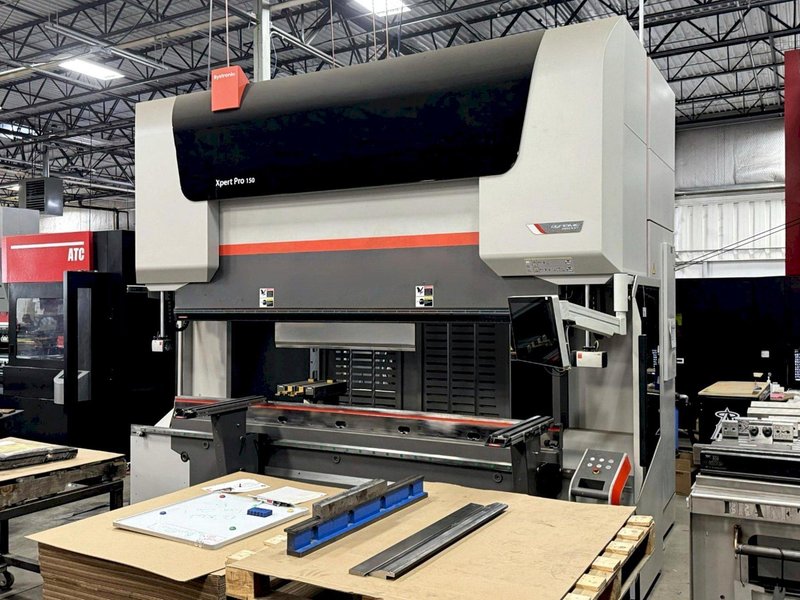

Bystronic Xpert Pro 150/3100 (2023)
Brand
Category
Type
Model
Xpert Pro 150/3100
Stock #
100582
Year
2023
Condition
Like New
Location
Not specified
| Control | Bystronic CNC |
| Tonnage | 150 |
| Bending Length | 122.05” |
| Standard Stroke | 9.8” |
| Open Height | 25.20” |
| Distance Between Side Frames | 108.26” |
| Throat | 15.74” |
| Table Width | 2.36” |
| Max. Back Gauge Range X-Axis | 41.33” |
| X-Axis Travel | 23.62” |
| X-Axis Speed (Up To) | 1536 IPS |
| X-Axis Accuracy | .0016” |
| R-Axis Travel | 9.84” |
| R-Axis Speed (Up To) | 473 IPS |
| R-Axis Accuracy | .004” |
| Z-Axis Travel | 74.80” |
| Z-Axis Speed For (Up To) | 3544 IPS |
| Z-Axis Accuracy | .004” |
| Y-Axis Accuracy | .00016” |
| Oil Capacity | 300 L |
| Operating Voltage V AC | 3 PH 480 |
| Frequency Hz | 60 |
| Control Voltage V DC | 24 |
| Weight | 27,238 Lbs. |
| Dimensions | L 236” x W 177” x H 133” |
|

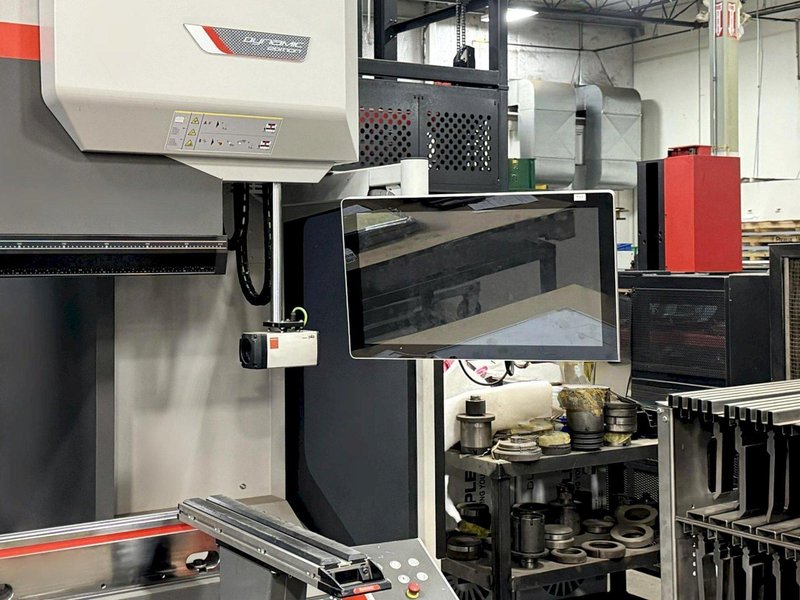

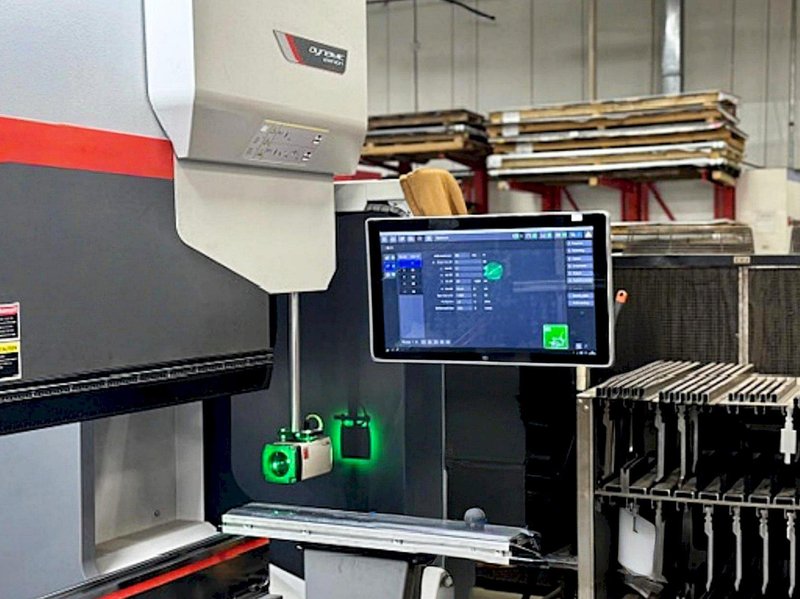

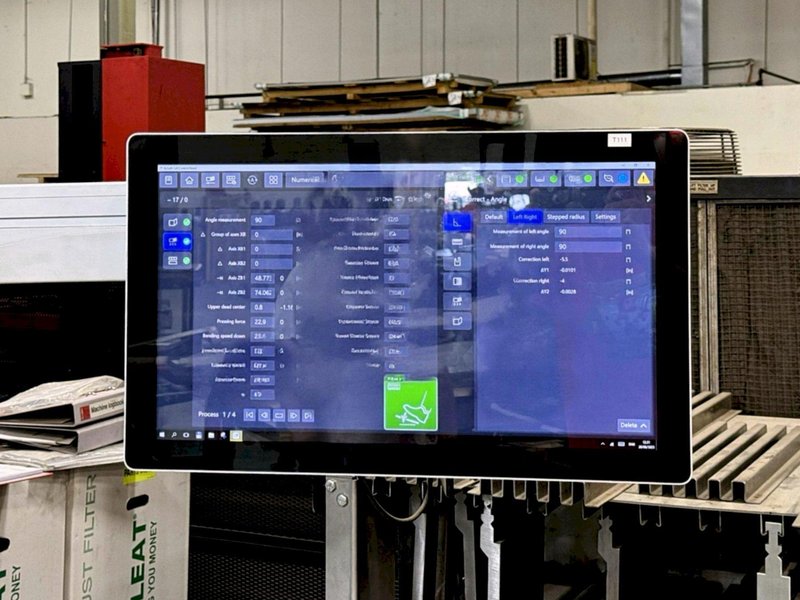

Equipped With: ByVision CNC Bending Control 22” Full HD Display & Touch Technology Control Console With Foot Switch ByVision Bending User Interface Multi Axes CNC Back Gauge Dynamic Crowning Pressure Reference Technology LAMS Angle Measuring System Dual Sheet Supports Fast Bend G2 Safety System Electrically Monitored Side Fences Rear Protection Devices |
|
