Control | Bystronic CNC |
Tonnage | 220 |
Bending Length | 169.29” |
Standard Stroke | 9.8” |
Open Height | 25.20” |
Distance Between Side Frames | 147.7” |
Throat | 15.80” |
Table Width | 2.40” |
Max. Back Gauge Range X-Axis | 41.40” |
X-Axis Travel | 23.70” |
X-Axis Speed (Up To) | 1536 IPS |
X-Axis Accuracy | .0016” |
R-Axis Travel | 9.90” |
R-Axis Speed (Up To) | 473 IPS |
R-Axis Accuracy | .004” |
Z-Axis Travel | 114” |
Z-Axis Speed For (Up To) | 3544 IPS |
Z-Axis Accuracy | .004” |
Y-Axis Accuracy | .00016” |
Oil Capacity | 123 L |
Operating Voltage V AC | 3 PH 480 |
Frequency Hz | 60 |
Control Voltage V DC | 24 |
Weight | 46,297 Lbs. |
Dimensions | L 276” x W 177” x H 142” |

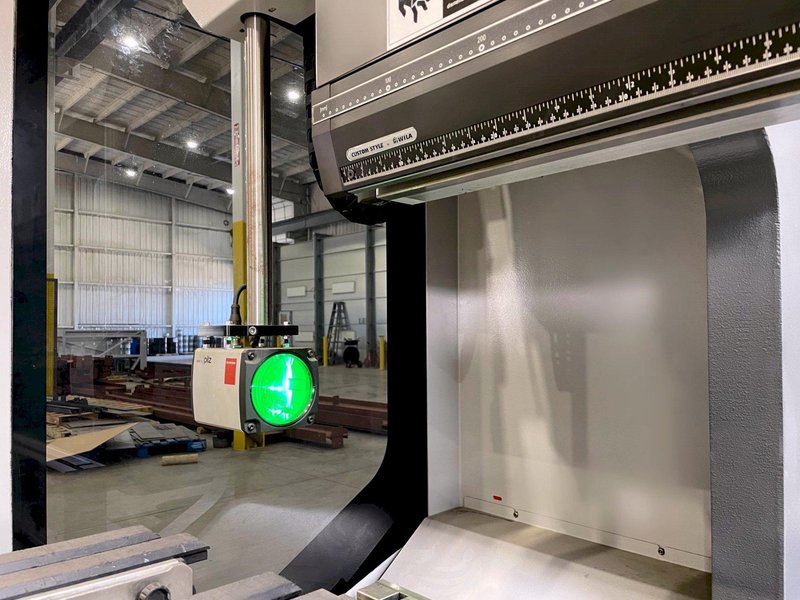

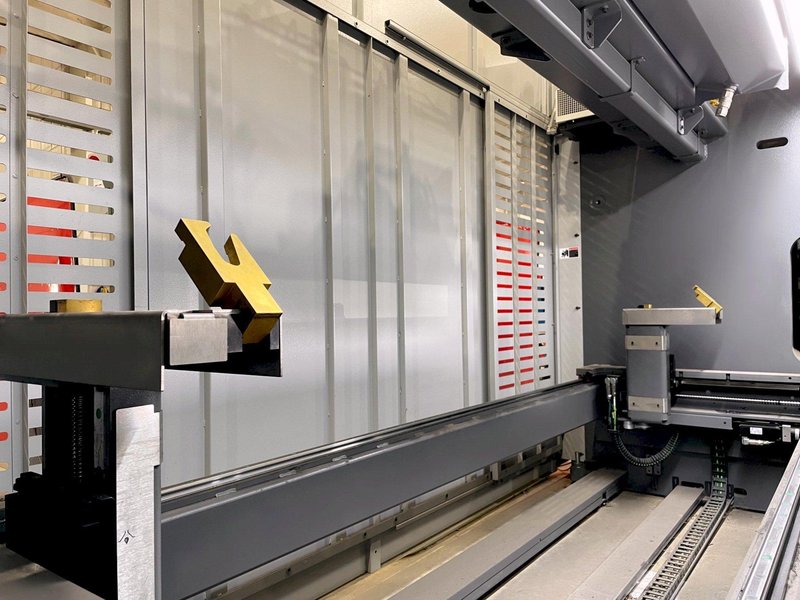

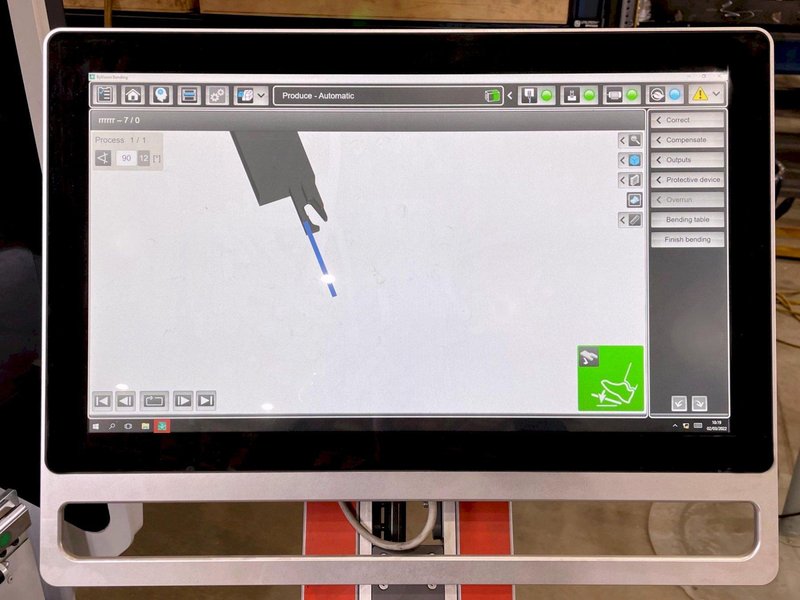

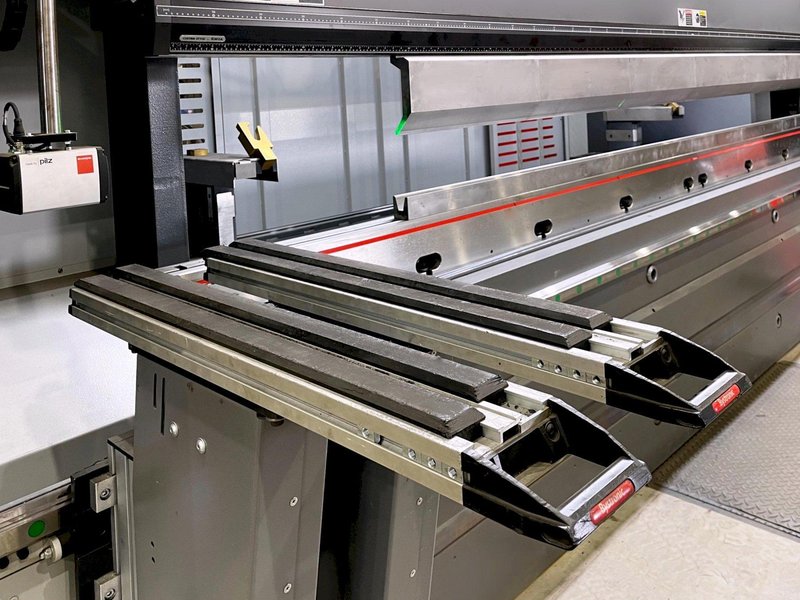

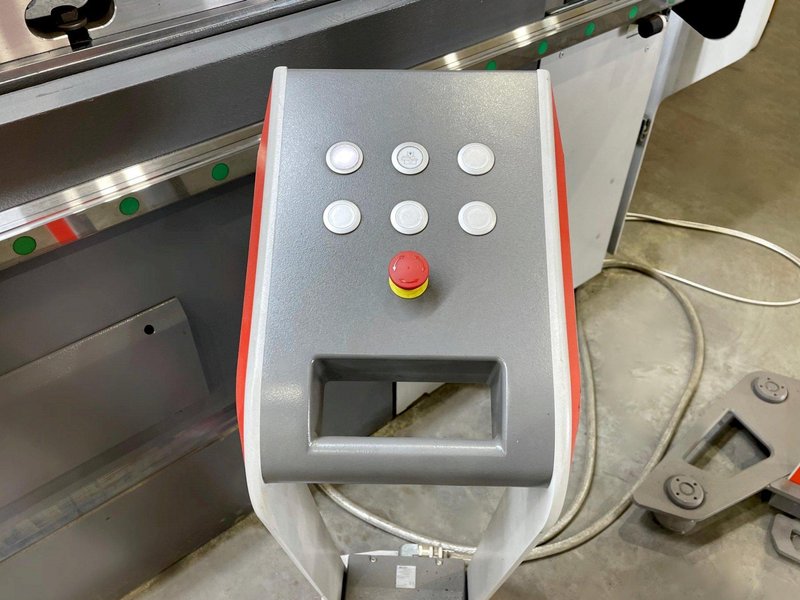

Equipped With: ByVision CNC Bending Control 22” Full HD Display & Touch Technology Control Console With Foot Switch ByVision Bending User Interface Multi Axes CNC Back Gauge Dynamic Crowning Pressure Reference Technology LAMS Angle Measuring System Dual Sheet Supports Fast Bend G2 Safety System Electrically Monitored Side Fences Rear Protection Devices |
