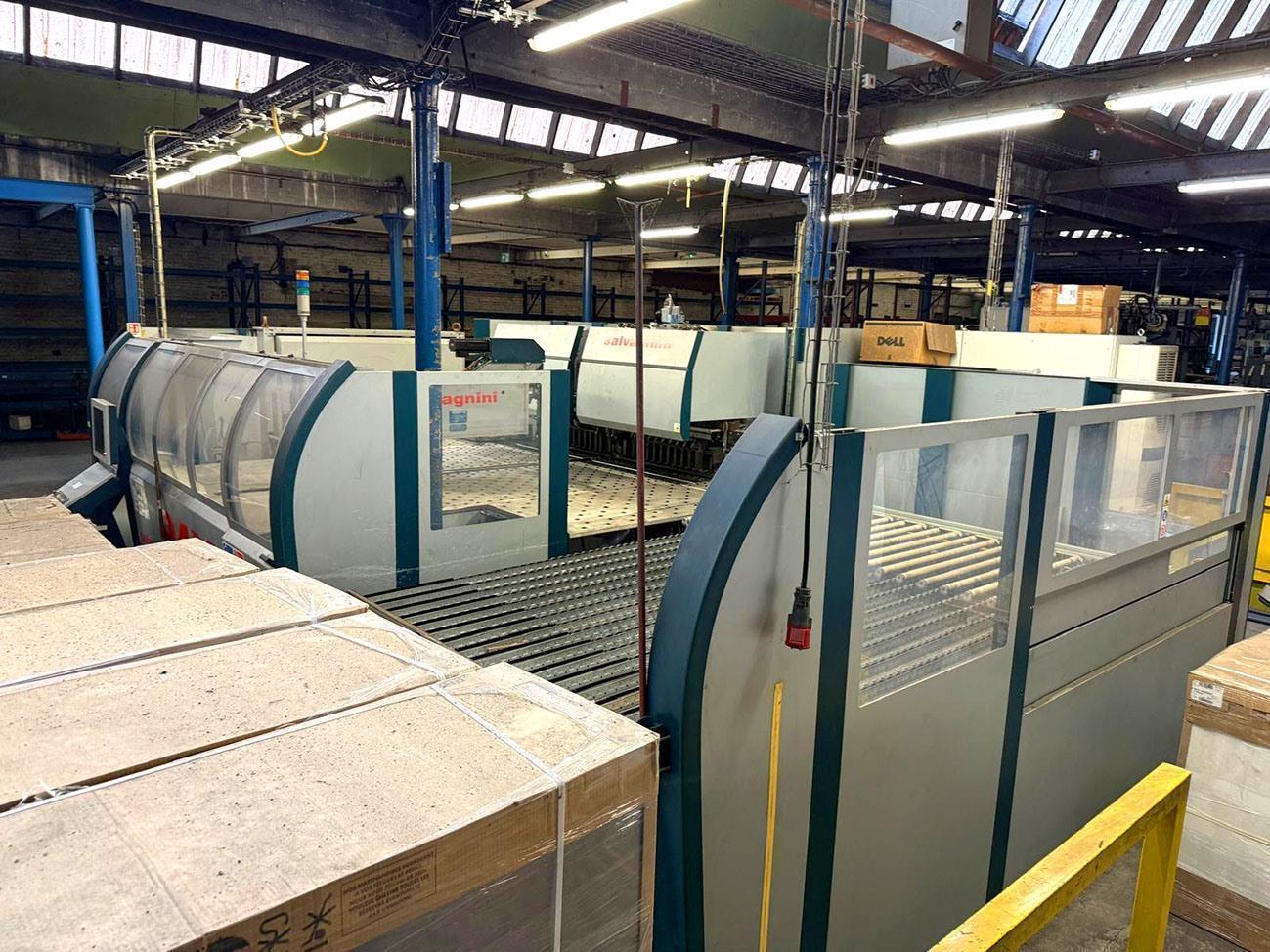

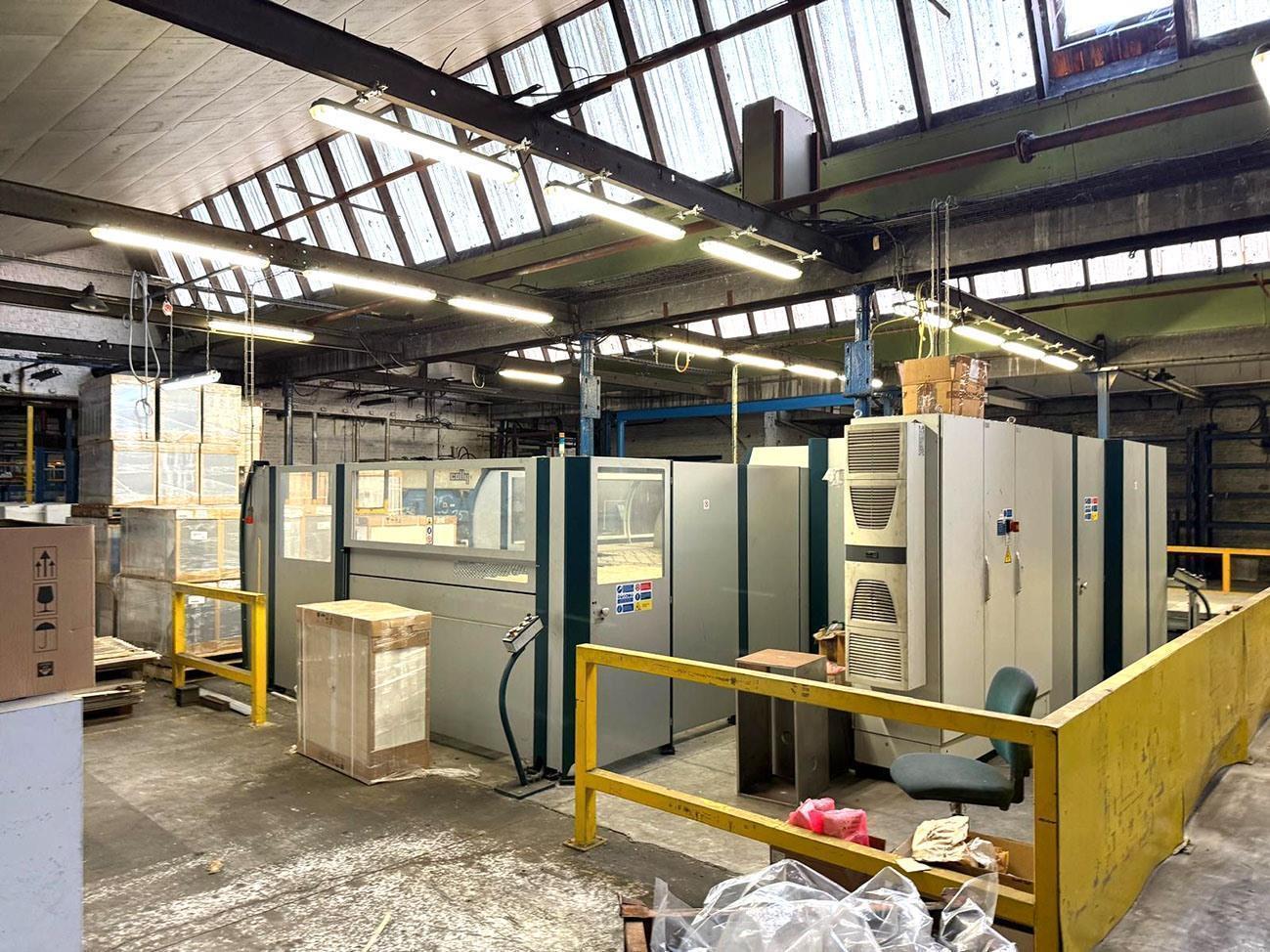

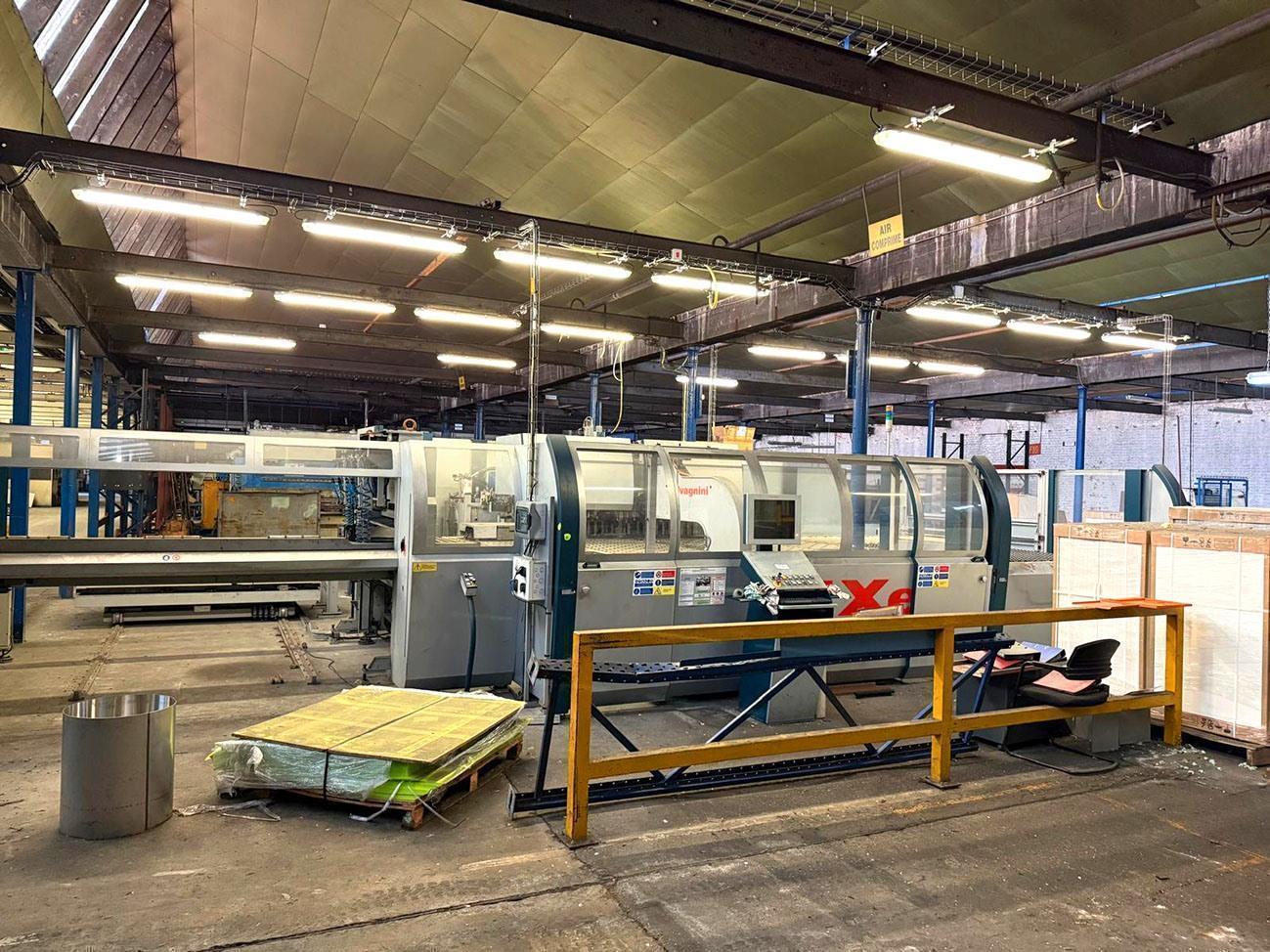

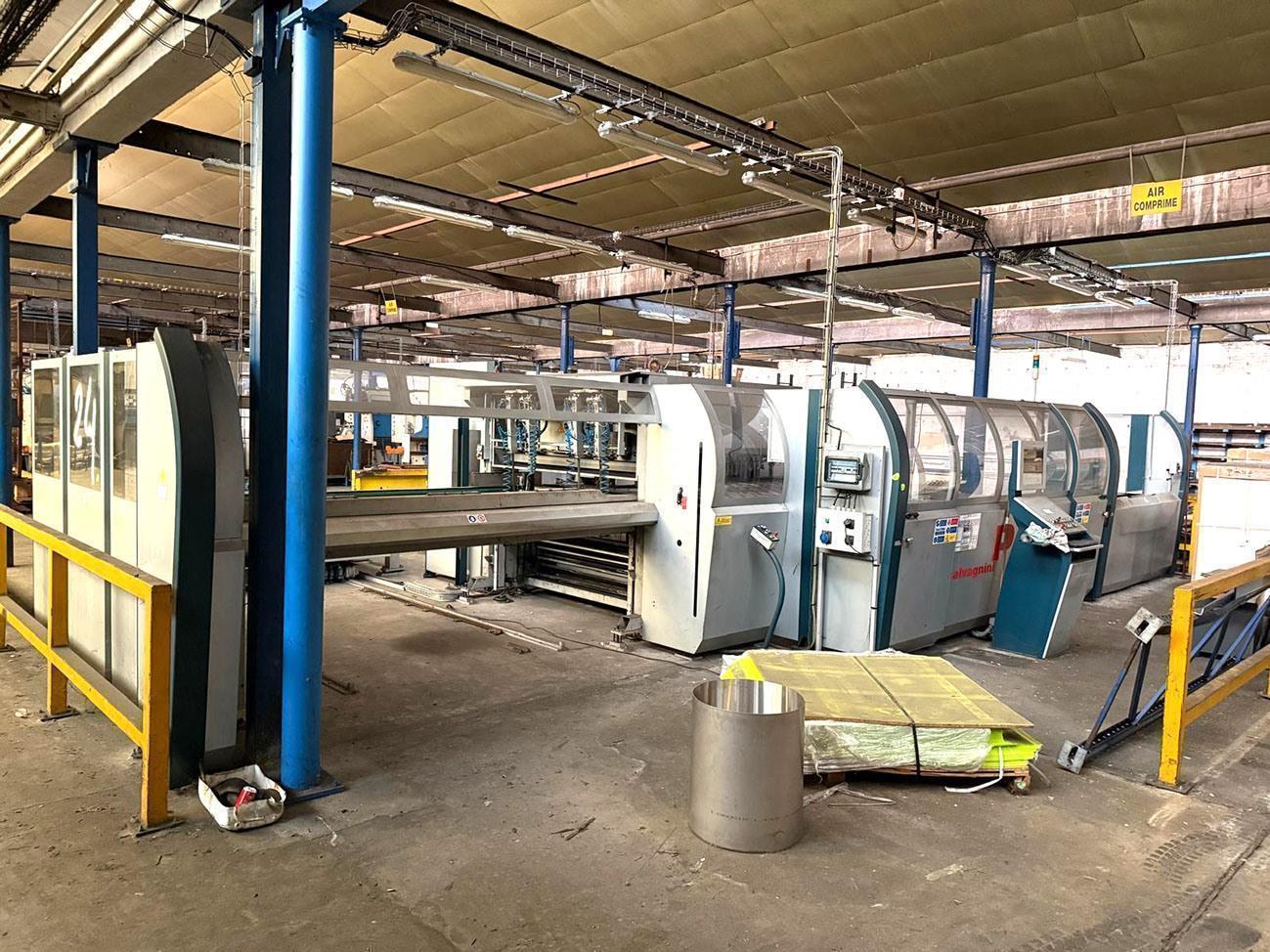

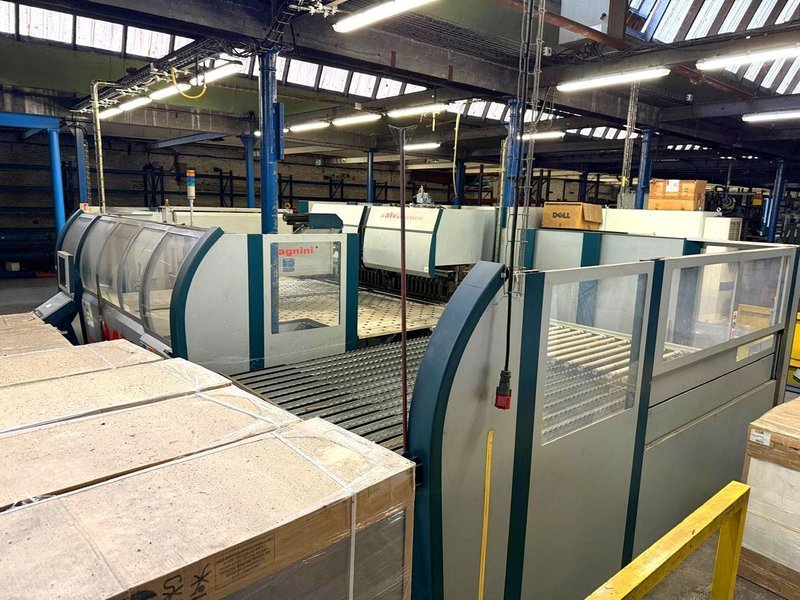

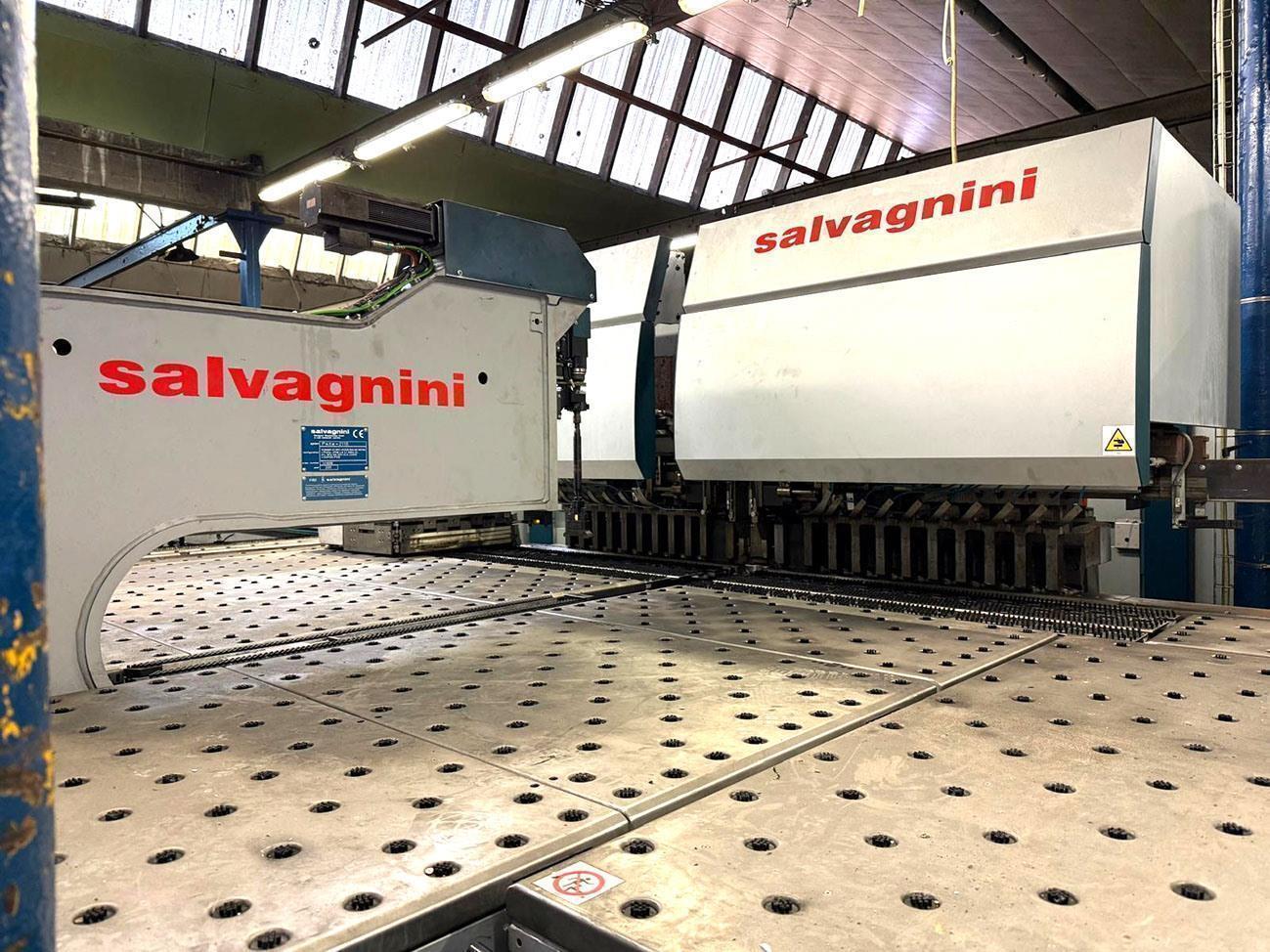

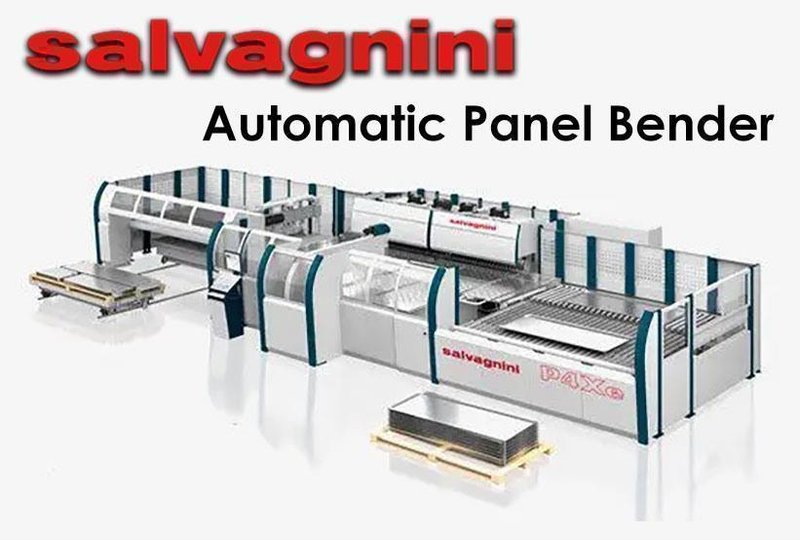

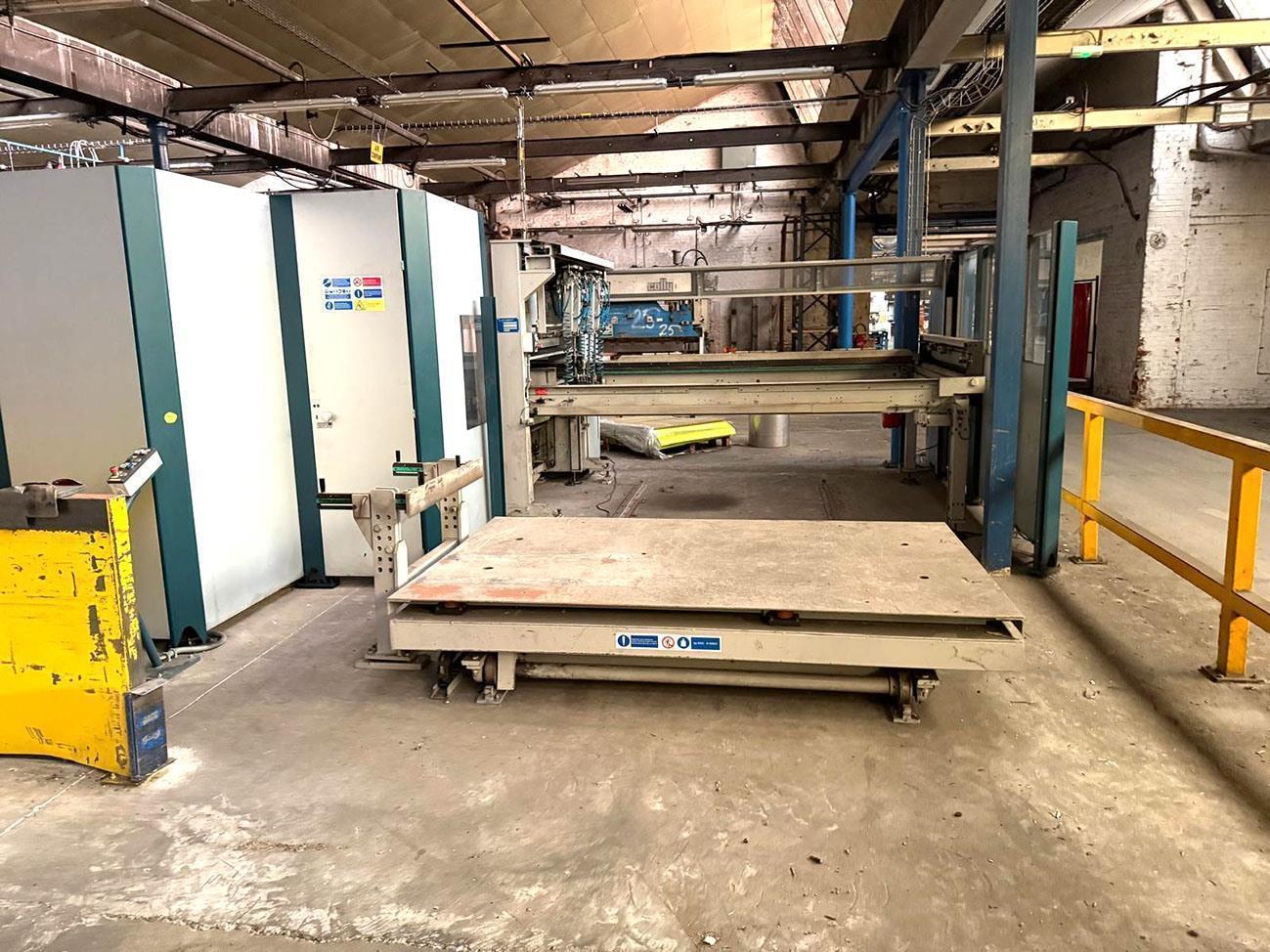

Salvagnini P4Xe - 2116 Panel Bender

Automatic panel bender
Type: P4Xe - 2116

max bending length: 2180 mm
min/max sheet length: 285/2495 mm
min/max sheet width: 190/1524 mm
max diagonal: 2500 mm
max workpieceheight: 165 mm
9 kW

voice:
> min 0.5 mm
> max 2.5 mm at 90° (1950 mm max)
> max 2.1 mm at 130° (1950 mm max)
> max 2.1 mm at 90° (+ 1950 mm)
> max 1.6 mm at 130° (+ 1950 mm)

stainless steel:
> min 0.5 mm
> max 2.1 mm at 90° (1950 mm max)
> max 1.6 mm at 130° (1950 mm max)
> max 1.6 mm at 90° (+ 1950 mm)
> max 1.2 mm at 130° (+ 1950 mm)

aluminum:
> min 0.5 mm
> max 3.2 mm at 90° (1950 mm max)
> max 2.5 mm at 130° (1950 mm max)
> max 2.5 mm at 90° (+ 1950 mm)
> max 2.1 mm at 130° (+ 1950 mm)

Options list:

ACP = Automatic loading table
P4Xe-2116 = Panel bender

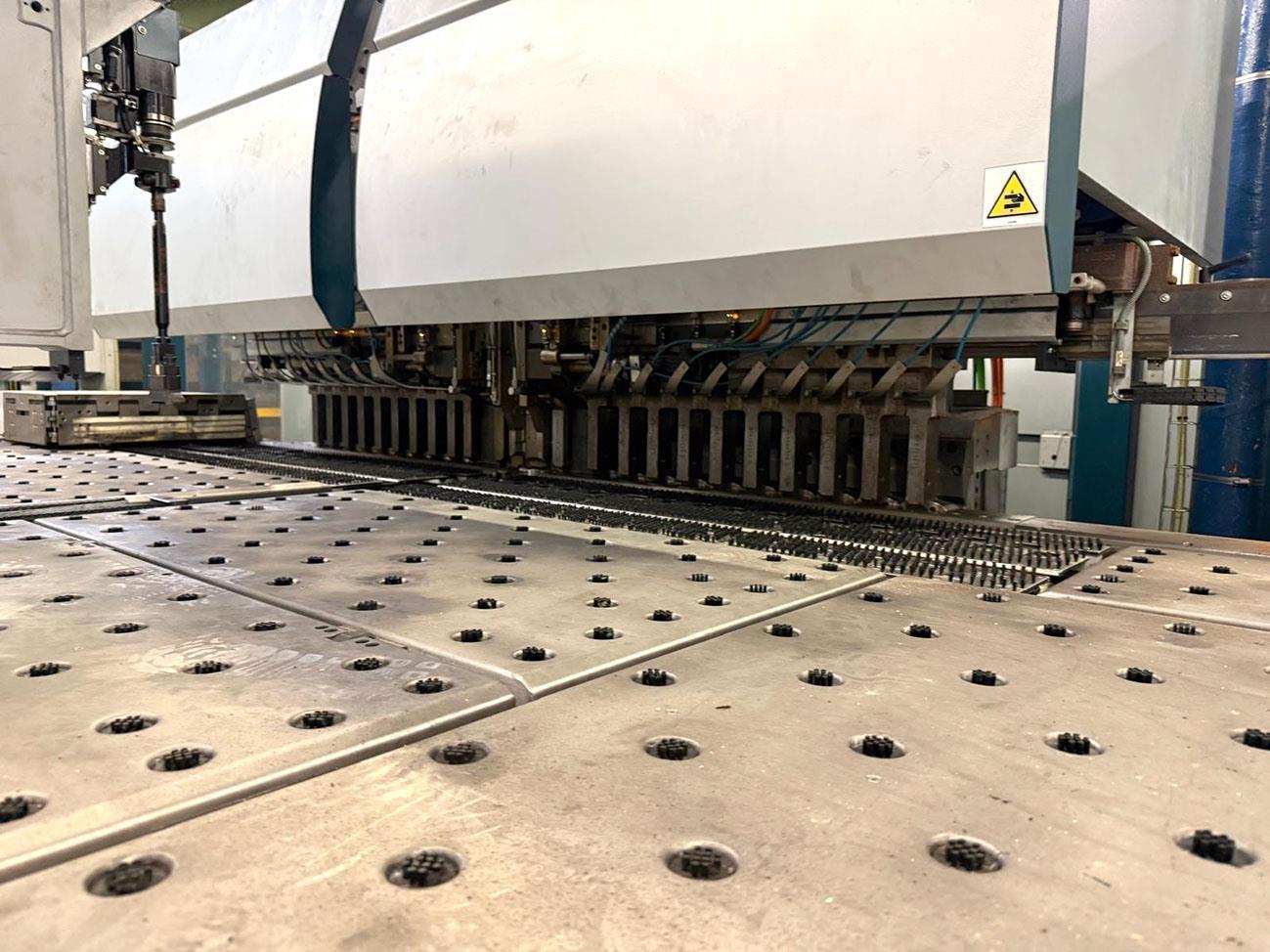

LS1 = Upper bending tool
LI = Lower bending tool
ABA = Drop holder with automatic length adjustment
ZLC = Additional left-hand clamp with sheet thickness measurement and right-hand intermediate table with conveyor
ZTL/RBU1 = Left-hand intermediate table with RBU
SPA = Table surface with brushes
NS = Standard presser
CLA = Tool holder for pre-bending tools
P = Tool holder for optional P tools
PSE = Cleaning and greasing device for bending tools
SAP = Removal device
