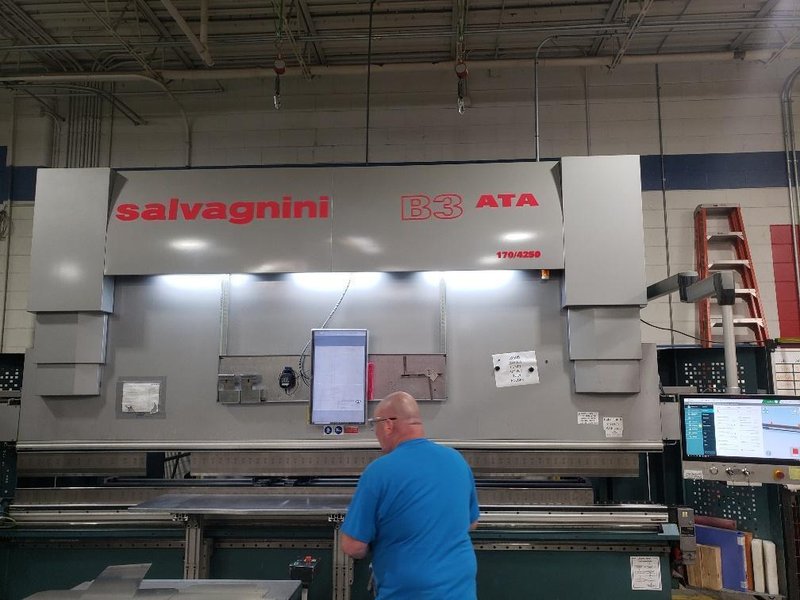

187 TON X 14' SALVAGNINI MODEL B3.170-4250 ATA 6-AXIS CNC HYDRAULIC PRESS BRAKE

187 TON X 14' SALVAGNINI MODEL B3.170-4250 ATA 6-AXIS CNC HYDRAULIC PRESS BRAKE

New 2018

EQUIPPED WITH:

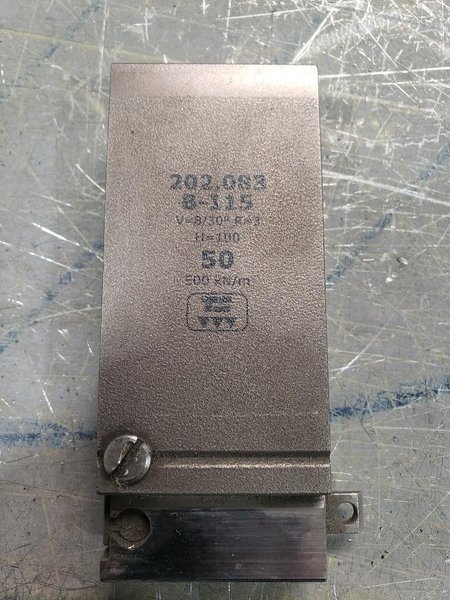

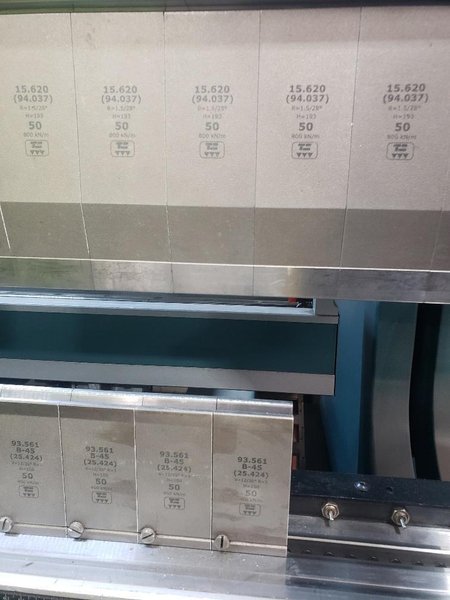

Salvagnini 6-Axis CNC Controls, Six Management Control and Console, CEC Cooling Circuit for the Electrical Cabinet, LXB Block Laser Safety System, DMR Data Matrix Reader, UTC-WI-II. ATA Automatic Tool Setup and Wila Upper Tool Clamping, TP-APS ATA Punches Type S, LTC-WI-II-W Automatic Lower Clamping For Wila Die with Wila WCT Automatic Crowning, LT-ATA Automatic Die Setup Device, TP-AD12 ATA Dies with V12 and V8 Score, BG8-2AF Back Guage with 6 Axis (R, X, X1, X2, Z1, Z2) + Y1, Y2, AMS Automatic Measuring Device, Park FLW Parking Area, (2) Full Programmable Followers, R=105 mm Punch Set, 12 mm Die Set in Macine, 8mm Die Set Included, Manuals

SPECIFICATIONS:
Capacity                                                               187 Tons
Bending Length                                                    14'
Distance Between Housings                                 11.9'
Throat Depth                                                        17"
Maximum Speed                                                   590.6 IPM
Bending Speed                                                      47.2 IPM
Maximum Stroke                                                   13.8"
Table to Ram Distance                                           23.6"
Approximate Dimensions                                      209" x 68.3" x129.7" H
Approximate Weight                                              29,762 Lbs.
