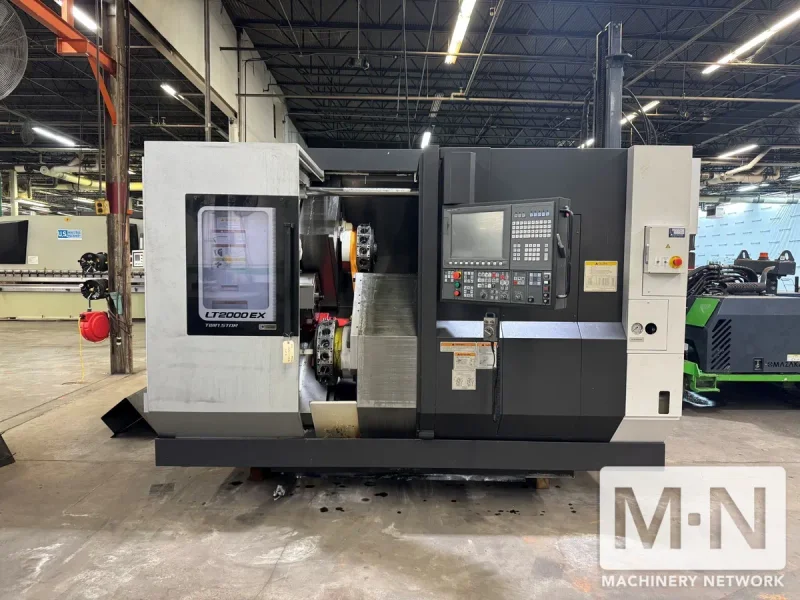

Used 2022 OKUMA LT2000EX-2T2MY | 5-Axis or More CNC Lathes

Brand
OKUMA
Category
Lathes & Turning Machines
Type
CNC Lathes (3-axis Or More)
Model
LT2000EX-2T2MY
Stock #
53424
Year
2022
Condition
Not specified

Location

Not specified

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
OKUMA
Model:
LT2000EX-2T2MY
Year:
2022
Stock #:
53424
Status:
For Sale
X-Axis8.07"204.98 mm
Y-Axis3.74"94.996 mm
Z-Axis27.56"700.02 mm
W-Axis28.74"730 mm
C-Axis00
Swing15.75"400.05 mm
Machining Length5.12"130.05 mm
Turning Dia8.28"210.31 mm
Max Turning Length5.12"130.05 mm
Center Distance37.8037.80
Bar Capacity2.5"63.5 mm
Spindle Bore3.15"80.01 mm
Chuck Size8"203.2 mm
# Axis88
Power30 hp22.4 kW
Max RPM5,000 RPM5,000 RPM
Max Tool Spindle Speed6000 rpm6,000 RPM
Spindle NoseA2-6A2-6
Twin SpindleYesYes
Tool ChangerTurretTurret
Tailstock (Yes/No)NoNo
Sub Spindle Nose140 FLAT140 FLAT
Sub Spindle Bar Capacity2.02.0
Sub Spindle Speed5000 rpm5,000 RPM
Sub Spindle Power30 hp22.4 kW
Sub Spindle Chuck Size6"152.4 mm
Upper Turret Stations1616
Upper Turret Rotary Tool Speed6000 rpm6,000 RPM
Upper Turret Rotary Tool Motor7.5 hp
Live Tool Speed6000 rpm6,000 RPM
Milling on Upper and Lower TurretYesYes
Milling Spindle Speed6000 rpm6,000 RPM
Lower Turret Stations1616
Lower Turret Rotary Tool Speed6000 rpm6,000 RPM
Lower Turret Rotary Tool Motor7.5 hp
Slide travel (Y)3.743.74
Bar Capacity L-Spindle2.5"63.5 mm
Slide Travel (X1/X2/X3)8.07 / 8.07 /8.07 / 8.07 /
Slide Travel (Z1/Z2/Z3)27.56 / 27.56 /27.56 / 27.56 /
Rapid Feed (X1, X2, X3)1181 / 1181 /1181 / 1181 /
Rapid Feed (Z1, Z2, Z3)1575 / 1575 /1575 / 1575 /
Rapid Feed (Y1, Y2, Y3)591 / 591 /591 / 591 /
Spindle Speed L-Spindle5,000 RPM5,000 RPM
Spindle Speed Range L-Spindle50-500050-5000
Spindle Nose L-SpindleA2-6A2-6
Spindle Speed R-Spindle5,000 RPM5,000 RPM
Spindle Speed Range R-Spindle50-500050-5000
Spindle Nose R-Spindle140 FLAT140 FLAT
Power R-Spindle30 RPM30 RPM
Rotary SystemC-axisC-axis
Turret Stations2 x 162 x 16
Number of Rotation Tool Station1616
Dimensions147.44 x 97.01 x 92.52147.44 x 97.01 x 92.52
Weight1980019800

BIG BORE A2-6 WITHOUT CHUCK PACKAGE, LEFT
SPINDLE MOTOR UPGRADE 22/15 KW, LEFT
SPINDLE MOTOR UPGRADE 22/15 KW, RIGHT
TOUCHSETTER AUTO FOR MAIN SPINDLE
PART UNLOADER, BUILT IN
SS1770 CYLINDER AND DRAWTUBE FOR BB208 CHUCK, LEFT
CEILING SHOWER COOLANT, NIAGARA TYPE B
DELETE PARTS CATCHER PREP
CONVEYOR, SIDE DISCHARGE, HINGE, HIGH (STD BED)
COMMON VARIABLES, 1000 SETS
NO-LOAD MONITOR FUNCTION
SPARE M-CODES, 8 SETS – LATHES
NEGATIVE TOOL RADIUS COMPENSATION
TOOL LIFE NOTIFICATION
C AXIS SYNCH BOTH SPINDLES
PREP FOR MIST COLLECTOR, 6 INCH, LATHE (SHORT BED
AUTO DOOR WITH RUBBER TAPE SWITCH
AUTO GAUGING RENISHAW RLP40, RMI-Q
C-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
Y-AXIS GAUGING
Z-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
RENISHAW INSPECTION PLUS SOFTWARE W/GUI LATHE
BARFEEDER INTERFACE, UNIVERSAL TYPE, HARDWIRED
OPTIONAL TOOLING PKG, HP COOLANT, BMT TURRET (STATIC BASES)
