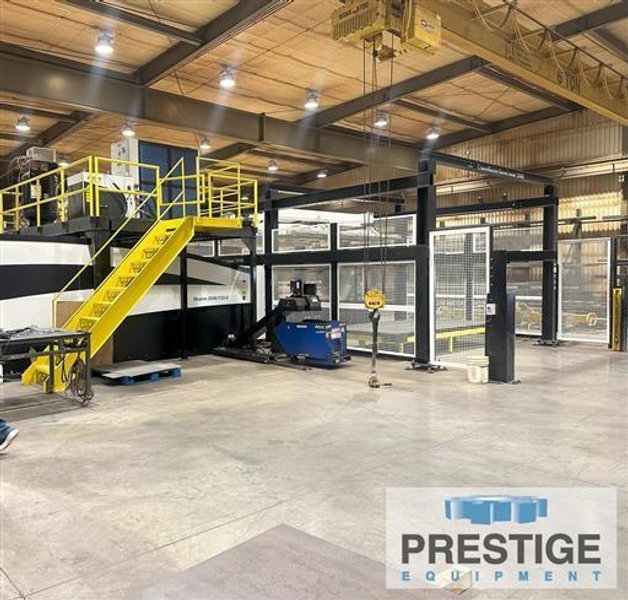

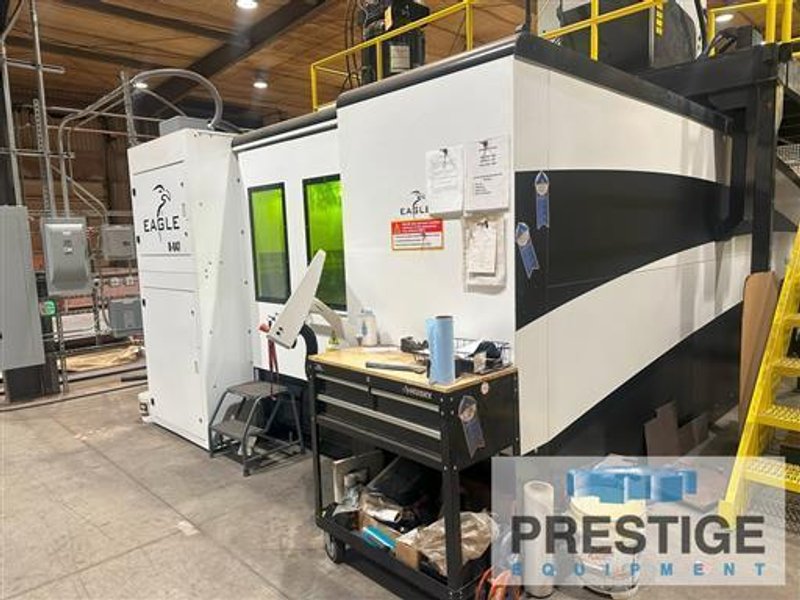

Eagle iNspire 2040 20 KW CNC Fiber Laser w/ CraneMaster Load/Unload

SPECIFICATIONS:
Laser Output 20 KW
X-Axis Working Range 160"
Y-Axis Working Range 80"
Z-Axis Working Range 4"
Maximum Sheet Weight 3,086 Lbs.
Maximum Speeds Parallel (X/Y/Z) 9,843 IPM
Maximum Cutting Speed 5,906 IPM
Maximum Positioning Speed 13,780 IPM
Maximum Acceleration 6 G



Equipped With:
Eagle CNC Control
Automatic 36-Bay Nozzle Changer, Includes Eagle AC
20,000 YLS IPG Laser
6G Acceleration
Linear Motors on All Axes
Drop & Cut with Internal Camera
Mixline-Mixed Gas Cutting
Polymer Granite Base
Carbon Fiber Bridge
eVa Ultrahigh-Power Cutting Head
Integrated Conveyor
HRS Height Regulation System
Collision Sensing Breakaway Head
Sheet Position Recognition
Dust Collector System-Inside Installation
Eagle AC-Auto Centering and Nozzle Cleaning
CutEye-Rapid Edge Detection
Traverse Conveyor
Third Assist Gas
CraneMaster Automatic Load/Unload System
Riedel Chiller


NOTE: Only 159 Beam Hours


NOTE: Inspect in Plant Under Power
