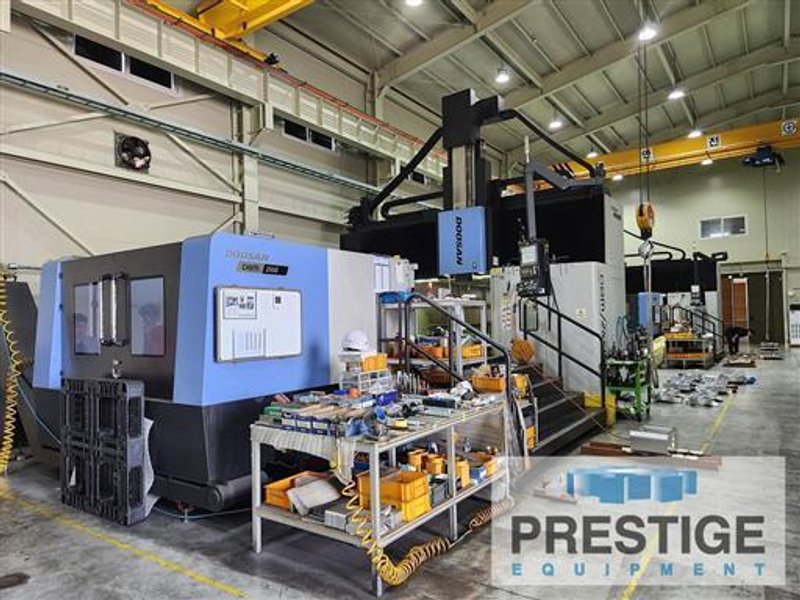

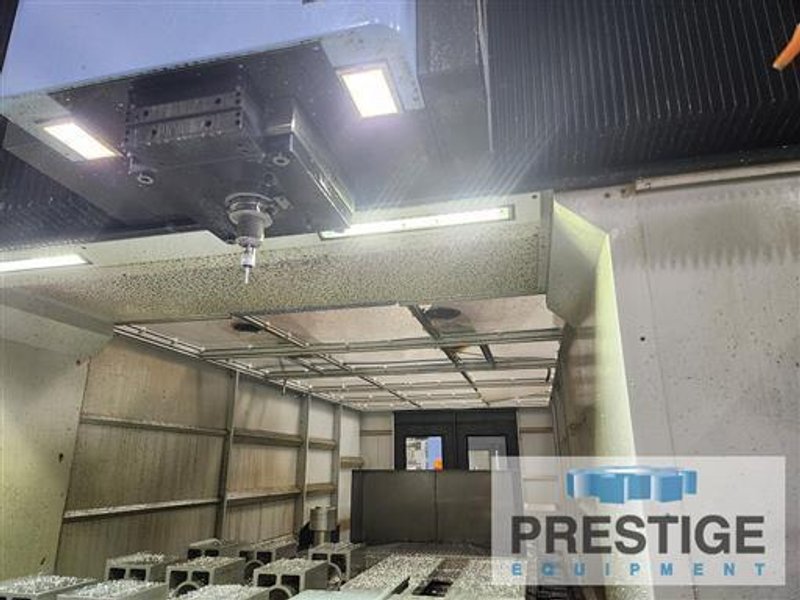

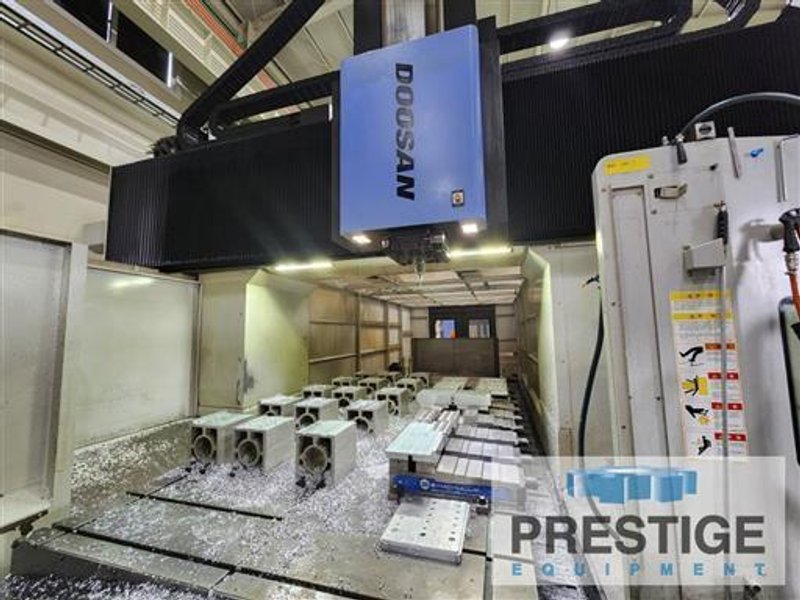

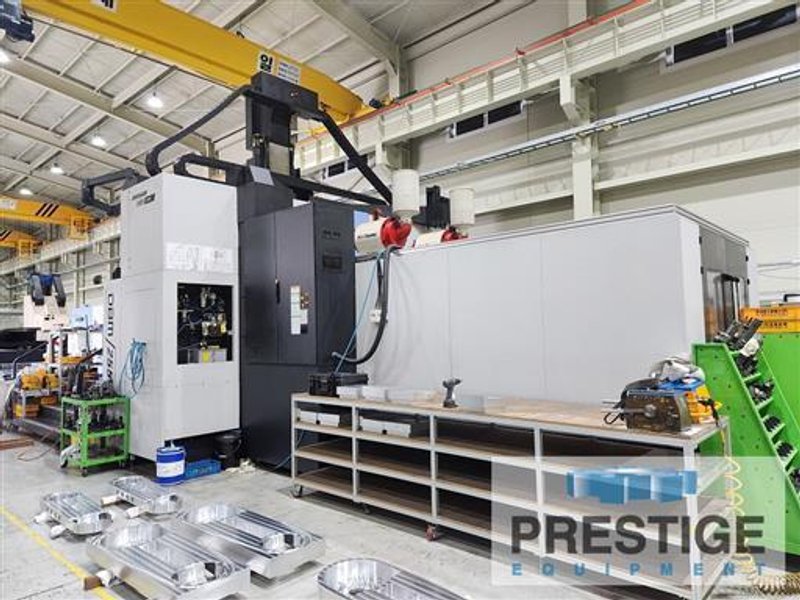

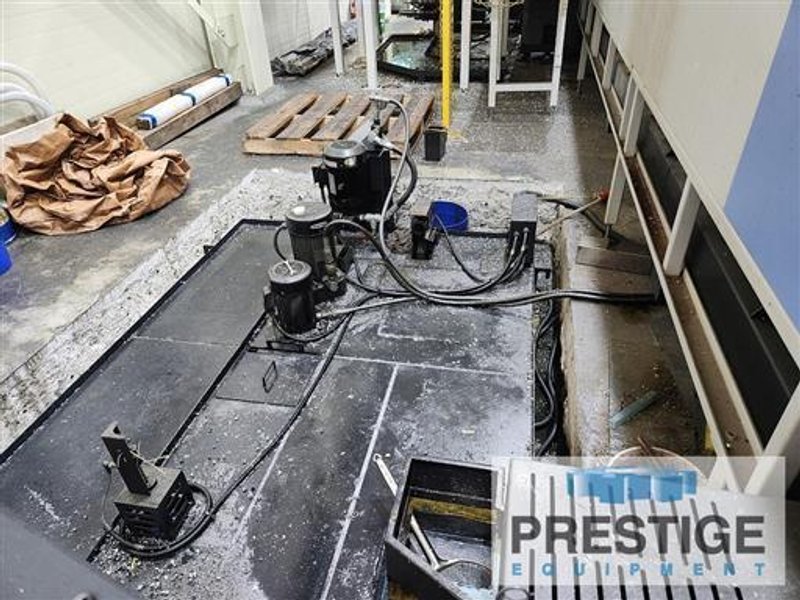

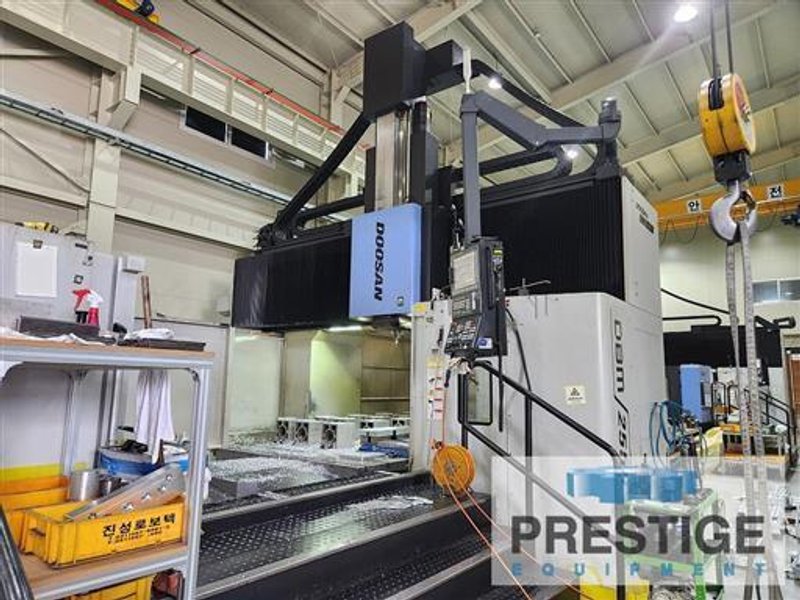

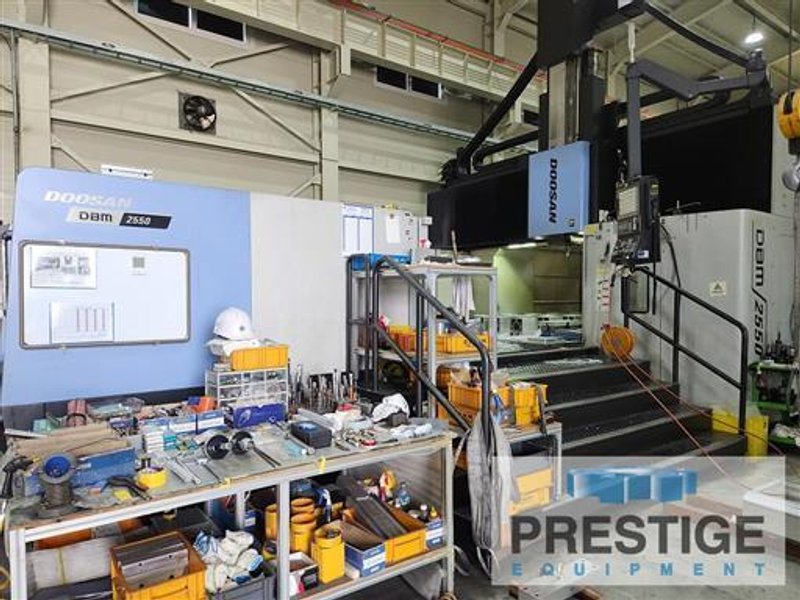

Doosan DBM-2550 CNC Double Column Machining Center

SPECIFICATIONS:
X-Axis Travel 206.69"
Y-Axis Travel 118.11"
Z-Axis Travel 31.49"
Ram Size 14.96" x 14.96"
Distance Between Columns 98.43"
Distance Spindle Nose to Table 7.8"-39.4"
Table Size 196.85" x 78.74"
Table Capacity 55,000 Lbs
Spindle Speeds (Geared Head)........... 8,000 RPM 8,000 RPM
Spindle Drive Motor 49.6 HP/ 73.75 HP
Spindle Taper BT #50



Equipped With:

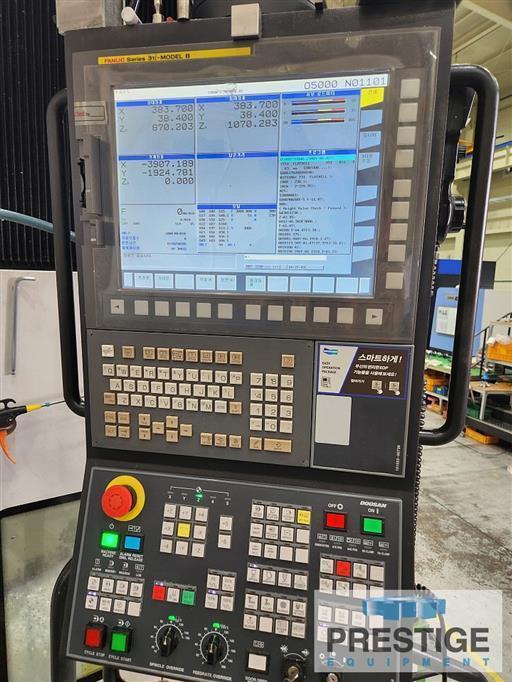

Fanuc 31iB CNC Control

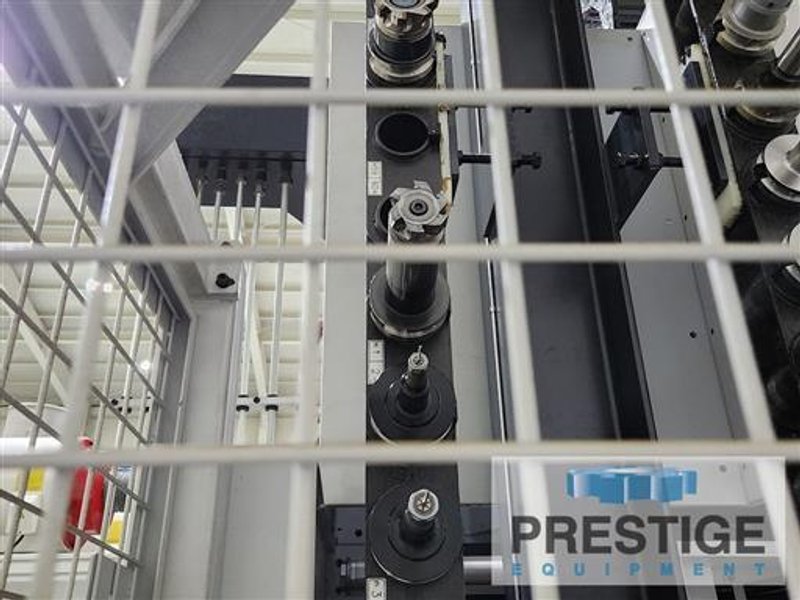

60-Station Automatic Tool Changer
Right Angle Head (6000 RPM)
Thru Spindle Coolant (20 Bar)
Renishaw Tool Length Measurement
AAC (Swing 2-Station)
Scales XYZ1, Z2 Axis
Semi Cover with Rear Top Roof

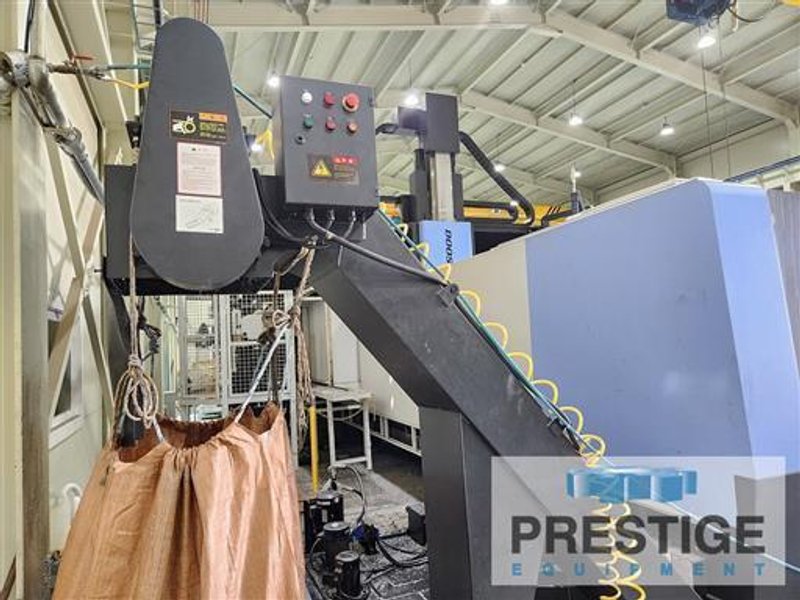

Chip Conveyor

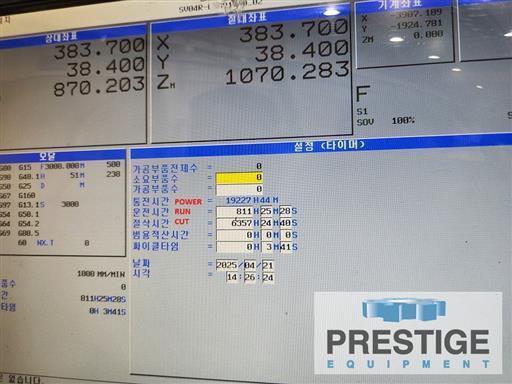

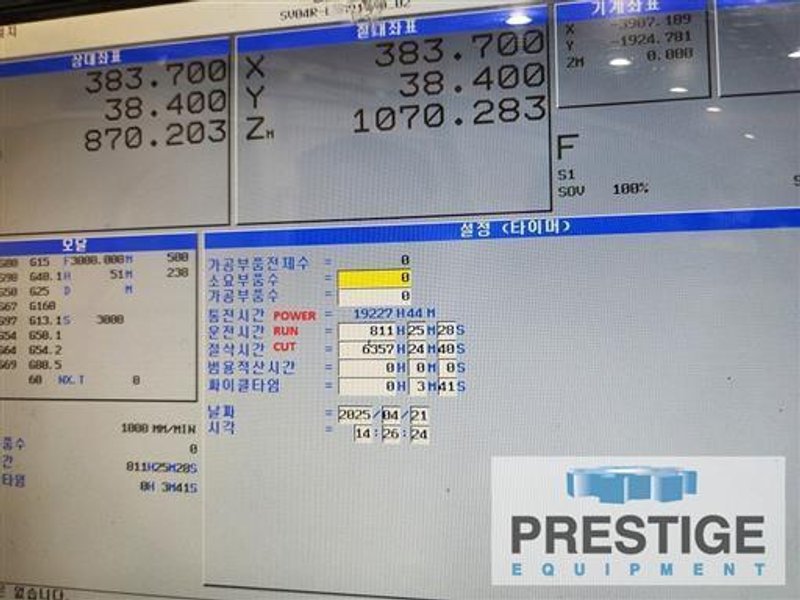

HOURS: Power On: 19,227
Cutting Hours: 6,357


NOTE: Inspect in Plant Under Power
