Tube Mill Components, Oto Mills

Tube Mill Components suitable for the following:


-Strip Width: Max. 530 mm
-Thickness: 2 - 6.3 mm
-Material: HR, Galvanized, Pickled

Consisting of the following:

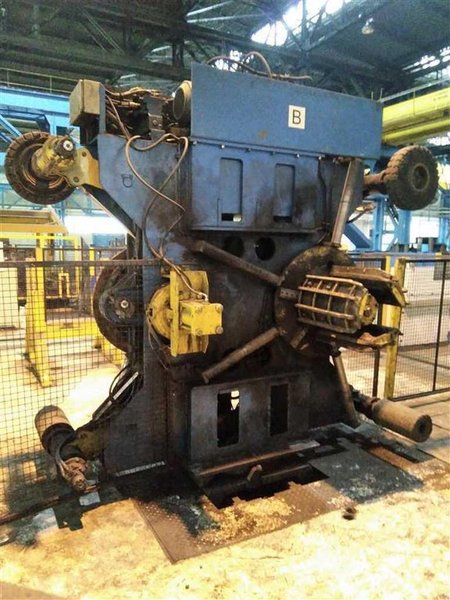

-Double Uncoiler:
Double Hydraulic Expandable Mandrel
Hydraulic Mandrel Rotation
Hydraulic Uncoiler Rotation / Lock
Hydraulic Uncoiler Traverse for alignment
Brake pneumatically operated disc

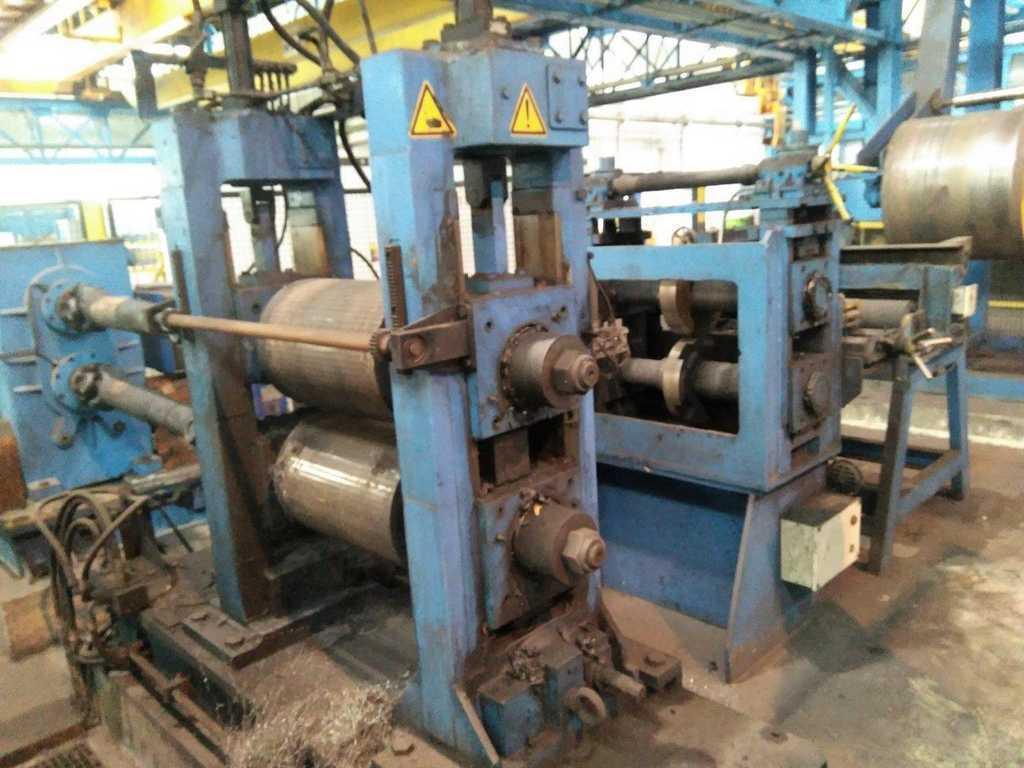

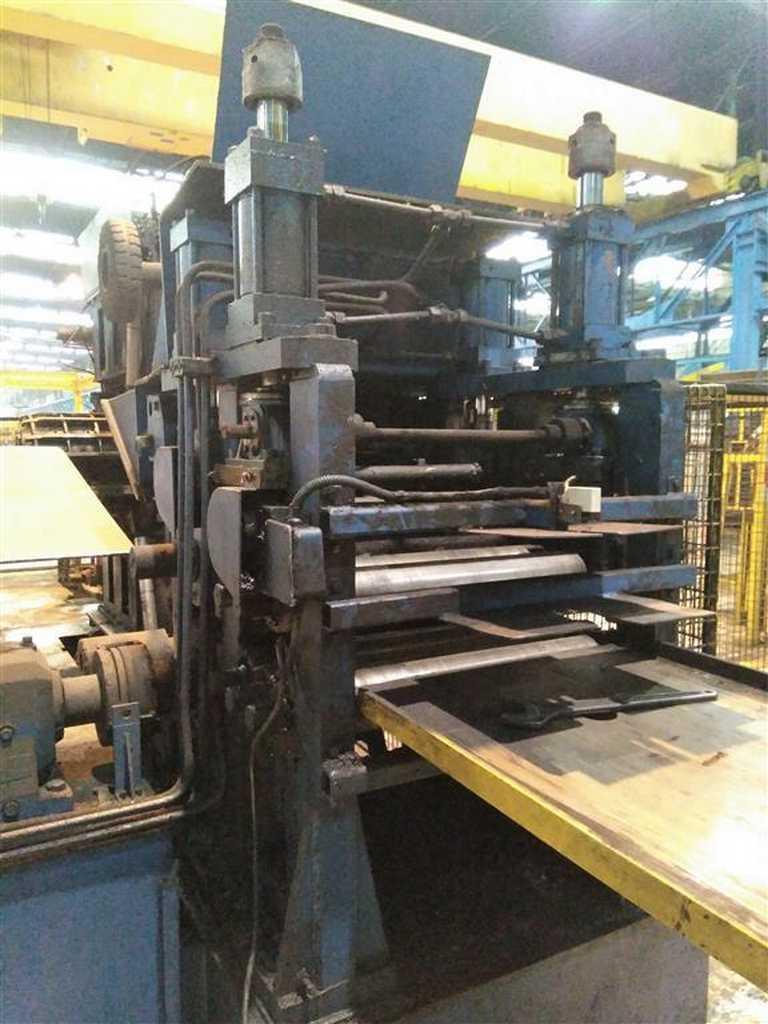

-Pinch Roll and Flattener:
3 + 2 Rolls
Hydraulic Roll Positioning

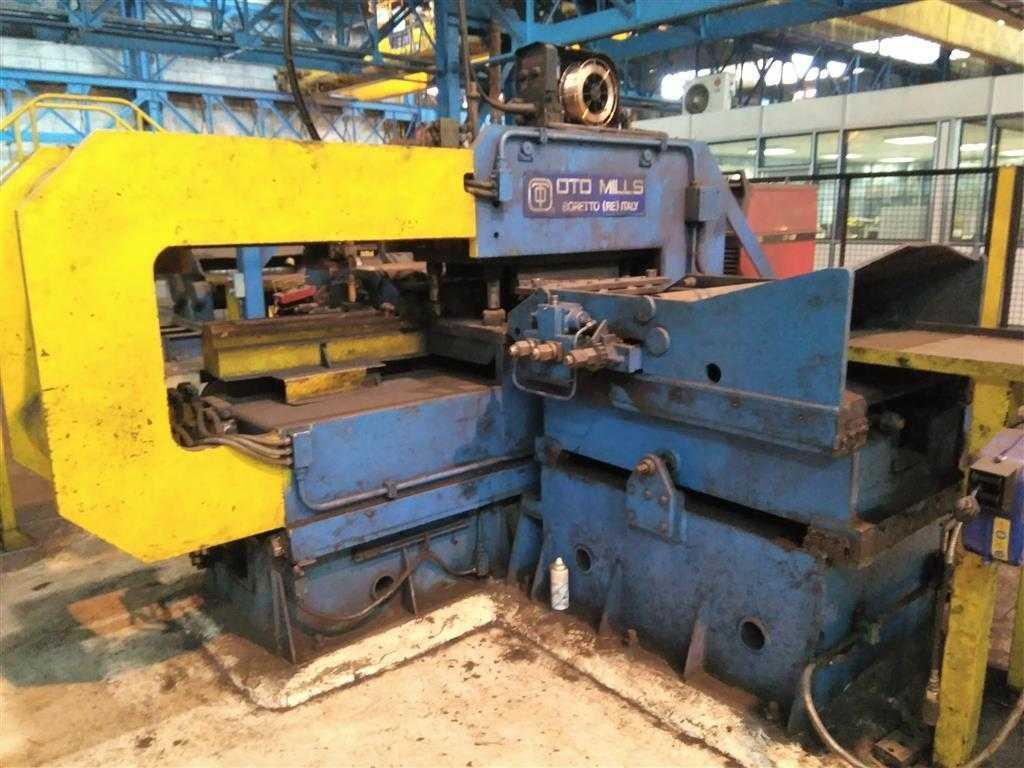

-100% Automatic Butt Welding Unit:
Complete Automatic Joining and Welding Process

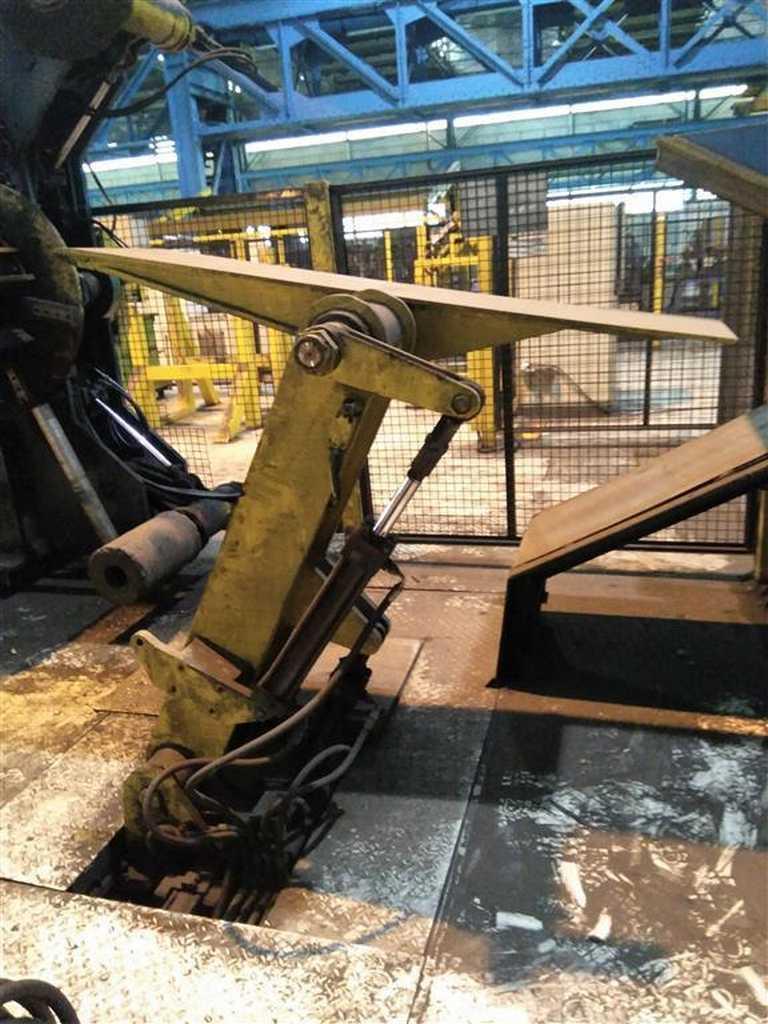

Strip Exit Table and Encoder
Motorized Strip Exit Pinch Roll

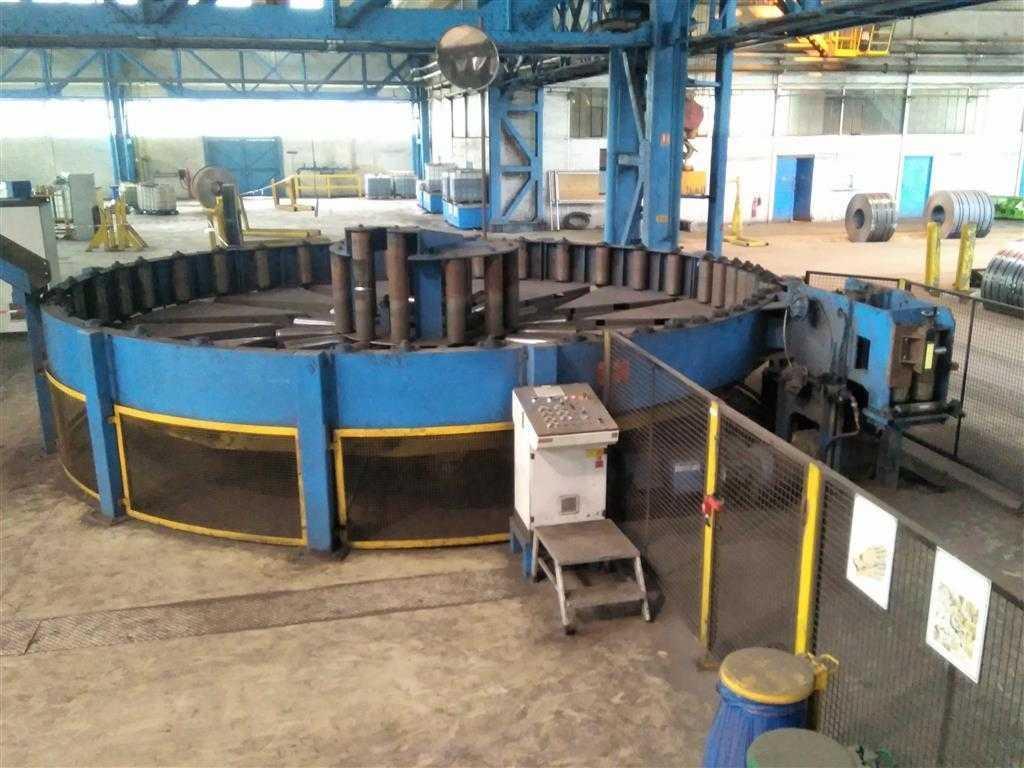

-Horizontal Accumulator:
Heavy Duty Horizontal Accumulator
Motorized Feeding Pinch Roll - 106 KW
Rotating Table with Main Motor - 106 KW
Approx. 6,5 Meter External Table
Exit Strip Guiding Turret

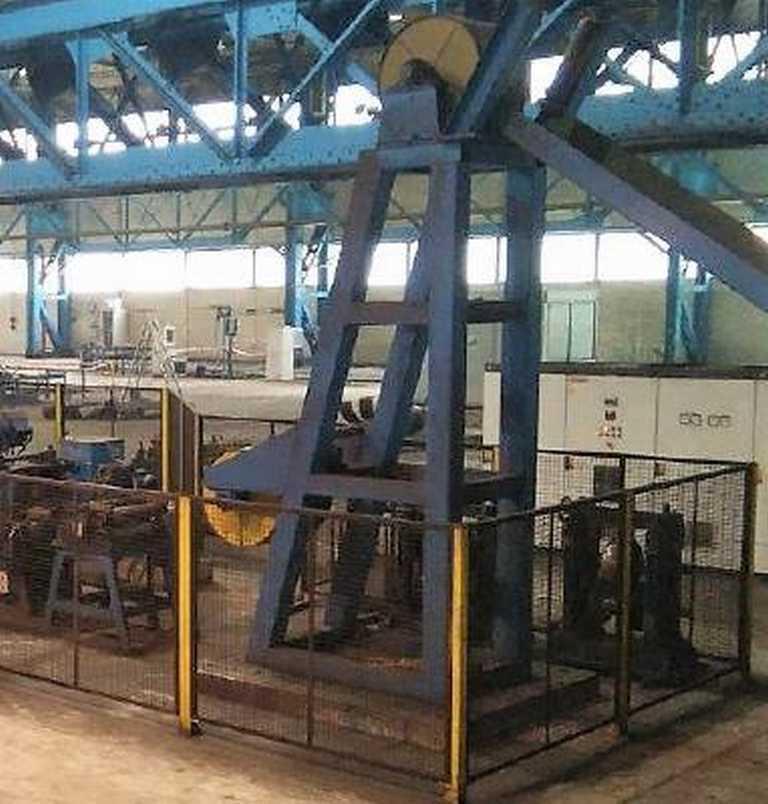

-Strip Passage:
Strip Passage Tower

-Accumulator Exit Pinch Roll:
Strip Counting Unit and Motorized Heavy Duty Pulling Pinch Roll

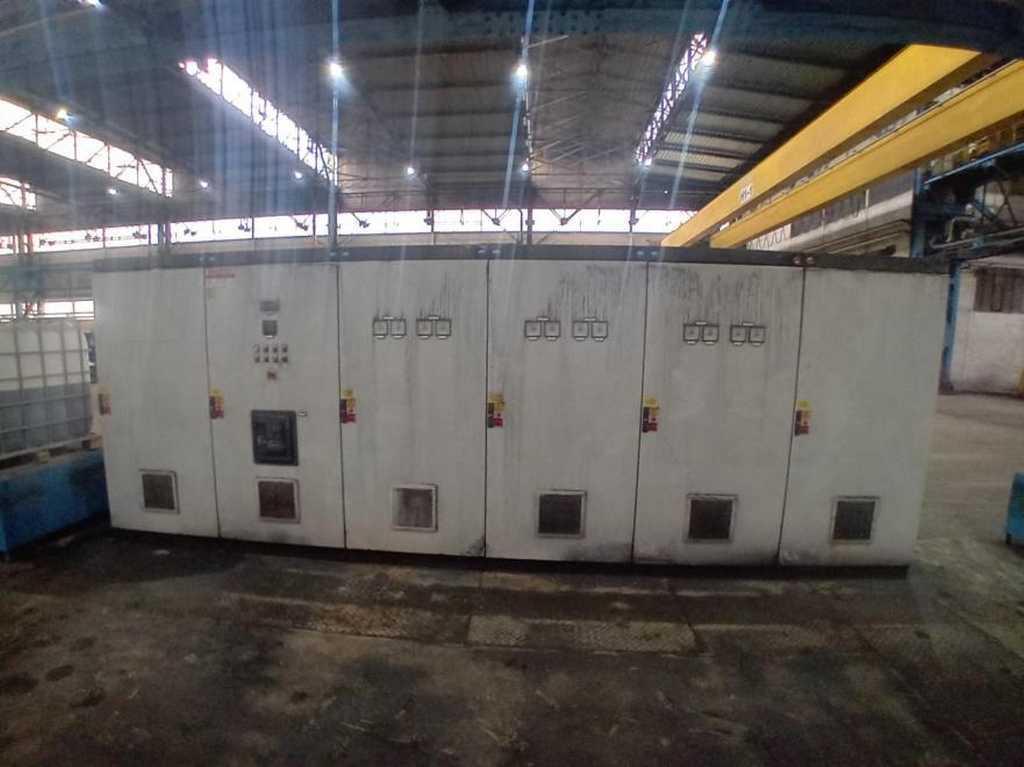

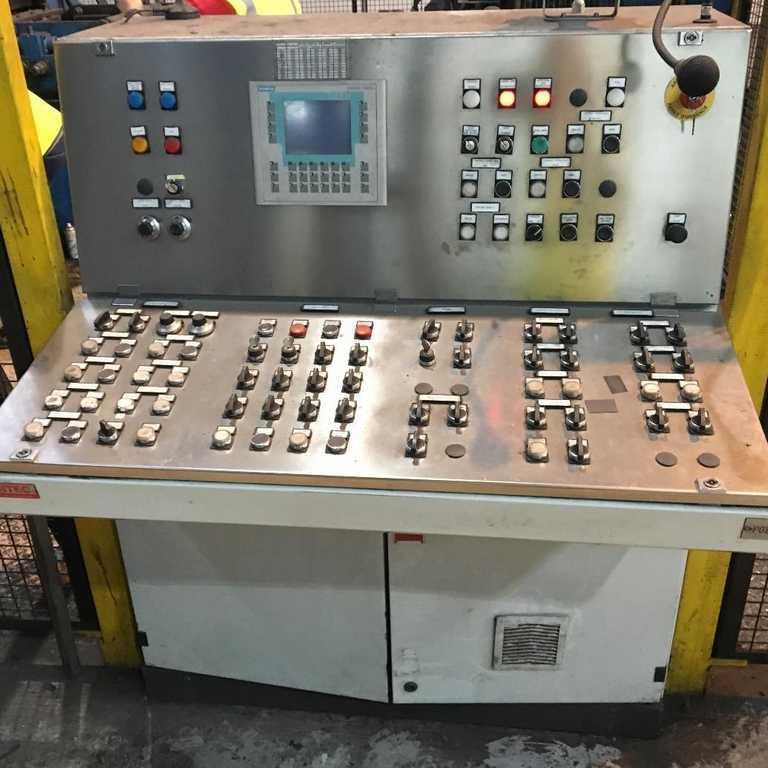

-The complete electrical part of the Tube Mill was totally renovated.
All electrical panels and operators panel were replaced in 2008, so
everything is in perfect condition from the electrical point of view.

-All the security devices makes Pilz & Sick

-PLC Siemens
