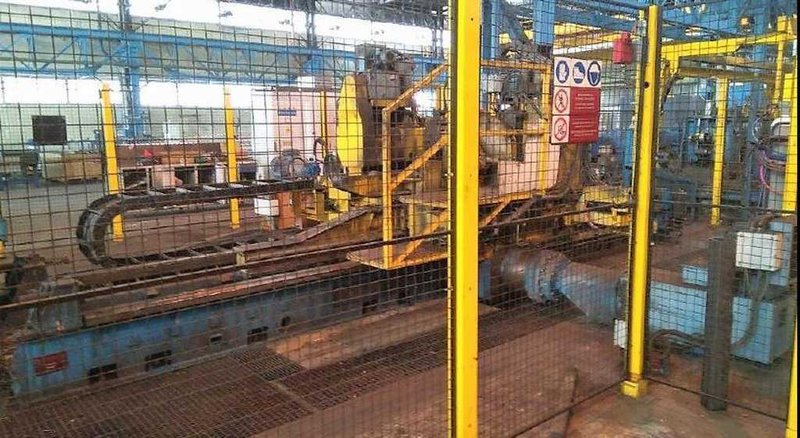

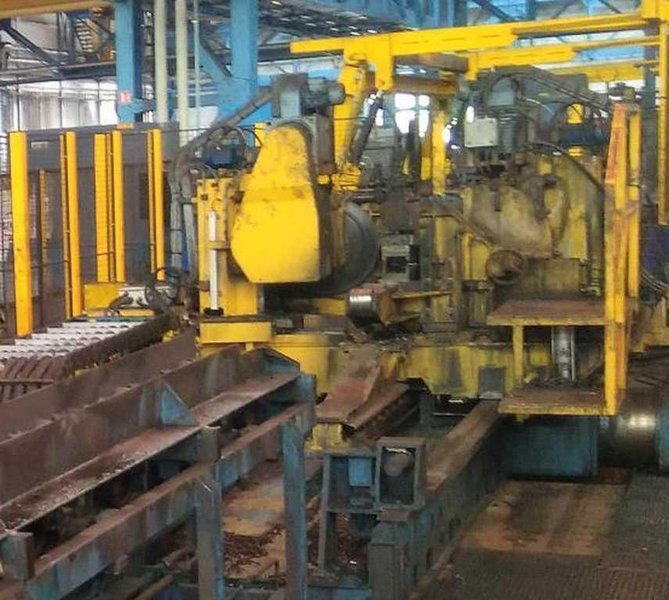

Saw, Cold, Oto

MATERIAL SPECIFICATIONS:
Material: Hot and Cold Rolled
Steel/Galvanized Steel
Ultimate Tensile Strength (HSS Blades: 550 N/mm2
Ultimate Tensile Strength (TCT-TCTS Blades): 750 N/mm2
Minimum Material Thickness: 1,5 mm
Maximum Material Thickness: 10 mm

PRODUCTIVITY AND SPEED:
Tube Length: 4000 - 12000 mm
Tube Diameter: 48 - 168,3 mm
Square Tube Range: 50 x 50 - 130 x 130 mm
Rectangular Tube Range: 60 x 40 - 180 x 80 mm
Maximum Line Speed: 90 m/1'
Cutting Length Tolerance: +/- 1.5 mm

FORMING:
Forming Style: Center Line / Bottom Line
Tube Pass Height (Bottom Line): 1050 mm

BLADE:
Type of Saw: Double-Blade Slow Milling hob
Type of Blade: TCTS, HSS, TCT
Hass: High Speed Steel Blade
TCT: Blade with braze-welded inserts.
TCTS: Special blade of Oto Mills (screwed on inserts)
Maximum Blade Diameter: 550 mm
Maximum Peripheral Speed: 480 m/1'
Maximum Blade Thickness: 4 mm (8 mm for TCTS)

MOTORS AND TRANSMISSIONS:
Blade Motor: 19 - 19 KW
Head Traverse Motor: Brushless 4.2 - 4.2 kW
Carriage Motor: 78.5 kW
Carriage Stroke: 4000 mm
Voltage: 400 V - 50 HZ

MOTORS AND TRANSMISSIONS:
Blade Motor: 19 - 19 kW
Head Traverse Motor: Brushless 4.2 - 4.2 kW
Carriage Motor: 78.5 kW
Carriage Stroke: 4000 mm
Voltage: 400 V - 50 HZ
Carriage Transmission: Rack and Pinion
Protection Rating of Head Motors: IP54

INITIAL SECTION OF RUNOUT CONVEYOR:
Type of Machine: Runout Conveyor
Material: Steel, Hot Rolled, Cold Rolled, Galvanized
Tube Thickness: 0.8 - 8.0 (Min-Max.)
Tube Length: 4000 - 12000 (Min-Max.)
Tube Diameter: 12.7 - 168.3 (Min-Max.)
SHS-RHS Size Range: Square Hollow Sections: 10 x 10 - 130 x 130
Rectangular Hollow Section: 20 x 10 - 180 x 80

THE FOLLOWING ITEMS, ARE NOT PART OF THE SCOPE OF SUPPLY:

-Clamping Jaws
-Saw Blades
-Electric Cables & Hydraulic Piping
-Maritim Packing
-Transport and Insurance for transport
-Foundation Work
-Anchorage Parts
-Electrical Supply
-Pneumatic Supply
-Perimeter Fences other than those existing
-Everything not expressly offered
