72" x 0.075" x 40,000# Welty Way Slear Line

YEAR: 1975

-Capacity: 72" x 0.021" - 0.075" Mild Steel
-Coil Weight: 40,000#
-Sheet Length: 12' Long
-Speed: 100 FPM Max. (Approx.)
-Electrics: 480 / 3 / 60 HZ
-Line Direction: Left to Right

Consisting of the following:

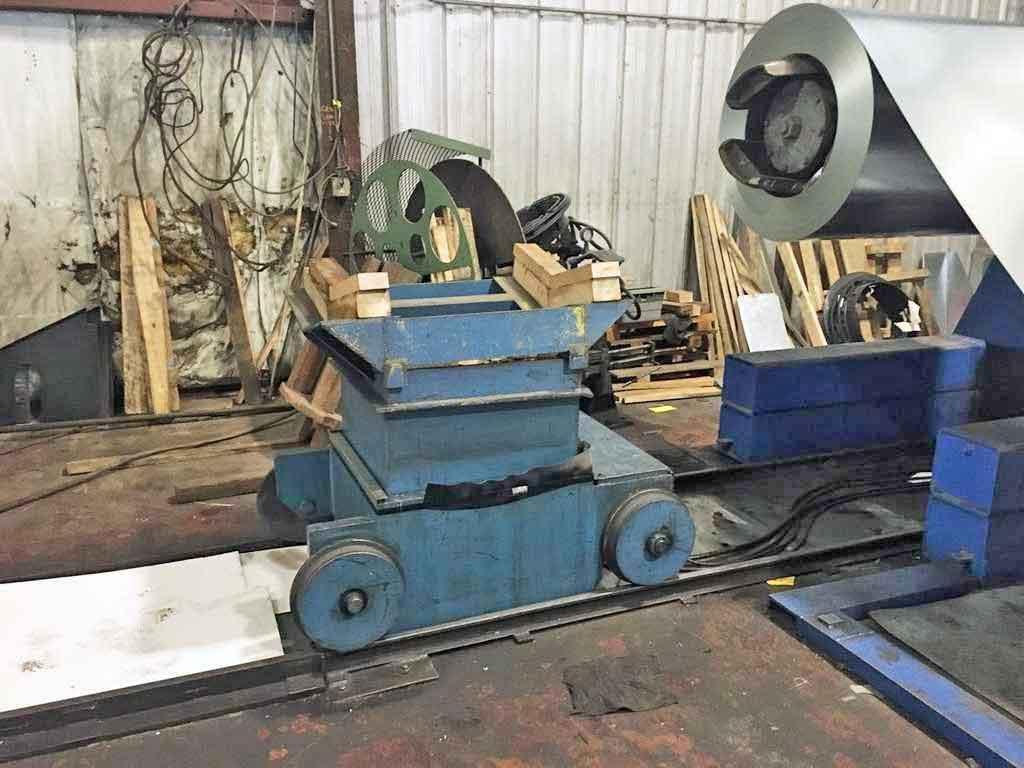

-Coil Car:
Above Ground
Hyd. Powered
"V" Type

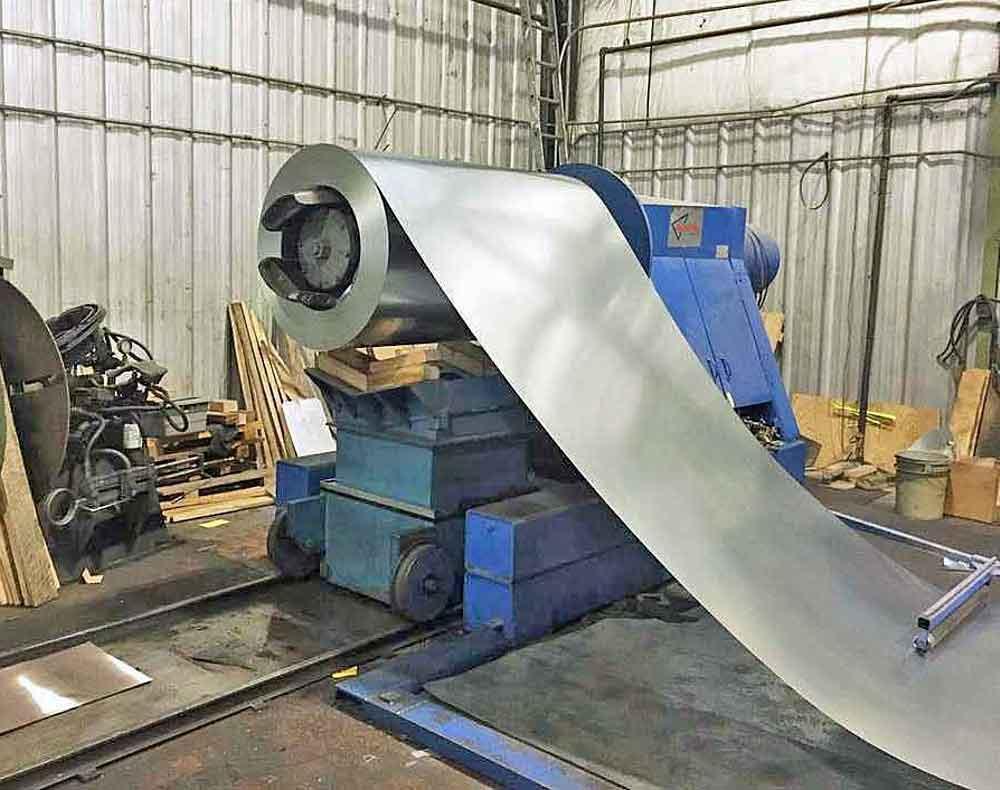

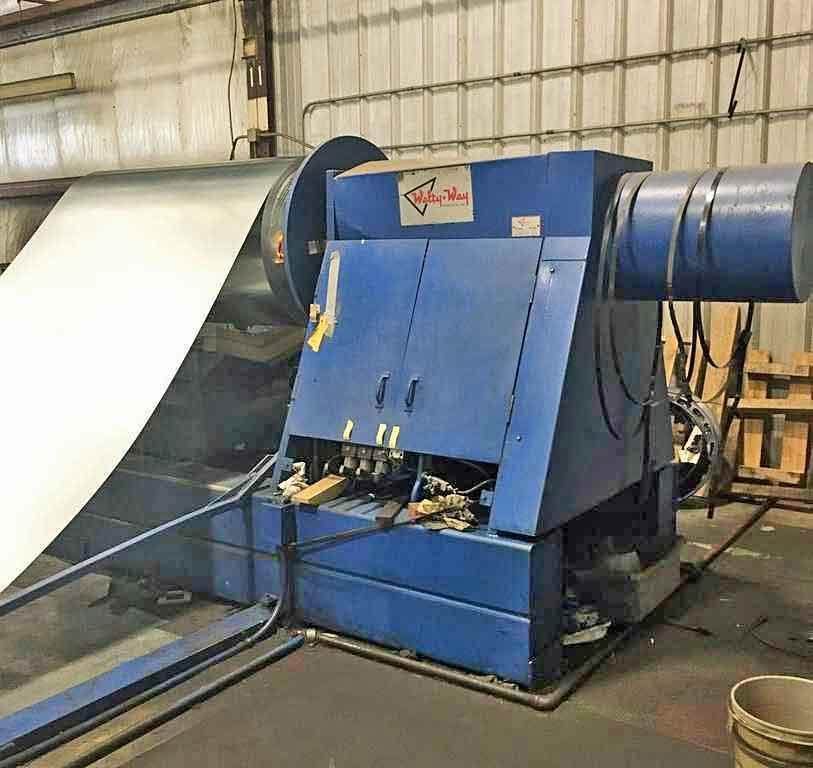

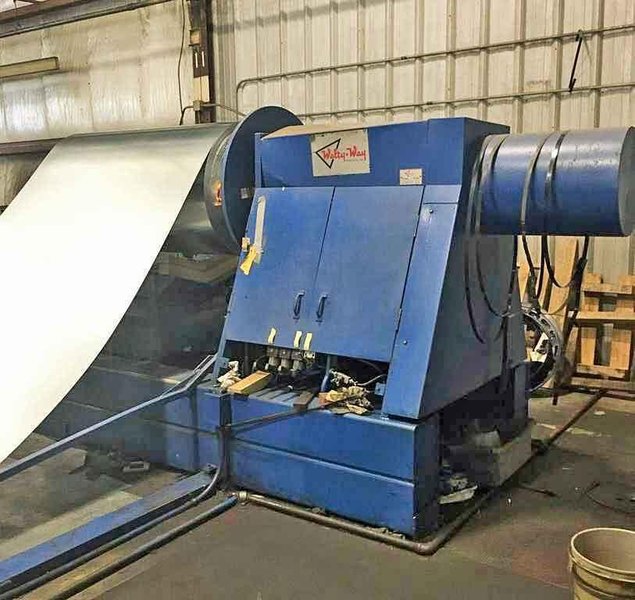

-Uncoiler:
Model 40 M 72
Hydraulic Expansion
19" - 23" Expansion Range
3 Segment Mandrel
Feedup Drive
Loop Control Arm
64" Coil O.D.

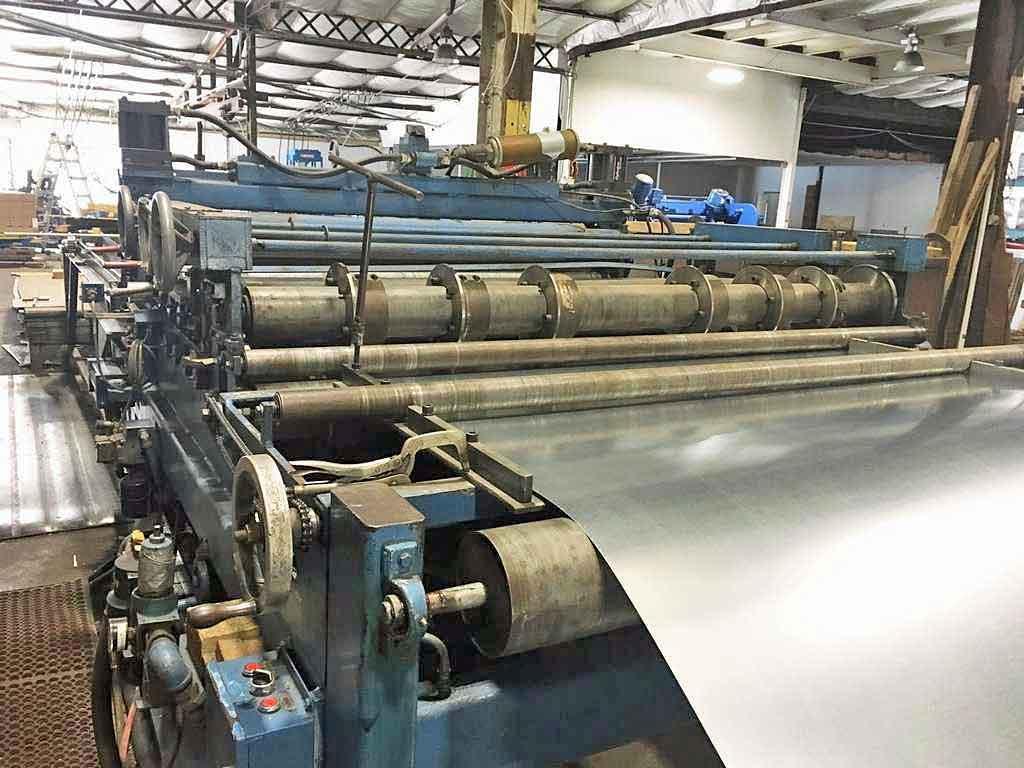

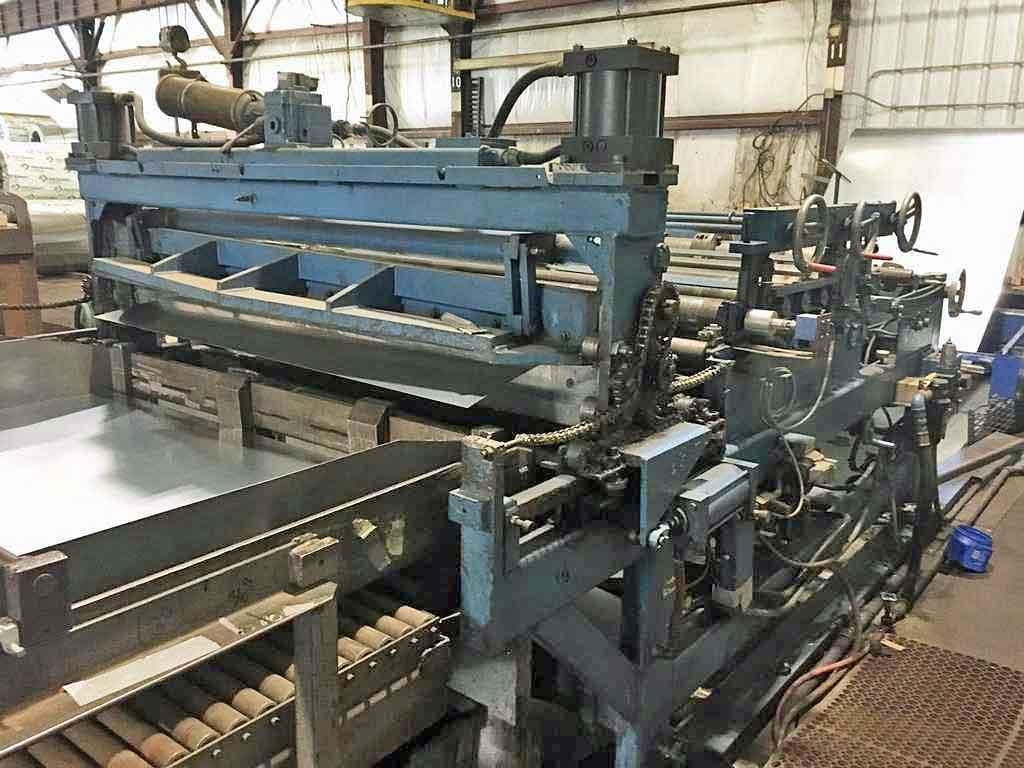

-Main Slear Unit:
Entry Side Guides
Manual Handwheel Adjustment
Entry Passline Rolls
Slitter Head
Parallel Arbor Adjustment
Straightener
6 Work Rolls, 5" Dia.
Manual Handwheel Adjustment of Top Rolls
Flying Shear
Down Cut
Air Cylinder Operated
AC Drive Motor in Base

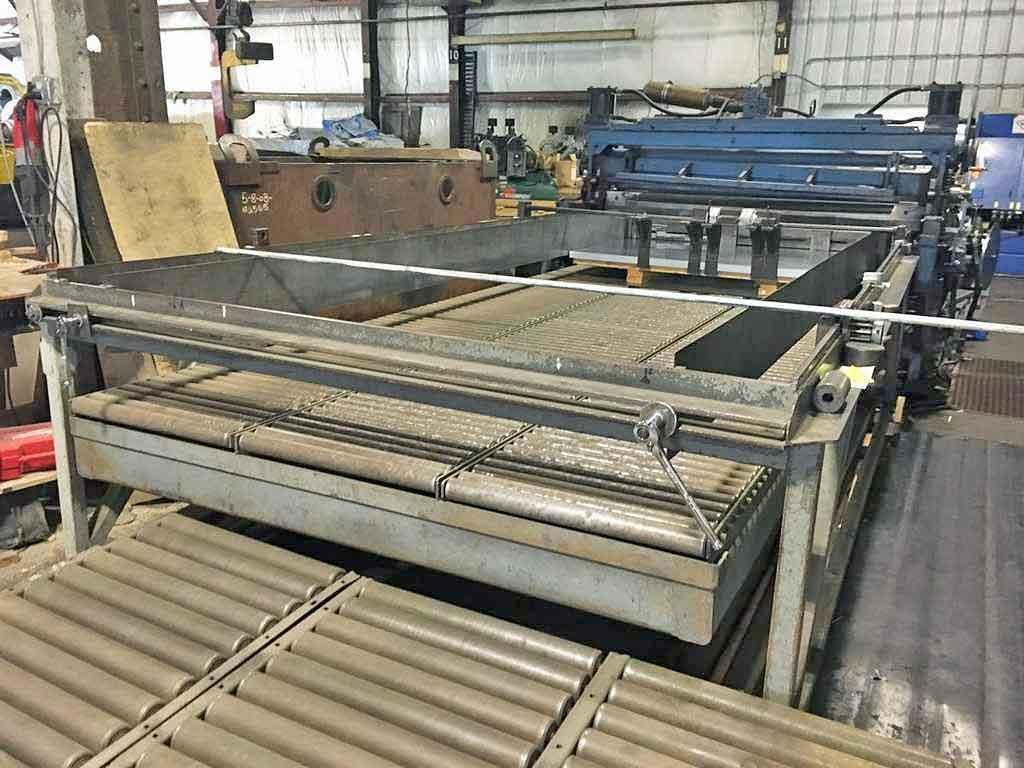

-Sheet Stacker:
Sheet Dividers
Scissors Lift Table w/Roller Conveyor Top
10,000# x 12 Ft. long Stack Capacity
End Discharge

-Exit Roller Conveyor:

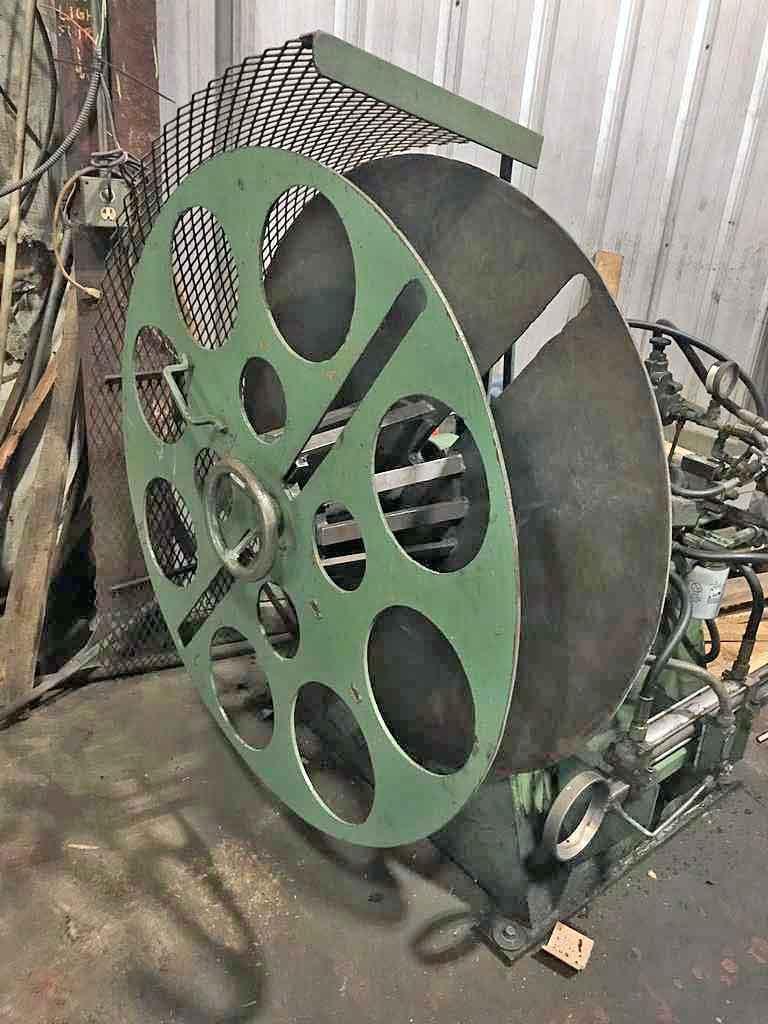

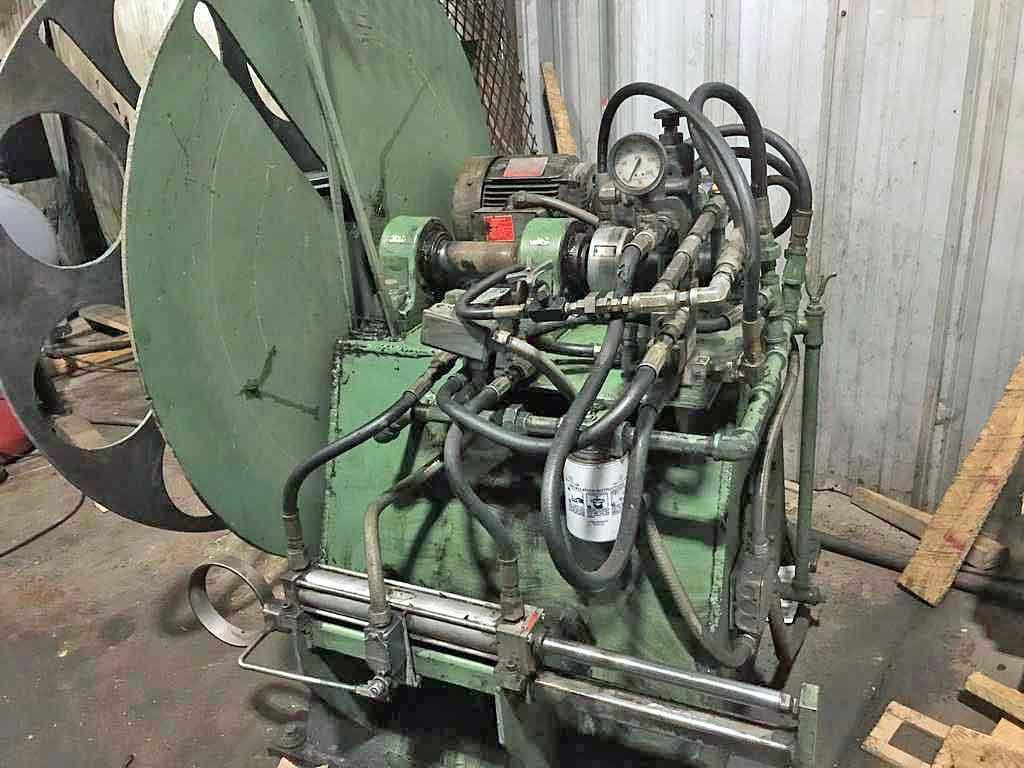

-Scrap Winder:
Hydraulic Motor Driven
Air Cylinder Operated Level Wind
Manual Scrap Ball Removal
Self-Contained Hyd. Power Unit

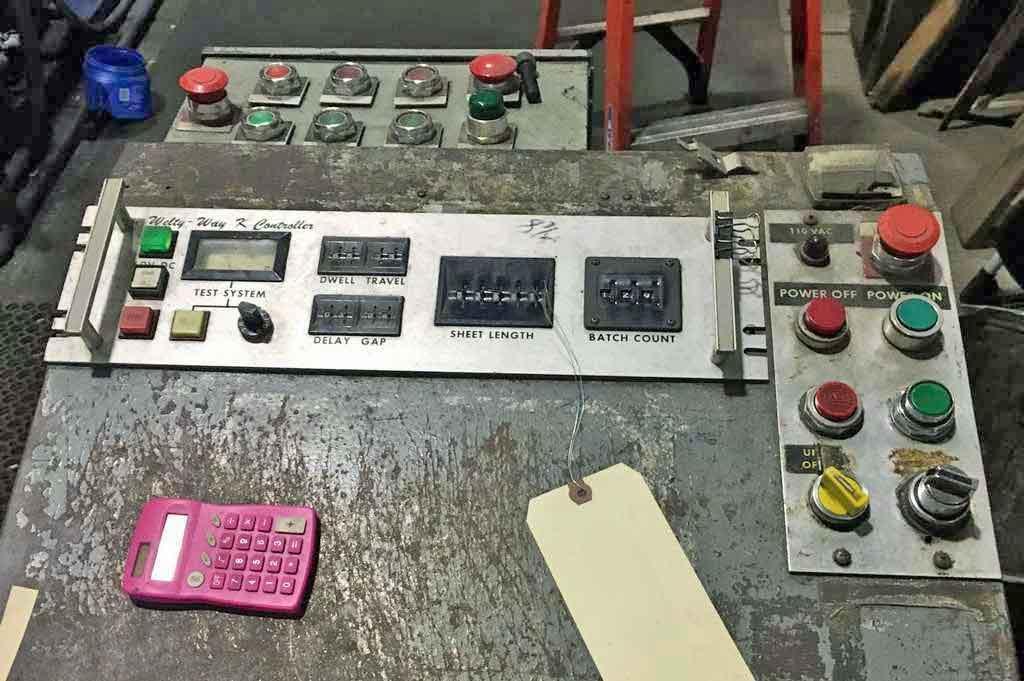

-Main Operators Control Panel:

-Line is Installed and Running
