48" x 0.030" x 10,000# Welty Way Slear Line

48" x 0.030" x 10,000# Welty Way Slear Line

Consisting of:

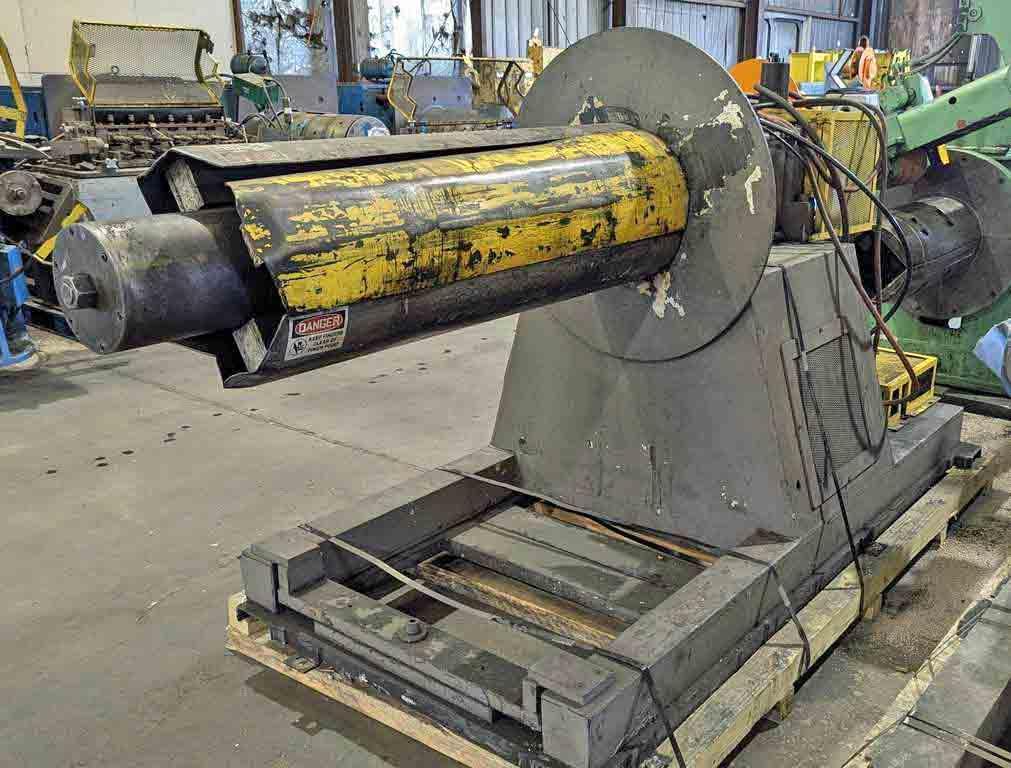

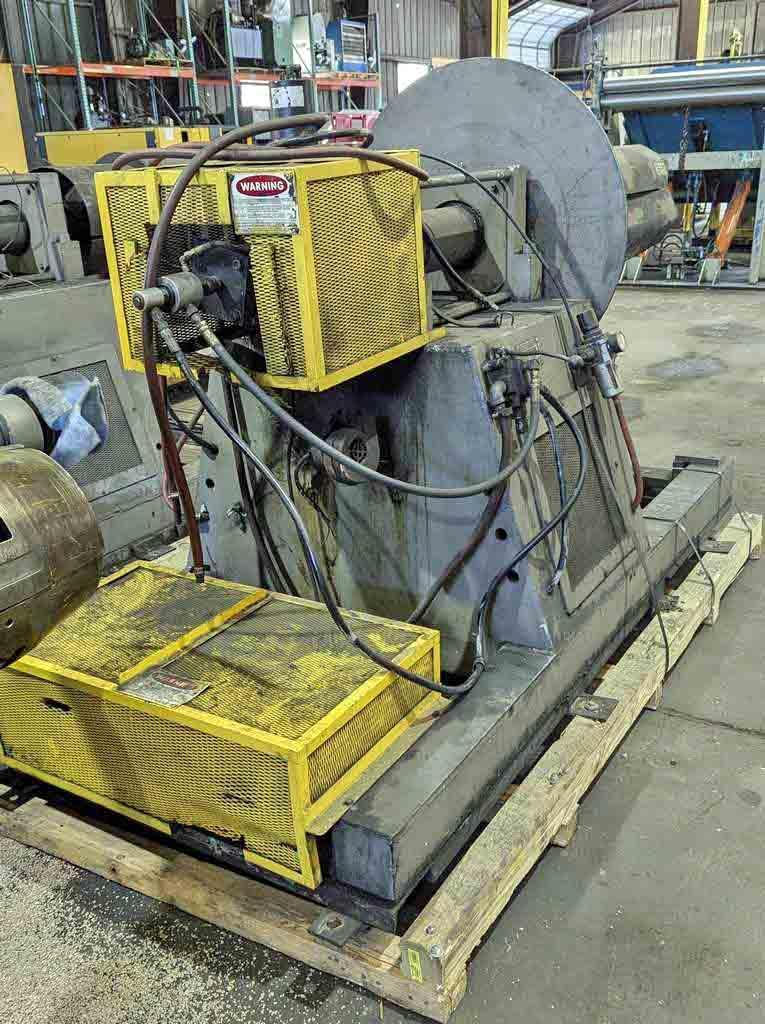

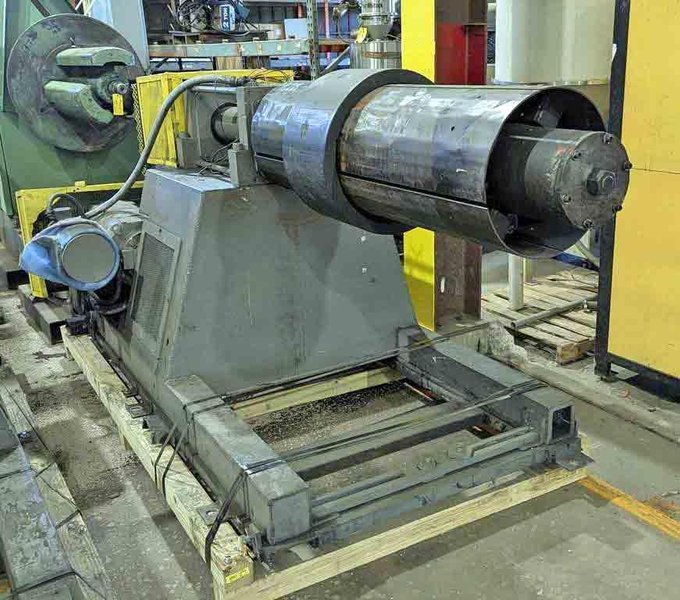

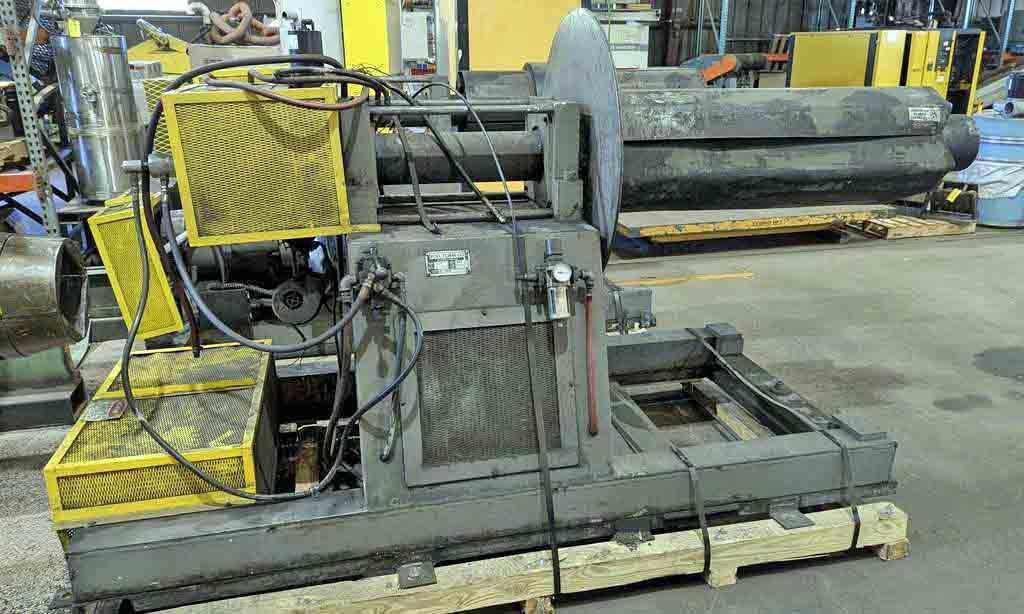

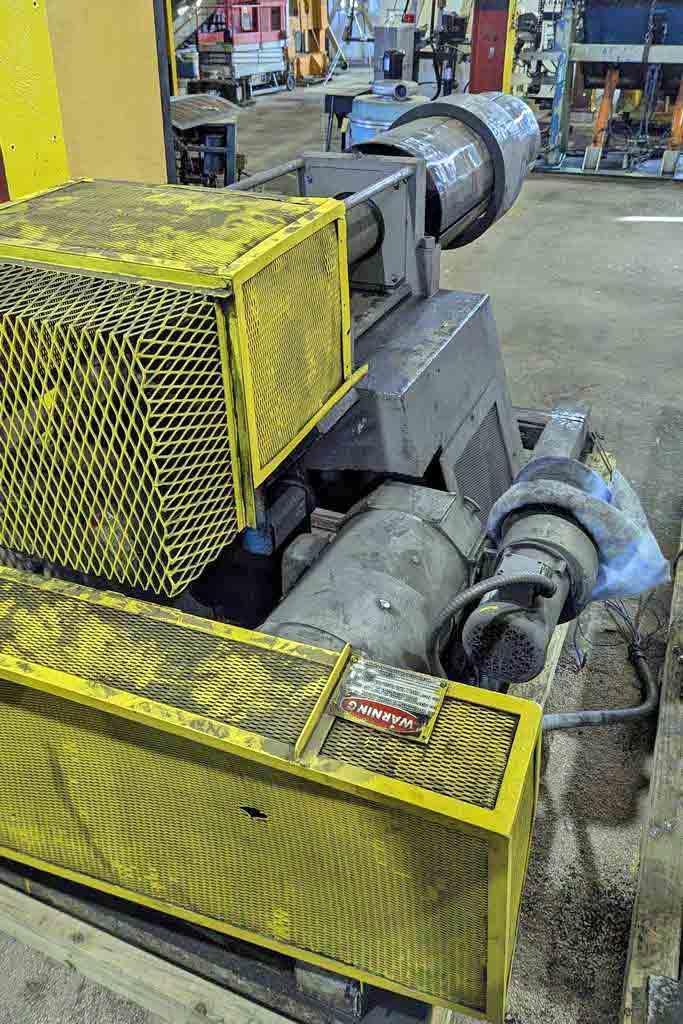

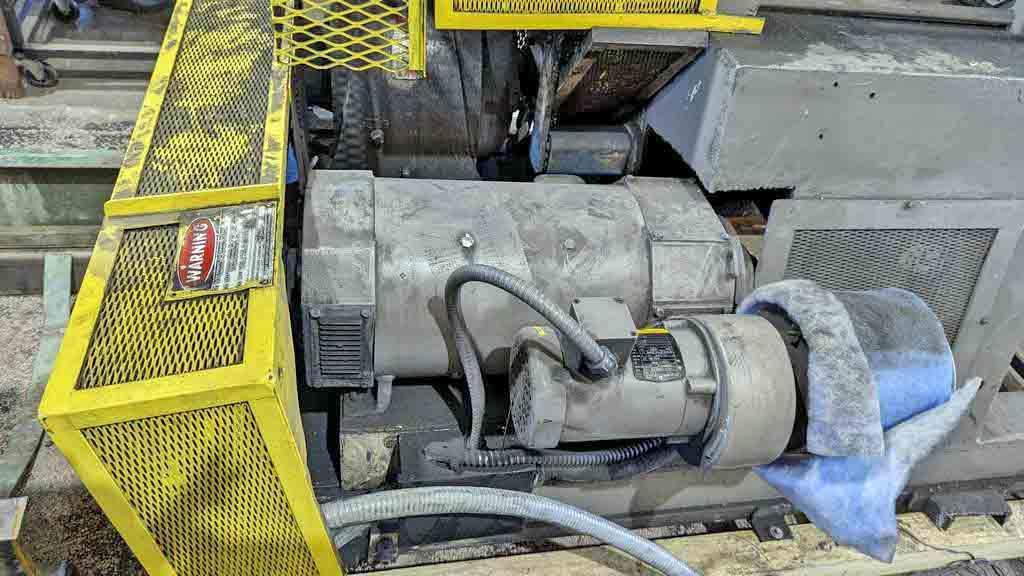

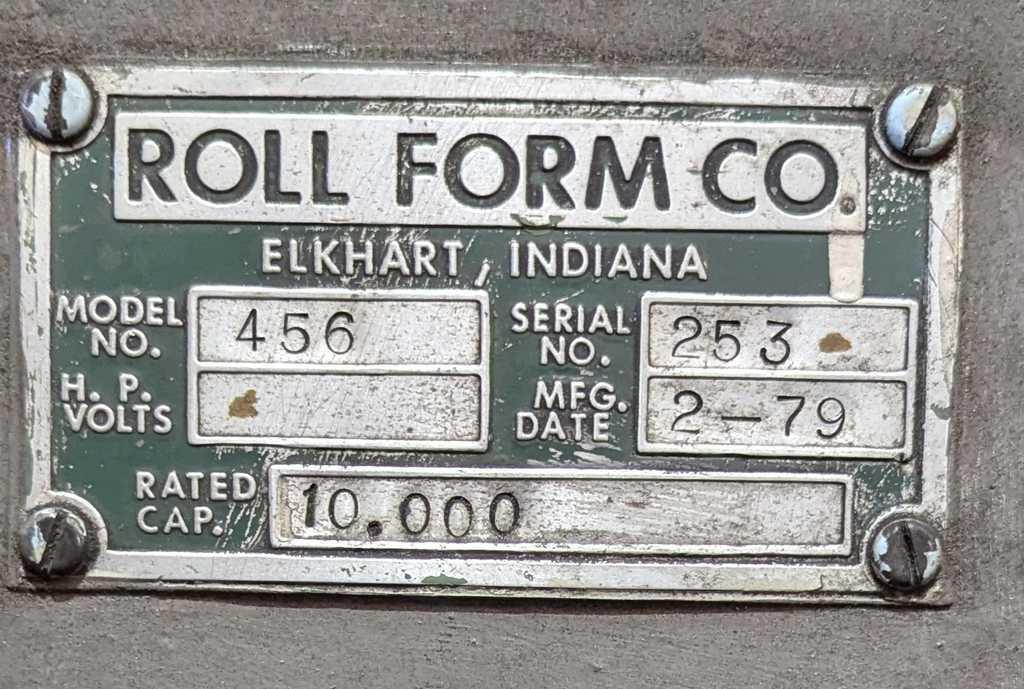

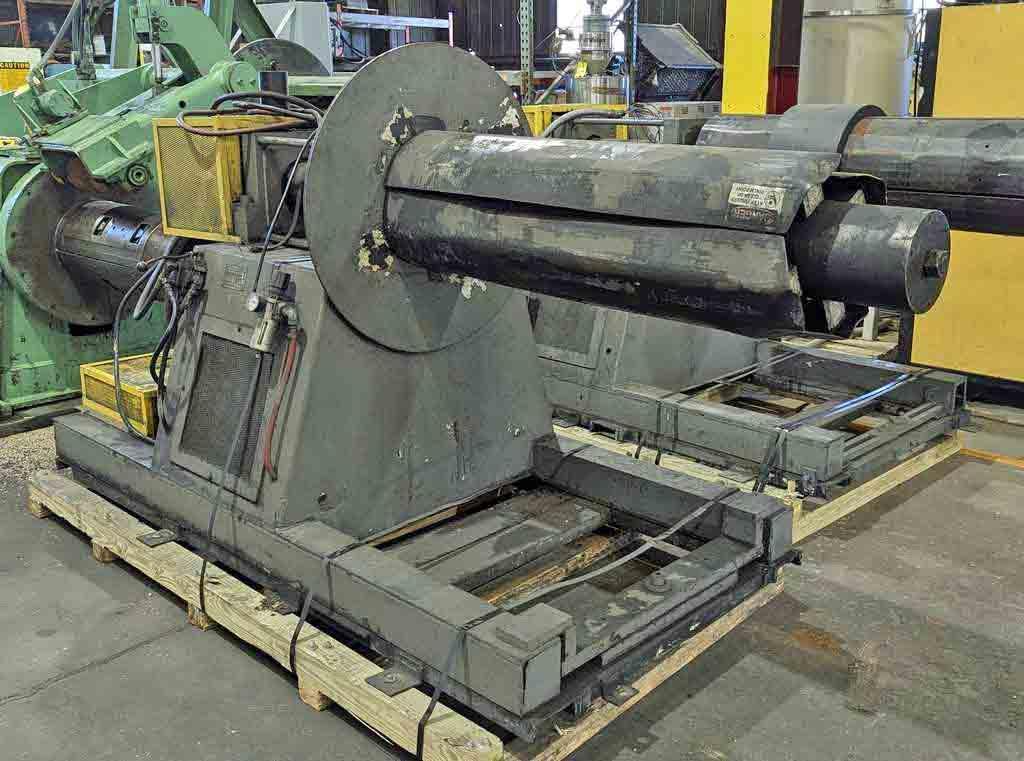

-Uncoiler: Roll Form Company
Model: 456
Capacity: 10,000# x 48" Wide
49" Face Mandrel
18" - 22" Expansion Range (approx.)
Hydraulic Expansion
Air Cylinder Actuated Band Brake
72" O.D. Capacity
Passline: 42" from Floor to center of Mandrel
Overall Dimensions: 123" L x 54" W x 60" High
13,000 lbs.

-Leveler: Mckay
Capacity: 48" x 0.030" Mild Steel (approx.)
17 Work Rolls, 9 over 8
54" Face x 2.0" Dia. Rolls (approx.)
Entry and Exit Pinch Rolls
Bottom Rolls Driven
Air Cylinder Loaded
3 Flights of Backups w/Manual Handwheel Adjustment
7.5 HP Louis Allis AC Motor, 1160 RPM, 220/440 V
Falk Reducer w/3.288:1 ratio
Belt Drive w/2:1 ratio
Line Speed: Approx. 90 FPM Max. (with existing motor)
Passline: 32"
Overall Size: 151" L x 42" W x 60" High

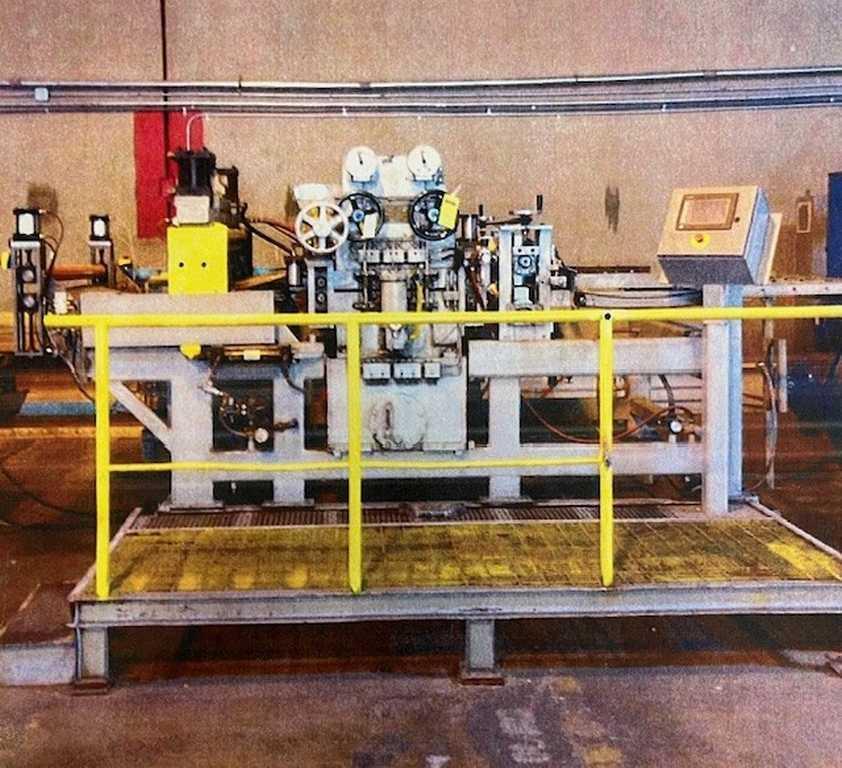

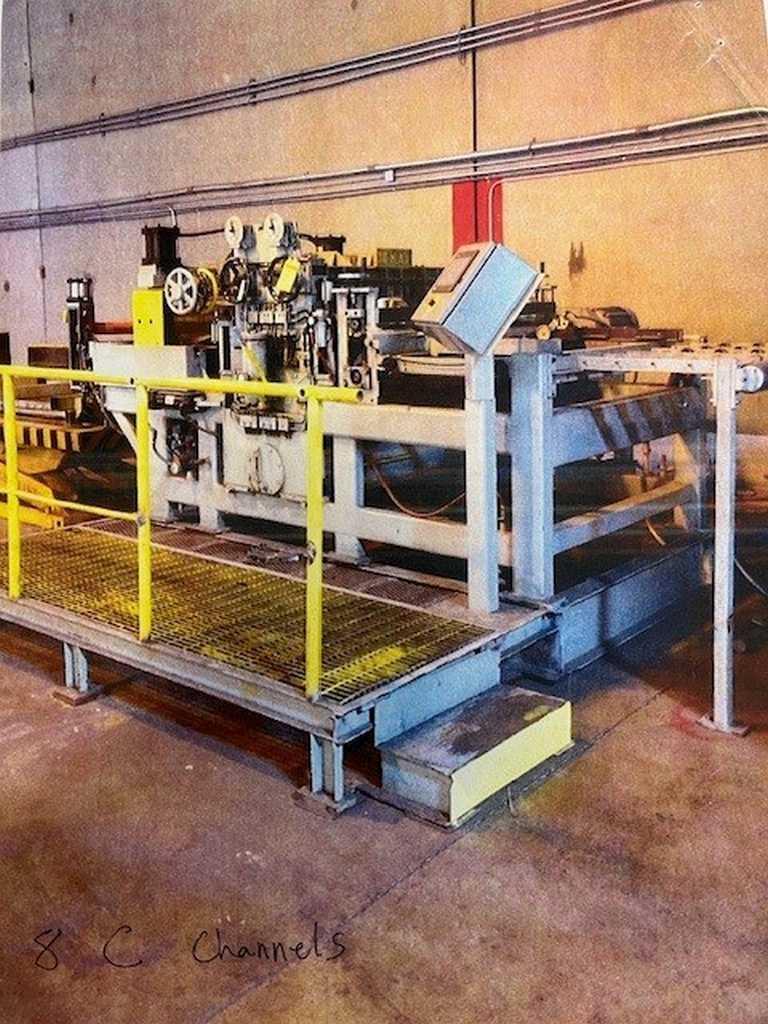

-Slear Unit: Welty Way
Entry Table
Entry Passline Rolls
Slitter Head:
6" Dia. x 59" Face Arbors
Hub Type Knives
Non-Driven Arbors
Flying Shear:
Air Cylinder Actuated
55" Long Blades
Overall Dimensions: 12' L x 70" W x 6' High
5,000 lbs.

-In Storage: Toledo, OH
