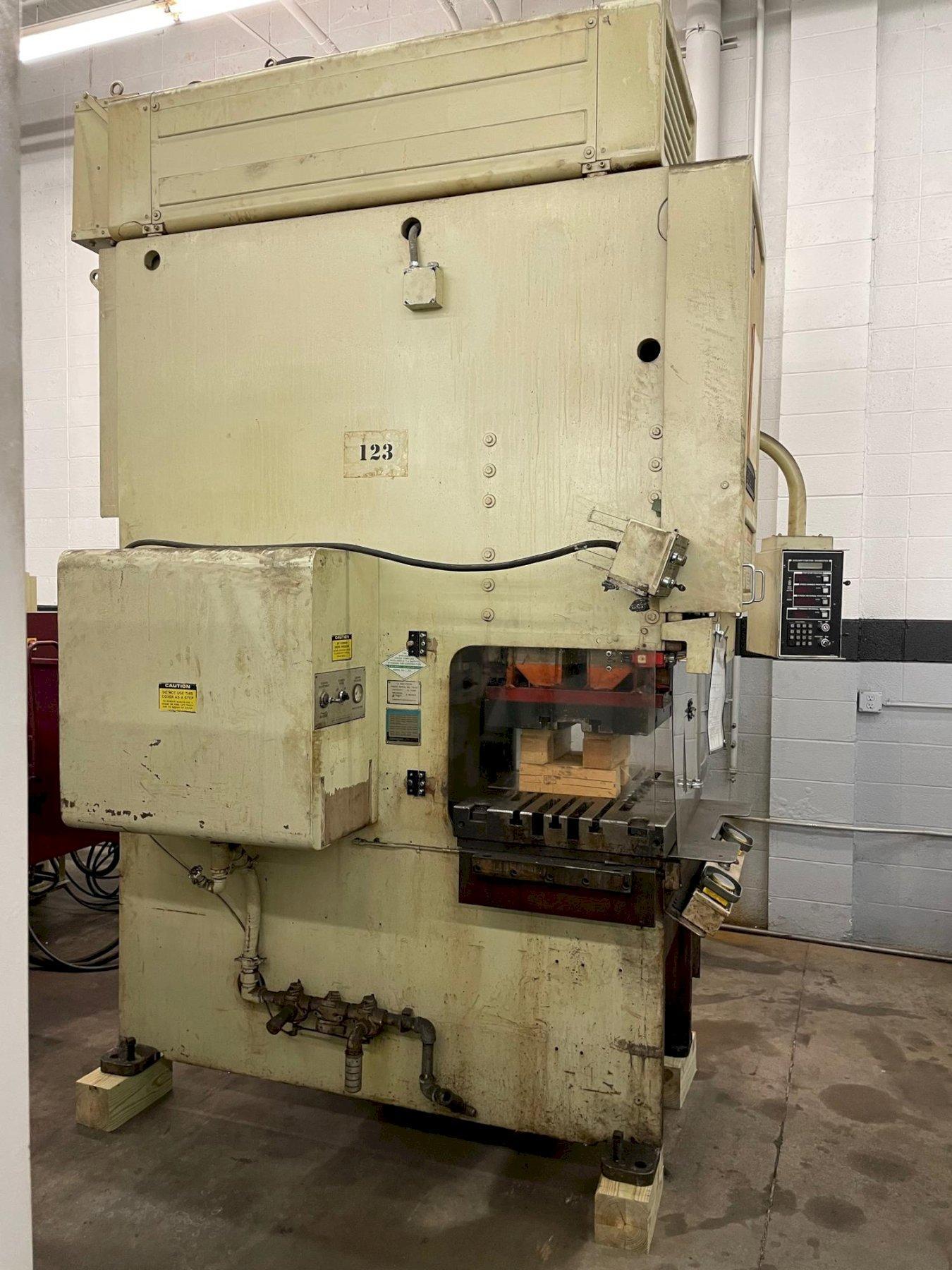

Cincinnati Model 75 OBS 75 Ton Hydraulic Gap Frame Press, 8" Stroke, Die Cushion, Cincinnati Tonnage and Position Controls
Brand
Category
Type
Model
75 OBS
Stock #
6873
Year
1981
Condition
Not specified
Location
Not specified
|

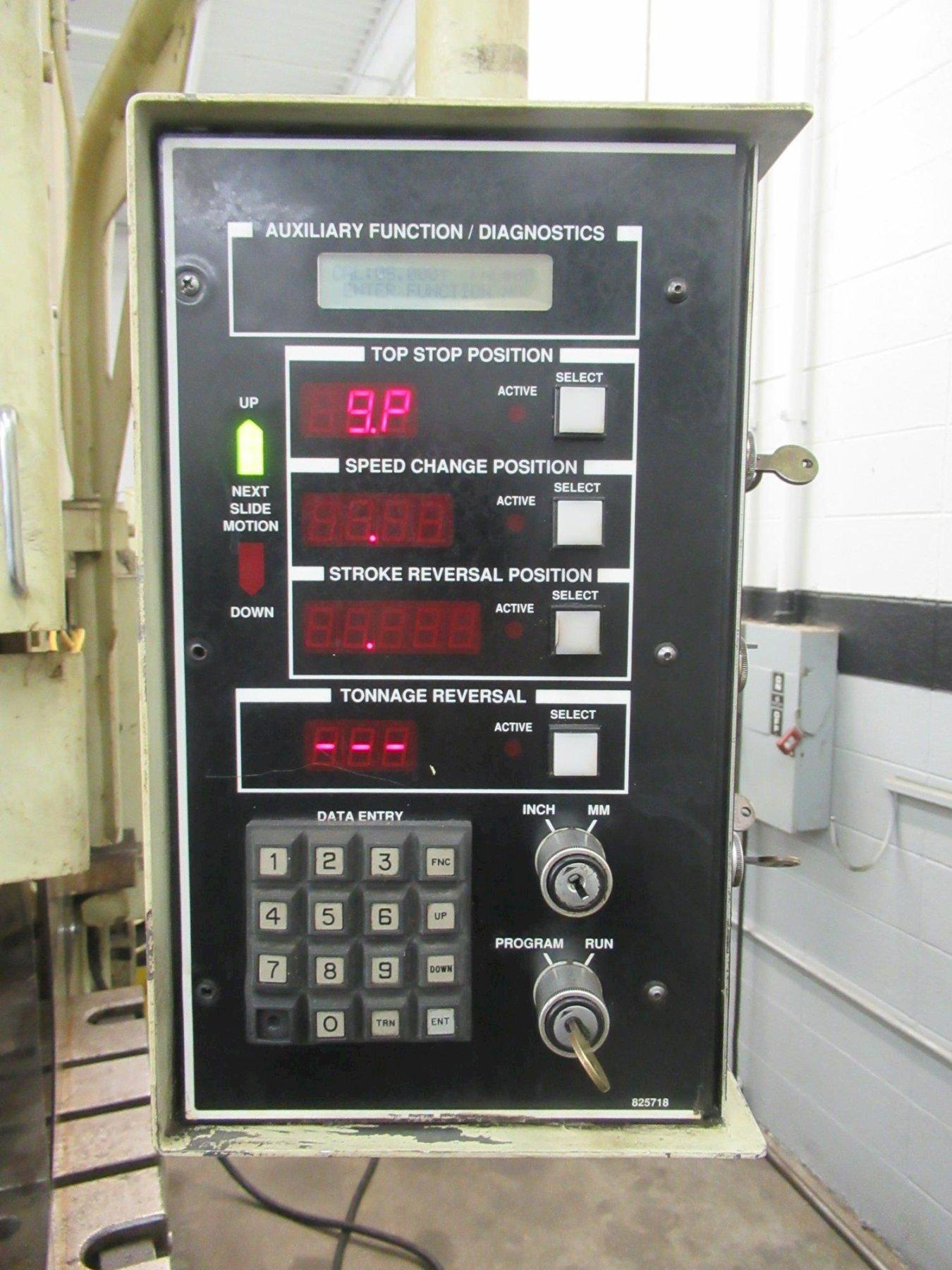

Control: Cincinnati Tonnage: 75 Tons Bed Size: 36" x 24" Ram Size: 24 x 19-1/2" Stroke: Adjustable 3/4" - 8" Opening in Back: 25" Ram Speeds: 61 IPM / 175 IPM / 606 IPM / 450 IPM Low Return / 695 IPM High Return Closed Die Height: 6.25" Open Die Height to Bolster: 14.25" Distance Bed to Floor: 39" Drive Motor: 20 HP Description: Cincinnati Control, 36"x24" T-Slotted Bolster, 24" x 19-1/2" T-Slotted Ram, Dual Palm Buttons, Die Cushion w Variable Controls, Knockouts, Reverse Control, Speed Selector, Inch/Single/Automatic Controls, Ram Stroke Position Controls with LED Displays, Inch/Metric, Tonnage and Reversal Controls, Power Clamps Equipped With: Cincinnati Control, 36"x24" T-Slotted Bolster, 24" x 19-1/2" T-Slotted Ram, Dual Palm Buttons, Die Cushion w Variable Controls, Knockouts, Reverse Control, Speed Selector, Inch/Single/Automatic Controls, Ram Stroke Position Controls with LED Displays, Inch/Metric, Tonnage and Reversal Controls, Power Clamps Electrics: 480V, 3Ph |
