12" X 12" RUESCH 2 HIGH ROLLING MILL Stock # 14280

12" X 12" RUESCH 2 HIGH ROLLING MILL Stock # 14280

Brand

RUESCH

Category

Roll Formers & Rolling Mills

Type

Rolling Mills, 2-HI

Model

2 HIGH ROLLING MILL

Stock #

14280

Year

Not specified

Condition

Not specified

Location

Not specified

Specifications
Files & Videos

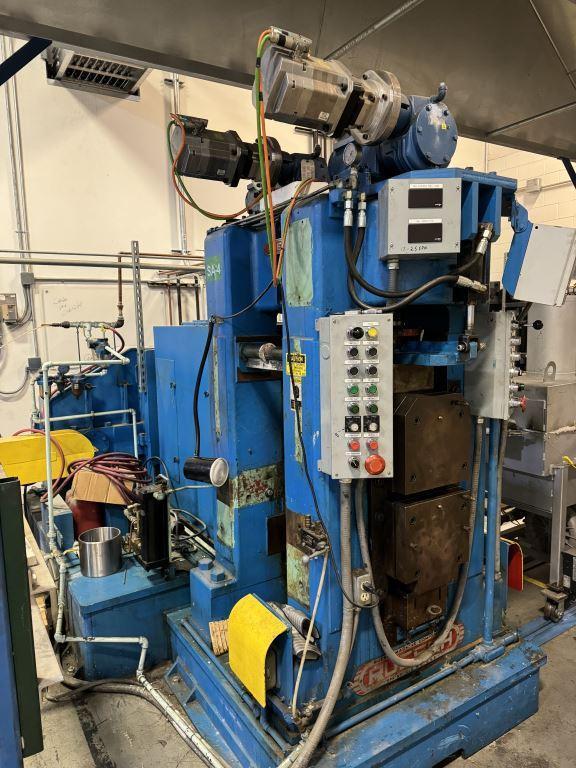

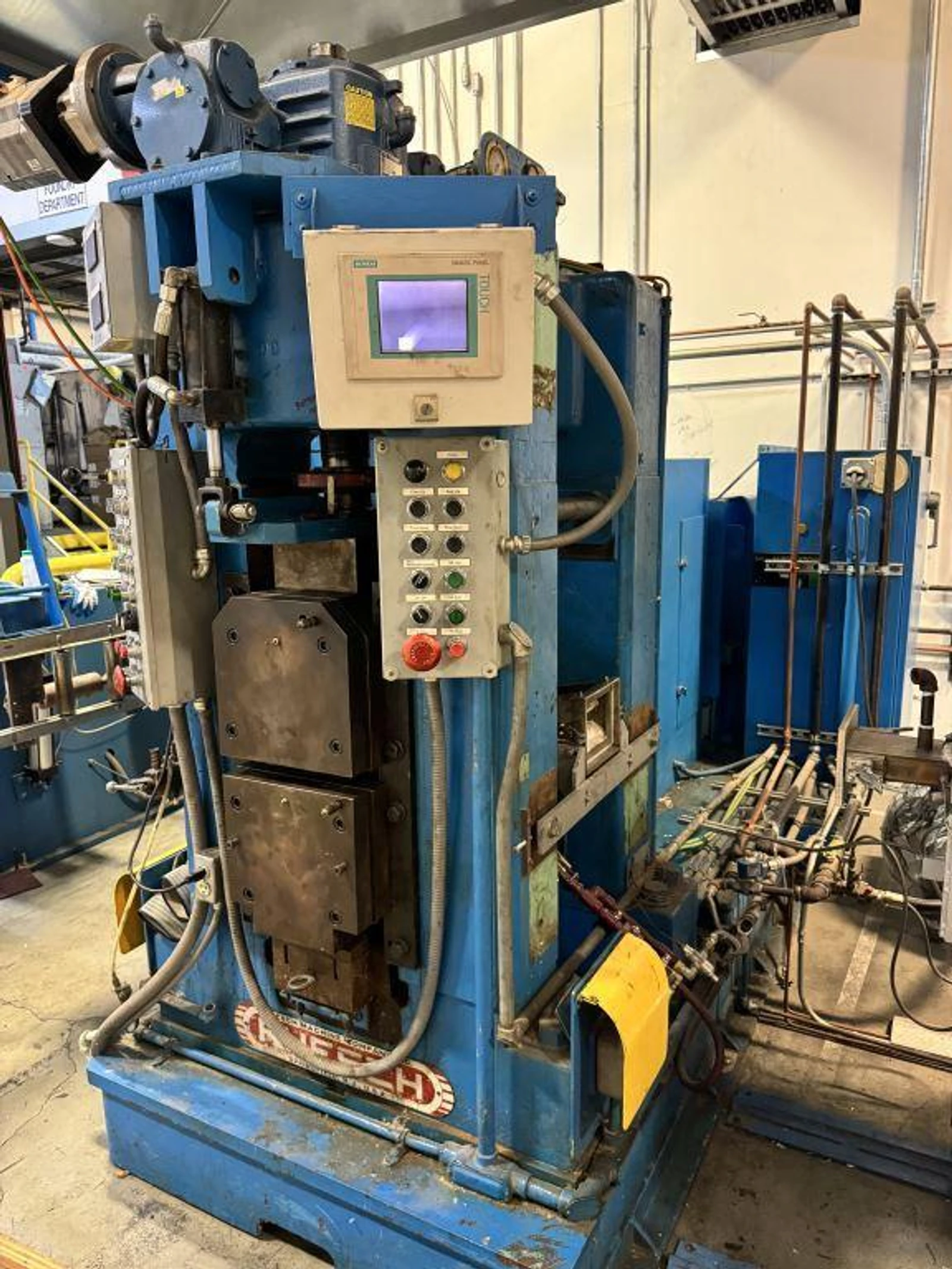

12" (305mm) x 12" (305mm) Ruesch 2 High
Stock # 14280

MANUFACTURER:                         RUESCH MACHINE CO. (USA)
TYPE:                                 2 HIGH REVERSING ROLLING MILL
PREVIOUS USE:                         BREAKDOWN MILL FOR GOLD AND SILVER
                                      INTERMEDIATE MILL FOR COPPER/STEEL/ALUMINUM
                                      CLADDING/BONDING MILL FOR DUAL STRIP
ROLL SIZE:                            12" (305MM) DIA. x 12" (305MM) FACE WIDTH
ROLL BEARINGS:                        ROLLER BEARING
SCREWDOWNS:                           ELECTRO-MECHANICAL
MAXIMUM ROLL OPENING:                 4.25" (108MM)
MILL STAND CROSS SECTION:             9" (228MM) x 10" (254MM)
WINDOW WIDTH:                         13-1/4" (336MM) x 41" (1041MM) HIGH
DIRECTION OF TRAVEL:                  RIGHT TO LEFT IF USED AS A CLADDING MILL
                                      REVERSING AS A STAND-ALONE MILL

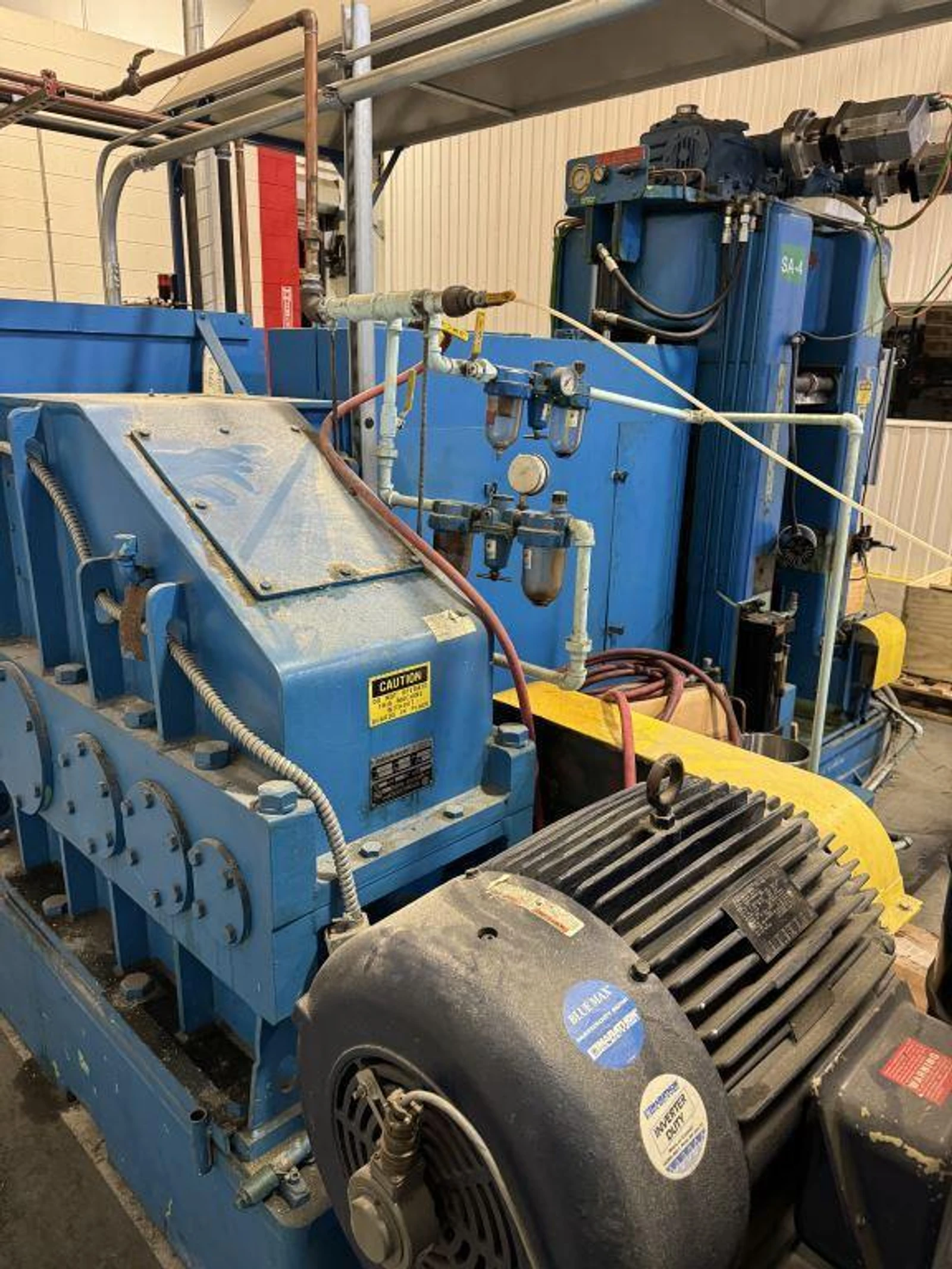

MILL STAND DRIVE MOTOR:               50 HP, 230/460 VOLTS, 1750 RPM, 3 PHASE,
                                      60 HZ VARIABLE SPEED
GEAR BOX:                             HORSBURGH & SCOTT RATIO 137.45 TO 1
MILL SPEED:                           0 - 80 FPM (0 - 25 M/MIN)
A.C. VARIABLE SPEED DRIVE:            PARKER A.C. INTEGRATOR 690+ SERIES WITH
                                      HTTL ENCODER

THE MILL CAN BE PURCHASED AS A SINGLE STAND REVERSING MILL OR AS A COMPLETE
CLADDING/BONDING LINE. WHEN USED AS A CLADDING LINE IT CONSISTS OF:

DIRECTION OF TRAVEL:                  RIGHT TO LEFT

PAYOFF:
-TYPE:                                NON-DRIVEN MANDREL TYPE
-MANDREL DIAMETER:                    2-1/2" (63.5MM)
-MANDREL WIDTH:                       10" (254MM)
-WIDTH AS USED:                       7" (178MM)
-AIR CLUTCH FOR BACK TENSION

TENSION STAND"
-TYPE:                                2 ROLL
-ROLL DIAMETER:                       7" (178MM)
-ROLL WIDTH:                          12" (305MM)
-NON-DRIVEN:
-BACK TENSION:                        PNEUMATIC

ROLLING MILL:                         AS PER SPECS ABOVE

WINDER:
-ENTRY STRIP SIDE GUIDES
-PNEUMATIC STRIP HOLD-DOWN ROLLS
-WINDER MANDREL:                      2-1/2" (63.5MM) DIAMETER
                                      9" (228MM) WIDE
-VARIABLE SPEED CONTROLS

NO. OF ROLLS:
-FLAT ROLLS:                          1 SPARE SET
-SHELL ROLLS:                         1 SET IN MILL

FLOOR SPACE:
-MILL STAND ALONE:                    124" (3150MM) WIDE X 138" (3505MM) DEEP
-COMPLETE CLADDING LINE:              26 FT. (8M) WIDE X 11.5 FT. (3.5M) DEEP

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
