15" x 54" LEBLOND-MAKINO Servo Shift Engine Lathe, Model 15" Regal
Brand
Category
Type
Model
15" Regal
Stock #
4914
Year
1982
Condition
Used
Location
New Jersey
|
15" x 54" LEBLOND-MAKINO SERVO SHIFT ENGINE LATHE
MODEL: 15" REGAL
SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1,800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 104"L x 40"W x 51"H
EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY
SONY TWO AXIS DIGITAL READOUT

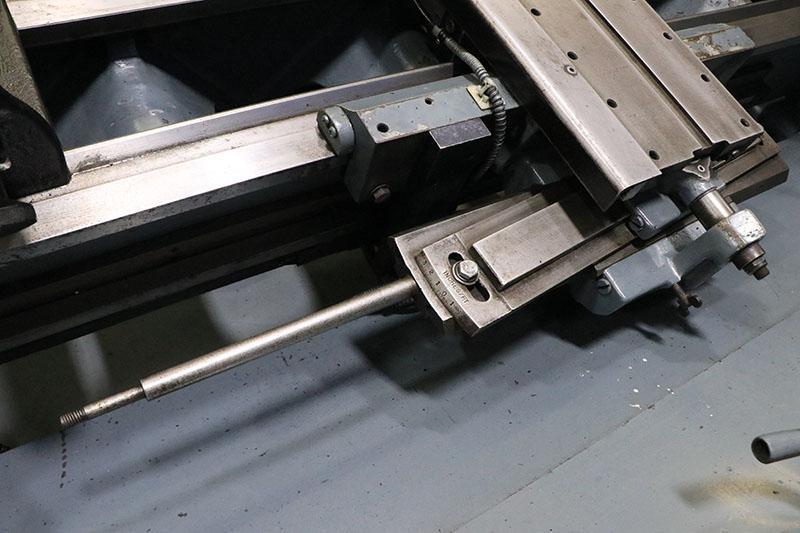

TAPER TURNING ATTACHMENT
12" CUSHMAN 4-JAW CHUCK
12" BISON 3-JAW CHUCK
STEADY REST
THREAD DIAL INDICATOR
DRILL CHUCK FOR TAILSTOCK
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
7-1/2 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR THREE PHASE 220 VOLT OPERATION
MANUALS
FOB: ORIGIN |
