15" x 54" LEBLOND-MAKINO Engine Lathe, Model 15" Regal
Brand
Category
Type
Model
15" Regal
Stock #
4829
Year
1994
Condition
Used
Location
New Jersey
|

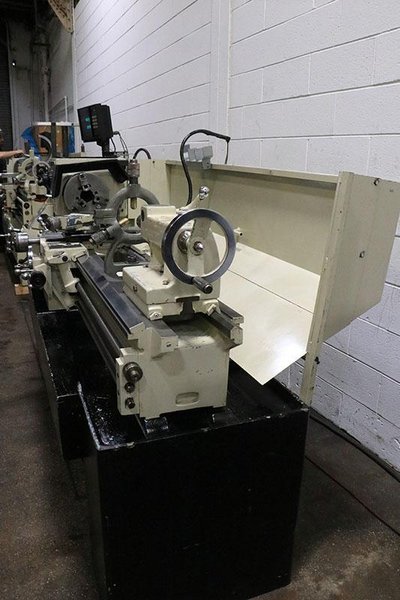

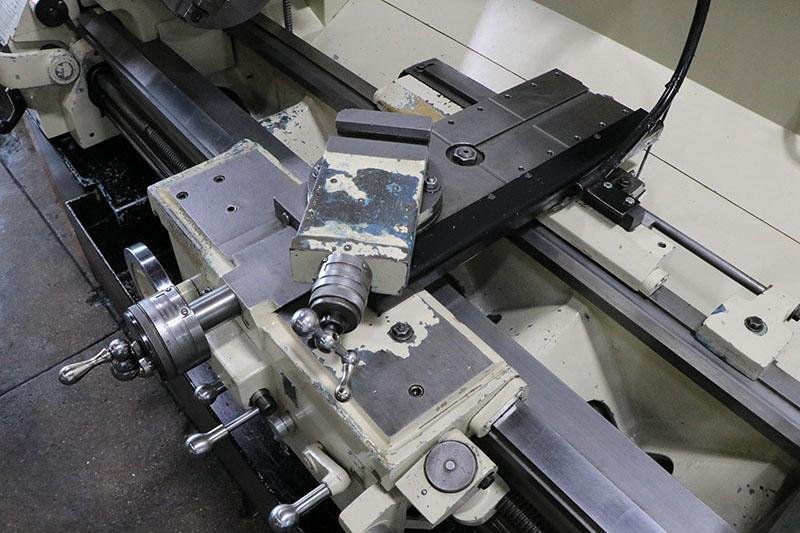

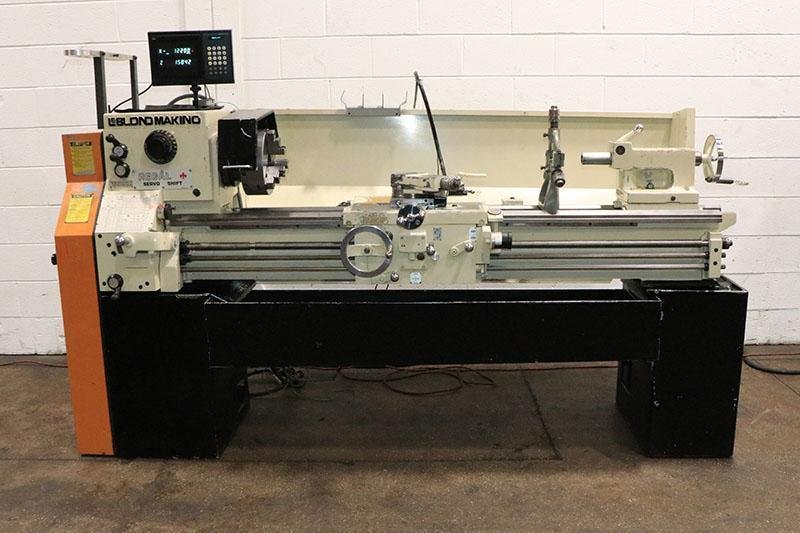

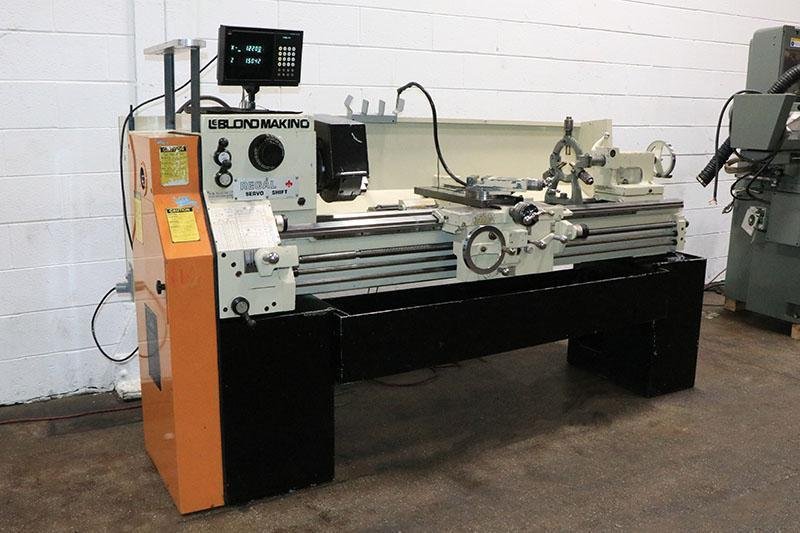

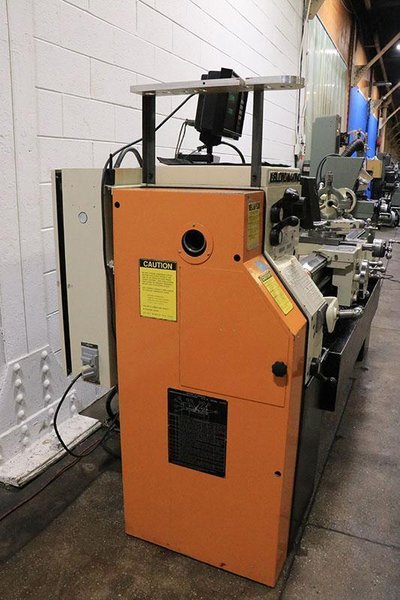

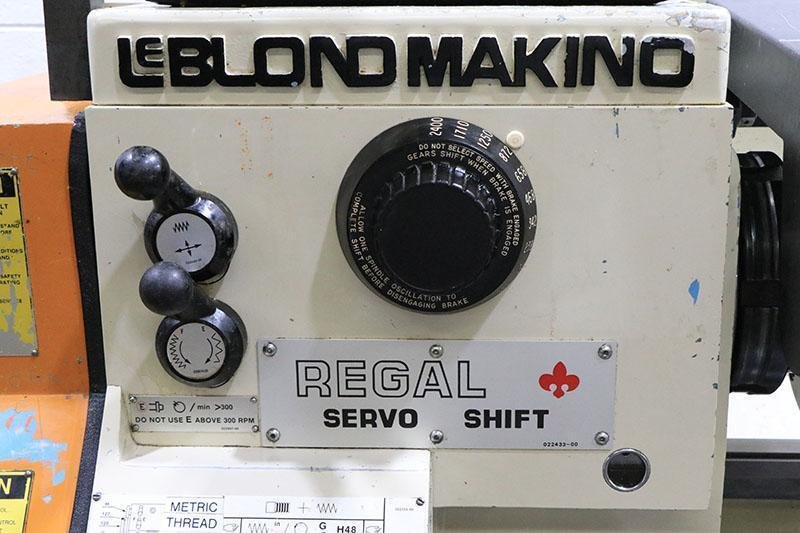

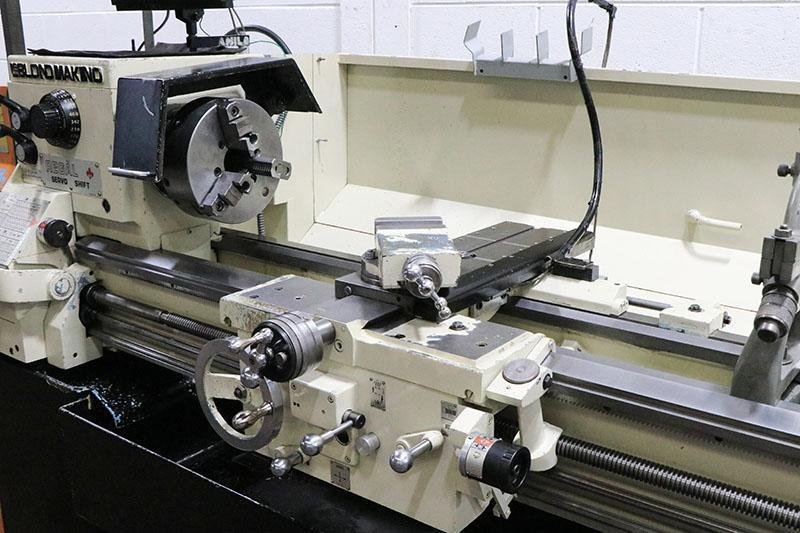

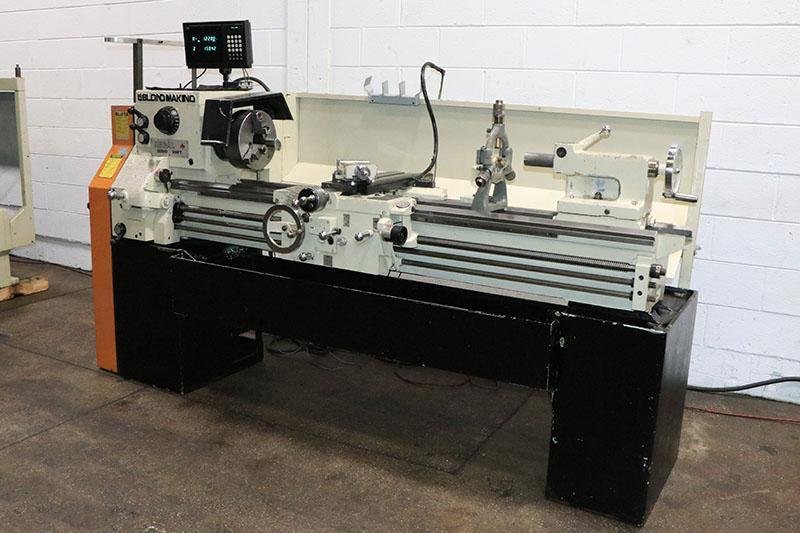

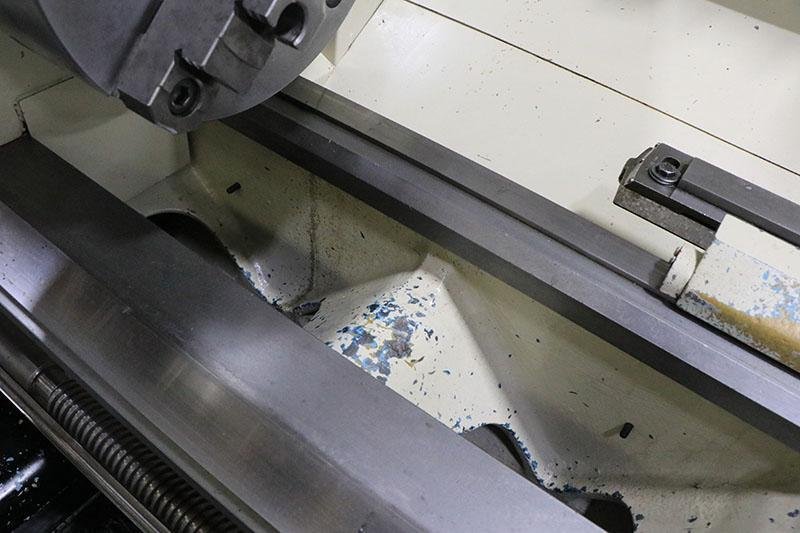

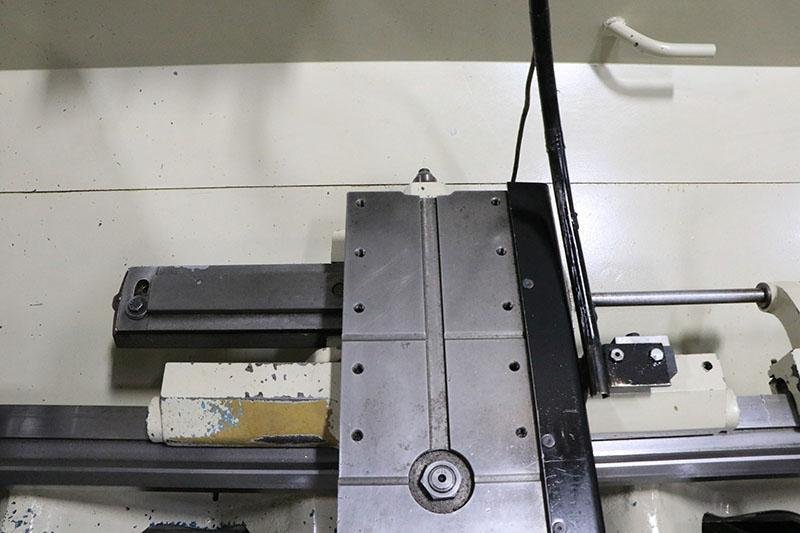

15" x 54" LEBLOND-MAKINO Engine Lathe
Model: 15" REGAL
New: 1994 SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 54"
SPINDLE NOSE THREAADED ............ L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 60 - 2400 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL

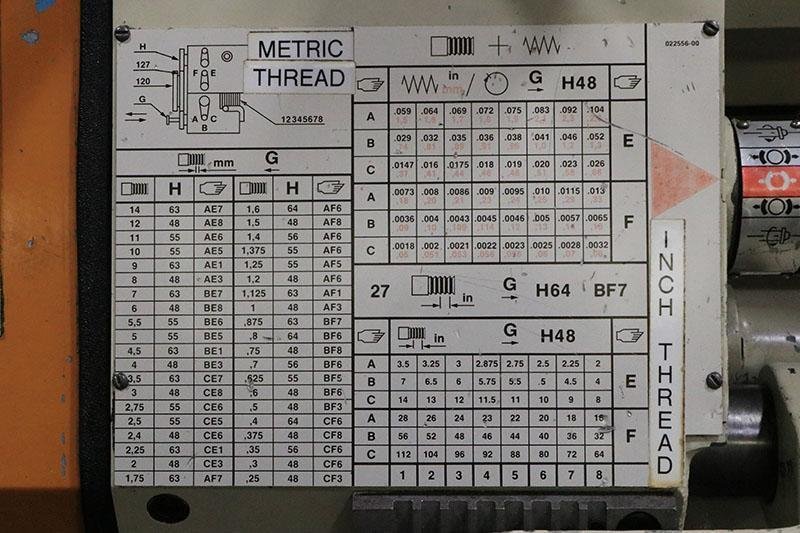

THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm

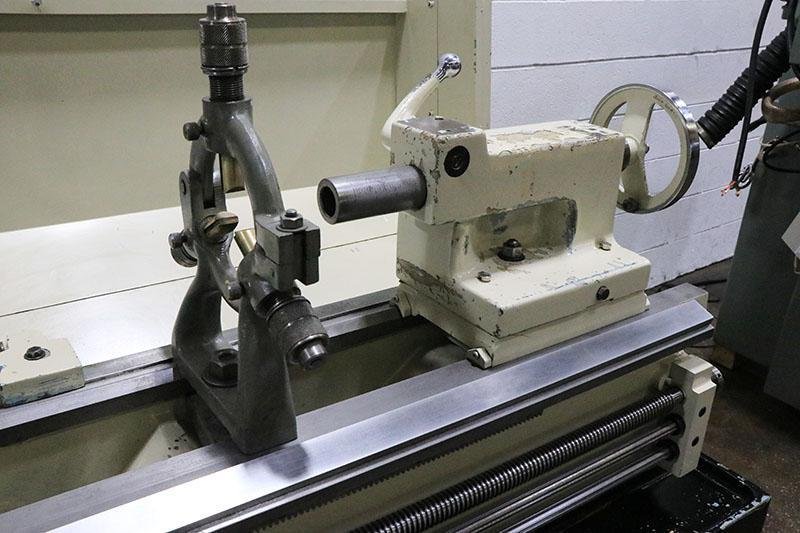

TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 104"L x 40"W x 51"H
EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY

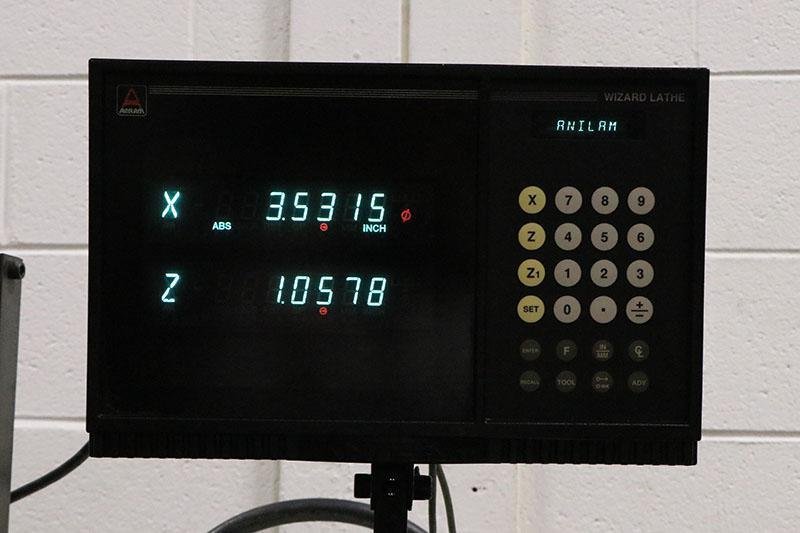

ANILAM TWO AXIS DIGITAL READOUT
INCH/METRIC HANDWHEELS

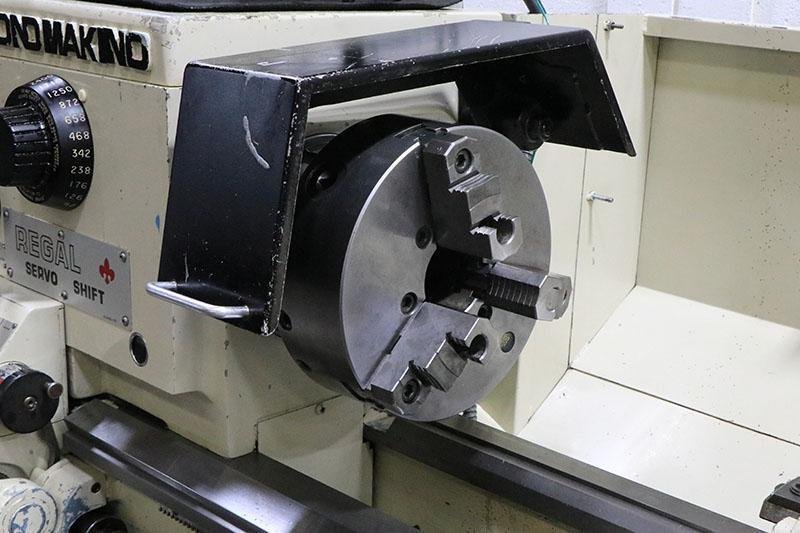

10" 3-JAW BUCK CHUCK

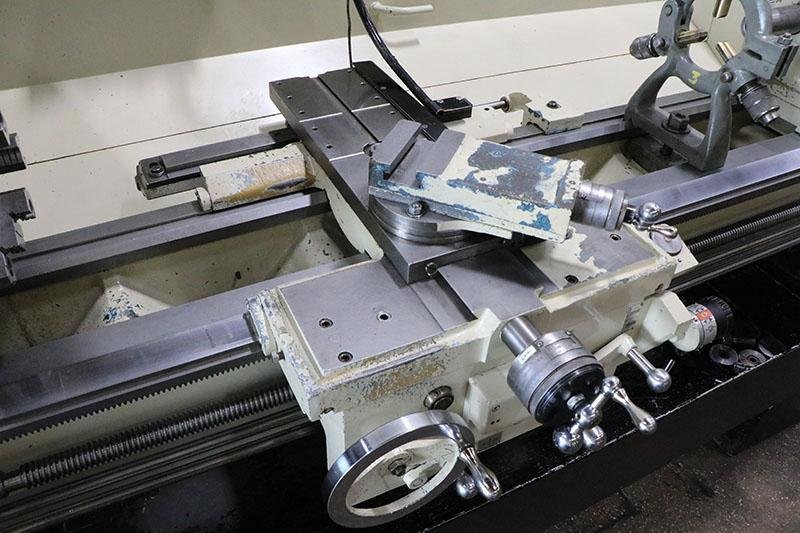

TAPER TURNING ATTACHMENT
DEAD CENTER FOR TAILSTOCK
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
HARDENED & GROUND REPLACEABLE BED WAYS
7.5 HORSEPOWER MAIN MOTOR
FOB: Origin |
