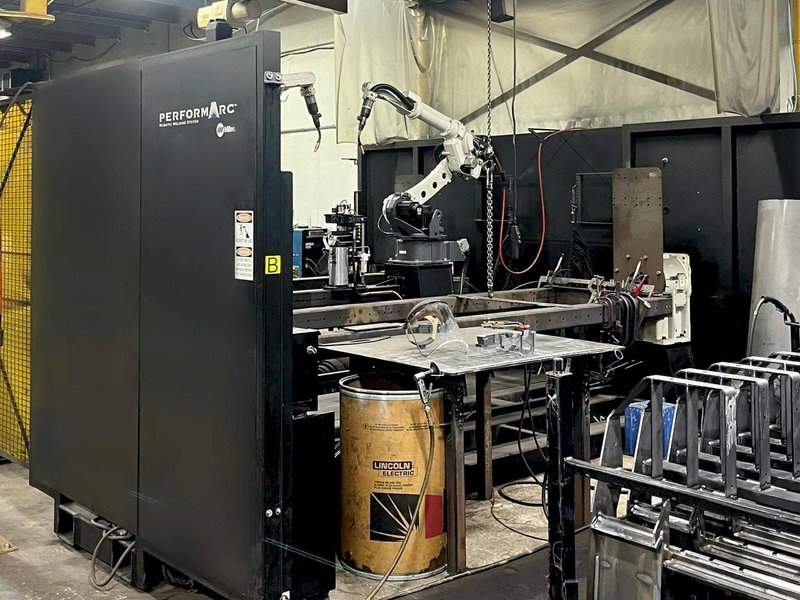

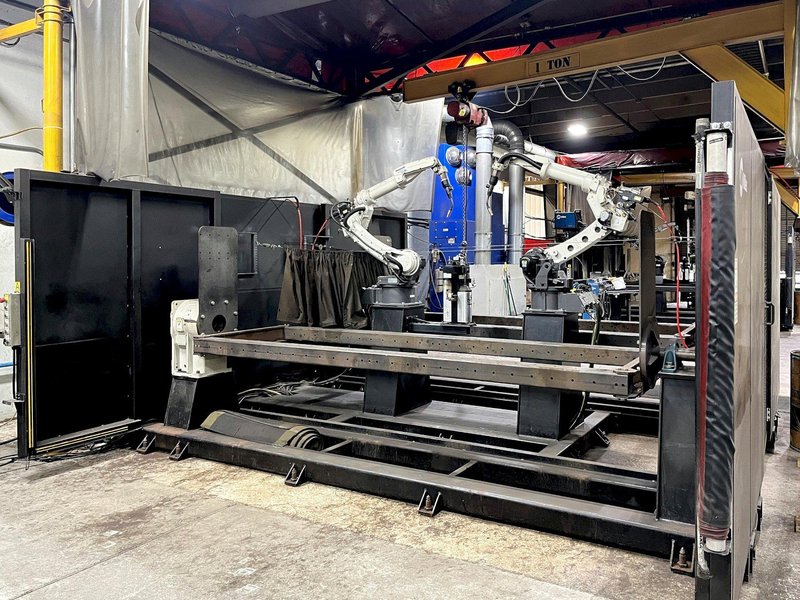

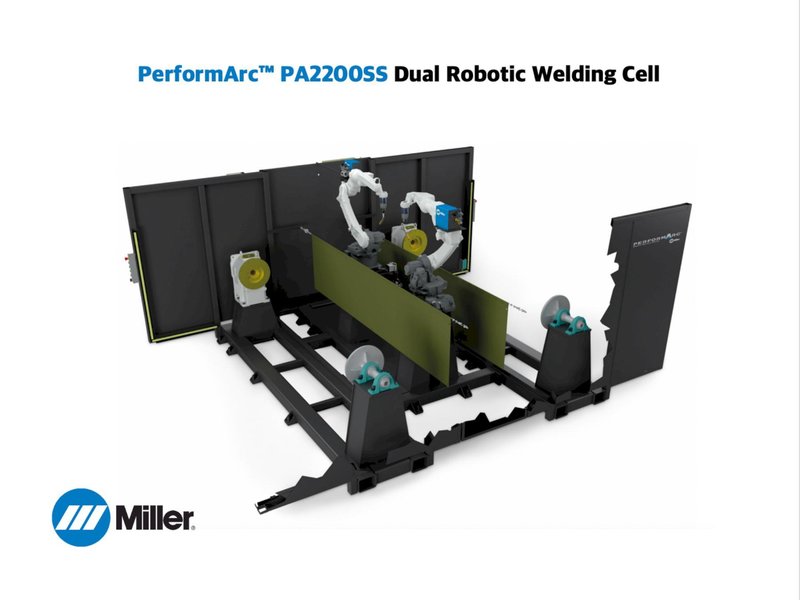

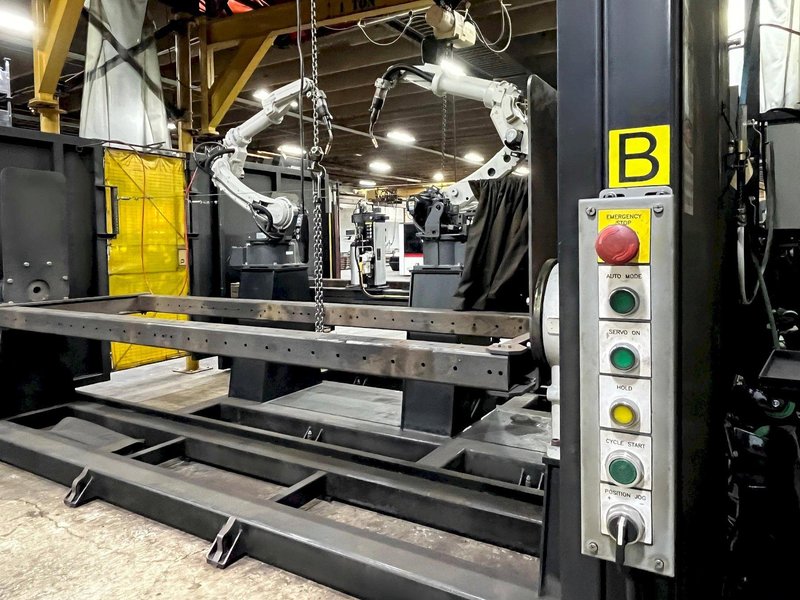

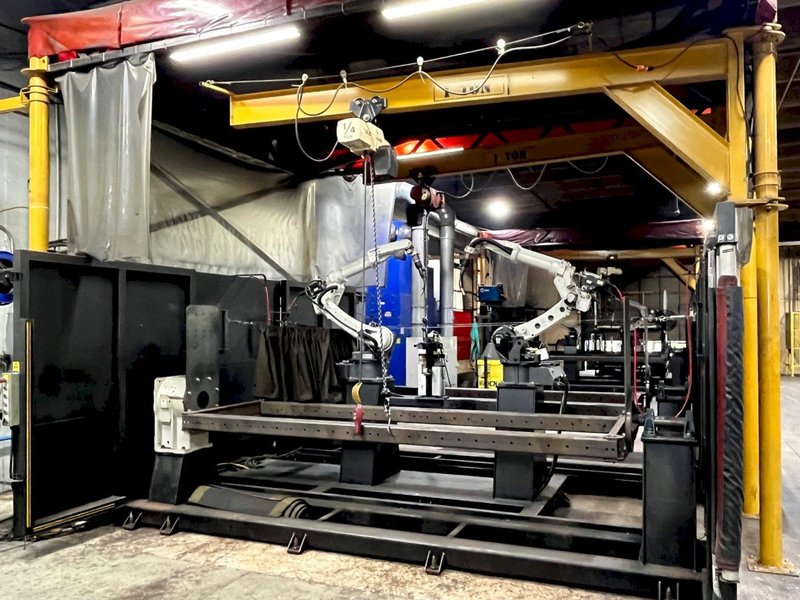

Miller Automation PerformArc™ PA2200SS Dual Robotic Welding Cell
Brand
Category
Model
PerformArc™ PA2200SS
Stock #
100575
Year
2019
Condition
Excellent
Location
Not specified
| Cell Type | Side by Side, 2 Split Station Servo |

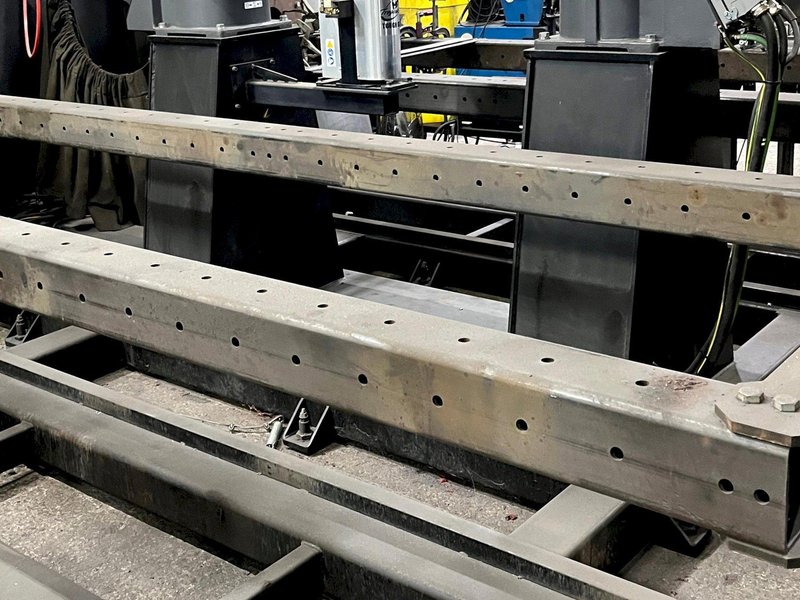

| Table Type | Open Bed |
| Robot Controller | Panasonic G3 |

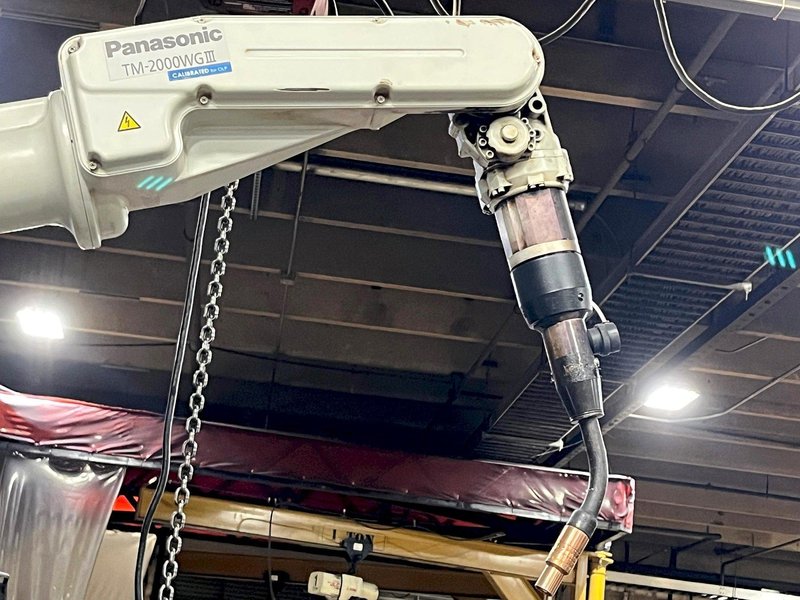

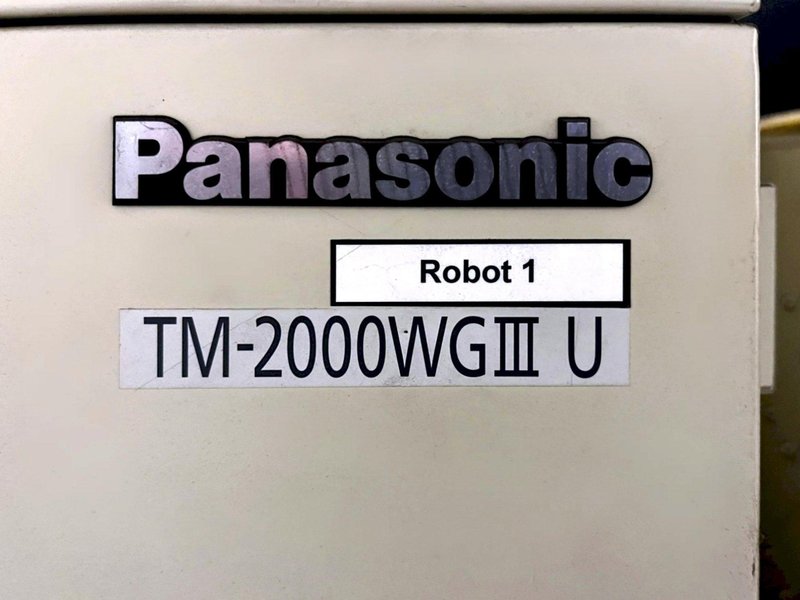

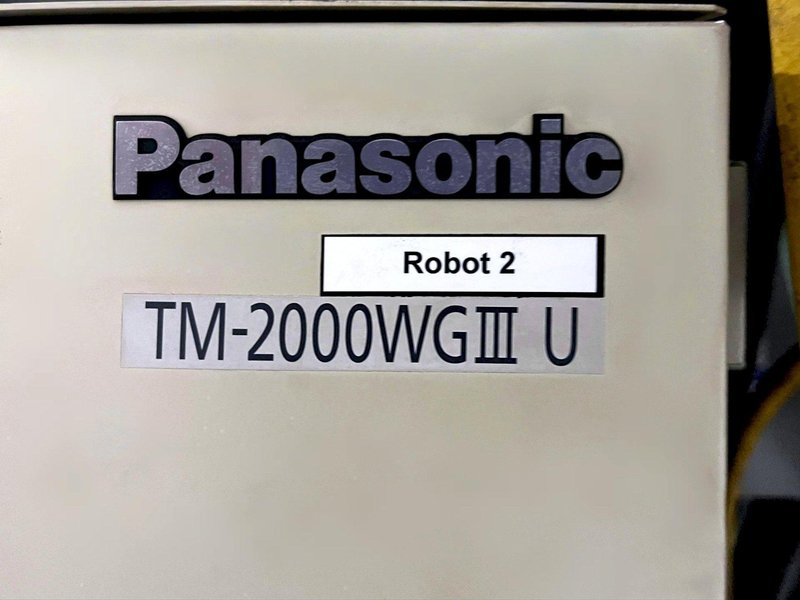

| Robot | Panasonic TM-2000 |

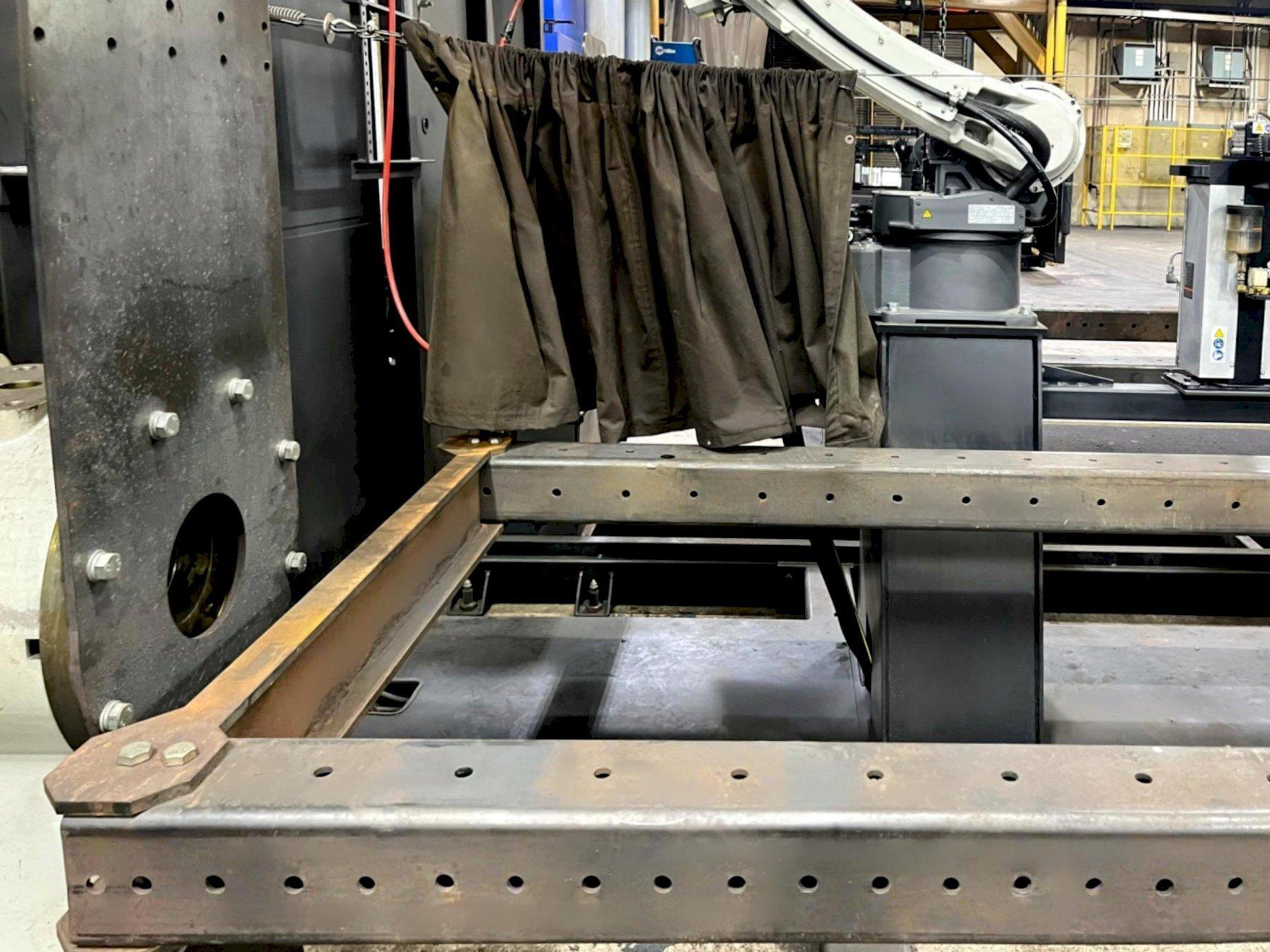

| Positioners | 2 Stations / 1 Axis Per Station |
| Payload Per Side | 2,200 Lbs. |
| Positioner Motor | 3.5 kW AC Digital Servo |
| Through Hole (Utility Pass Through) | 2.165” |
| Head/Tail Distance | 144" |
| Swing Diameter | 70" |
| Main Axis Rotation Height | +38" |
| Main Axis Rotation Diameter | 60” |
| Secondary Axis Rotation Diameter | 70” |

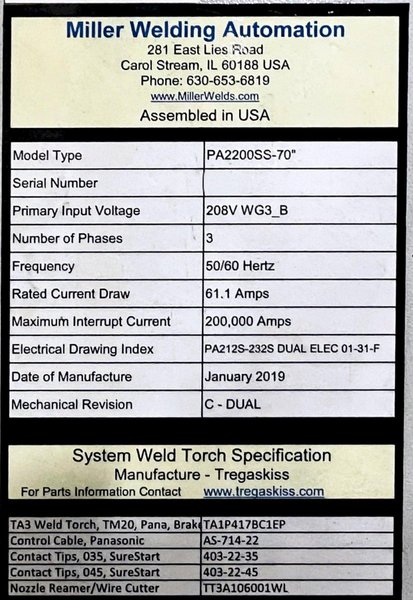

| Input Voltage | 208V WGB 3 |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Dimensions | W 197” x L 211” x H 90” |
| Net Weight | 11,000 lbs |
|

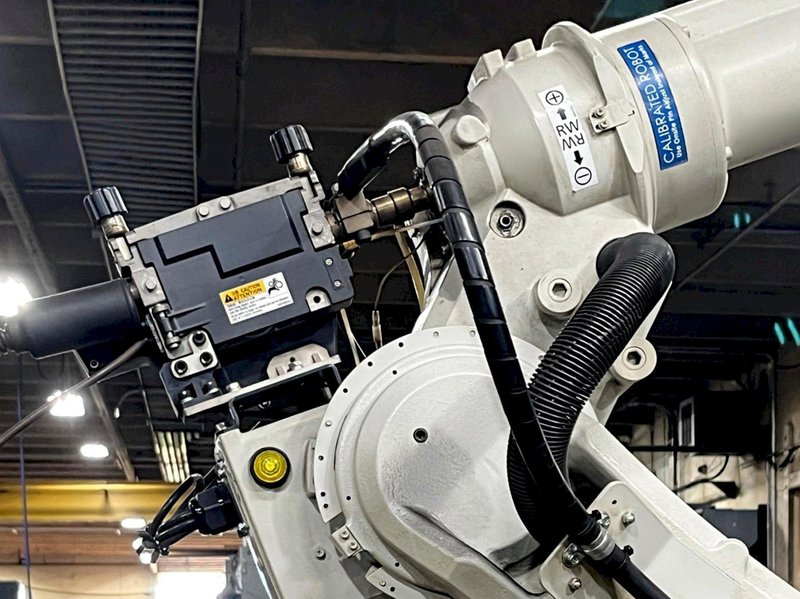

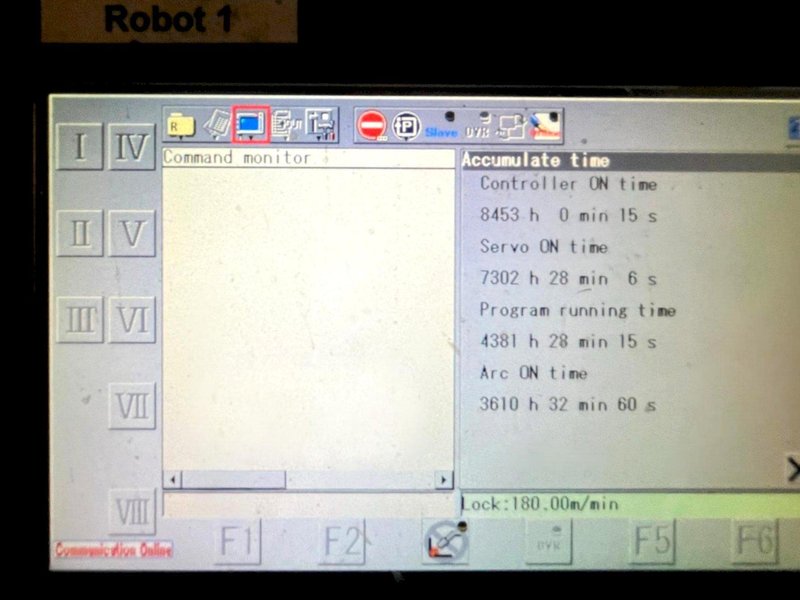

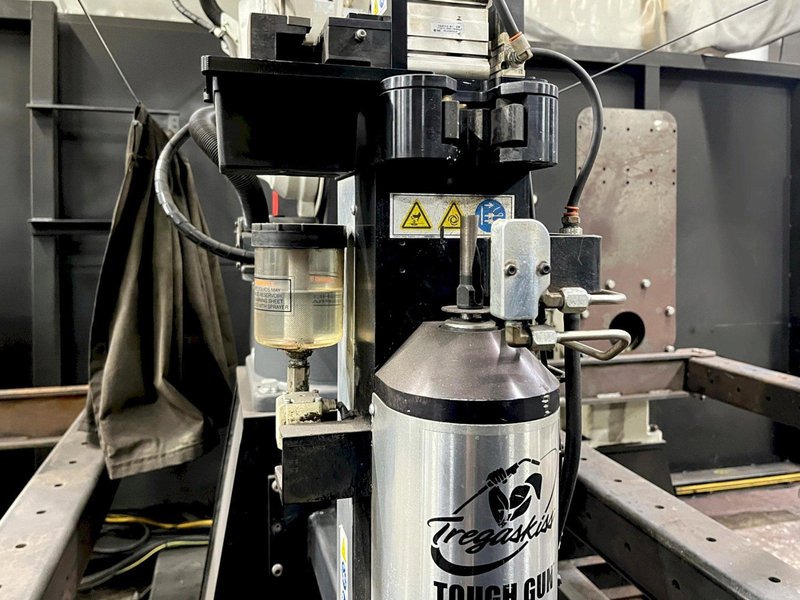

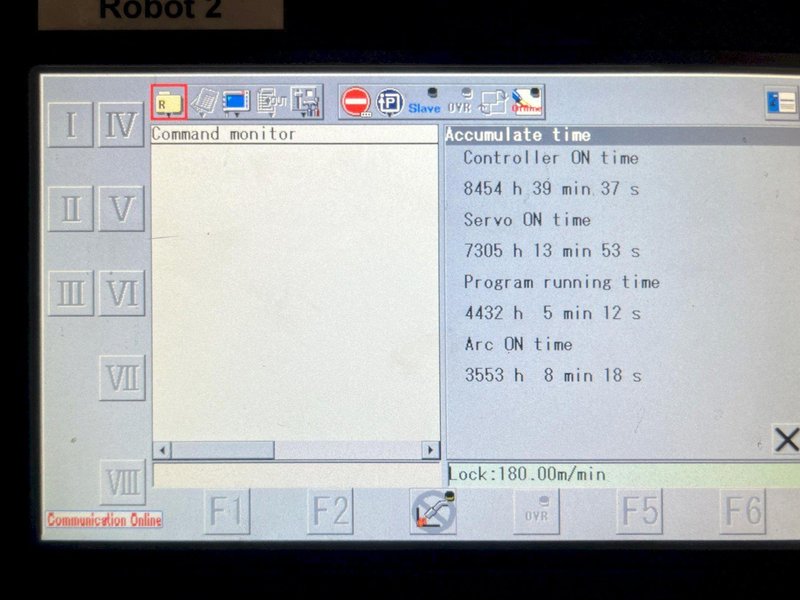

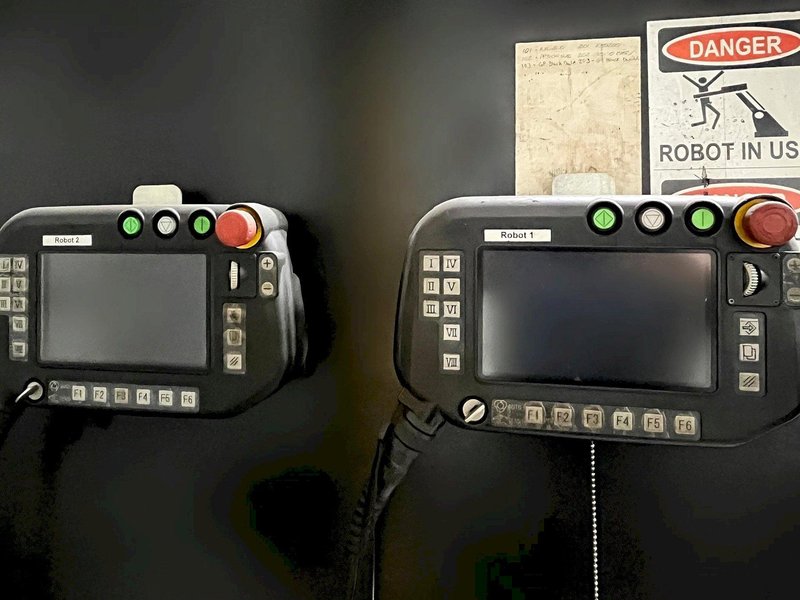

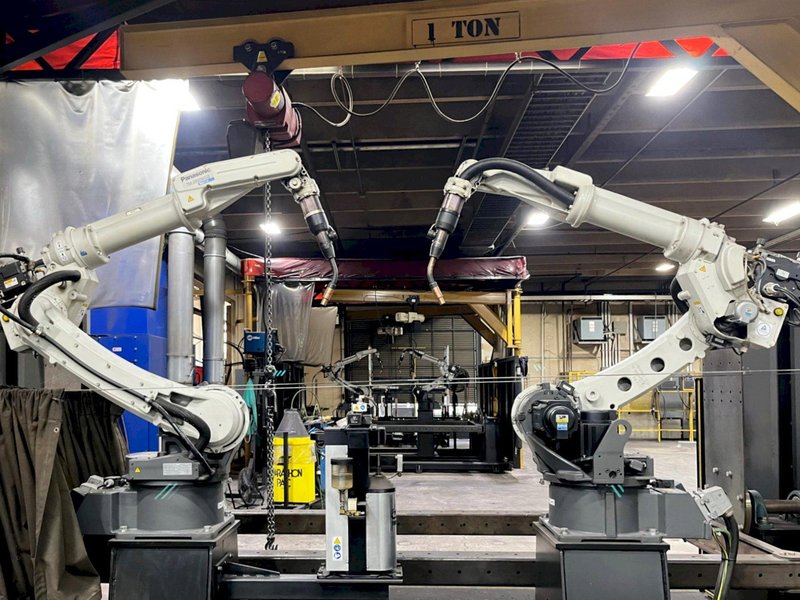

Equipped With: (2) Panasonic TM-2000 Robot (2) Tregaskiss Air Cooled Torch (500 AMP) Panasonic G3 Robot Controller 40,000 Point Memory (Unlimited Expansion with SD Card) Panasonic G3 Teach Pendant (Windows CE 7" Color GUI) External Axis Controller Automatic Program Backup SD/USB Ports (2) Station Positioners (2,200 Lbs. Payload Per Side) Tregaskiss Reamer with Sprayer, Wire Cutter, Lubricator Wire Brake Kit Medium Voltage Touch Sense Option Collision Detection Brake Releases on Arm Second & Third Axis Over Travel Switches (Limiters & Electrical Circuits) Servo Power on Lamps |
|
