McKenzie Model L Chip Separator

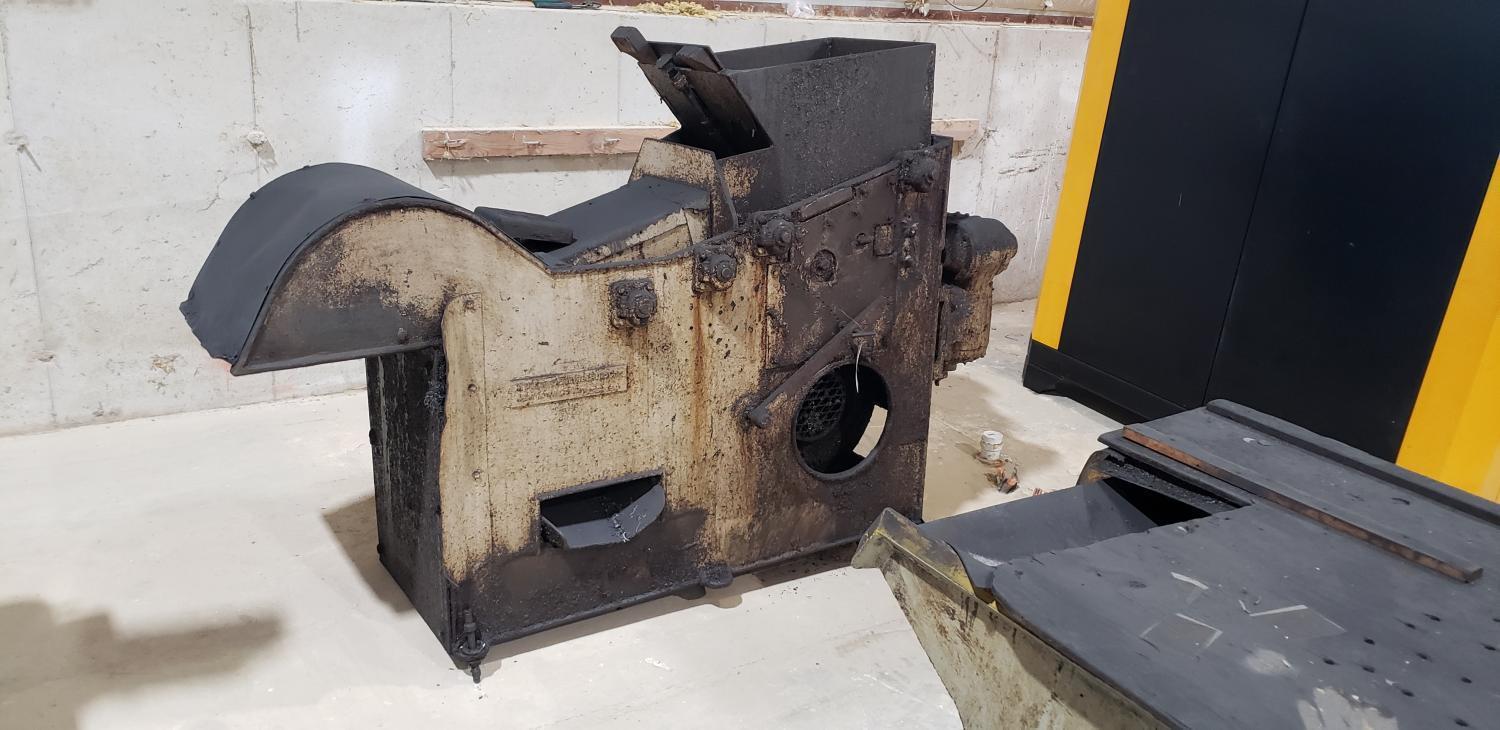

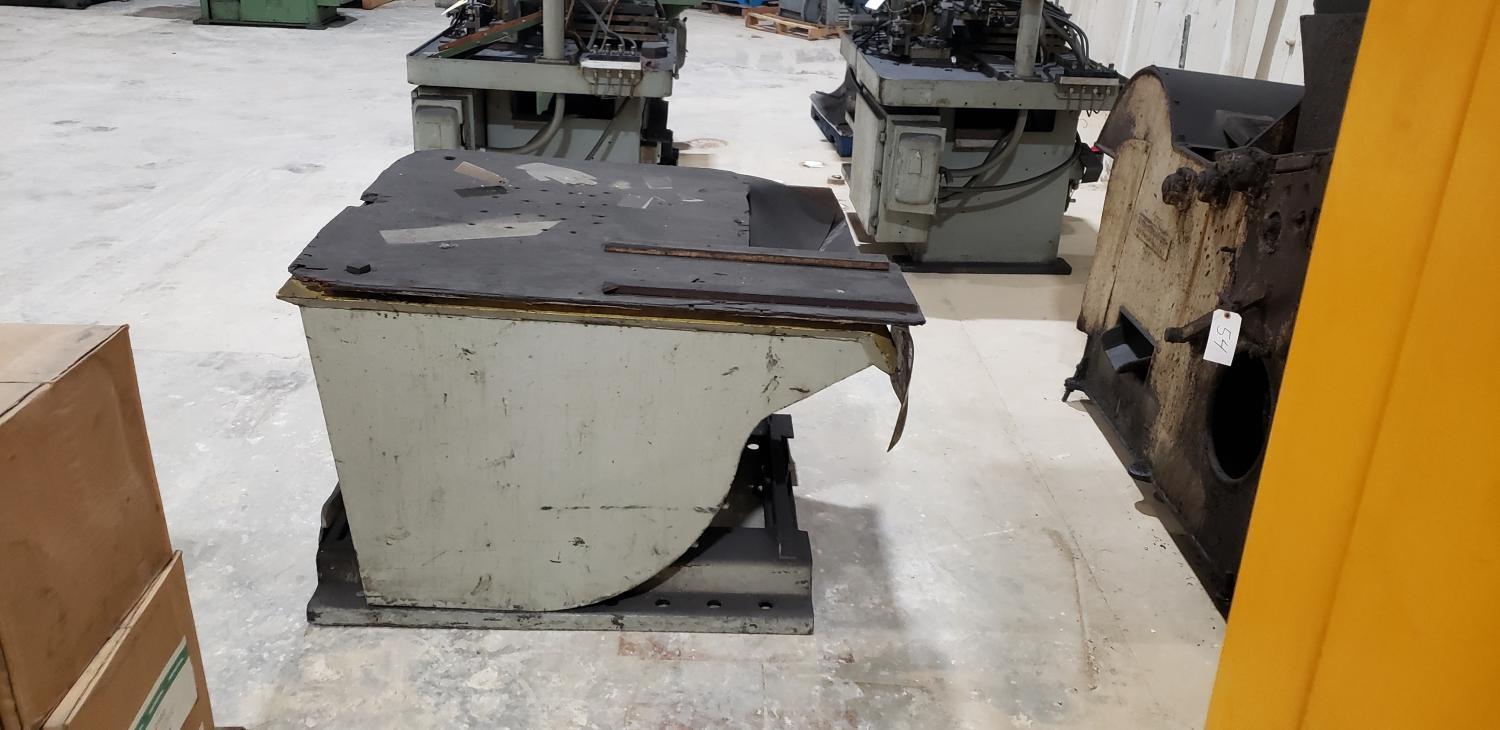

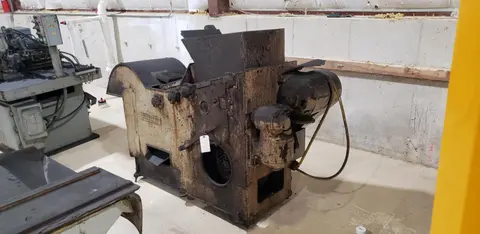

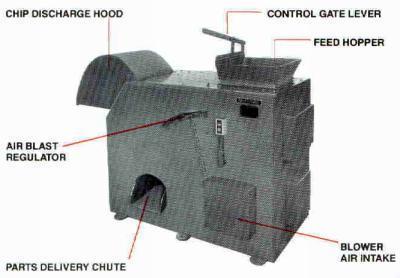

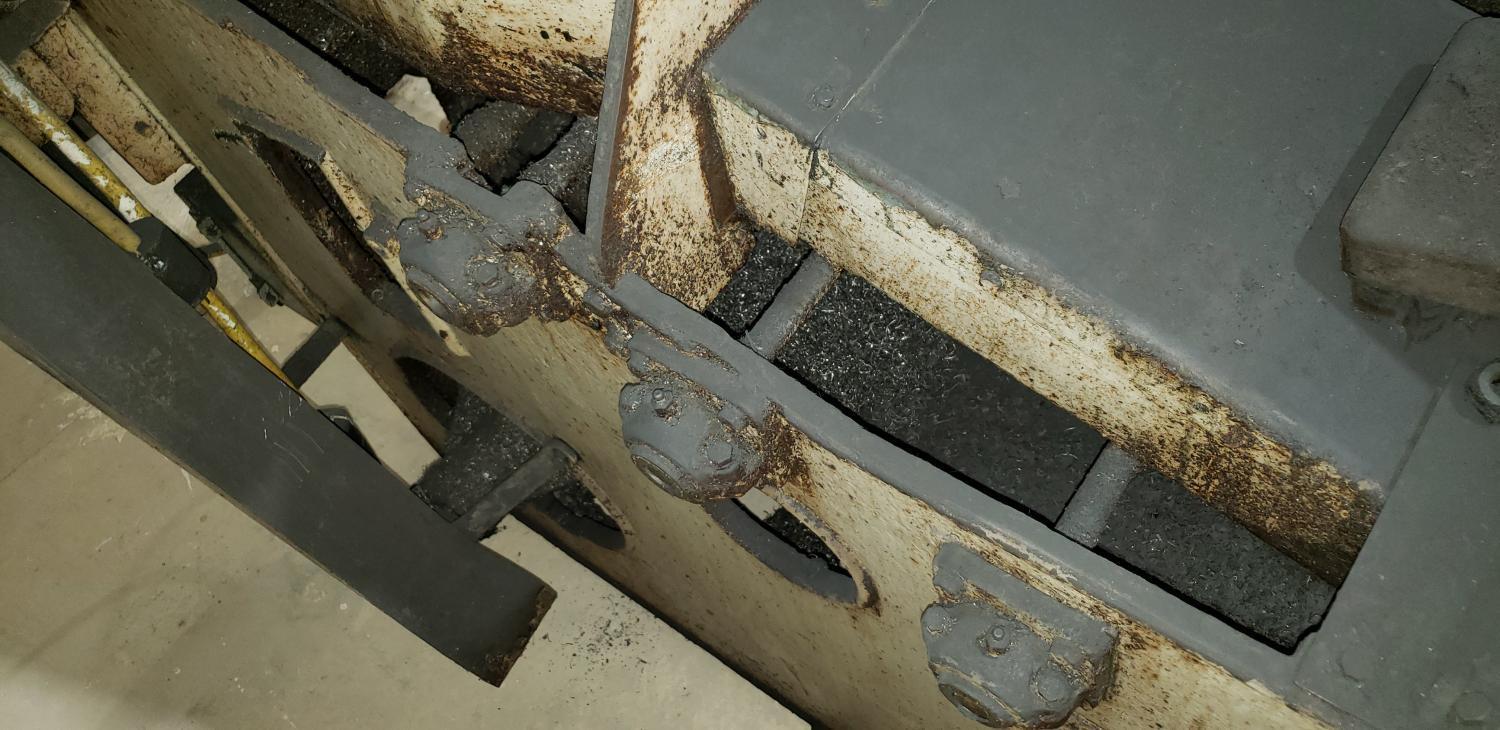

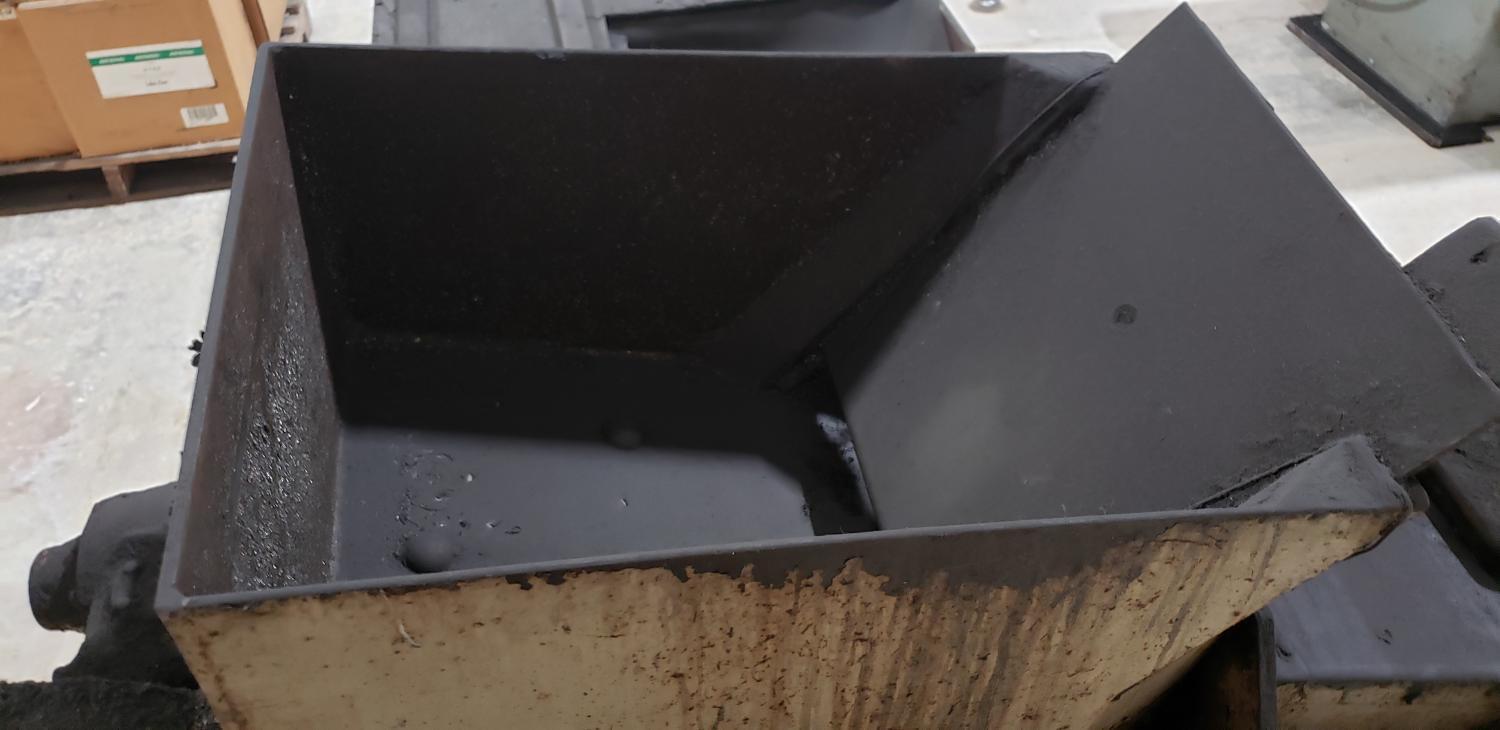

Size range (diameters): 1/8″ to 2″ (3 to 50mm) Size range (lengths): 1/4″ to 6″ (6 to 152mm) Maximum Operating rate: 1 cu. ft./min. (approx 5000 parts/min) Average operating rate: 34cu. ft./hr., using varying parts and sizesOPERATION: 1. Adjust air blast regulator lever to regulate air flow for size and weight of the parts. 2. Set control gate in feed hopper to permit uniform flow. (Normal setting: 1-1/2 times diameter of parts to be separated.) 3. With machine running, and after cutting oil has been removed, empty production to be separated into automatic feed hopper. 4. Production will feed into vibrator where, by means of constant agitation, material is spread evenly prior to entering controlled air stream. That’s all. The chips are automatically discharged below the chip discharge hood, while the clean parts drop from the parts delivery chute.SPECIFICATIONS Blower Motor 5 H.P., 3600 RPM, continuous rated, ball bearing totally enclosed Feeder-vibrator motor 3/4 H.P., 1200 RPM, continuous rated, ball bearing totally enclosed Current Three phase 230/460 volts, 60 Hz (currently set for 460v) Motor control Magnetic starter, with current overload protection panel and pushbutton station Air blower control Over 48 air regulator settings, for accurate control over complete blower range Bearings: Connecting Rod Self-aligning roller Drive Shaft Ball-bearing pillow blocks Vibrator Pan Self-aligned grooved and graphited bronze Lubrication Only six Alemite grease fittings for complete lubrication Dimensions 6’4″L x 4’2″H x 3’W (193 x 127 x 91 cm) Shipping weight (domestic) 1520 lbs. (690kg) https://web.archive.org/web/20220929235856/https://mckenzieengineering.com/model-l.htmlWeight 1200 lbs Dimensions 81 × 32 × 56 in
