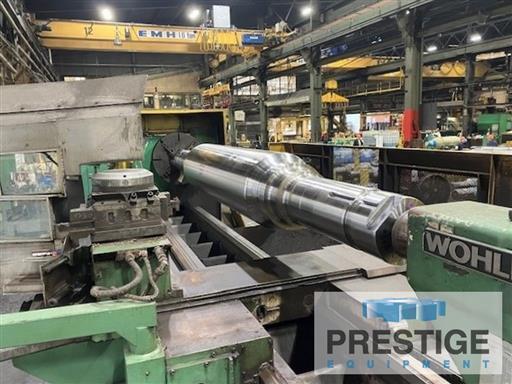

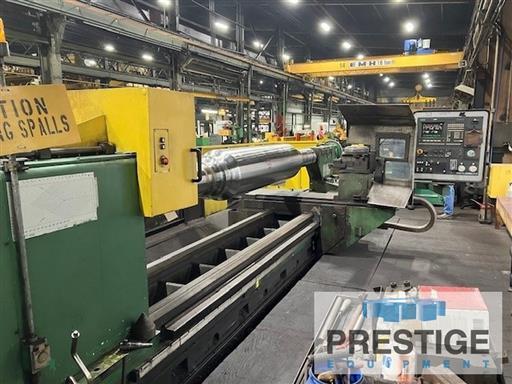

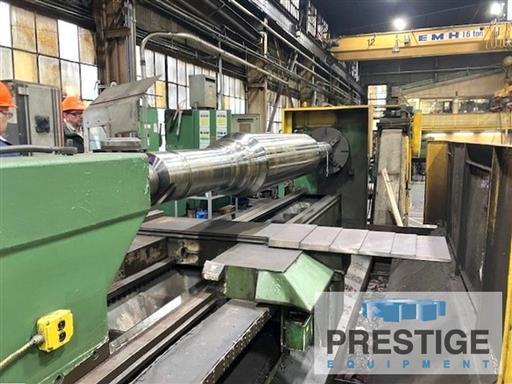

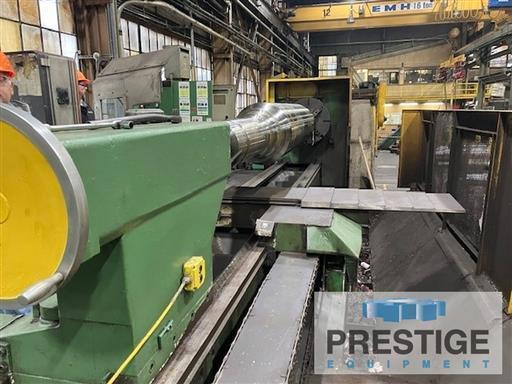

Wohlenberg PT-250 II 51" x 209" Heavy Duty CNC Lathe

SPECIFICATIONS:
Maximum Swing Over Bedways 51.57"
Swing Over Cross Slide 35.43"
Cutting Diameter 35.43"
Distance Between Centers 209"
Spindle Speed Range, Low 3.55-180 RPM
Spindle Speed Range, High 14-710 RPM
Feed Range .0039-236.22 IPM
Feed Override Rate 236.22 IPM
X-Axis Rapid Traverse 236.22 IPM
Y-Axis Rapid Traverse 236.22 IPM
Threading CNC Control
Chuck Capacity 4" to 21.5"
Distance Tool Can Approach Chuck 12"
Maximum Roll Weight Between Centers 17,640 Lbs
Maximum Weight in Chuck Only 5,512 Lbs
Tailstock Center Taper MK6 Metric
Coolant Tank Capacity 150 Gallons
Machine Weight 44,000 Lbs
Main Motor 80 HP



Equipped With:

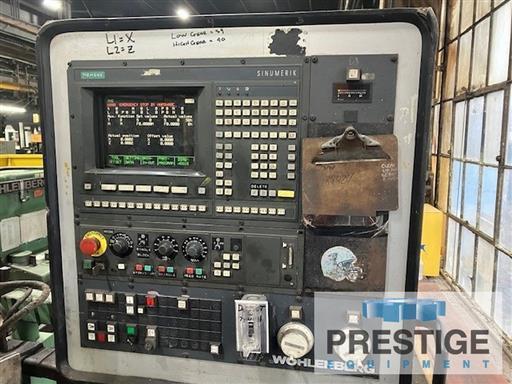

Siemens 820T CNC Control

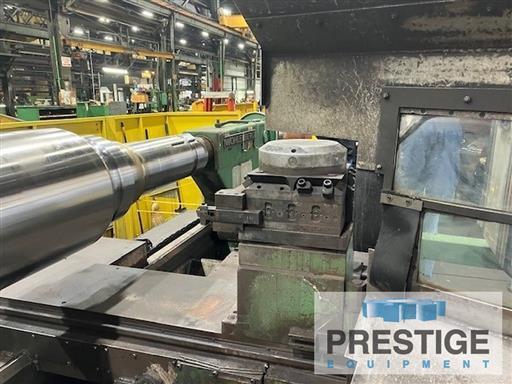

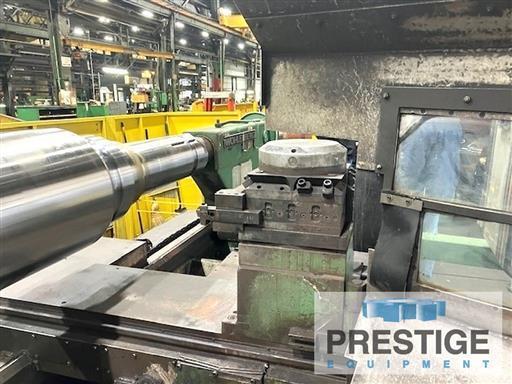

4-Position Sauter Turret
Spindle Speed Indicator
Coolant
Chip Conveyor
80 HP Main Motor
