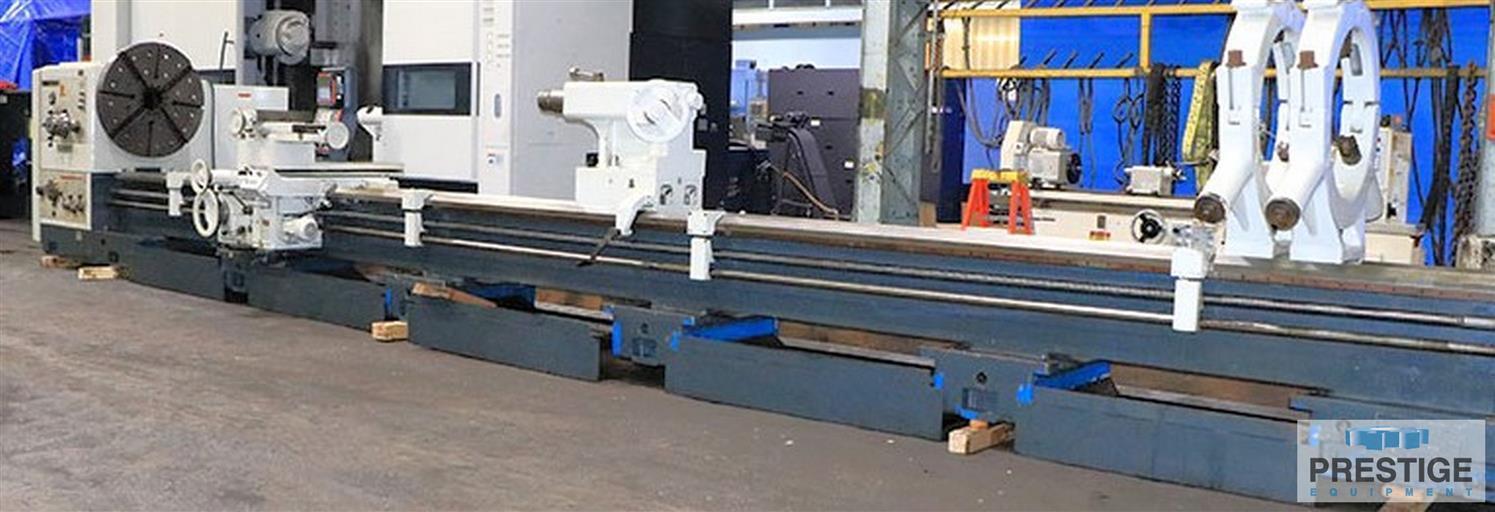

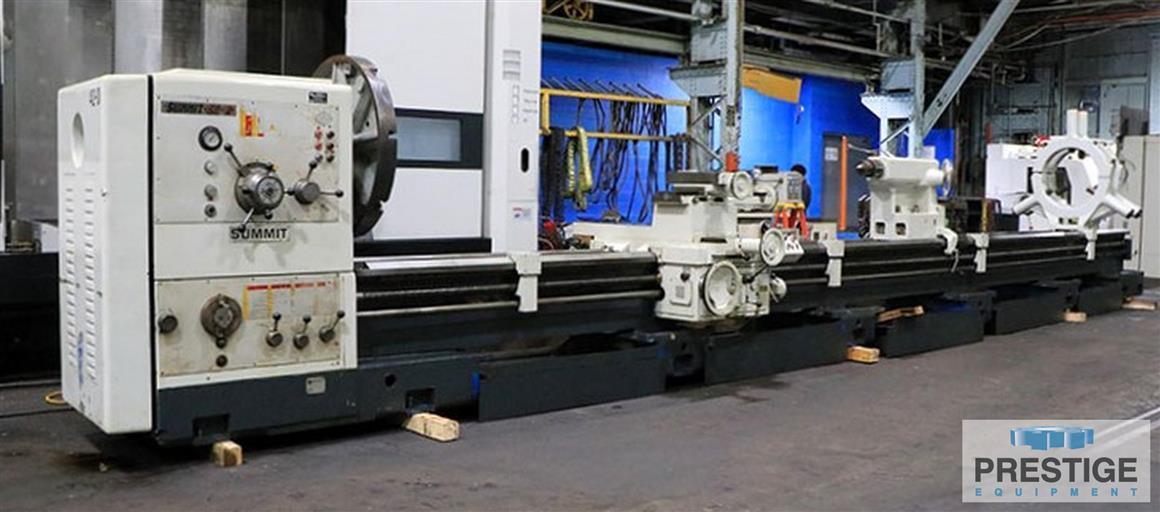

51" x 360" Summit 50R Manual Lathe

SPECIFICATION:
SWING OVER BED WAYS 51-3/16"
SWING IN REMOVABLE GAP 61-21/64"
SWING OVER CROSS SLIDE 35-7/16"
DISTANCE BETWEEN CENTERS 360"
HOLE THRU SPINDLE 6.1"
WIDTH OF BED 23-5/8"

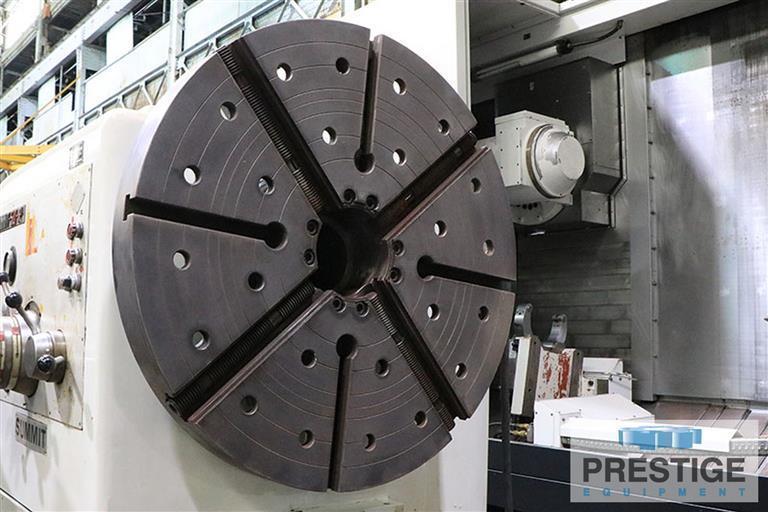

SPINDLE NOSE A2-11
SPINDLE SPEED RANGE (16) 6 - 500 RPM
LONGITUDINAL FEED RANGE (60) .0014 - .360 IPR
CROSS FEED RANGE (60) .0008 - .180 IPR
INCH THREADING RANGE .5 - 84 TPI
METRIC THREADING RANGE .52 - 56 mm
TAILSTOCK SPINDLE DIAMETER 6-1/8"
TAILSTOCK SPINDLE TRAVEL 15-3/4"
TAILSTOCK SPINDLE TAPER #6MT
APPROXIMATE FLOOR SPACE 476"L x 63"W x 93"H
APPROX WEIGHT 38,500 LBS



Equipped With:

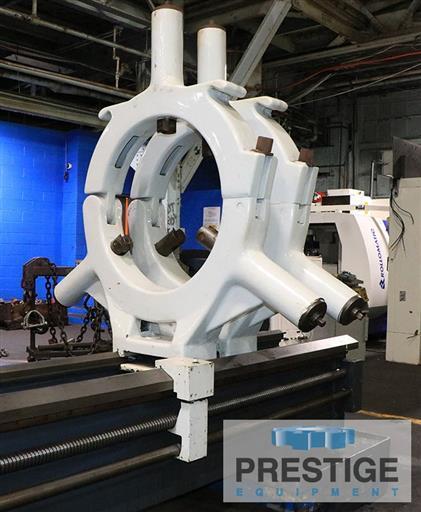

(2)26" CAPACITY ROLLER TYPE STEADY RESTS

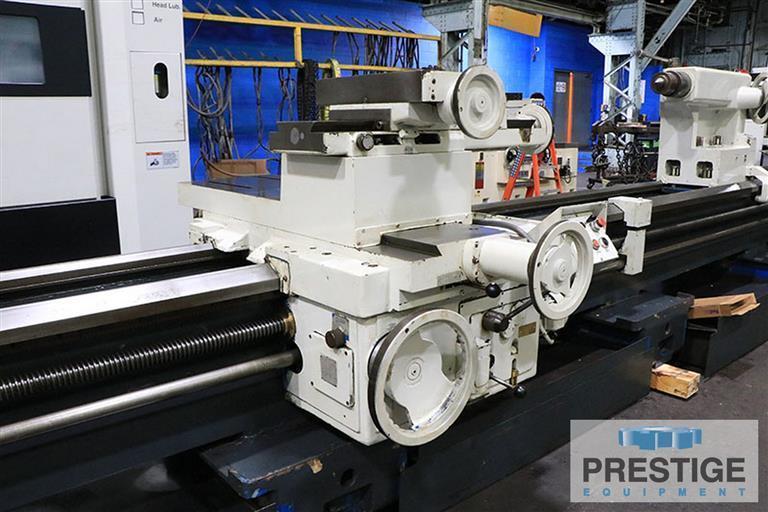

POWER COMPOUND
POWER RAPID TRAVERSE
LIVE CENTER
TAILSTOCK
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PANS
30 HORSE POWER MAIN MOTOR
