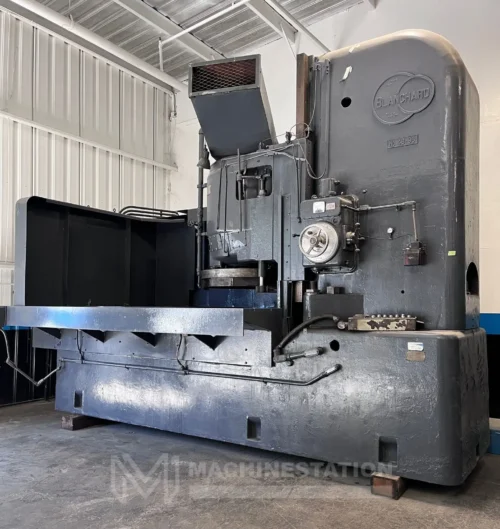

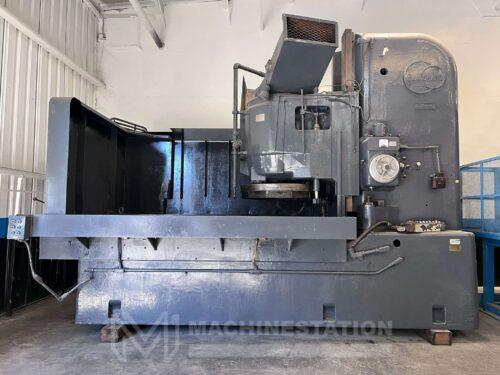

Blanchard 48-96 Vertical Rotary Surface Grinder

Blanchard 48-96 Vertical Rotary Surface Grinder

Name: Used BLANCHARD 48-96 For Sale 111774
Brand: BLANCHARD
SKU: 111774

Brand

BLANCHARD

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Blanchard
Model:	48-96
Year:
Condition:	Used – Good

Equipped With:
Segmented Magnetic Chuck
Water Guards
Coolant System
Automatic Lubrication System
Hardened Bed Ways
Magnetic Chuck Control

Capacity:
Segmented Magnetic Chuck Diameter: 96″
Grinding Wheel Diameter: 48″
Maximum Swing Inside Water Guards: 108″
Maximum Height Under Wheel: 36″
Maximum Table Load: 14,000 lbs

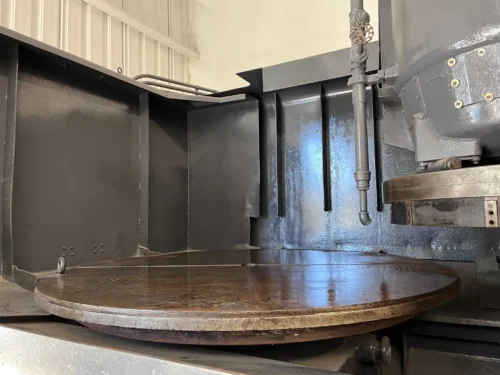

Work Table:
Table Diameter: 96″
Chuck Type: Electromagnetic, segmented
Chuck Rotation Speeds: 2.6, 4.1, 6.6, 10.2 RPM
Table Drive: Geared Drive System

Griding Head:
Spindle Type: Vertical
Spindle Motor Power: 150 HP
Grinding Wheel Speed: 297 RPM
Vertical Incremental Downfeeds: 0 – 80 IPM
Grinding Wheel Diameter: 48″
Grinding Wheel Depth: ″
Grinding Wheel Thickness: ″

General:
Power: 190 kva / 440 v / 3 Phase / 60 Hz
Overall Dimensions: 246″ x 110″ x 205″ High Approx.
Weight: 87,000 lbs. Approx.
