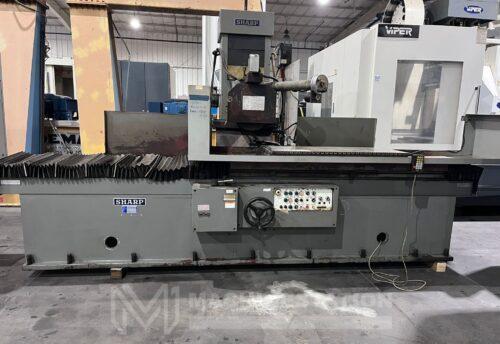

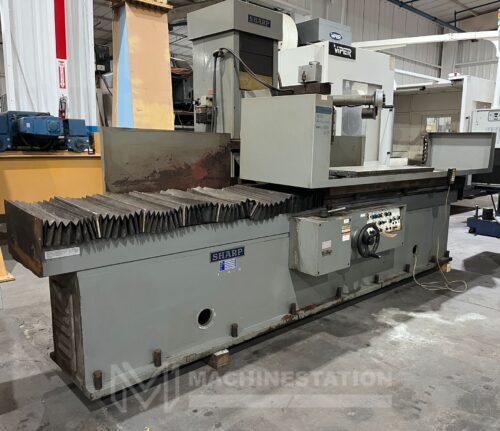

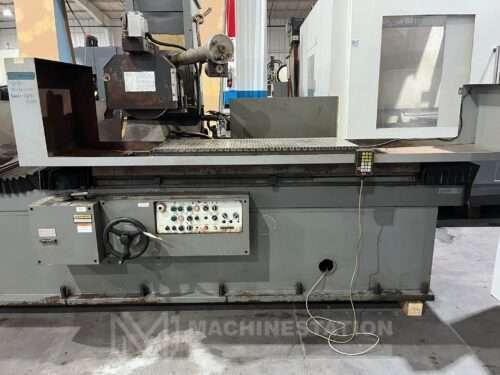

Sharp SH-2047 Automatic Travelling Column Surface Grinder

Sharp SH-2047 Automatic Travelling Column Surface Grinder

Name: Used SHARP SH-2047 For Sale 112638
Brand: SHARP
SKU: 112638

Brand

SHARP

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

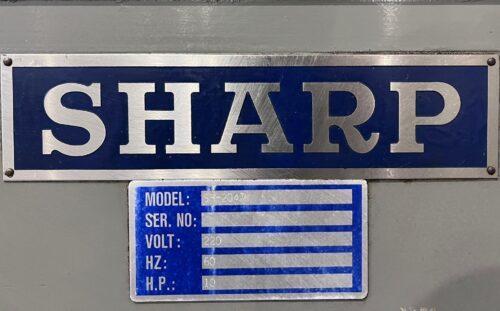

Make:	Sharp
Model:	SH-2047
Year:
Condition:	Used – Good

Features:

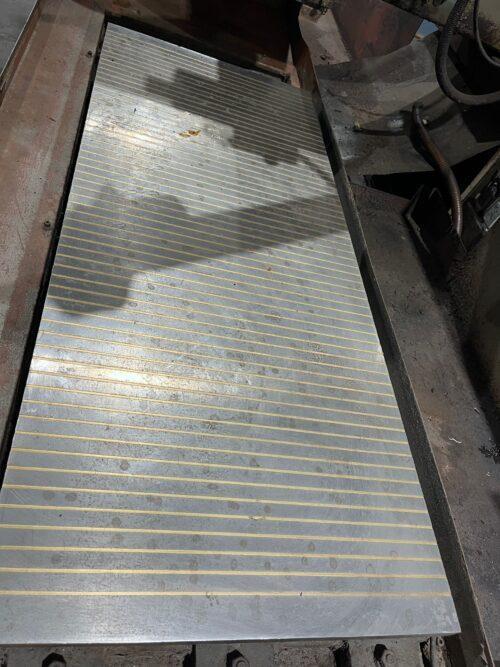

Magnetic Table
Grinding Wheel
Ballscrew on Cross Feed
Wheel Flange
Wheel Balancer and Balancing Arbor

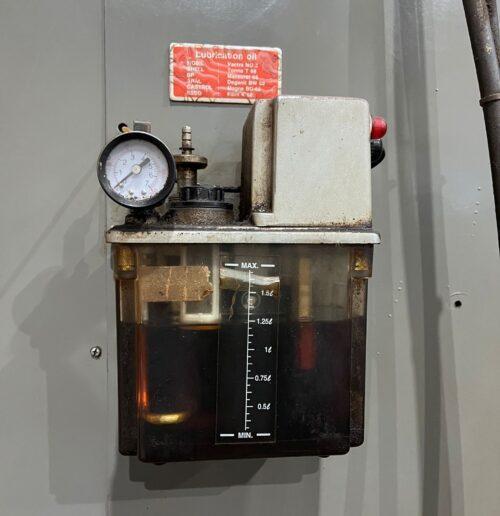

Automatic Lubrication System
Coolant System
Automatic cross feed

Capacity:
Max Grinding Length: 47″
Max Grinding Width: 20″
Maximum Distance: Table to Spindle Center: 27.6″

Table:
Length: 47″
Width: 19.7”

Table Travels:
X Axis (Longitudinal): 53.2″
Y Axis (Cross).: 20.9″
Spindle Center to Table Surface: 27.6″
Longitudinal Hydraulic Table Feed: 6.6 – 82 FPM
Intermittent Cross Feed (in. feed): 0.004 – 0.6 IPM
Continuous Cross Feed: 39 IPM
Number of Graduations on Dial: 200
Feed Per Graduation: 0.001″
Feed Per Revolution: 0.200″

Vertical Travel:
Number of Graduations on Dial: 100
Feed Per Graduation: 0.0001″
Feed Per Revolution: 0.010″
Rapid Downfeed: 11.8 IPM

Spindle and Wheel:
Wheel size (OD x W x ID): 14 x 2 x 5″
Spindle Motor: 10 HP

General:
Power Source: AC 220 V Three Phase 60 Hz
Overall Dimensions: 180″ x 90″ x 102″ High
Weight : 16,600 lbs Approx.

No files or videos to display
