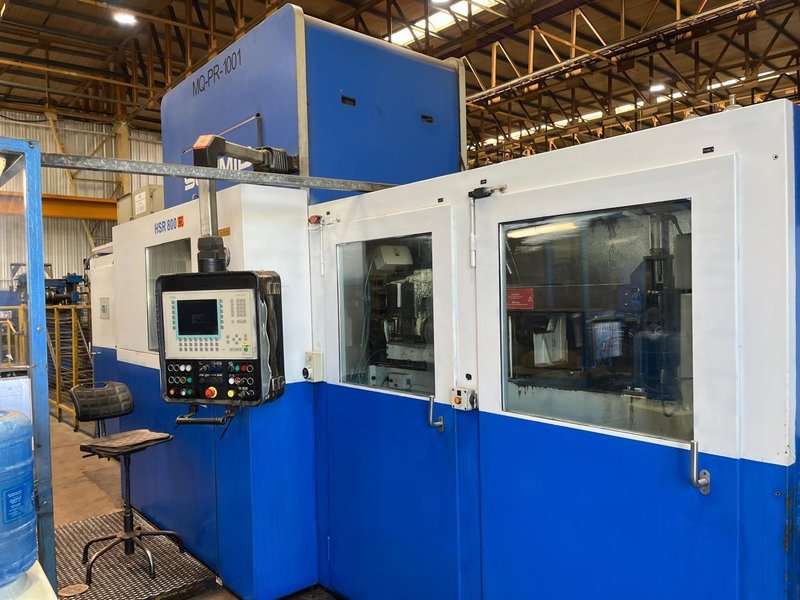

2002 800 Ton Schmid Fine Blanking Press Line

Name: Used SCHMID HSR 800 Ecoline For Sale MD800E
Brand: SCHMID
SKU: MD800E
Availability: PreOrder

Brand

SCHMID

Location

Cordoba

REQUEST FINANCING

Specifications
Files & Videos

Tonnage	800 tons
CNC Control	yes
Type Of CNC Control	Siemens
Maximum Tool Height	420 millimeters
Minimum Tool Height	320 millimeters
Machine Table Dimensions	900 millimeters
Total Force	100-8000KN
Stamping Force	50-4000KN
Counter Force	50-1600KN
Cut Speed	10-40mm/sec
Pieces A Minute	8-18 Pieces
Cut Stroke	0-30mm
Total Stroke	2mm-205mm
Coil Feed Line: Thickness Range: 2mm-12mm Width Range: 80mm-520mm Coil OD Range: 800mm-1750mm Coil ID: 500mm Max Coil Weight: 6000kg Equipped With: Piston Stop: CNC Type Automatic Hydraulic Positioning Automatic Hydraulic Tool Clamping V-Ring: Hydraulic Regulation Tool Verification Protection Tool Protection Inside the Cut (Dependent on Stroke and Pressure from Operator Panel) External Tool Protection (With Sensor in Tool Discharge Channel) Automatic Loop with Ultrasonic Sensor Siemens PLC and Controls

No files or videos to display
