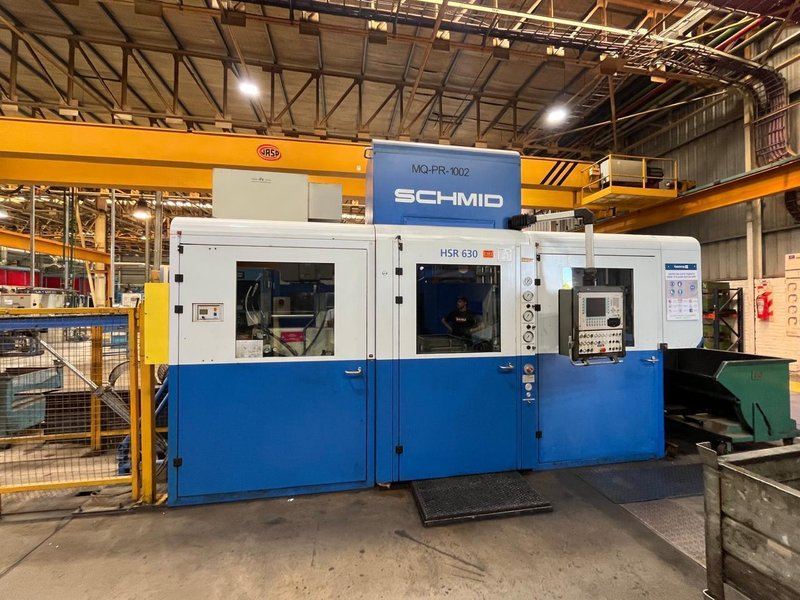

2003 630 Ton Schmid Fine Blanking Press Line

Name: Used SCHMID HSR 630 Ecoline For Sale MD630E
Brand: SCHMID
SKU: MD630E
Availability: PreOrder

Brand

SCHMID

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Tonnage	630 tons
CNC Control	yes
Type Of CNC Control	Siemens
Maximum Tool Height	420 millimeters
Minimum Tool Height	320 millimeters
Machine Table Dimensions	650 millimeters
Total Force	50-6300KN
Stamping Force	50-3200KN
Counter Force	40-1600KN
Cut Speed	11-44mm/sec
Pieces A Minute	12-27 Pieces
Cut Stroke	0-30mm
Total Stroke	2mm-205mm
Coil Feed Line: Thickness Range: 1mm-10mm Width Range: 15mm-300mm Coil OD Range: 800mm-1600mm Coil ID: 500mm Max Coil Weight: 4000kg Equipped With: Piston Stop: CNC Type Automatic Hydraulic Positioning Automatic Hydraulic Tool Clamping V-Ring: Hydraulic Regulation Tool Verification Protection (By Pressure from Operator's Panel) External Tool Protection Automatic Loop with Ultrasonic Sensor Siemens PLC and Controls
