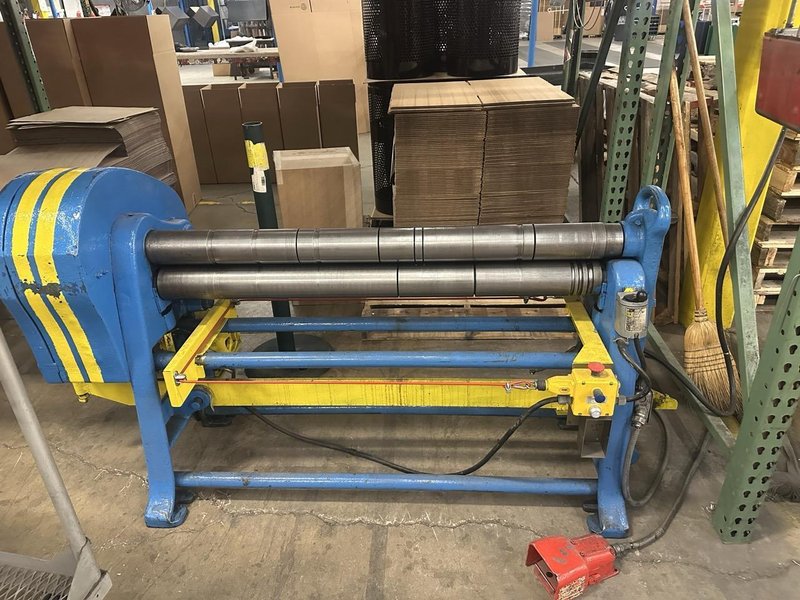

Niagra 180 Bead Roller

Material Capacities (Mild Steel): Burring/Turning/Wiring/Bending: 14 gauge Crimping: 16 gauge Slitting: 12 gauge Circle Cutting Thickness: 12 gauge Circle Cutting Diameter Range: 6″ to 18″ Flanging Thickness: 14 gauge Flanging Diameter Range: 13″ to 48″ Maximum Flange Height: ¾”​

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Roller & Frame Dimensions: Shaft Diameter: 1 7/8″ Distance Between Shaft Centers: 3 ½” Distance from Roll Center to Frame: 12 ¼” Length of Shaft Ends for Rolls: 3″​

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating Speed: 15 feet per minute Motor: 1 HP, 230/460V, 3-phase​ Approx. Dimensions: 22″ x 42″ x 64″ Approx. Weight: 1,000 lbs​

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
