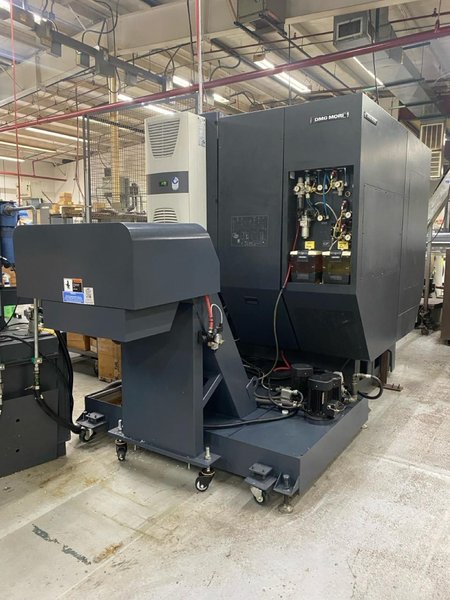

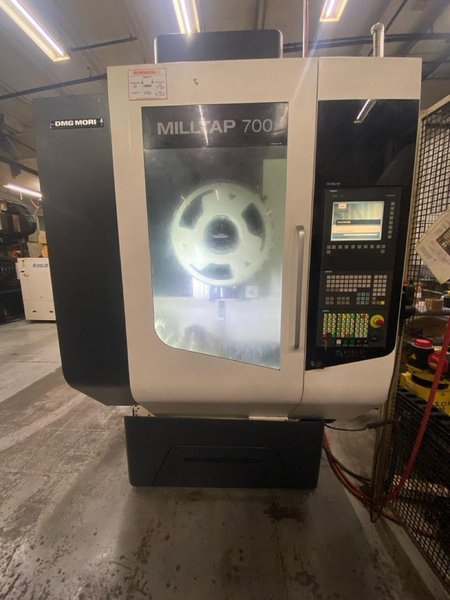

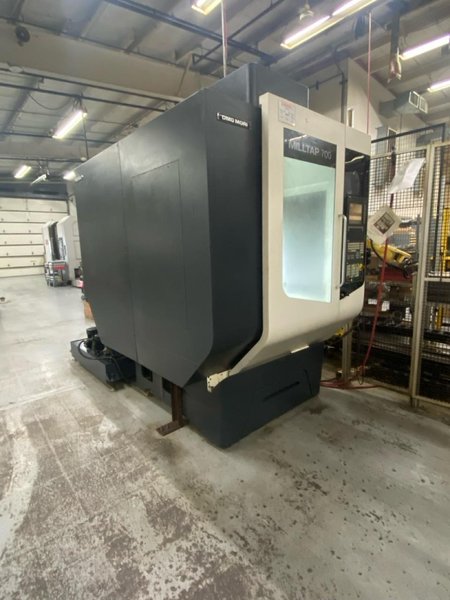

DMG Mori MillTap 700, 2017

X-Axis Travel: 27.6″ Y-Axis Travel: 16.5″ Z-Axis Travel: 15.0″ Max Tool Diameter: 3.15″ Max Tool Length: 9.8″ Max Tool Weight: 6.6 lbs. Scale Feedback on X, Y & Z-Axes Spindle Motor: 33.3 / 26.7 HP Spindle Nose to Table Top: 7.9″ – 22.9″ Spindle Speed: 24000 RPM Spindle Taper: Big Plus BT 30 Tool Change Time (T – T / C – C): 0.9 / 1.5 Seconds Tools: 25 Approx. Dimensions: 65″ x 92″ x 101″ Approx. Weight: 7495 lbs

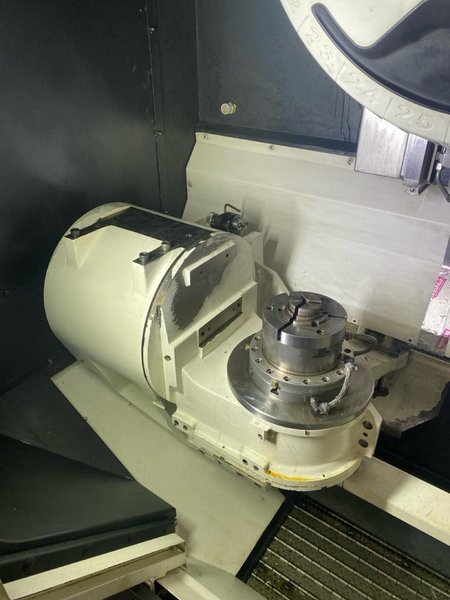

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Siemens 840D Solution Line CNC Control 10.4″ Color TFT Integrated Swivel Rotary Table Simultaneous Through Spindle Coolant (1000 psi) Clamp Pneumatic 1-Circuit Integrated Swivel Rotary Table Signal Lamp 4 Color Automation Interface Door Right Chip Trolley MillTap Design Electronic Handwheel Renishaw OMP400 Touch Probe Automation Package With DP/DP Coupler With Profibus Connection Tool Breakage Sensor Renishaw OTS Upgraded LNS Higher Filtration Chip Conveyor Push Button for Clamping/Unclamping Internal Mist Collector

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
