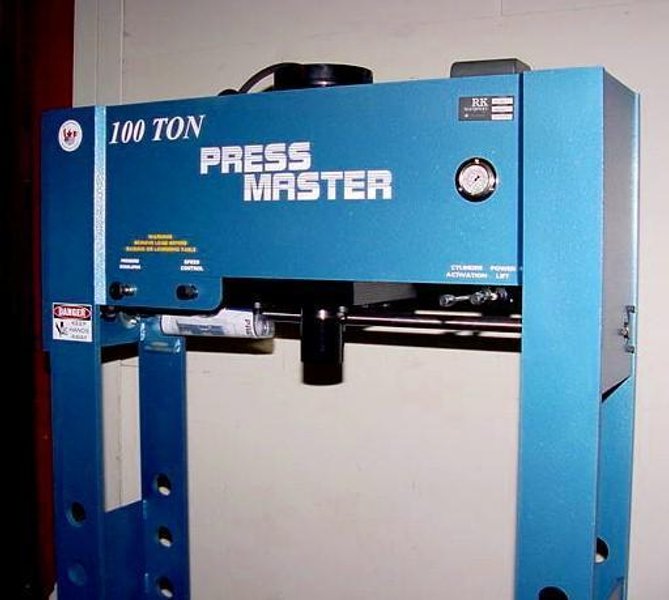

100 TON PRESSMASTER H-FRAME HYD. PRESS MODEL HFP-100
Brand
Category
Type
Model
HFP-100
Stock #
4906
Year
Not specified
Condition
New
Location
New York
|

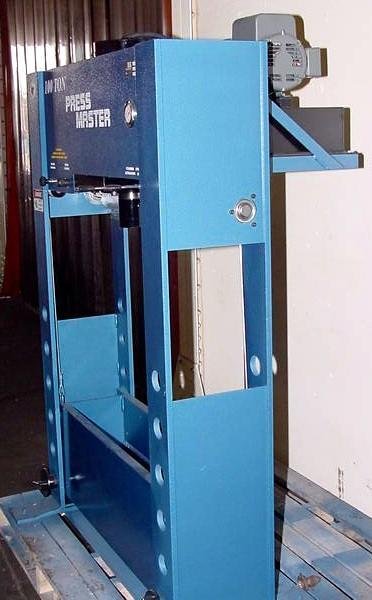

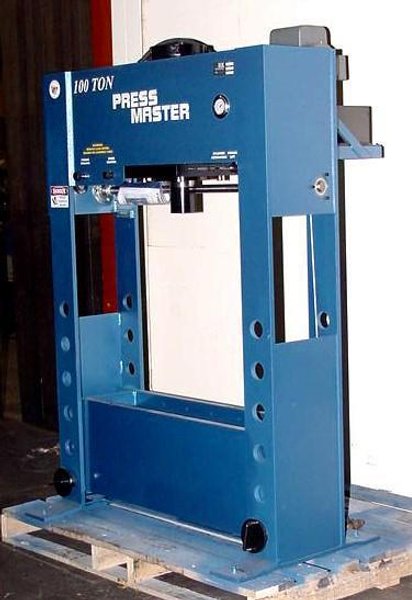

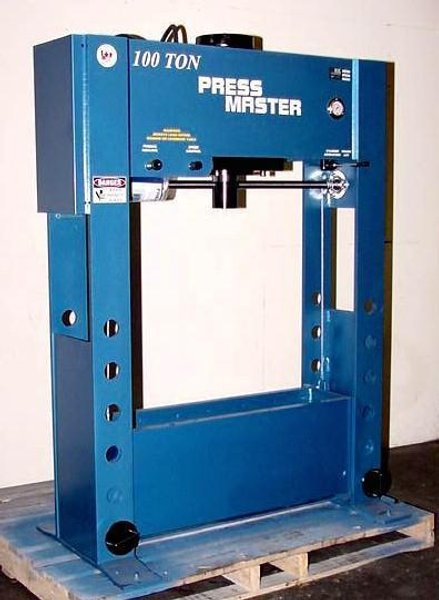

NEW 100 TON PRESSMASTER H-FRAME HYDRAULIC PRESS
MODEL HFP-100
RATED CAPACITY, TONNAGE........................... 100
STROKE............................................ 12"
BORE.............................................. 8"
RAM SPEED PRESS .................................. 20 IPM
RETURN ..................... 26 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 13"
MAXIMUM DISTANCE FROM BED TO RAM ................. 33"
WEIGHT ........................................... 2,400 LBS.
SHIPPING DIMENSIONS .............................. 50" X 62" X 90"
STANDARD FEATURES:

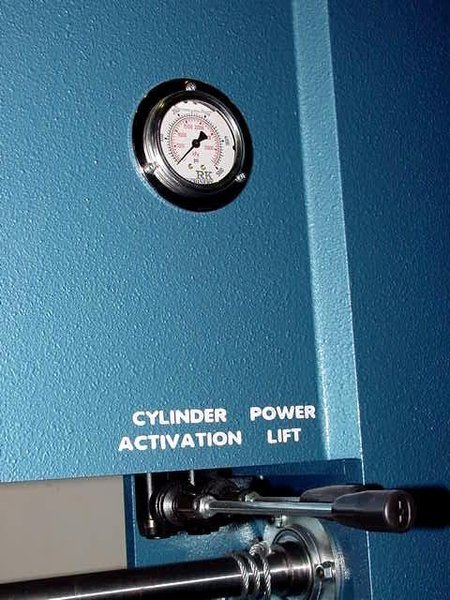

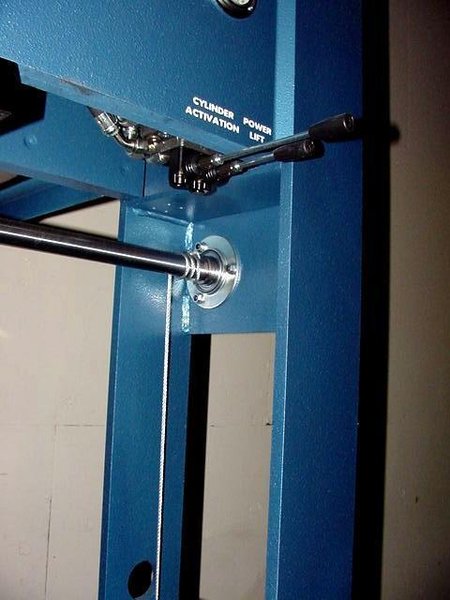

-CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND
LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING
THE OPERATOR TO USE THE PROPER SPEED FOR THE TASK.

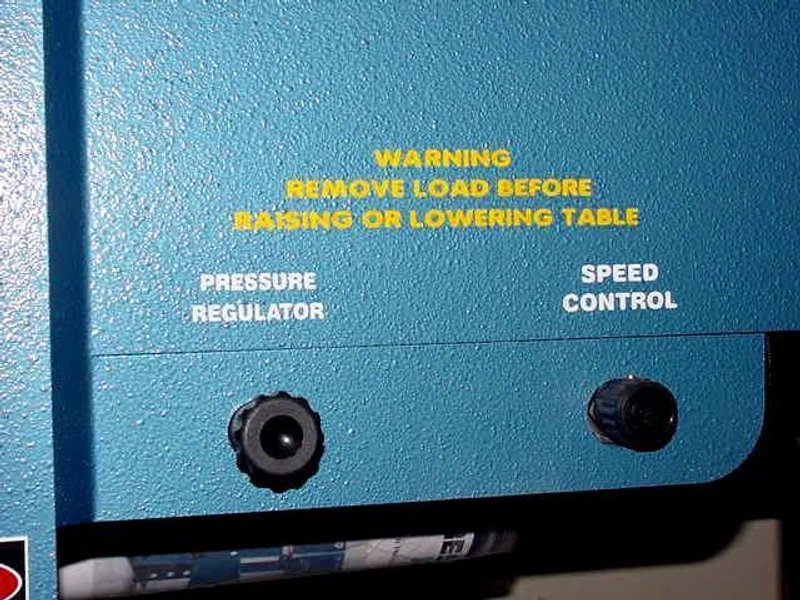

-PRESSURE REGULATOR - LIMITS RAM PRESSURE
-DOUBLE ACTING CYLINDER - PERMITS PULLING AND PRESSING

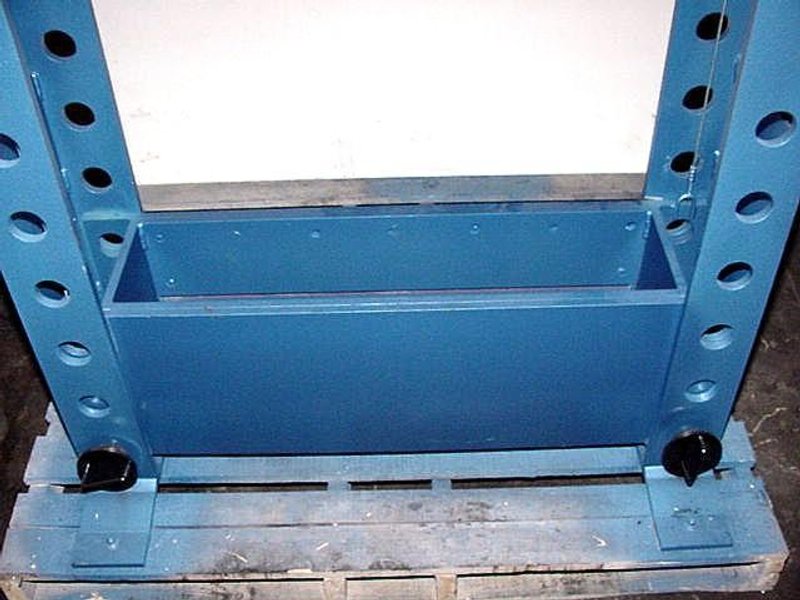

-HYDRAULIC POWER LIFT TABLE
-SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
-ELECTRIC/HYDRAULIC OPERATION
-HEAVY DUTY STEEL STRUCTURE
-OPEN SIDES TO FACILITATE WORK ON LONG PIECES
-FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

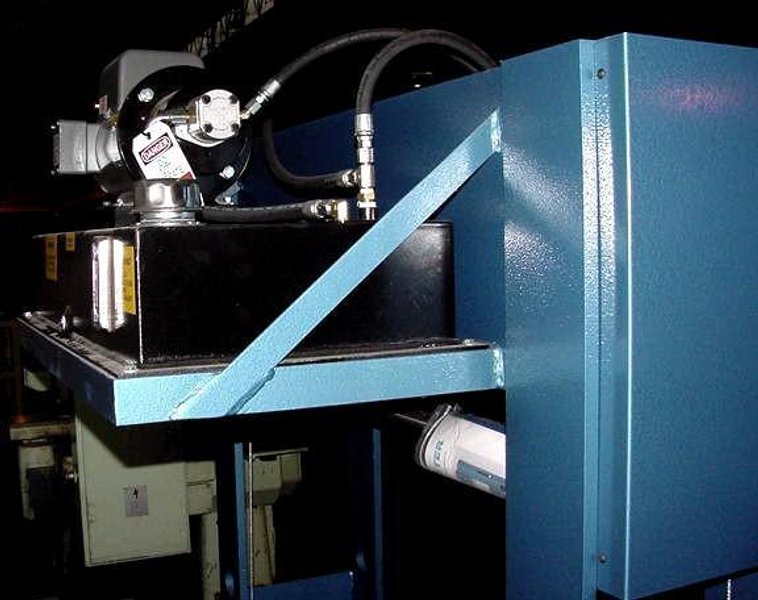

-LOW SPEED PUMP

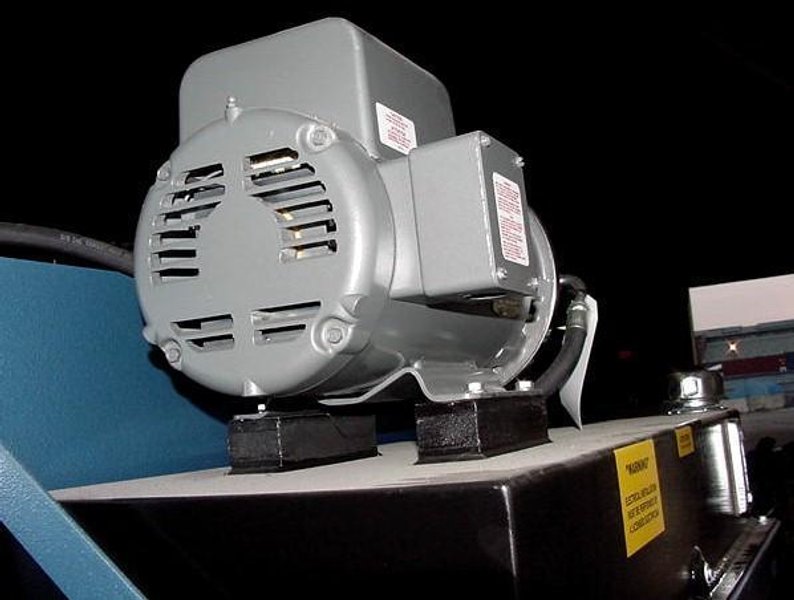

-LOW SPEED BALDOR 10 HP, 3 PHASE MOTOR, STANDARD VOLTAGES AVAILABLE

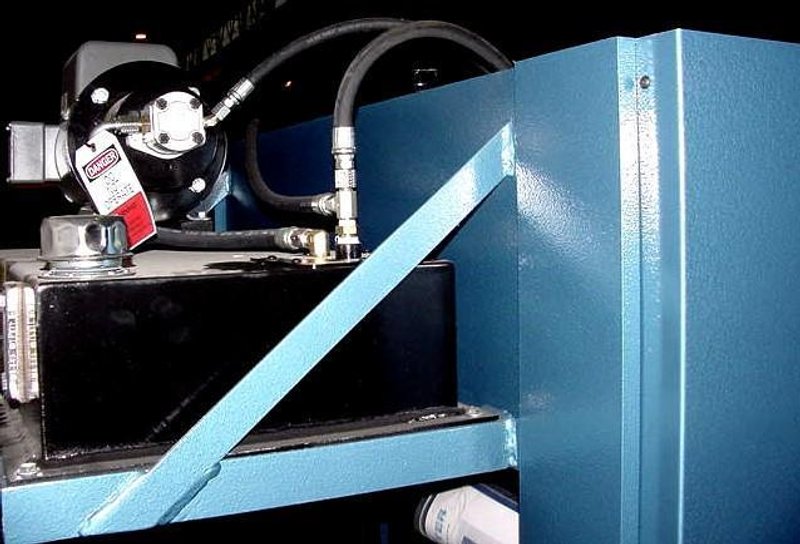

-HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR
-LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES
FOR HIGHER EFFICIENCY AND SAFER OPERATION
FULL ONE YEAR WARRANTY.
NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,000
- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $ 750
- FOOT PEDAL ................................. $4,250
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,250
- PRESS PLATE ................................ $2,000
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,000
- HANDHELD REMOTE CONTROL .................... $7,500
FOB: ORIGIN
|
