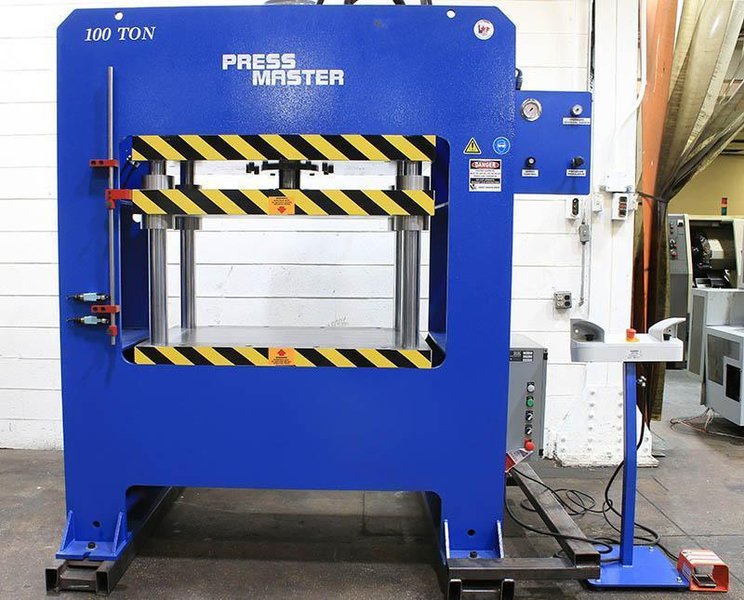

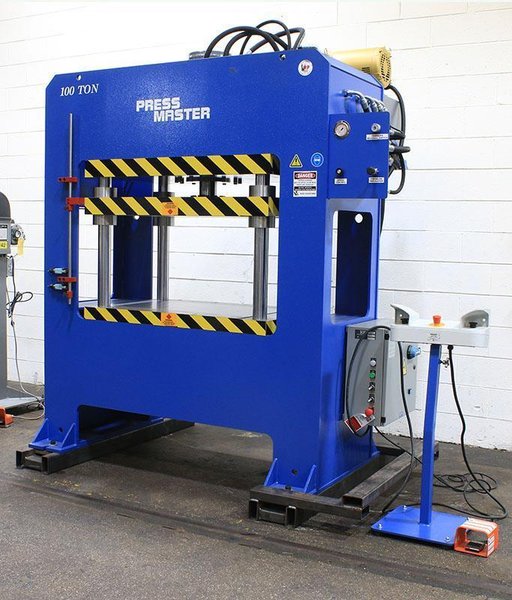

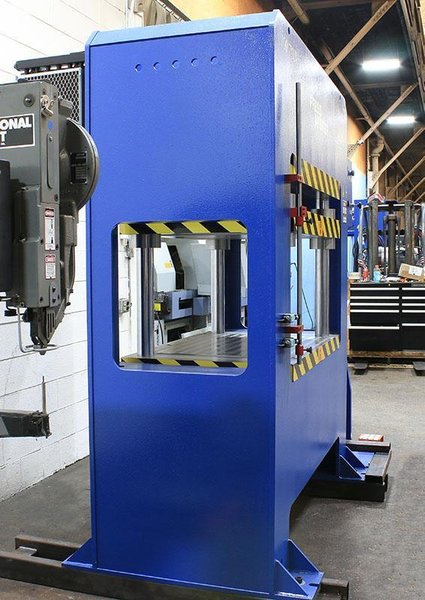

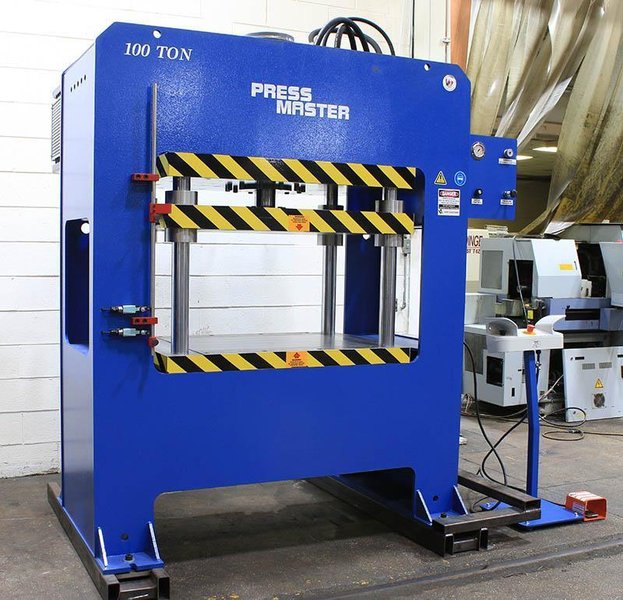

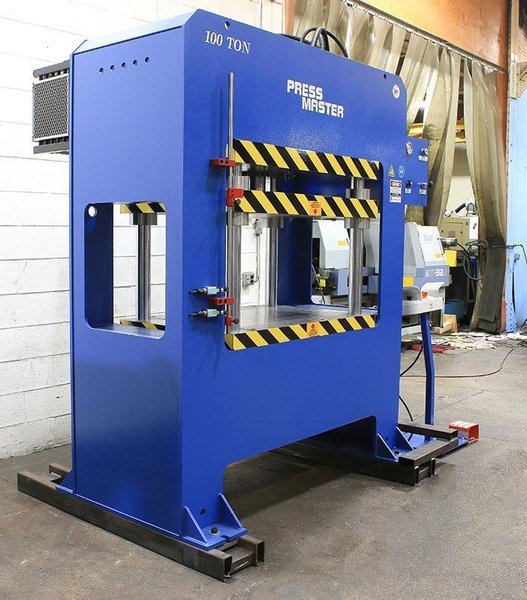

100 TON NEW PRESSMASTER HYDRAULIC FOUR-POST PRESS MODEL 4PP-100
Brand
Category
Type
Model
4PP-100
Stock #
4894
Year
Not specified
Condition
New
Location
New York
|

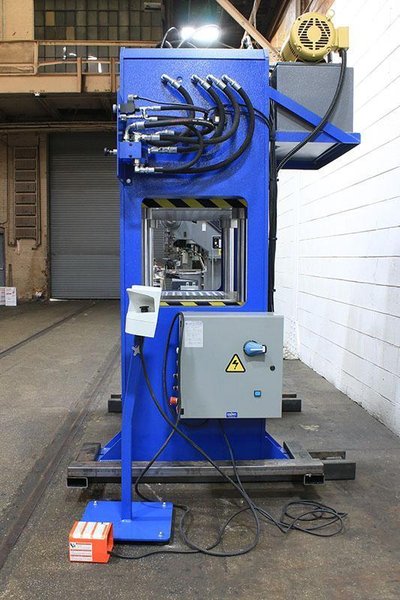

NEW 100 TON PRESSMASTER HYDRAULIC FOUR-POST PRESS
MODEL 4PP-100
TONS OF FORCE ............................... 100 TONS
RAM SPEED (APPROACH) ........................ 85 IPM
(PRESS) ........................... 10 IPM
(RETURN) .......................... 106 IPM
TABLE ..............(L-R X F-B).............. 34" X 30"
UPPER PLATEN (L-R)........................... 34"
UPPER PLATEN (F-B)........................... 30"
DAYLIGHT .................................... 22"
STROKE ADJUSTABLE ........................... 15"
FLOOR TO TABLE .............................. 33-1/2"
FRONT TO BACK................................ 56-1/2"
HEIGHT (OVERALL)............................. 92"
WIDTH ....................................... 71-1/2"
WEIGHT ...................................... 9,800 LBS.
SHIPPING DIMENSIONS ......................... 60" X 86" X 102"

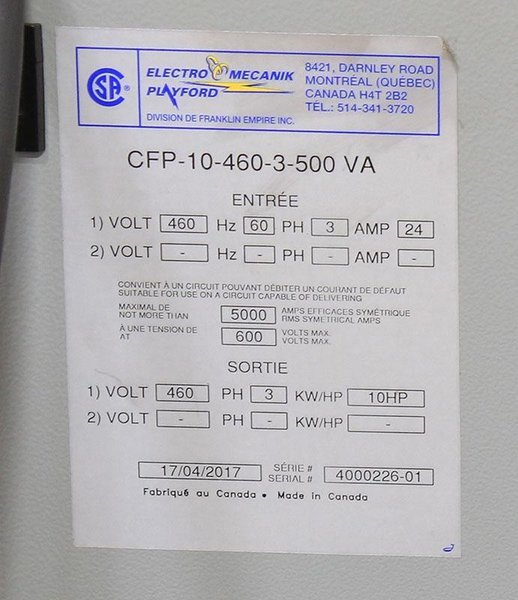

MOTOR HP @ 1760 RPM ........ 10 HP 230/460/575 VOLTS, 3 PH, 60 Hz.
STANDARD FEATURES:

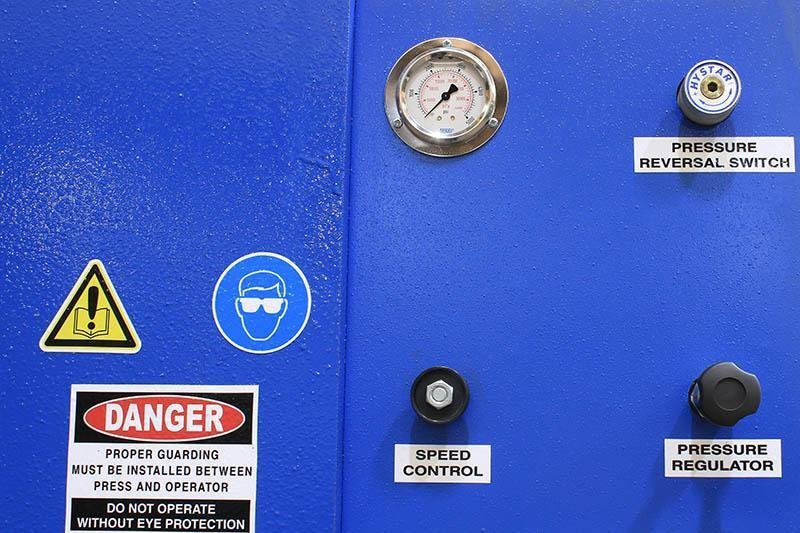

- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- ADJUSTABLE SPEED CONTROL
- AIR COOLED INDUSTRIAL OIL COOLER

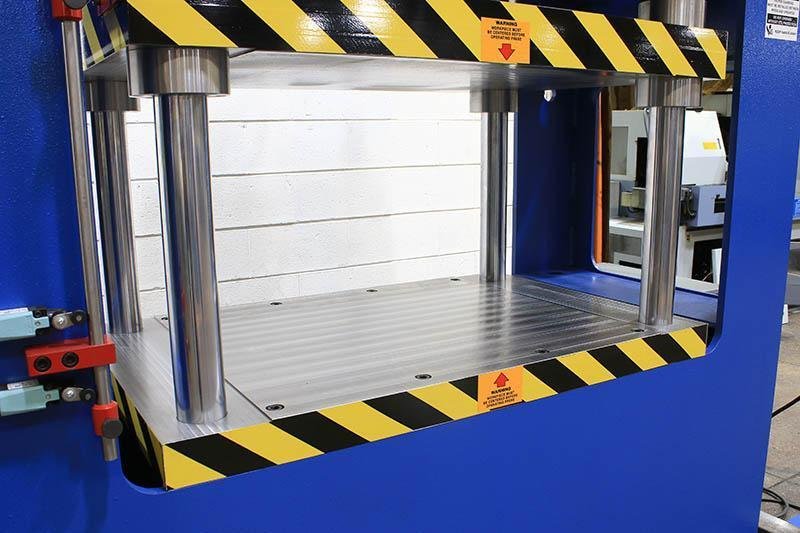

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL CONTROL WITH YOUR CHOICE OF USING:

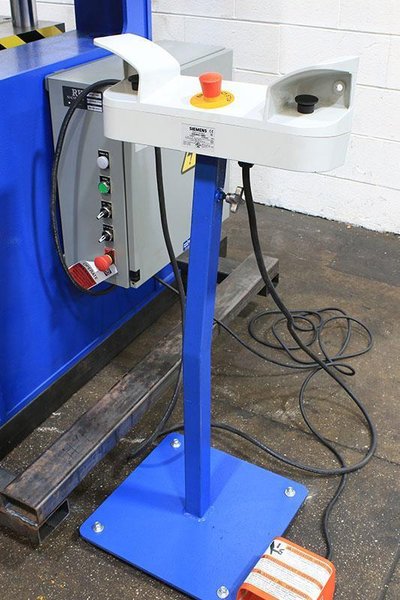

(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EMERGENCY STOP OR (2) PALM BUTTONS

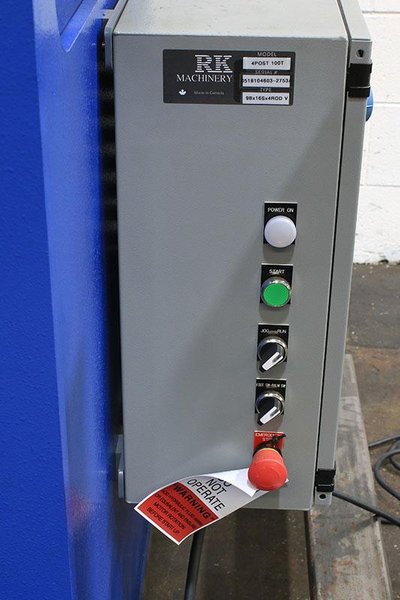

- PLC PROGRAMMABLE CONTROL SYSTEM
- 10 HP LOW SPEED BALDOR ELECTRIC MOTOR
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD
IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA
- ONE YEAR WARRANTY ON ALL PARTS
- MFG. IN NORTH AMERICAN FROM US & CANADIAN COMPONENTS
AVAILABLE OPTIONS:
- T-SLOTTING .......... (PER LINEAR INCH) .................... $20
- ABB HMI PROGRAMMABLE CONTROL REPLACING STANDARD CONTROL .... $10,800
Example of HMI capabilities:
Product 1
- Ram down to 10"
- Dwell for 3min.
- Ram up 5" inches and wait.
Product 2
- Ram down to 8.5"
- Dwell for 4min.
- Wait 30sec
- Press again for 2min
- Ram up 6" inches and wait.
FOB: Origin |
