20" CLAUSING VARIABLE SPEED DRILL PRESS MODEL: 2215
Brand
Category
Type
Model
2215
Stock #
4901
Year
Not specified
Condition
Used
Location
Not specified
|

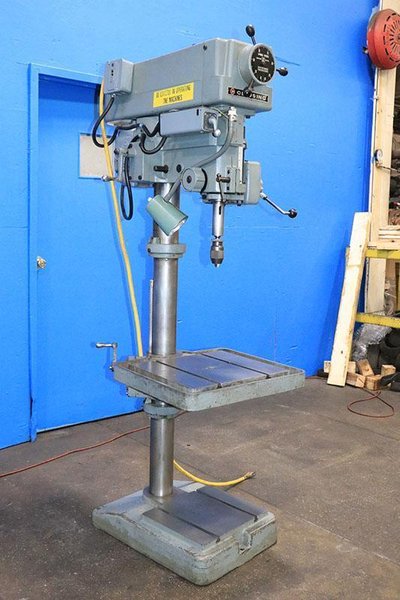

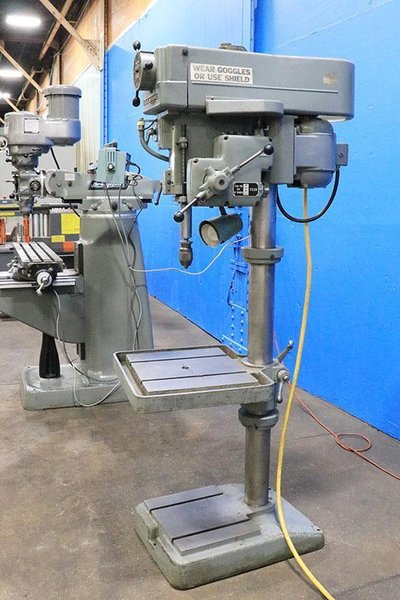

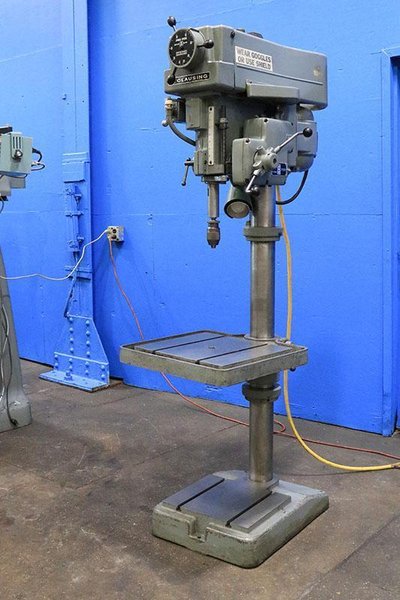

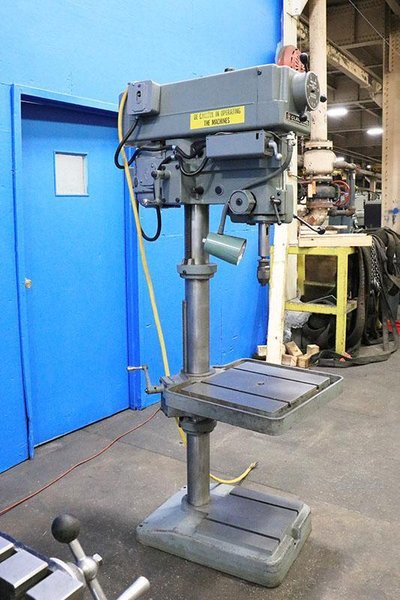

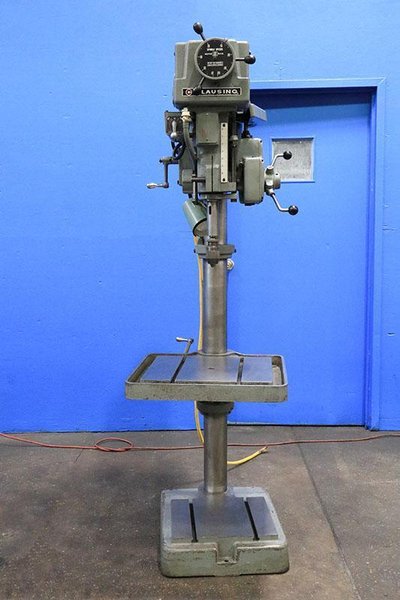

20" CLAUSING VARIABLE SPEED DRILL PRESS
MODEL: 2276
NEW: 1966 SPECIFICATIONS:
CAPACITY, HAND FEED ................... 1-1/4" DIA
DRILLS TO CENTER OF CIRCLE ............ 20" DIAMETER
WORKING SURFACE OF TABLE .............. 19-1/2" X 22"
SPINDLE TAPER ......................... #3 MORSE
SPINDLE TRAVEL ........................ 6-1/2"
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/8"
MAX DISTANCE SPINDLE TO BASE .......... 43-3/8"
BASE WORKING SURFACE .................. 13" X 15-1/2"

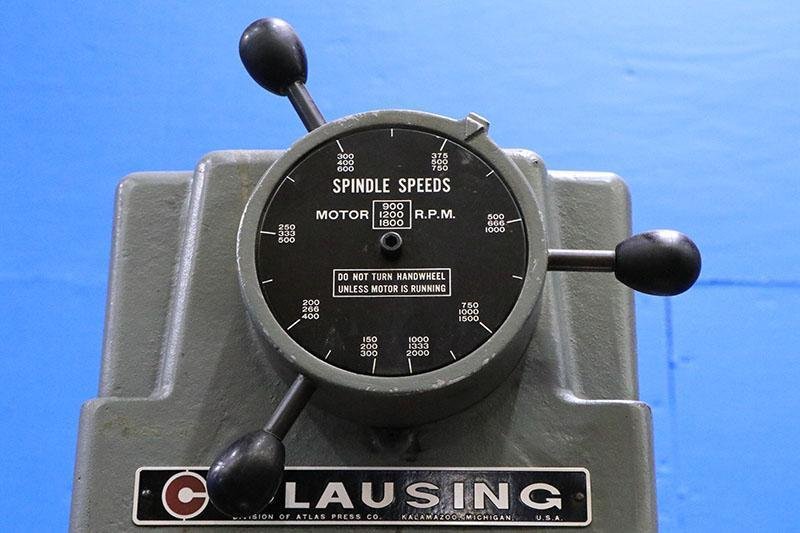

SPINDLE INFINITELY VARIABLE IN TWO RANGES:
- LOW ............................... 150 - 1,000 R.P.M.
- HIGH .............................. 300 - 2,000 R.P.M.
POWER DOWNFEED RATES .......... .004, .006, .009 & .012 IPR
APPROXIMATE WEIGHT .................... 700 LBS.
EQUIPPED WITH:

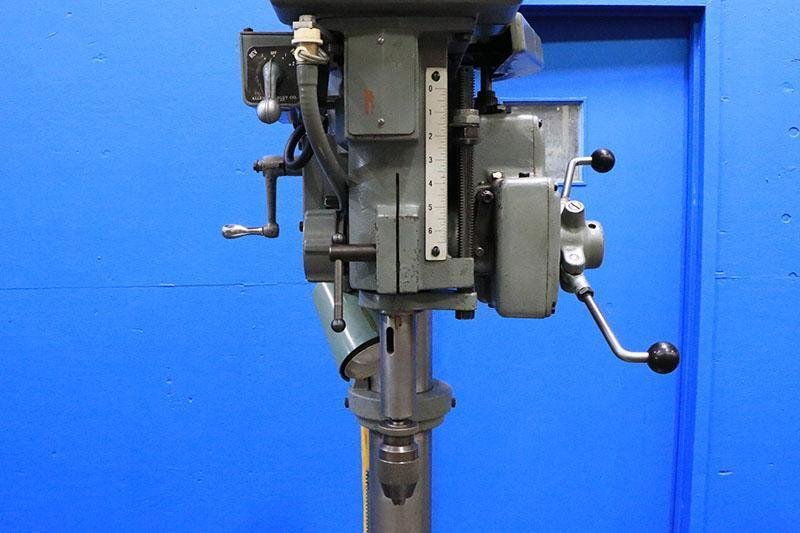

* CLAUSING MODEL: 2215 GEAR-DRIVEN POWER DOWN FEED
* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

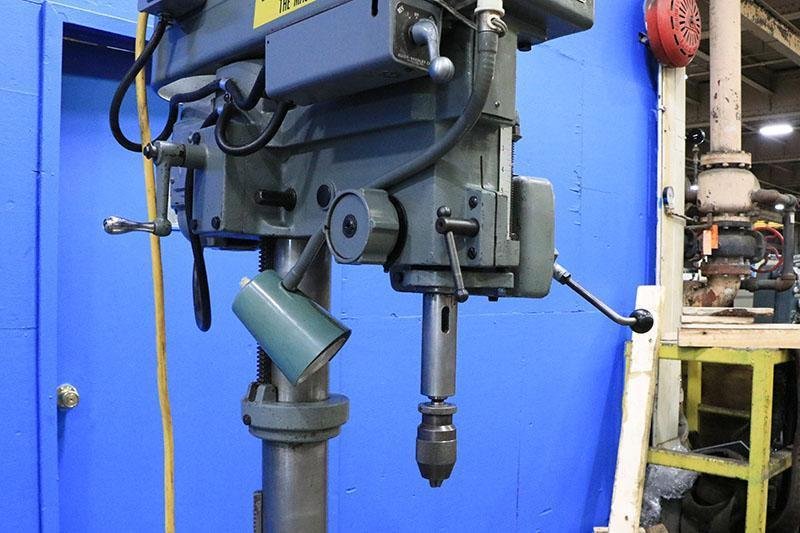

* 1/2" CAPACITY KEYLESS ALBRECHT DRILL CHUCK

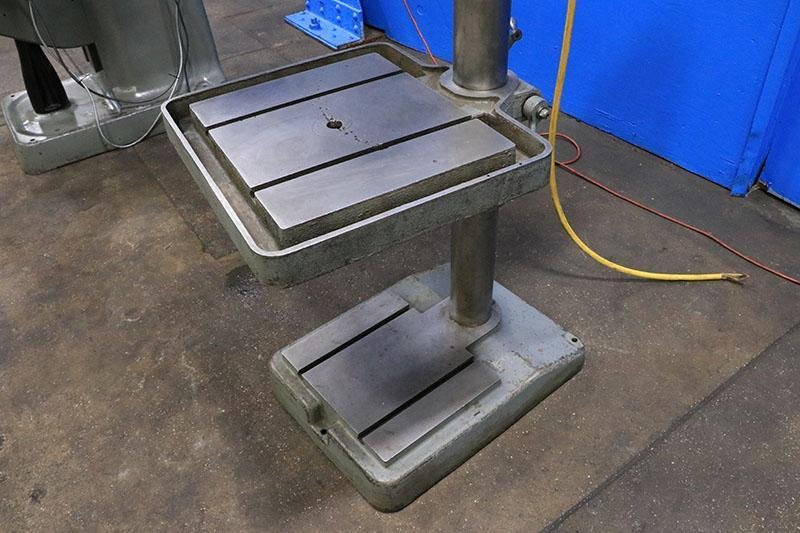

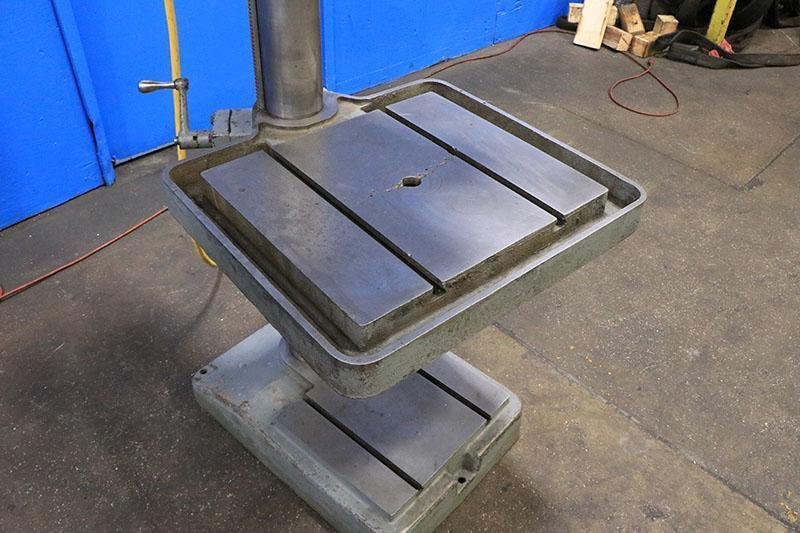

* T-SLOTTED TABLE & BASE
* TWO SPEED REVERSING DRUM SWITCH (REVERSE IN LOW RANGE)
* 3/4 / 1-1/2 H.P. 900-1,800 R.P.M. TWO-SPEED
DRIVE MOTOR AND ELECTRICAL CONTROLS
* MACHINE IS WIRED FOR 3 PHASE 60 CYCLE 220 VOLT OPERATION
|
