20" CLAUSING VARIABLE SPEED DRILL PRESS w/ PRODUCTION TABLE MODEL: 2287
Brand
Category
Type
Model
2287
Stock #
4900
Year
2007
Condition
Used
Location
Not specified
|

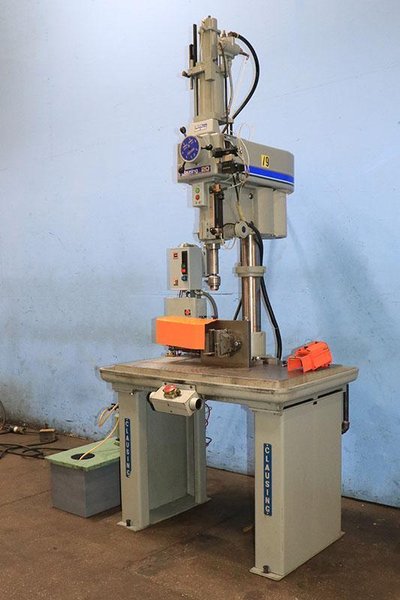

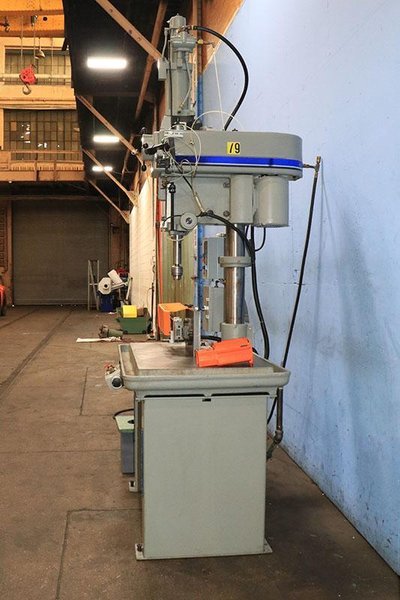

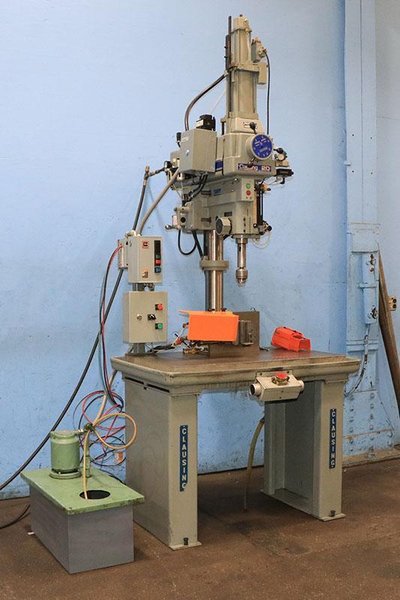

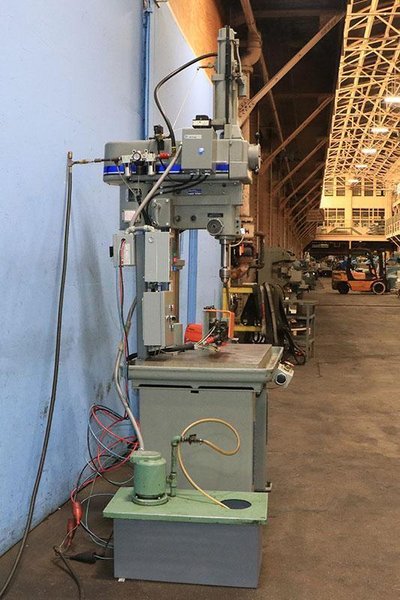

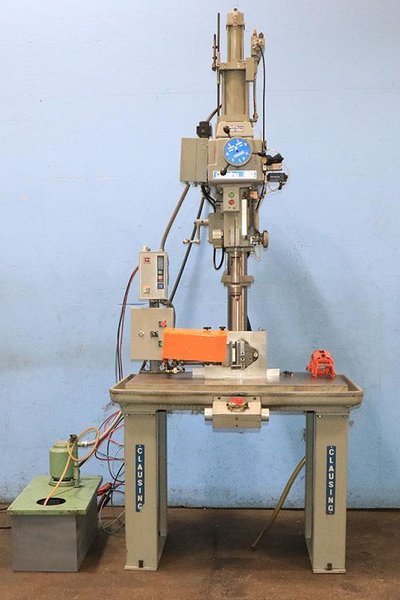

20" CLAUSING VARIABLE SPEED DRILL PRESS
w/ PRODUCTION TABLE

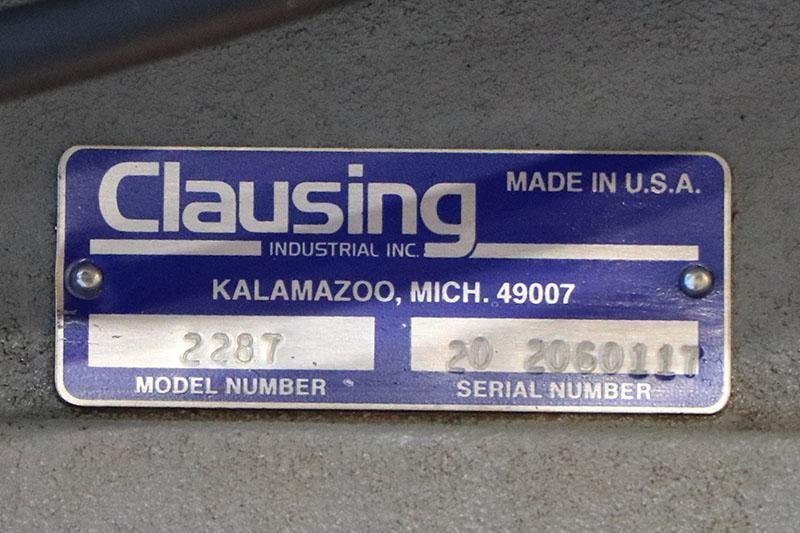

MODEL: 2287
NEW: 2007 SPECIFICATIONS:
CAPACITY - CAST IRON ................. 1-1/4"
DRILLS TO CENTER OF CIRCLE ........... 20" IN DIA
OVERALL SIZE OF TABLE ................ 29-1/2" x 45-1/2"
WORKING SURFACE OF TABLE ............. 24" x 40"
SPINDLE TAPER ........................ #3 MORSE
SPINDLE TRAVEL ....................... 6-1/2"
MAXIMUM DISTANCE SPINDLE TO TABLE .... 25-7/16"

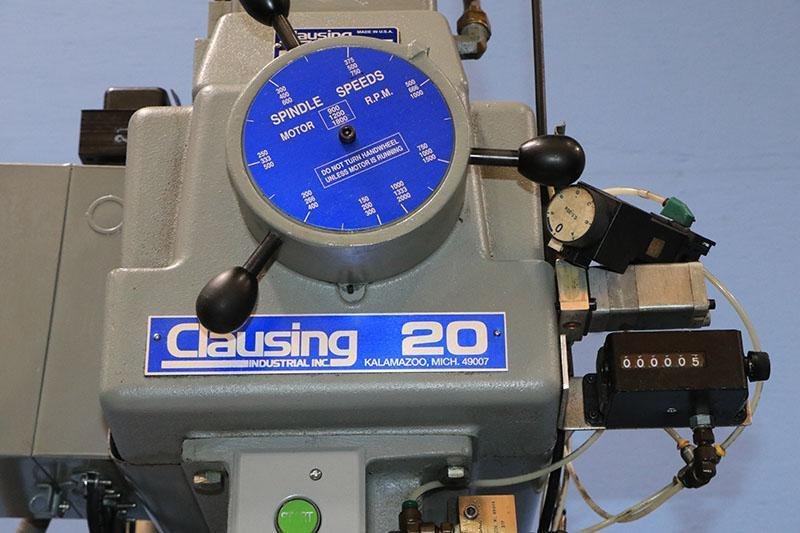

SPINDLE SPEEDS TWO RANGES INFINITELY VARIABLE:
LOW RANGE ......................... 150 - 1,000 RPM
HIGH RANGE ........................ 300 - 2,000 RPM
SPINDLE FEED RANGE ................... .5 - 60 IPM
SPINDLE RAPID RATE ................... 280 IPM
APPROXIMATE WEIGHT ................... 1,200 LBS
EQUIPPED WITH:

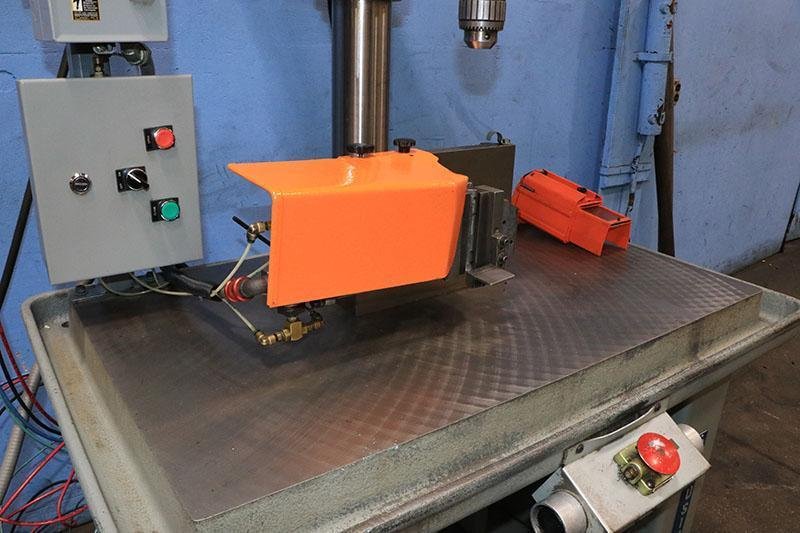

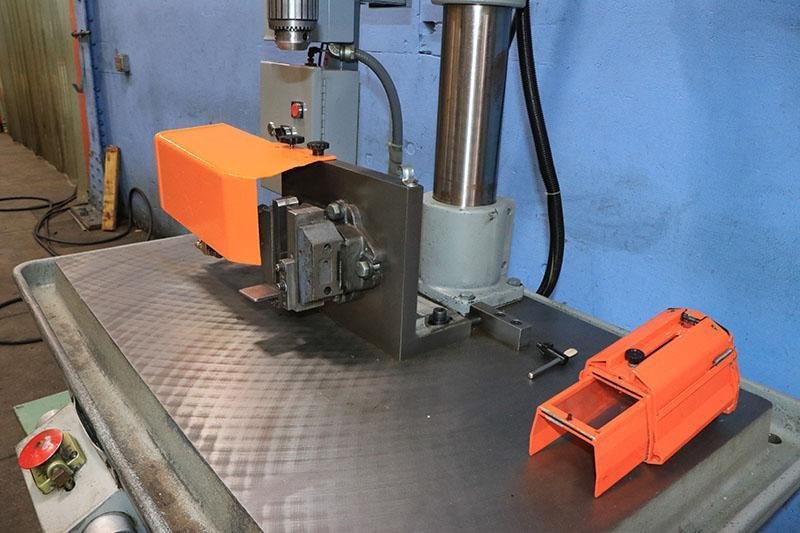

* 29-1/2" F-B X 45-1/2" L-R PRODUCTION TABLE w/ OIL TROUGH
* MANUALLY OPERATED RACK AND PINION TYPE MECHANISM FOR
RAISING/LOWERING OF DRILLING HEAD ON COLUMN

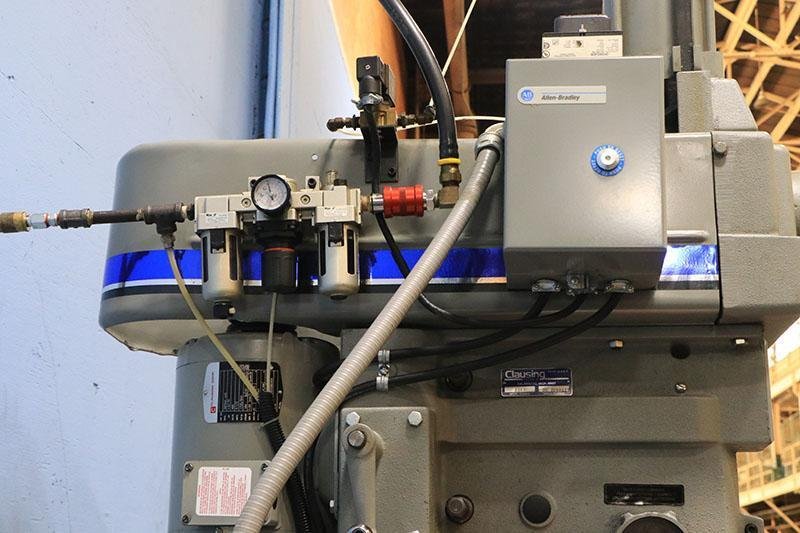

* CLAUSING AIR-HYDRAULIC FEED MODEL: 2217
AIR CYCYLIDER DIAMETER 5",
* JACOBS 1/2" CAPACITY DRILL CHUCK
* 3/4 - 1.5 H.P. TWO-SPEED SPINDLE DRIVE MOTOR
FOB: ORIGIN |
