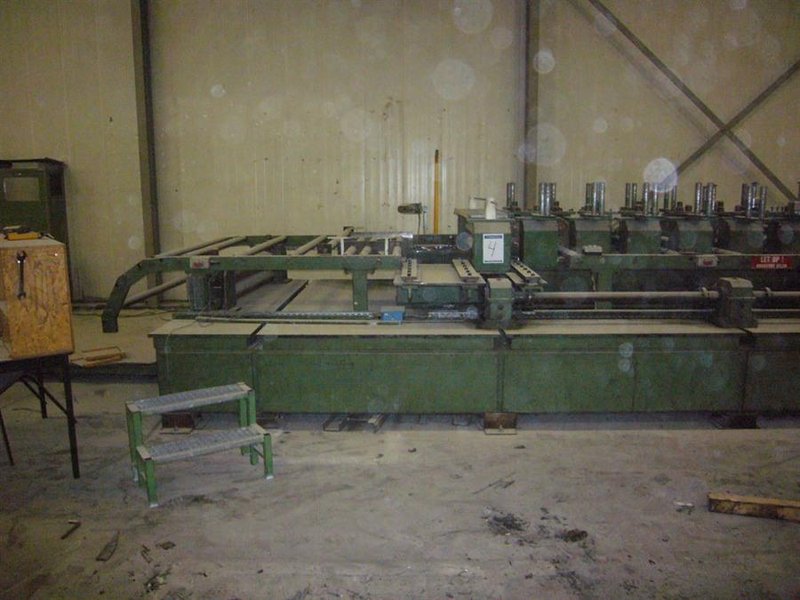

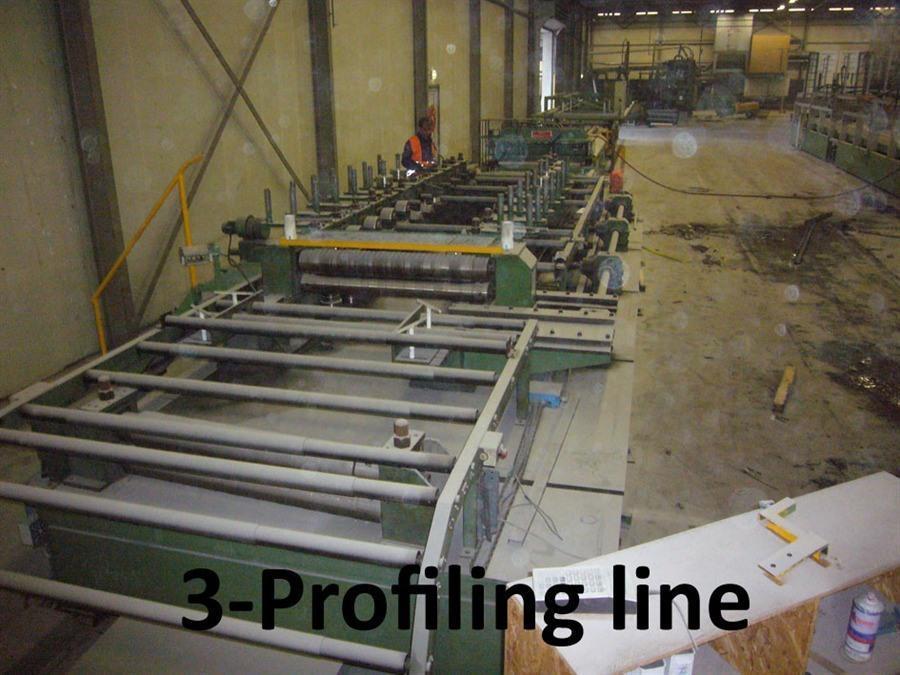

Van Otterloo - profiling line 1350 mm

Name: Van Otterloo - profiling line 1350 mm
Brand: VAN
SKU: O.27 6871
Availability: InStock

Brand

VAN

Not specified

Located in Deinze, Belgium

Additional info

- decoiler 10 ton + lift

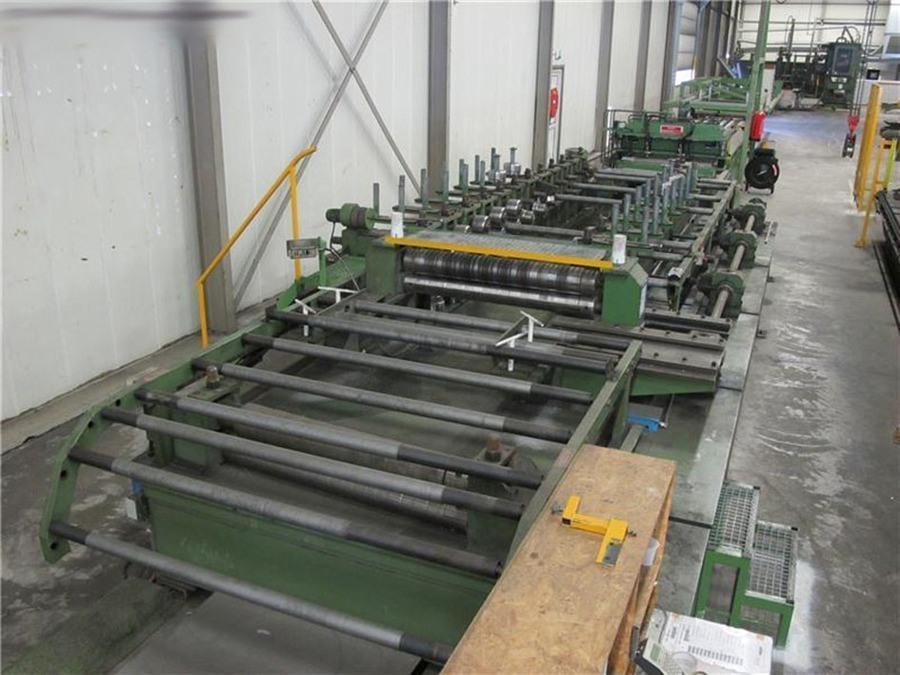

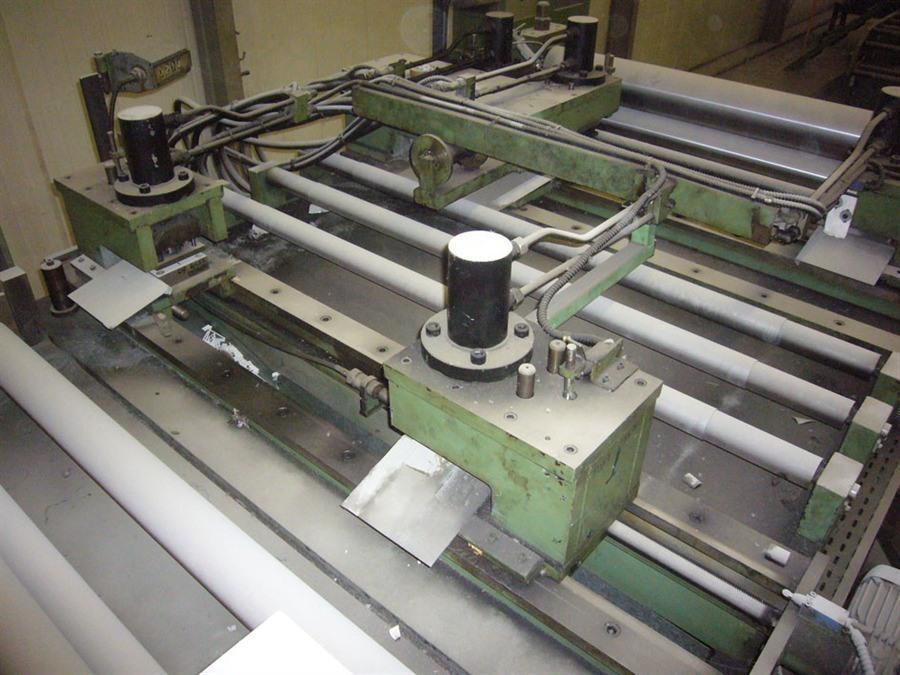

- straightener & punch corner notcher unit (3+4 rollers), incl 5 hydraulic punch possibilities > fixed width: 1350 mm

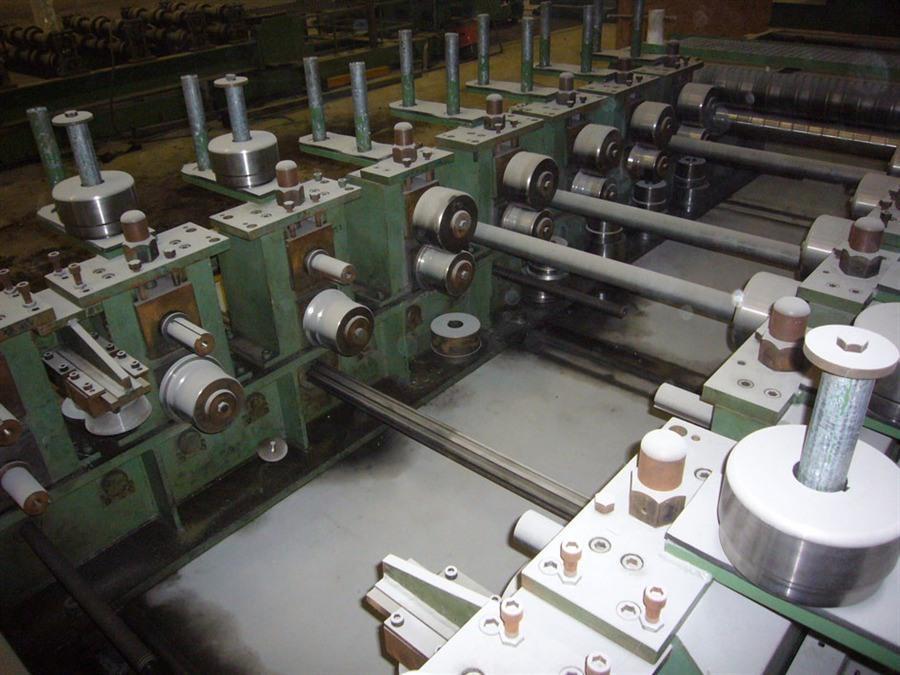

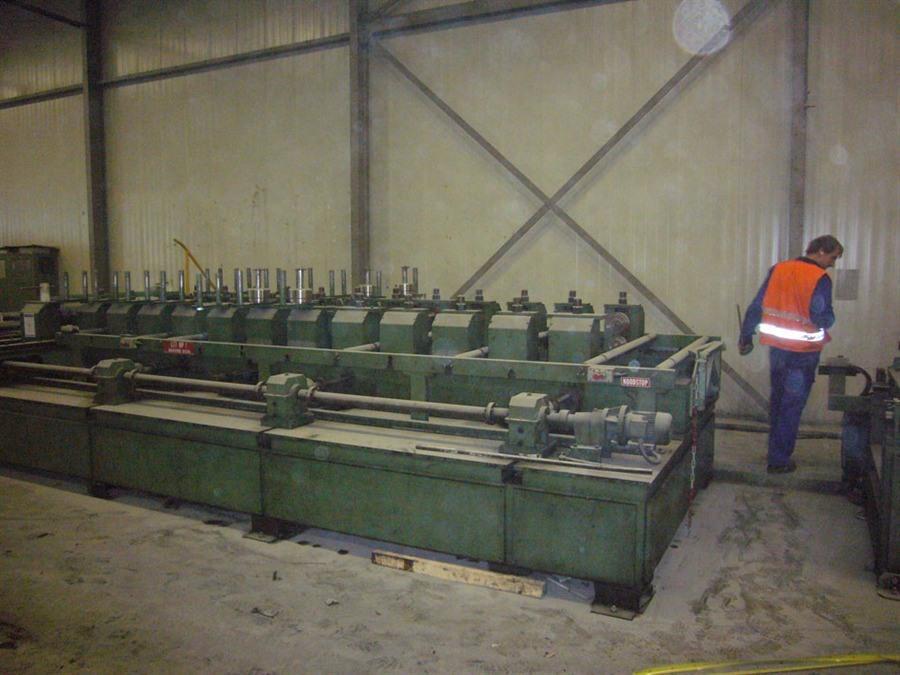

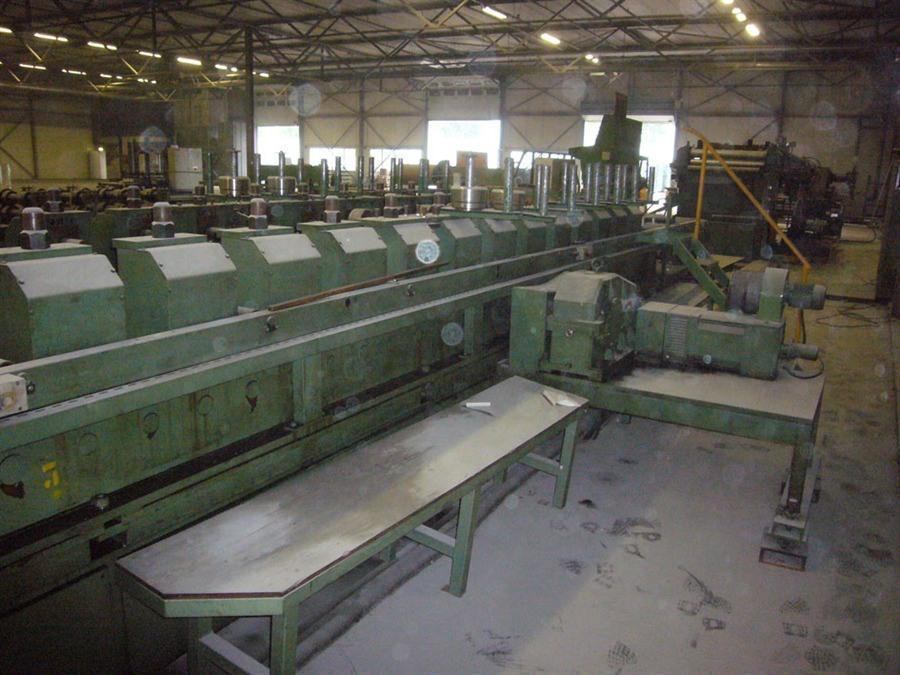

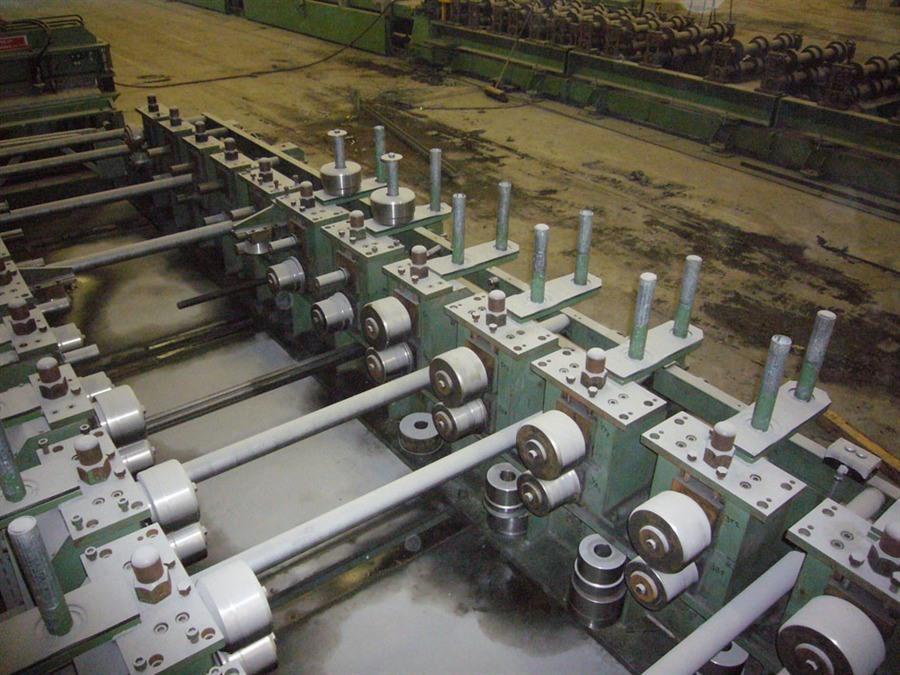

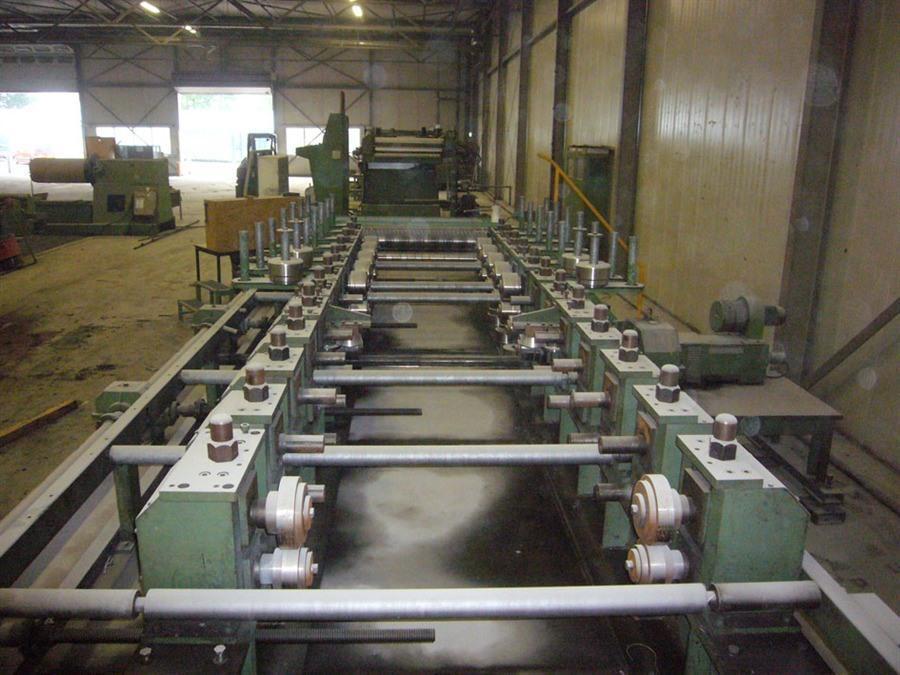

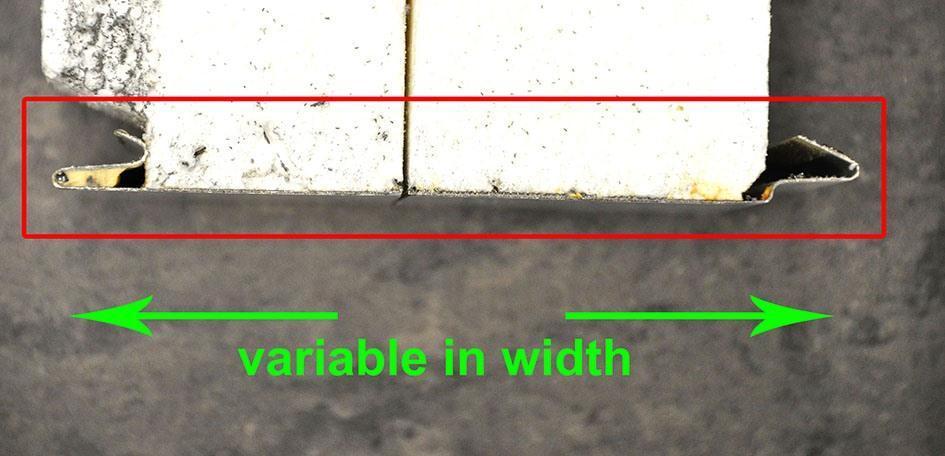

- 12 rollforming stations with variabel width + 1 fixed width station for optical profiling

> distance between stations: 400 mm

> axle dia: 50 mm

> axle length: 110 mm

> min axle-axle: 130 mm

> max axle-axle: 200 mm

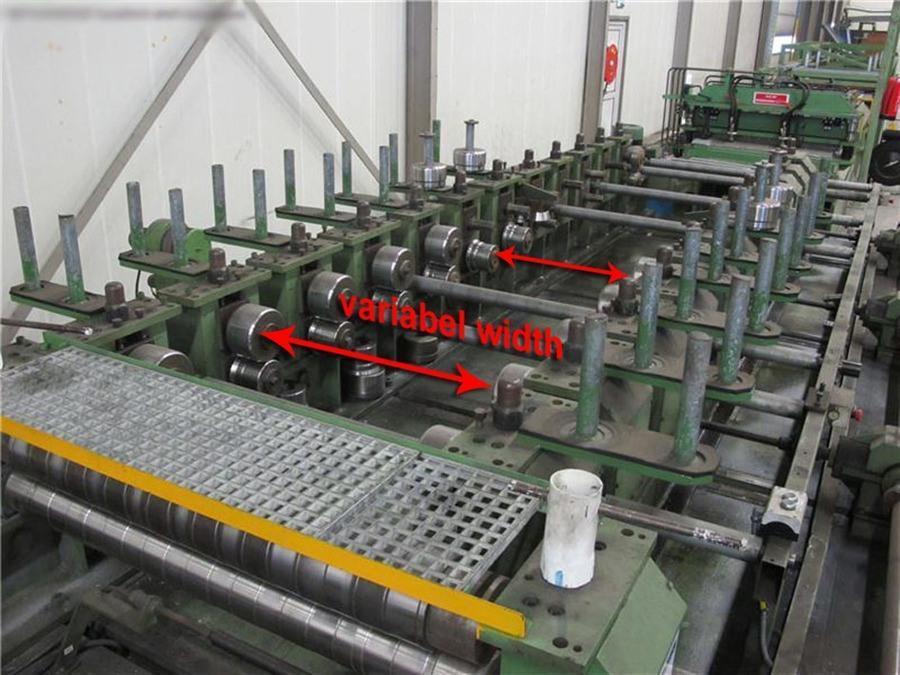

> variable opening: 300 - 1400 mm

> fixed width: 1350 mm

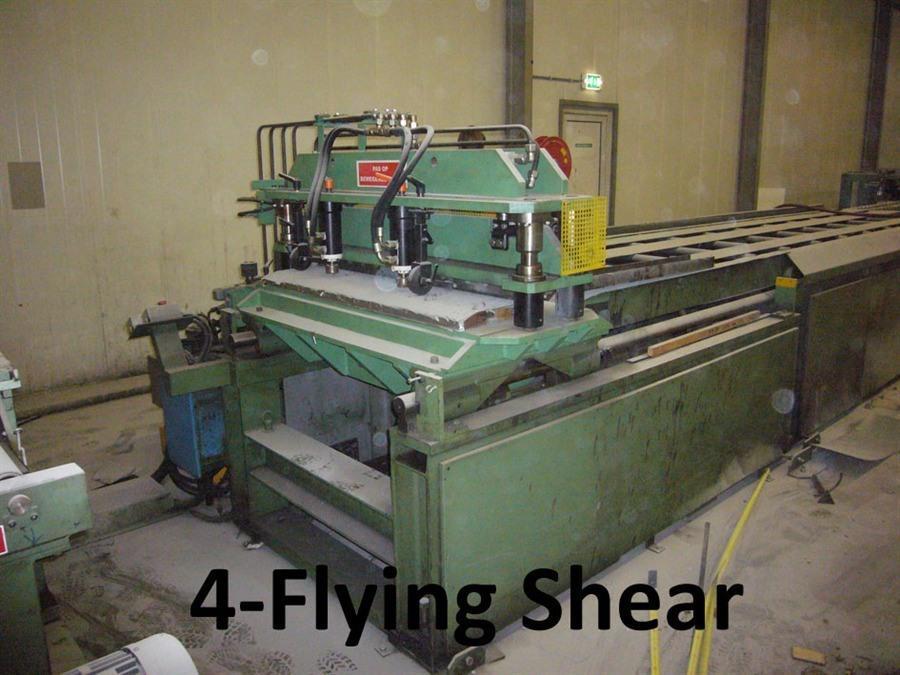

- Van Otterloo 4 columns flying shear cutting/punching (type HVS 60.06.1260 PRM 012)

- conveyorbelt

- NN pneumatic stacker (max length 10000 mm)

- controlunit

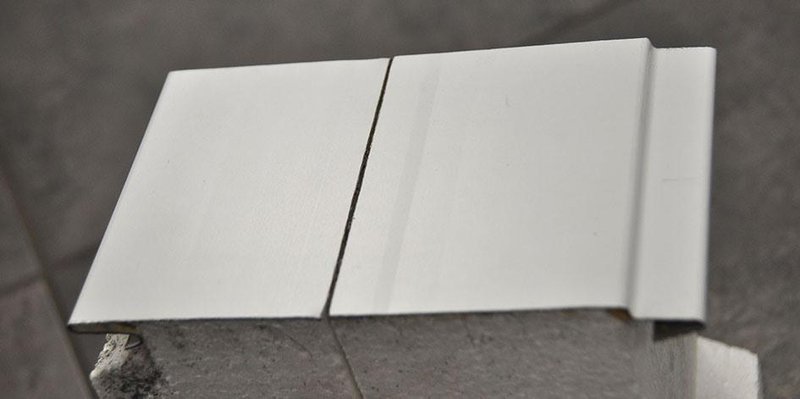

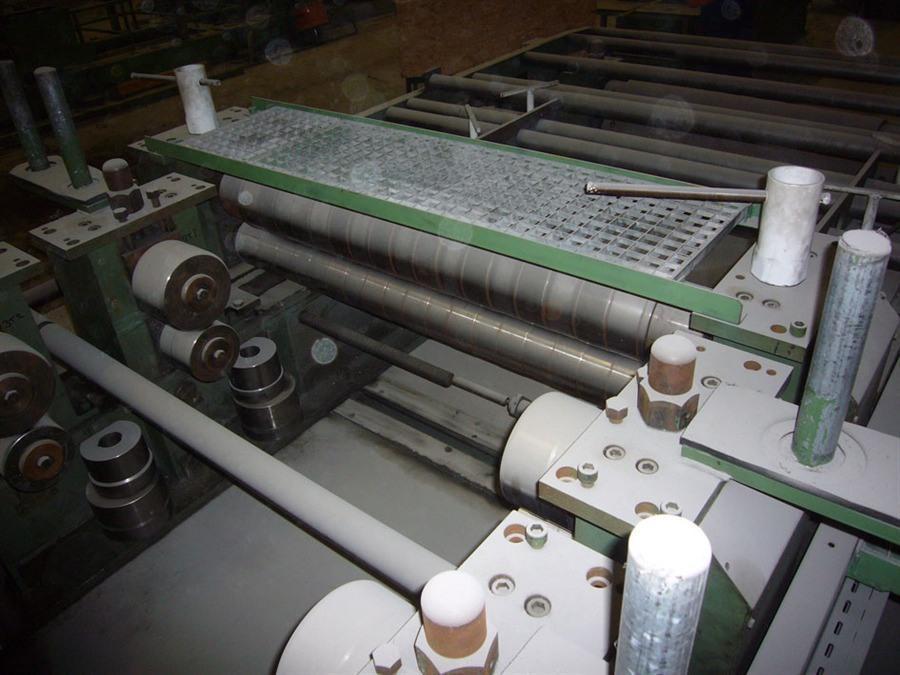

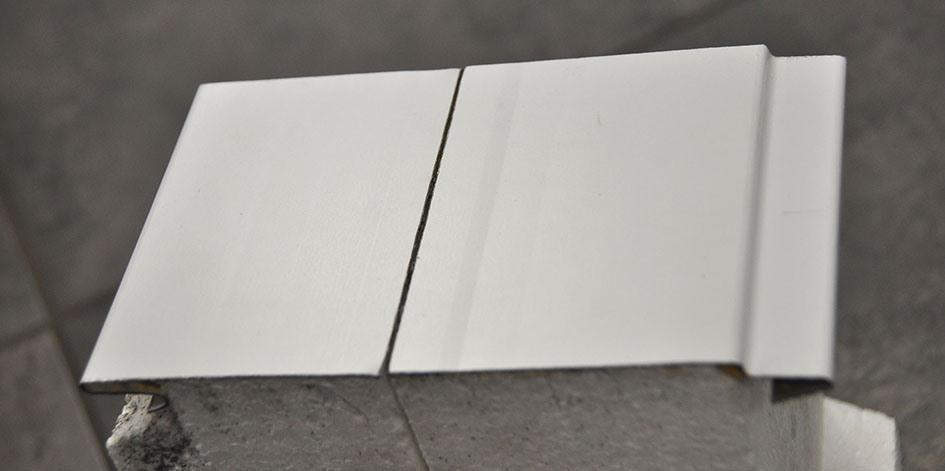

- currently equipped with light rolls for undulated profiles
Type/Model: profiling line 1350 mm
Stocknumber: O.27 6871
Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category: [O.27] Decoiling + / or Roll forminglines
Brand: Van Otterloo
