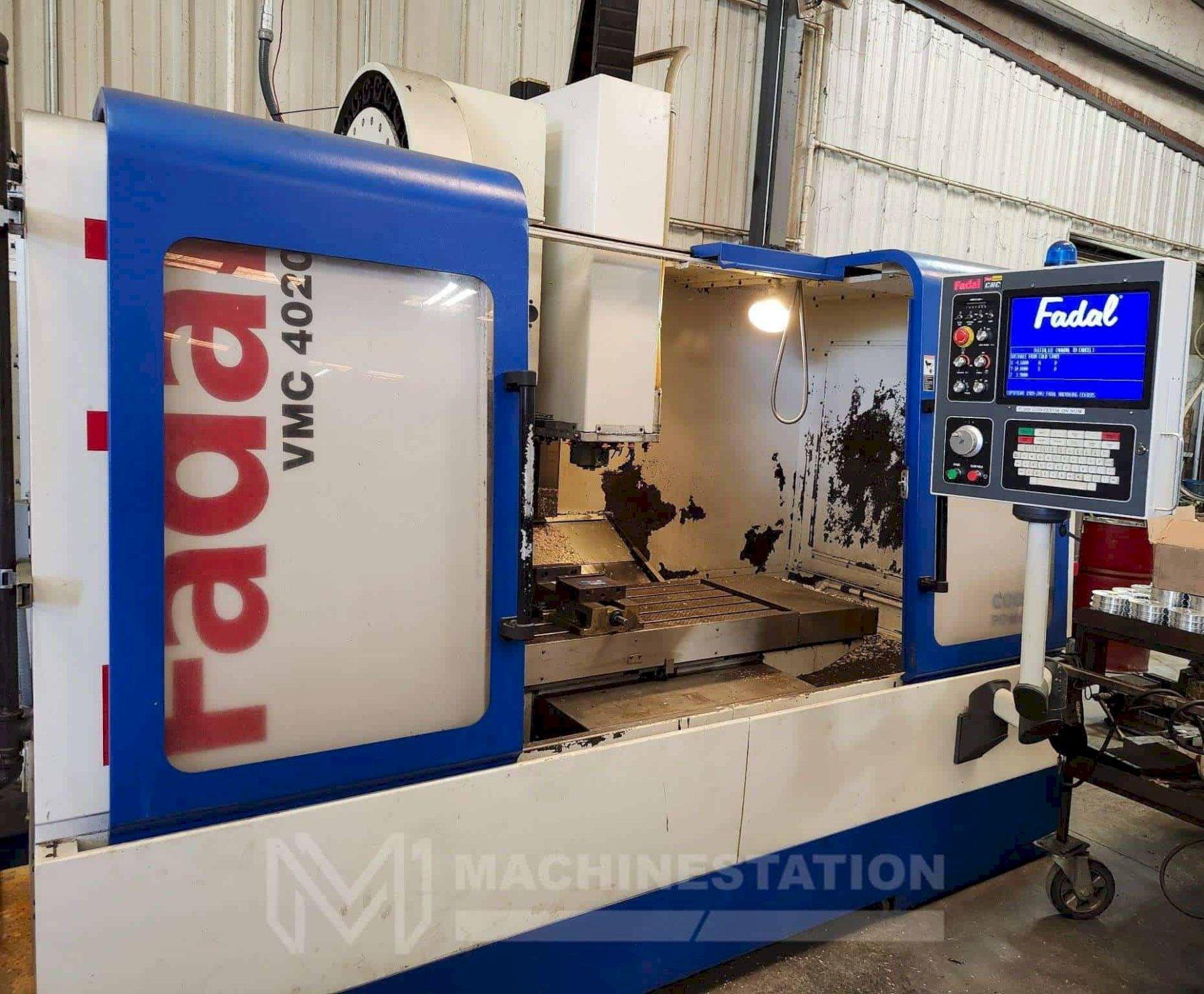

Fadal VMC 4020 HT Vertical Machining Center – Mill

Fadal VMC 4020 HT Vertical Machining Center – Mill

Brand

FADAL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	FADAL
Model:	VMC 4020 HT
Year:	2006
Condition:	Used – Good

Features:
Box Way construction
Fadal CNC Control
24 Station Side Mounted Automatic Tool Changer
10,000 RPM High Precision Spindle
MPG Control
Rigid Tapping
Telescopic way covers
Coolant System
Chip Conveyor
Note: Vise is not included with machine

Travel:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

Feed rates:
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM

Table:
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Taper Size: 40
Capacity: 24 Station Side Mounted
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″

General:
Air Required: 80 psi 4 scfm
Power: 480v / 3-Phase / 50/60 Hz / 21 kva
Overall Dimensions: 122″ x 100″ x 100″ High Approx.
Weight: 12500 lbs. Approx.

,Show More Show Less
