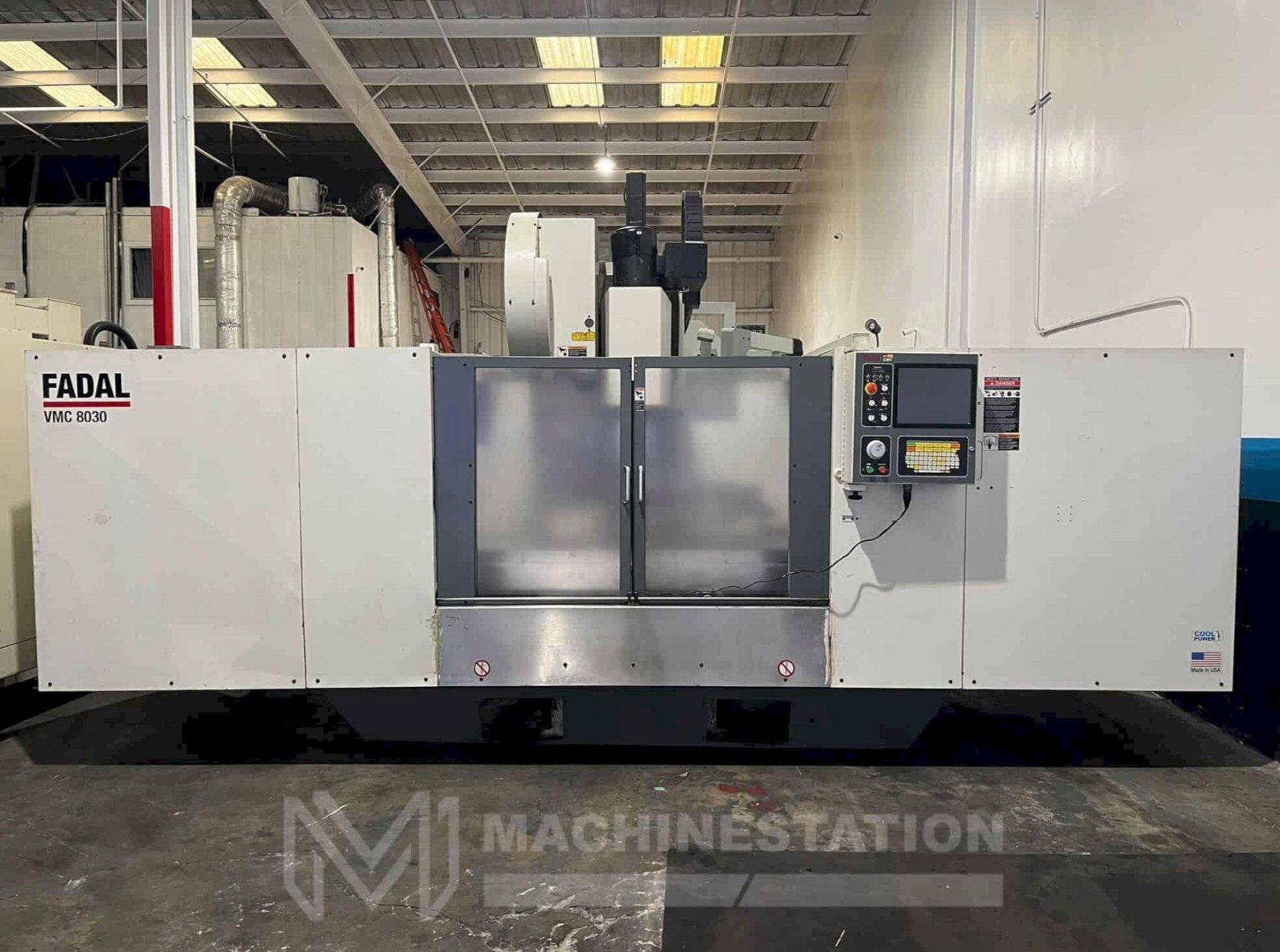

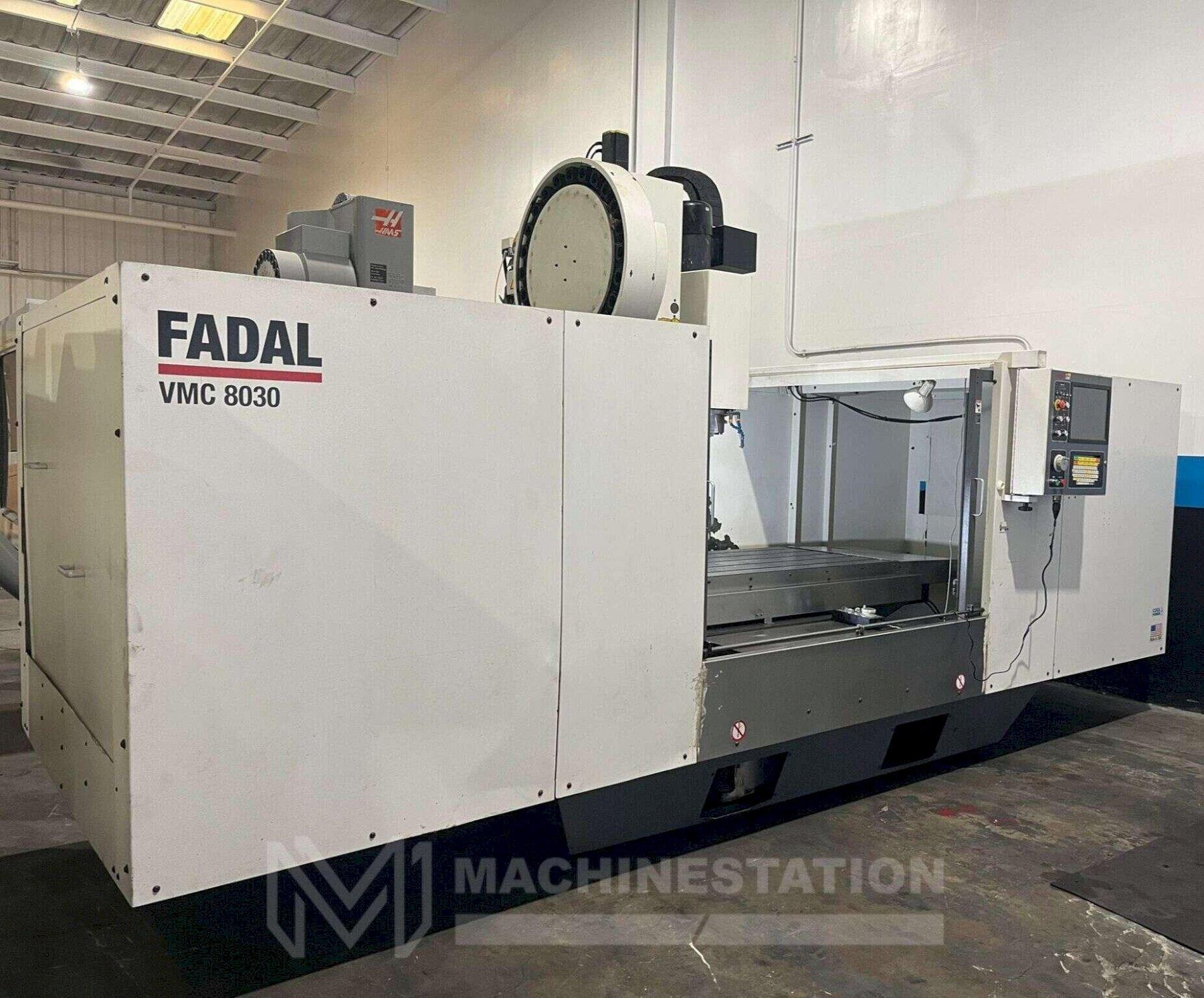

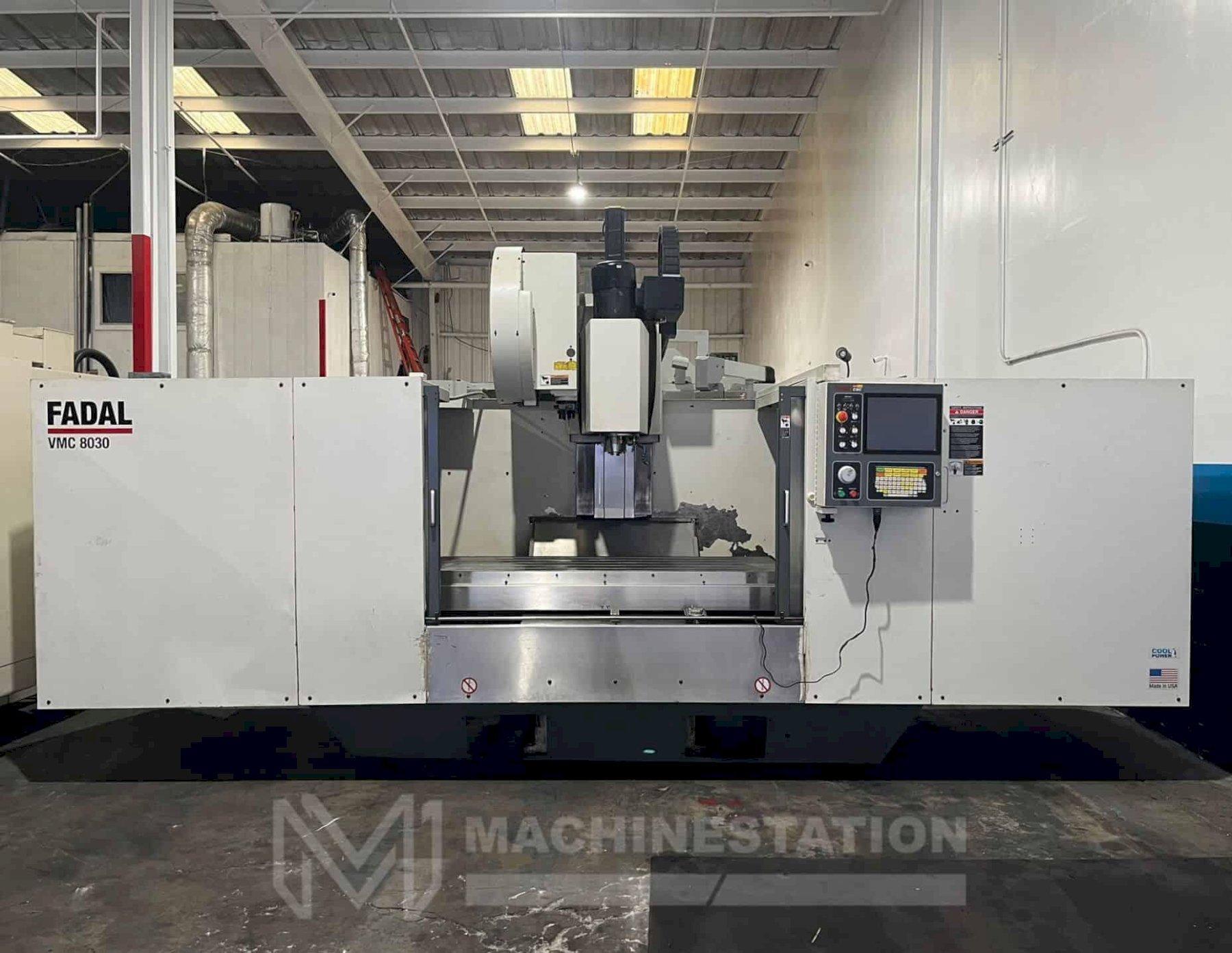

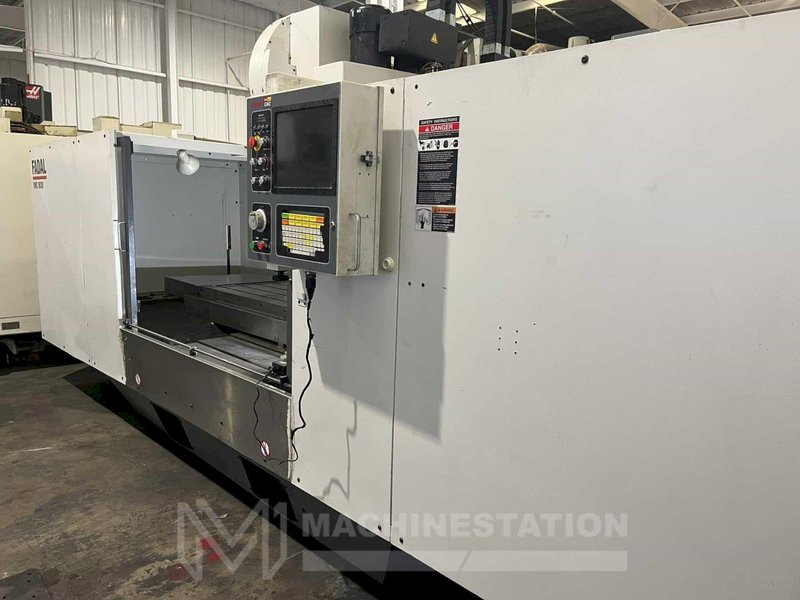

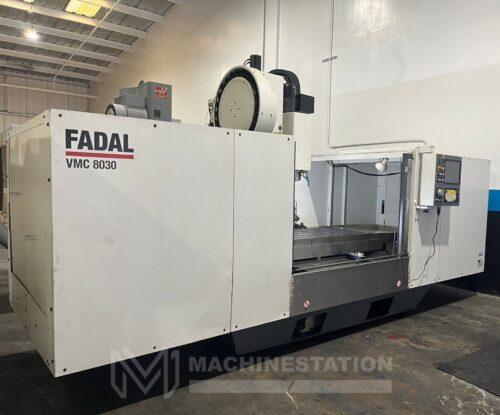

Fadal VMC8030 VHT CNC Vertical Machining Center – 4th Axis Ready Mill

Fadal VMC8030 VHT CNC Vertical Machining Center – 4th Axis Ready Mill

Brand

FADAL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112754
Make:	Fadal
Model:	VMC8030 VHT
Year:	2007

Features:

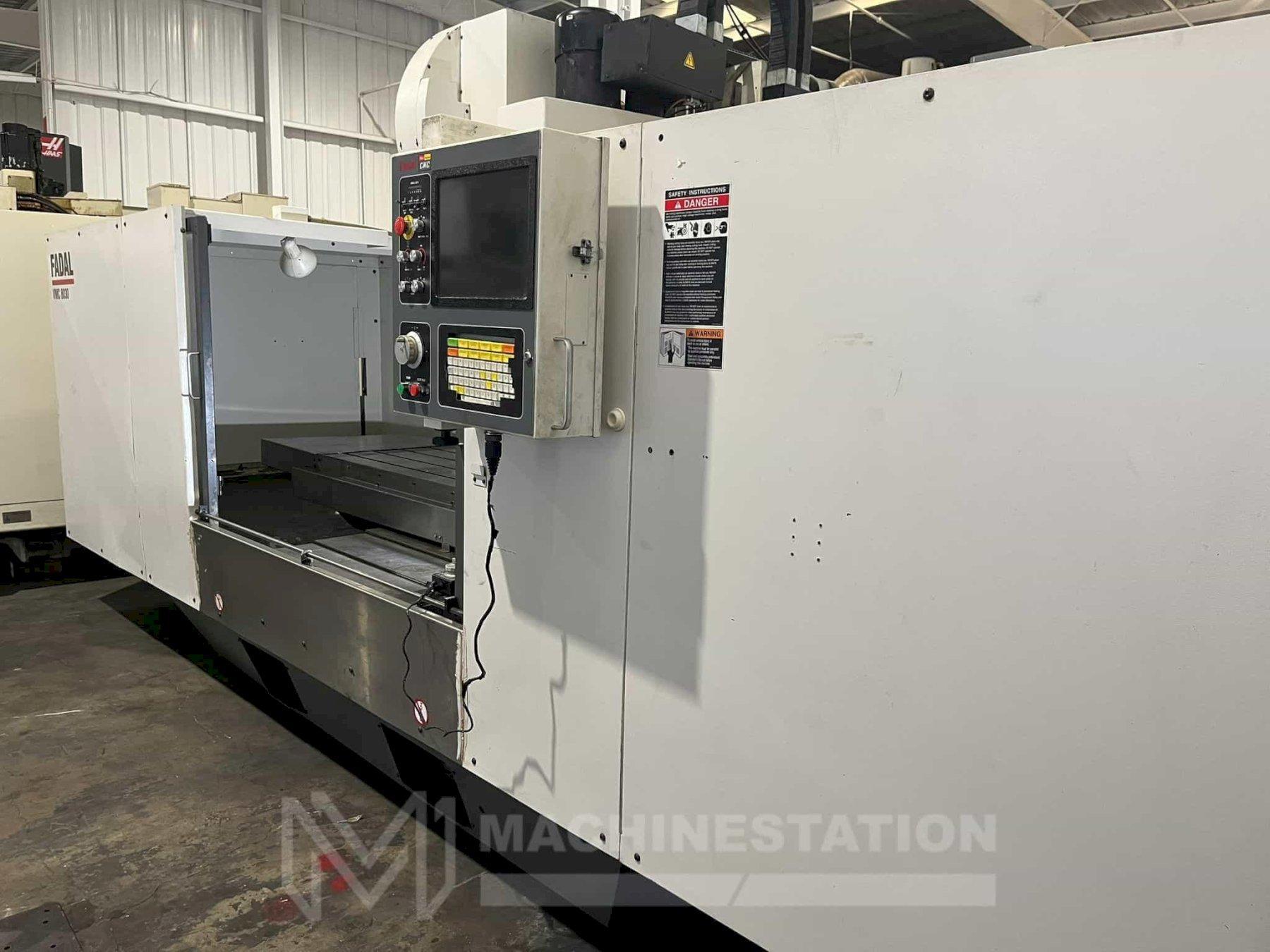

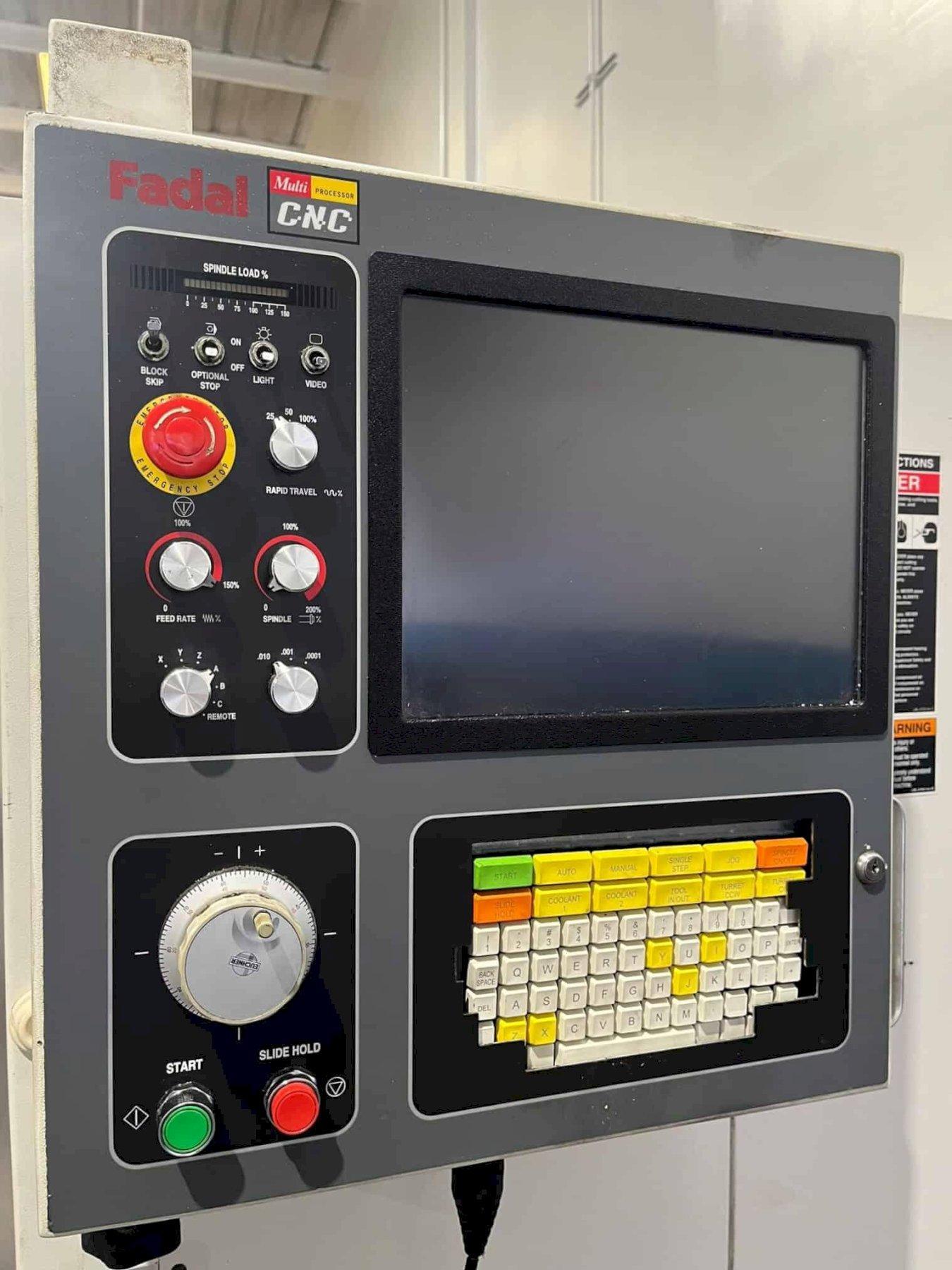

Fadal Multi Processor CNC Control
Box Way construction
4th Axis Ready
Through Spindle Coolant Ready
24 Station Automatic Tool Changer
10,000 RPM High Precision Spindle
30 HP High Torque Spindle Motor
MPG Hand Wheel Control
Rigid Tapping
Telescopic way covers
Coolant System
Chiller Unit

Travels:
X-Axis: 80″
Y-Axis: 30″
Z-Axis: 30″
Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″

Feed rates:
Rapid Traverse rates X, Y & Z Axis: 400 IPM
Cutting Feedrate: 250 IPM

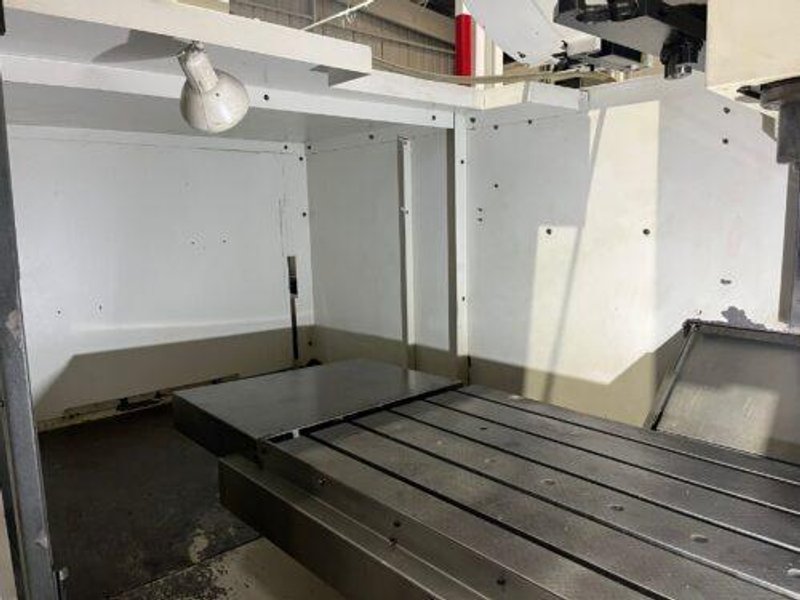

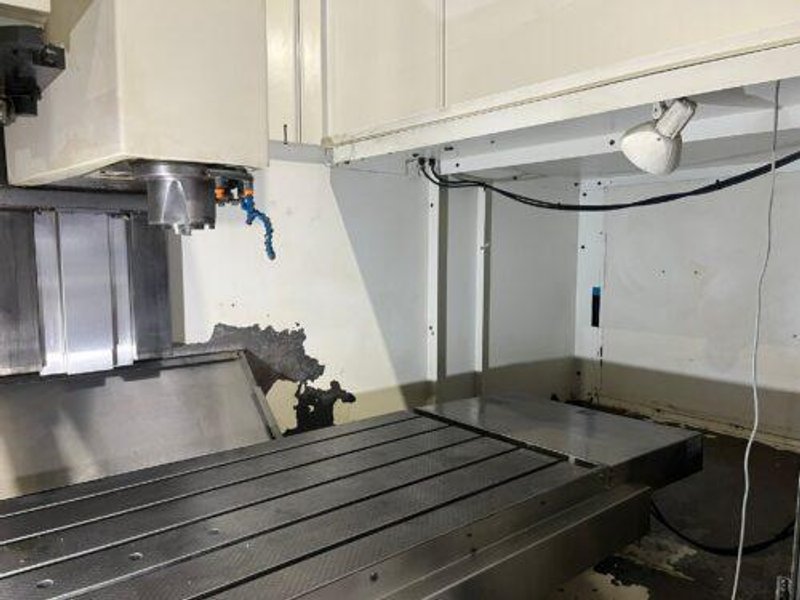

Table:
Length: 82.5″
Width: 30″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3751 lbs

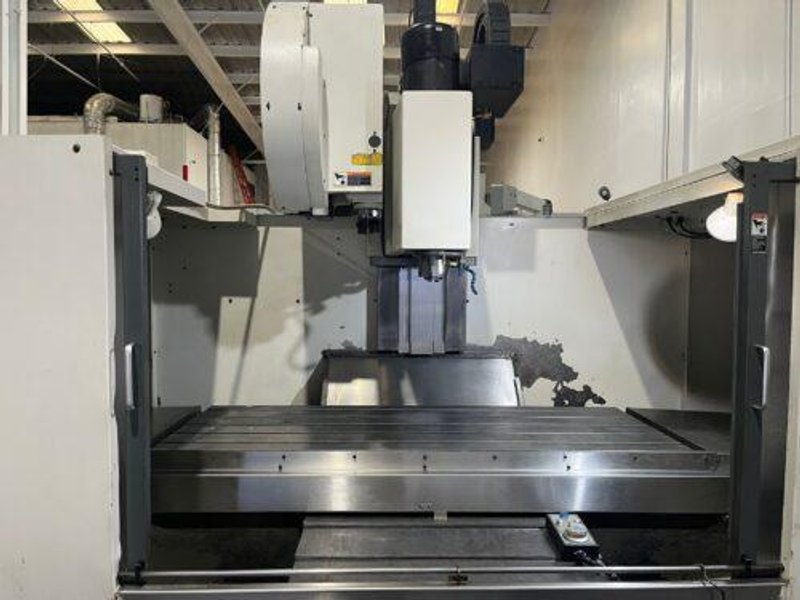

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 30 HP

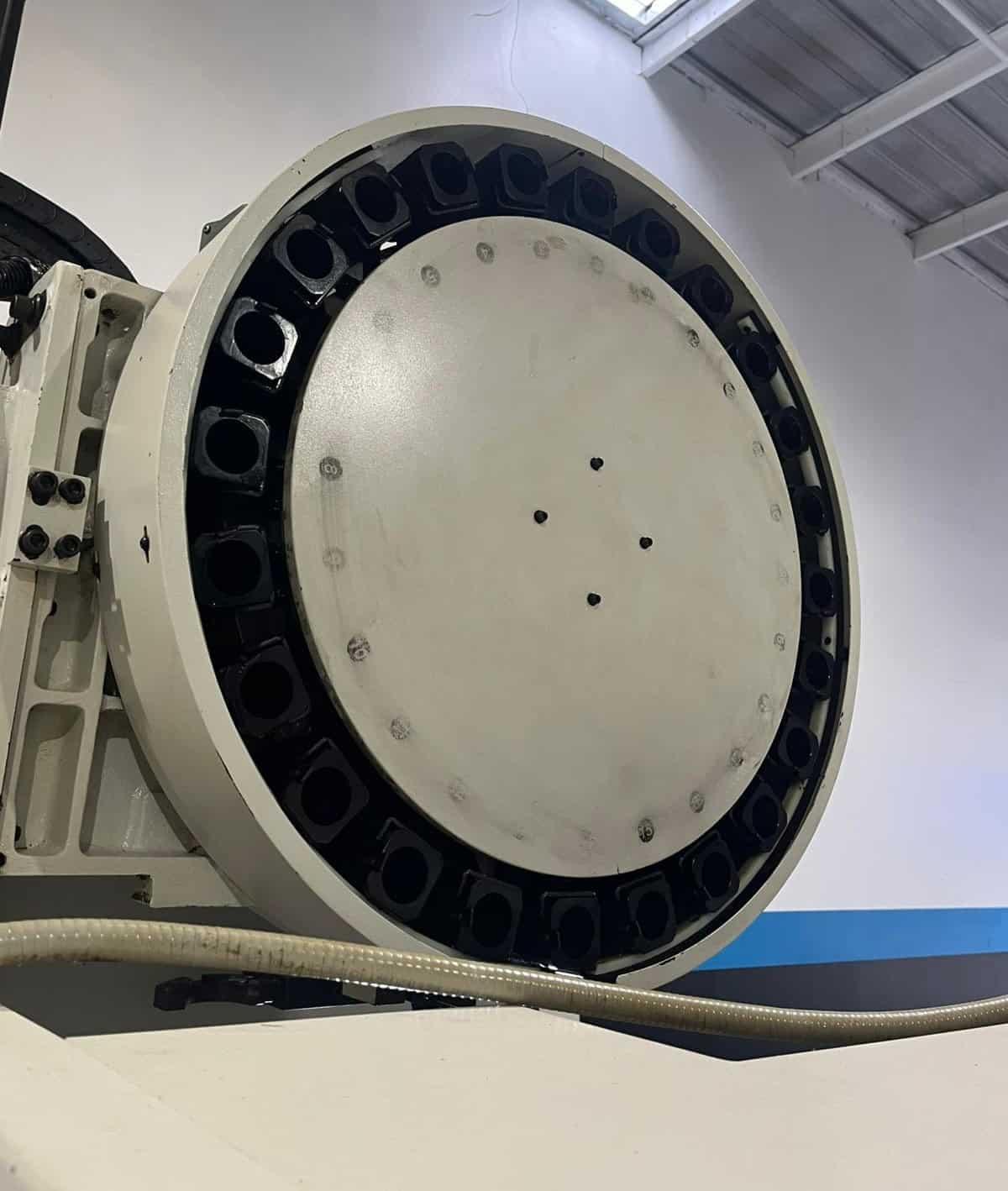

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15 lbs
Max Tool Dia: 6.0″
Max Tool Length: 15.0″

General:
Air Required: 80 psi, 4 scfm

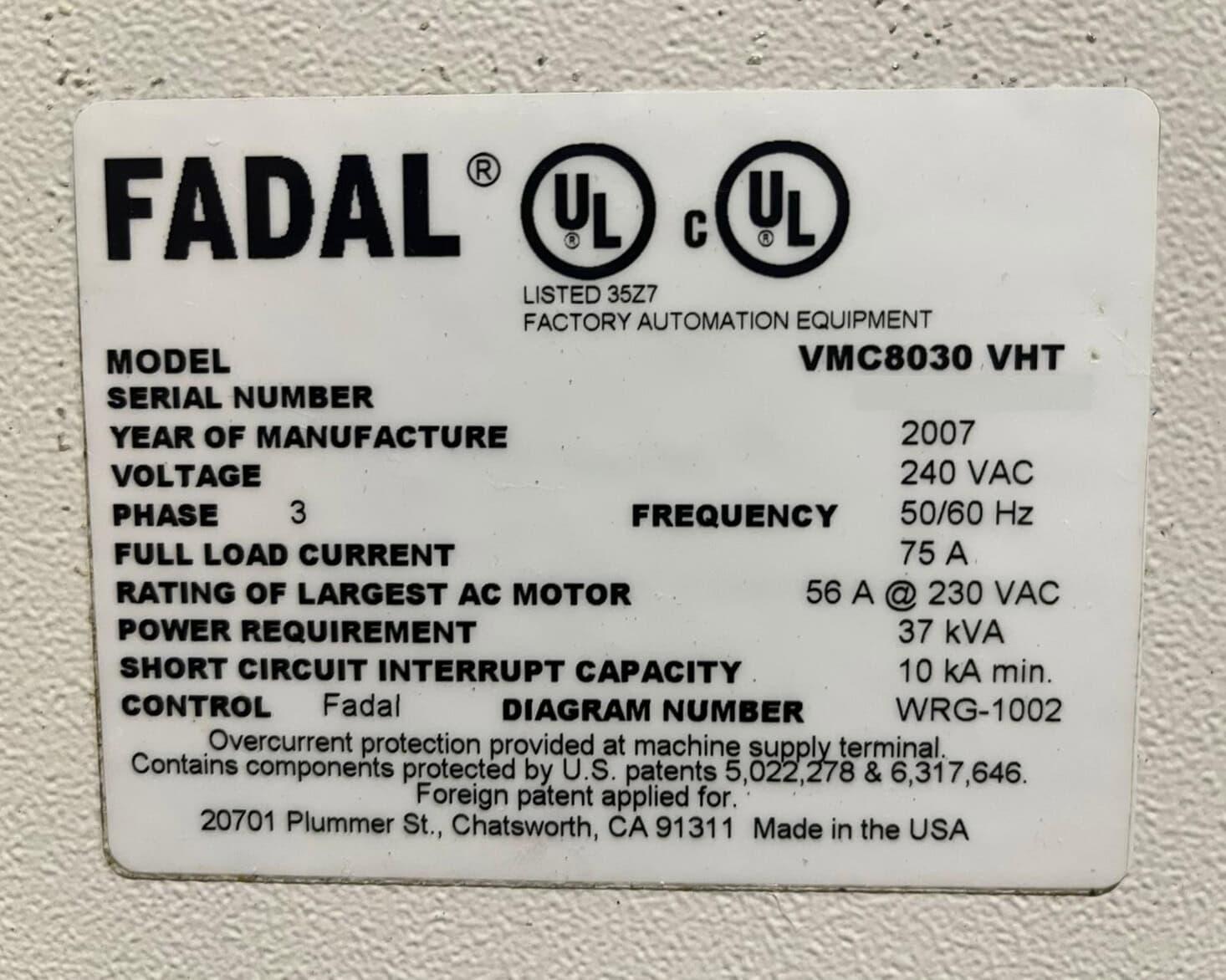

Power: 240v / 3-Phase / 60 Hz / 37 Kva
Overall Dimensions: 218″ x 1118″ x 132″ High Approx.
Weight: 18,000 lbs Approx.

No files or videos to display
