HARDINGE HLV-H Precision Tool Room Lathe
Brand
Category
Type
Model
HLV-H
Stock #
19746
Year
1982
Condition
Very Good
Location
Kansas
|

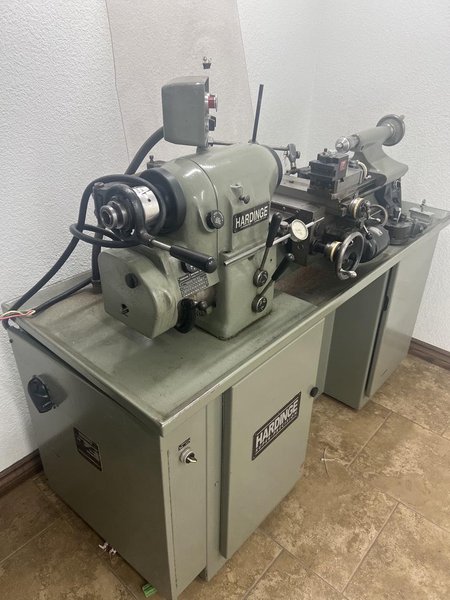

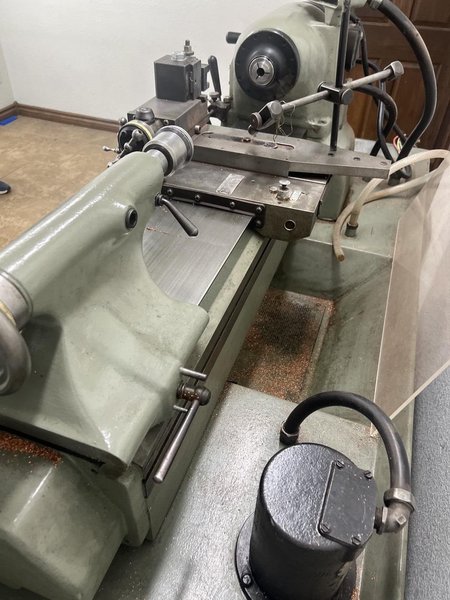

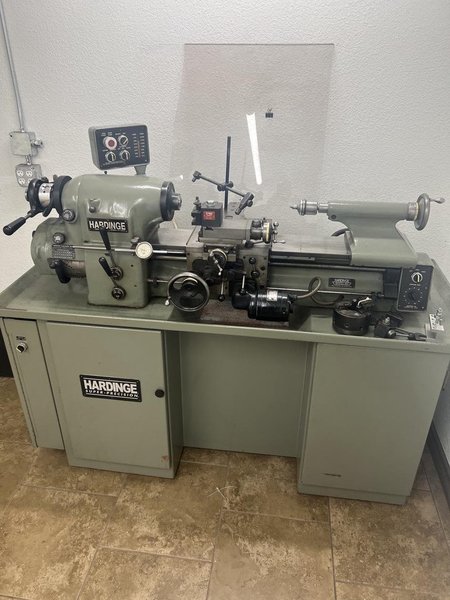

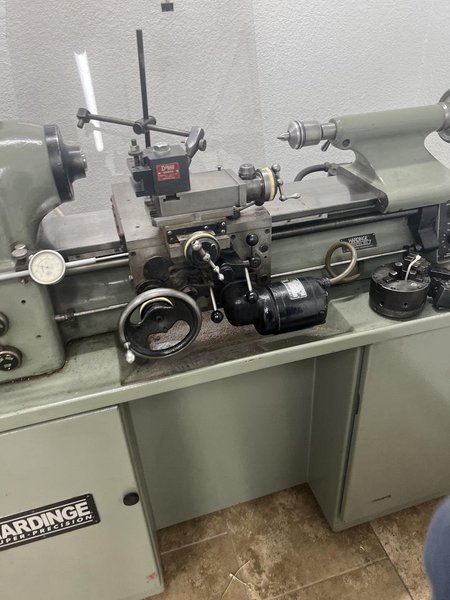

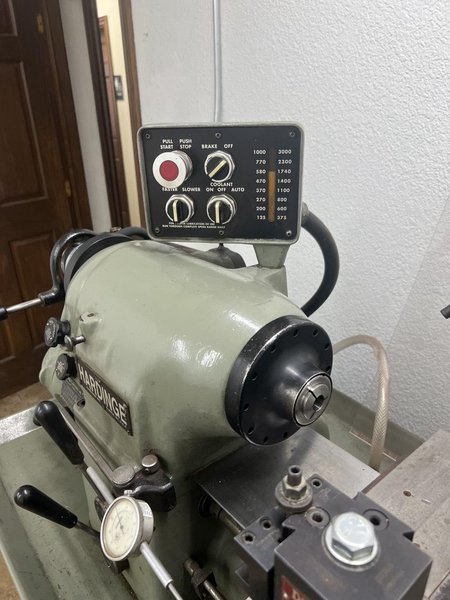

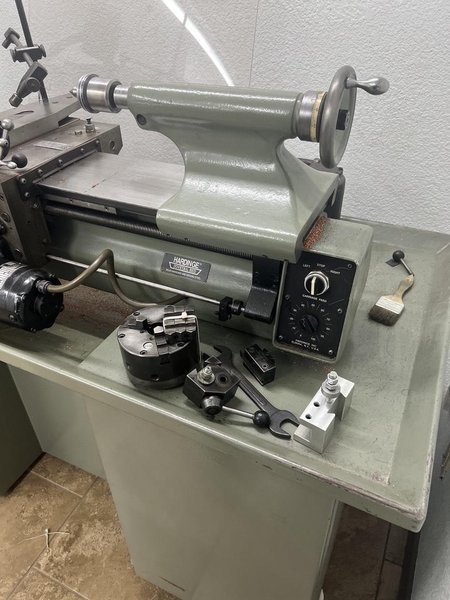

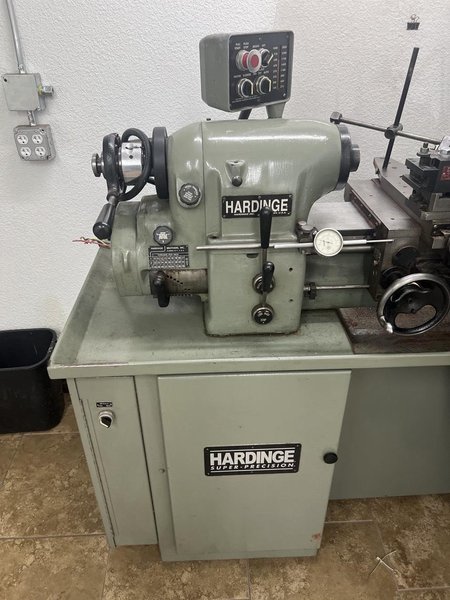

HARDINGE HLV-H Precision Tool Room Lathe
New 1982 Motor Driven with .5 1.HP, Two-Speed Main Drive Motor and Electrical Controls SPECIFICATIONS: Spindle construction- HARDINGE ball bearing Spindle nose- Hardinge tapered Spindle capacity with round type 5C collets- 1-1/16" Spindle capacity with step chucks- 1-1/16" – 6” Spindle capacity with jaw chucks- 5” Spindle capacity with expanding collets- 3” Variable spindle speeds- 125-3,000 R.P.M. Hole through spindle- 1-1/4” Swing over bed- 11” Swing over carriage- 9” Swing over cross slide- 6” Distance between centers- 18” Compound slide travel- 3” Carriage power feed range- 5/16-7 I.P.M. Cross slide power feed range- 3/16-4 I.P.M. Tailstock spindle diameter- 1-3/8" Tailstock spindle taper- #2 MT Range of threads in gear box (27)- 11-108 T.P.I. Approimate Dimensions 70" L-R x 30" F-B x 57" H Approximate Weight 1,700 Lbs. Equipped With: Ball bearing quick acting 5C collet closer Heavy duty full bearing tailstock 3-Jaw Chuck Assorted 5-C Collets Self-contained coolant system & 1/6 H.P. Gusher Coolant pump (2) Adjustable longitudinal carriage stops |
