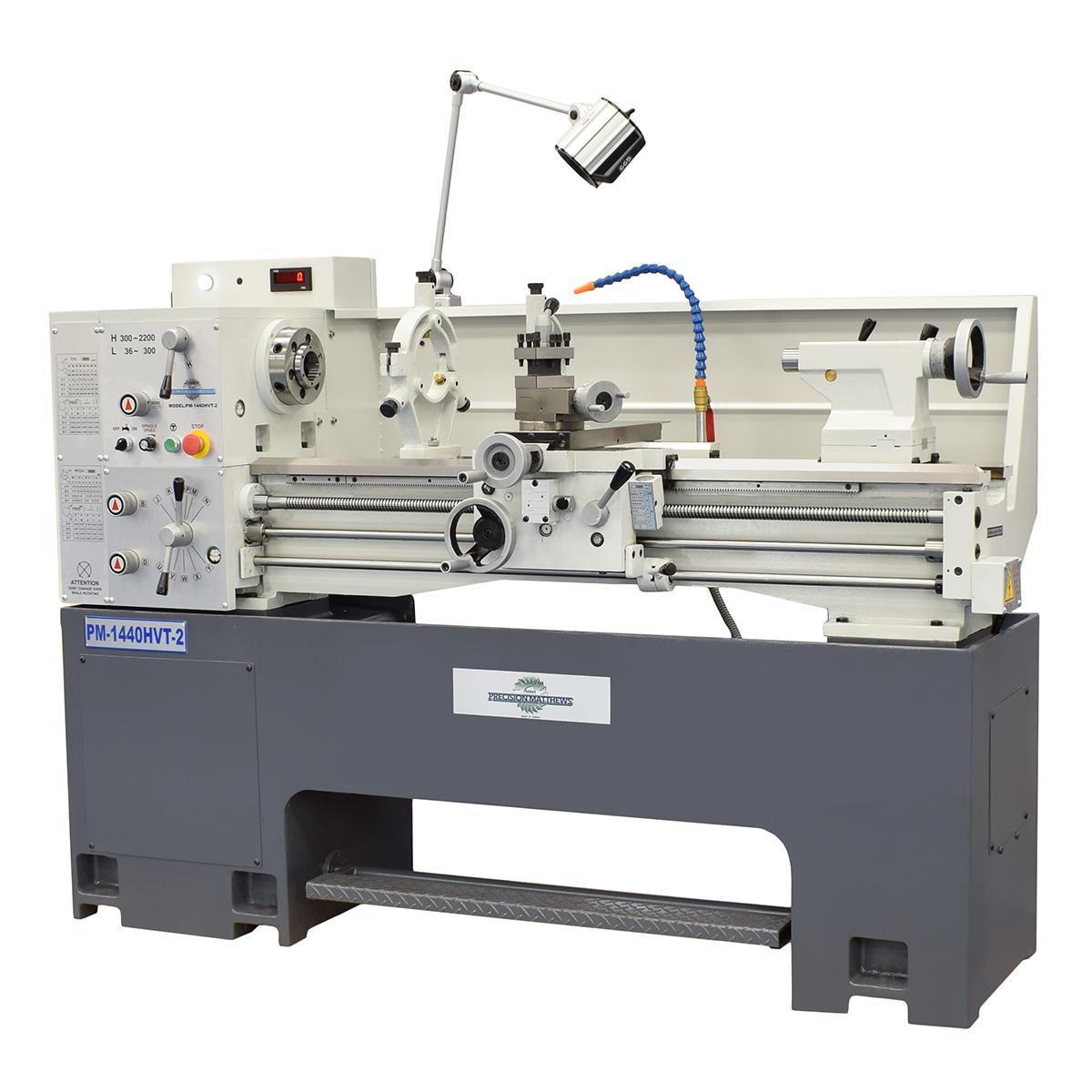

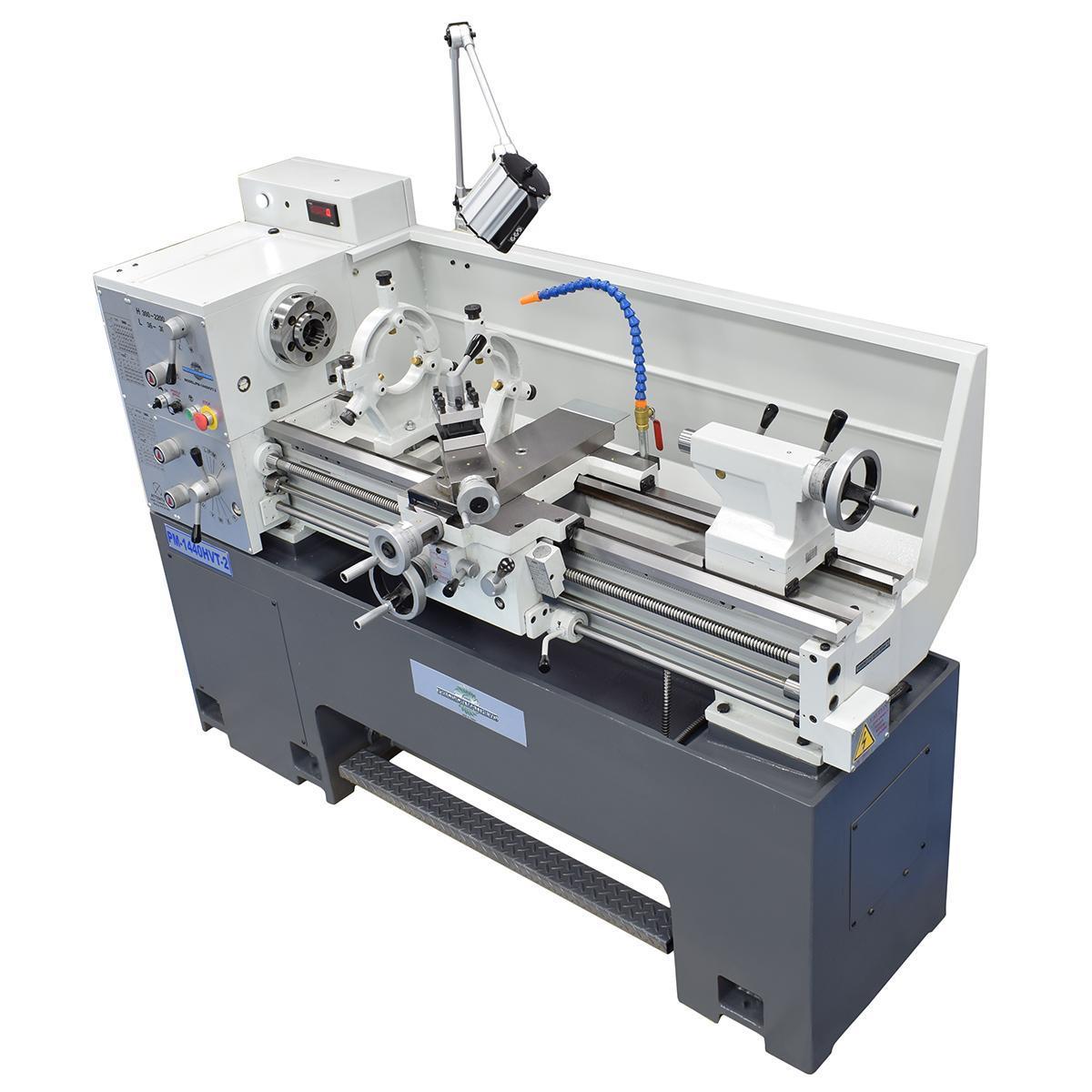

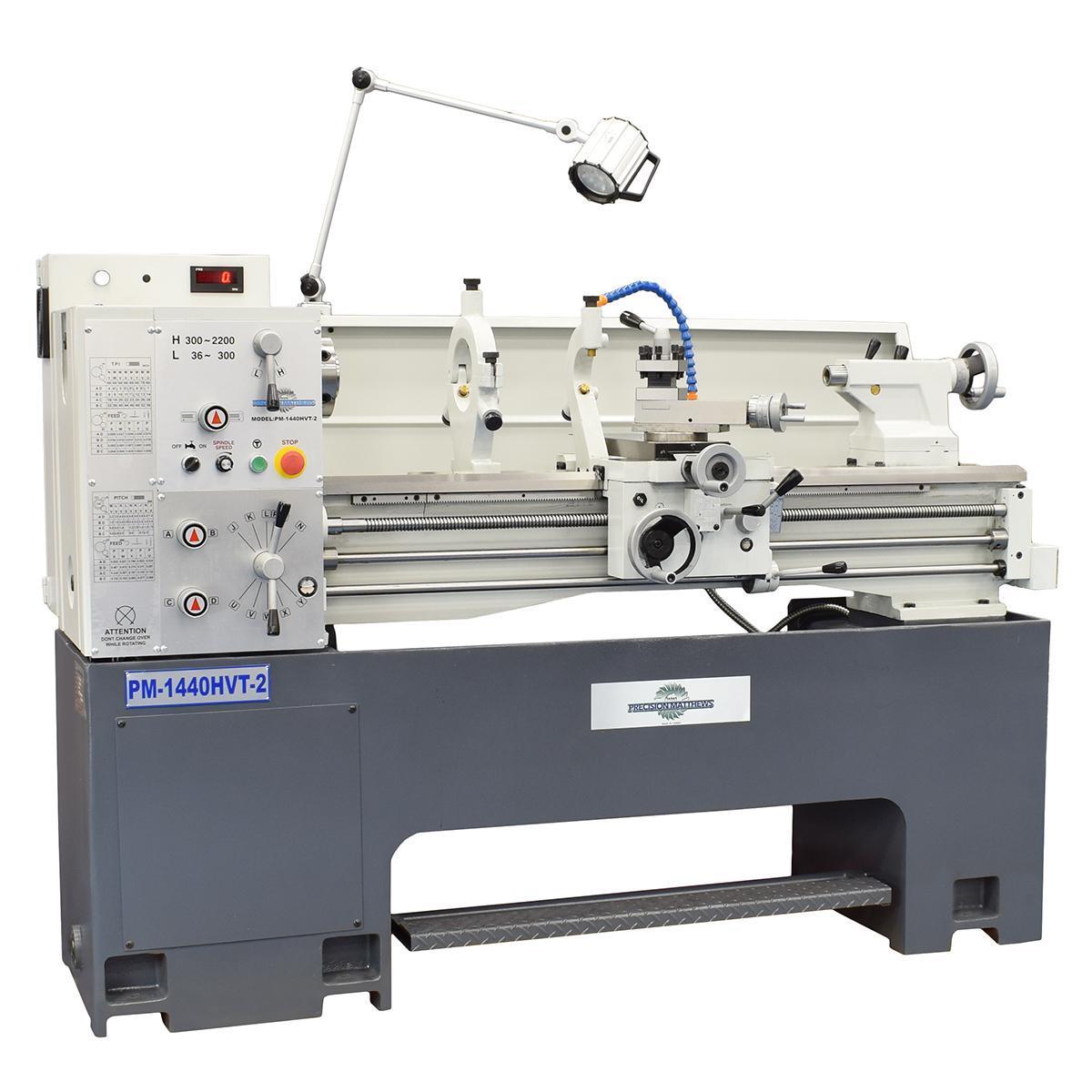

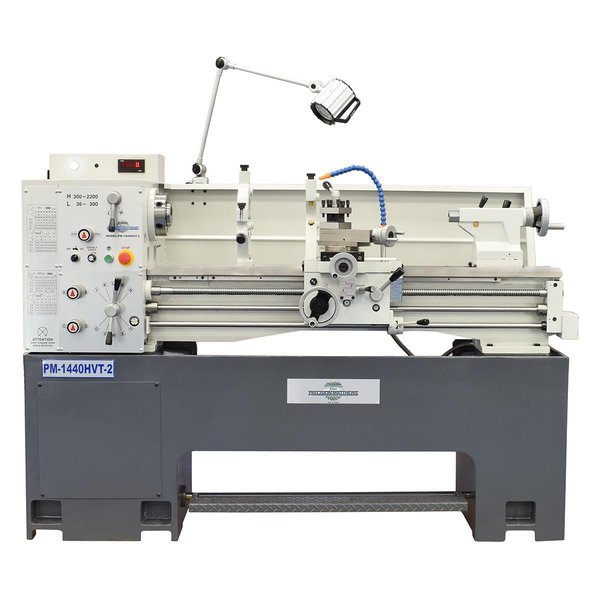

Main Features:
- Highest Quality Lathe, Made in TAIWAN
- Large 2” Spindle Bore clear through spindle for through-
- headstock work
- Variable Spindle Speeds – Adjust spindle speed while cutting to dial in for the perfect cutting conditions
- Shorter Spindle Length, only 17-3/8″, good for gunsmithing work
- Power feed on Carriage, and Cross Slide, both left and right,
- and in and out, for both turning and facing operations with
- automatic feed. Allows for the best surface finish in all
- directions.
- Induction Hardened and Precision Ground Bed Ways to
- resist wear and give a long service life
- All gears and shafts in headstock hardened and precision
- ground for long life and extremely quiet running
- FC-25 Meehanite Cast Iron used for rigidity and vibration
- dampening
- Removable Gap for larger diameter work
- High quality electronics used throughout machine
- Slip Clutch on feed rod, to help prevent overloading damage
- of feeds and allow the use of a solid micrometer carriage
- stop for repetitive work
- High Precision Tapered Roller Bearings used in spindle, for the
- ultimate in long life, high precision, and best surface
- finishes. Guaranteed Run Out +/- .0001″ for ultimate
- precision
- Inch AND Metric thread cutting ability is a standard feature
- True INCH PITCH main lead screw, cross feed, and
- compound lead screws make it easy to use for the INCH
- measurement System, yet still has the Metric readings on
- dials for the ultimate in versatility for any job that may come
- about
- Splash oil bath lubrication in Headstock, and Apron, for
- efficient lubrication, and long life, yet simple and reliable,
- maintenance as with oil pump lubrication systems. Also no
- risk of losing oil flow to expensive parts as there can be with
- pump lubricated systems
- Only Extremely High Precision Japanese Spindle Bearings
- are used, NACHI Brand at this time
- Locking Tang in tail stock is provided
- Longest in the industry, 5 Year Warranty!
Main Specifications:
- Dimensions, approximate overall, incl. stand: Width 72 in. x Height 50-1/2 in. x Depth 31 in. (full range cross slide motion, includes cross slide handle in depth dimension. Add approx. 1.5” to height with leveling pads)
- Footprint: 70 in. wide x 18 in. deep (Base Footprints: Headstock Base is 18” D x 18” W, Tailstock Base 18” D, 11” W, and 40.5″ between the bases, one solid piece)
- Bed length, excluding headstock: 54 in.
- Bed Width, at top way surface: 9”
- Spindle centerline to floor: 43 in. (44.5” with leveling pads)
- Weight, approximate: Cast Base Model: 2350 lbs
- Motor: TEFC type, Variable Speed w/VFD, 5HP
- Headstock center to tailstock center: 40 in. max
- Swing over bed: 14 in. diameter
- Swing over cross-slide: 8-3/4 in. diameter
- Swing over gap: 20-3/4 in. diameter
- Gap Insert Length: 7-3/4 in.
- Spindle face to tailstock quill face: 43 in. max
- Saddle Travel: 38 in.
- Cross-slide travel 7-3/4 in.
- Compound (top slide) travel 3-3/4 in.
- Spindle Speeds
- Low range, rpm: 30-300, Variable
- High range, rpm: 300-2200, Variable
- Carriage drive, thread cutting Leadscrew: 4 tpi
- Inch threads: Choice of 32, from 4 to 56 TPI
- Metric threads: Choice of 32, from 0.4 mm to 7.0 mm pitch
- Longitudinal Feed Rates: from 0.0026 to 0.0368 in./spindle rev
- Cross Slide Feed Rates: from 0.0013 to 0.0184 in./spindle rev
- Spindle
- Chuck/faceplate attachment: D1-5 Camlock
- Internal taper: MT5-1/2
- Spindle bore: 2 in. diameter (slightly over, will pass a 2.000″ piece)
- Spindle length, LH end to chuck mounting face: 17-3/8 in. overall
- Spindle length, LH end to chuck face (typical): 21-3/8 in. approx.
- Tailstock
- Internal taper: MT3
- Quill travel: 4 in.
- Work holding
- Center rest (steady rest) capacity: Up to 3-3/4 in. diameter
- Follower rest capacity: Up to 1-1/2 in. diameter
- Country of Origin: Taiwan
- Power requirement: 208 to 240 Vac, 60 Hz, 1 or 3 phase (Machine can accept single or 3 phase with the built in VFD (30A Circuit)

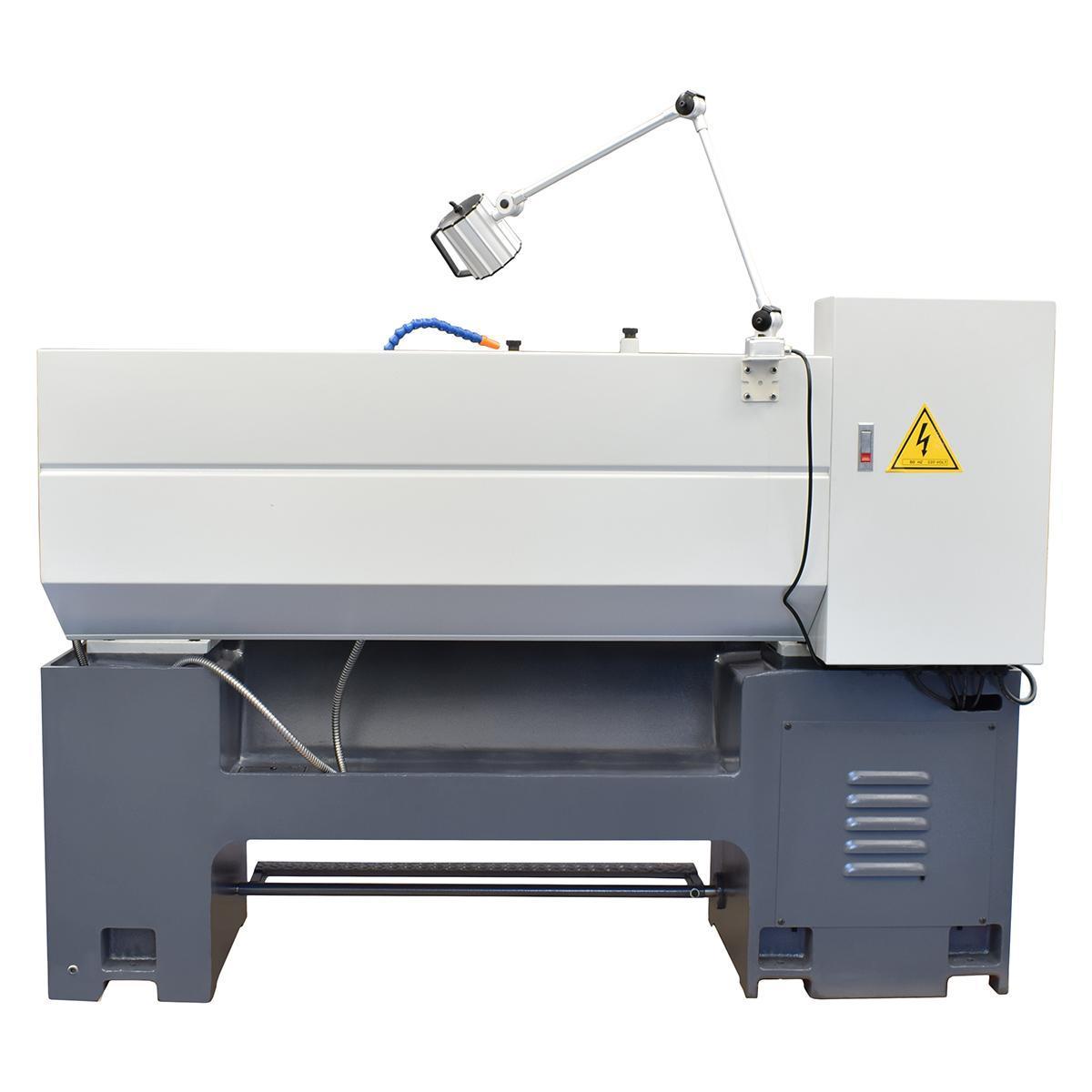

- Power connection type: Direct wire to electrical cabinet in rear of machine, directly behind headstock
|
