TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2011 #7393

TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2011 #7393

Name: TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2011 #7393
Brand: SOUTHWESTERN INDUSTRIES
SKU: 7393
Availability: PreOrder

Brand

SOUTHWESTERN INDUSTRIES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Vertical Mills

Manufacturer:

TRAK (SOUTHWESTERN INDUSTRIES)

Model:

K3SX

Year:

2011

Stock #:

7393

Status:

For Sale

Description

TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2011 #7393

TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2011 #7393
Reference #7393
Model # K3SX
Serial # 114CK64019
Year of manufacture- 2011

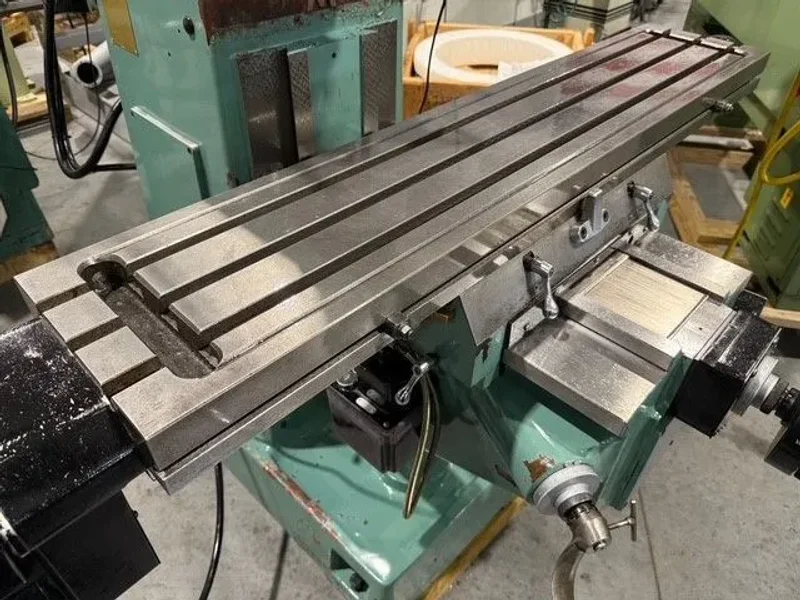

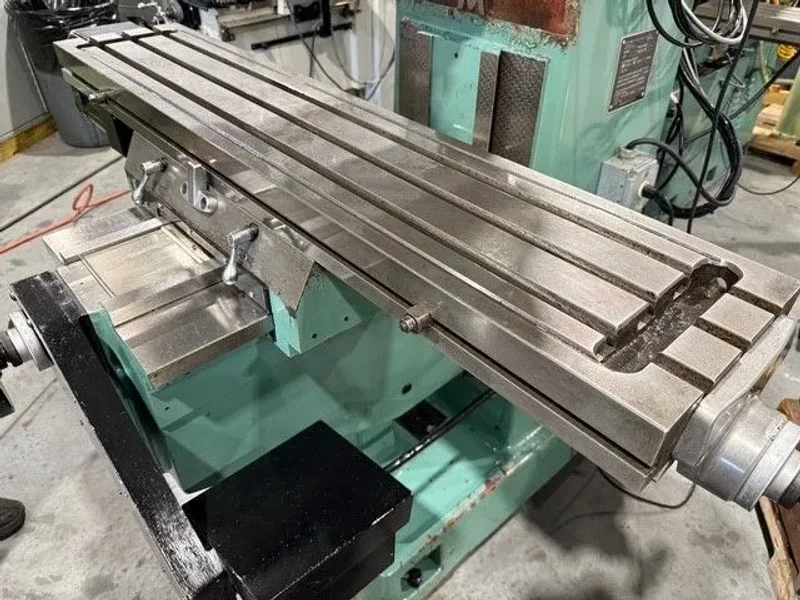

Table size- 50” x 10”
T-Slots- (3) 5/8”
Table travel X- 32”
Saddle travel Y- 16’’
Knee travel- 16”
Ram travel- 15”
Quill travel- 5”
Quill diameter- 3-3/8”
Spindle taper- R-8
Spindle speeds- 60 – 4200 R.P.M.
Head tilt- 45° forward, 45°back, 90° left, 90° right
Maximum table weight- 850 Lbs.
Maximum rapid feed rate- 100 I.P.M.

SMX CNC Control (2 axis CNC / 3 Axis readout)
Pneumatic drawbar
Spindle motor 3 H.P.
Motor voltage 220 / 440 / 3 phase/ 60 HZ
Machine is currently wired for 220 volt
Machine weight- 2850 Lbs.
Machine dimensions- 71” L x 69” W x 86’’ H
Machine location- F.O.B. Sarasota, Florida
