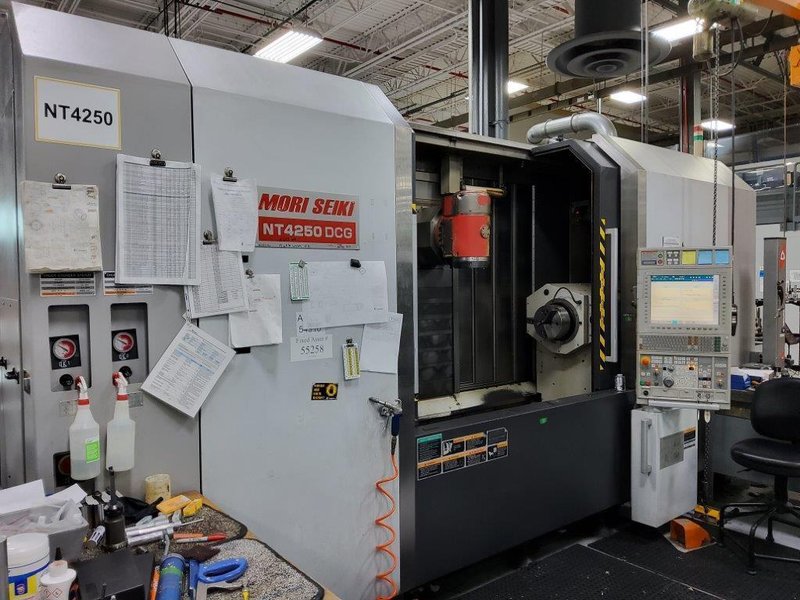

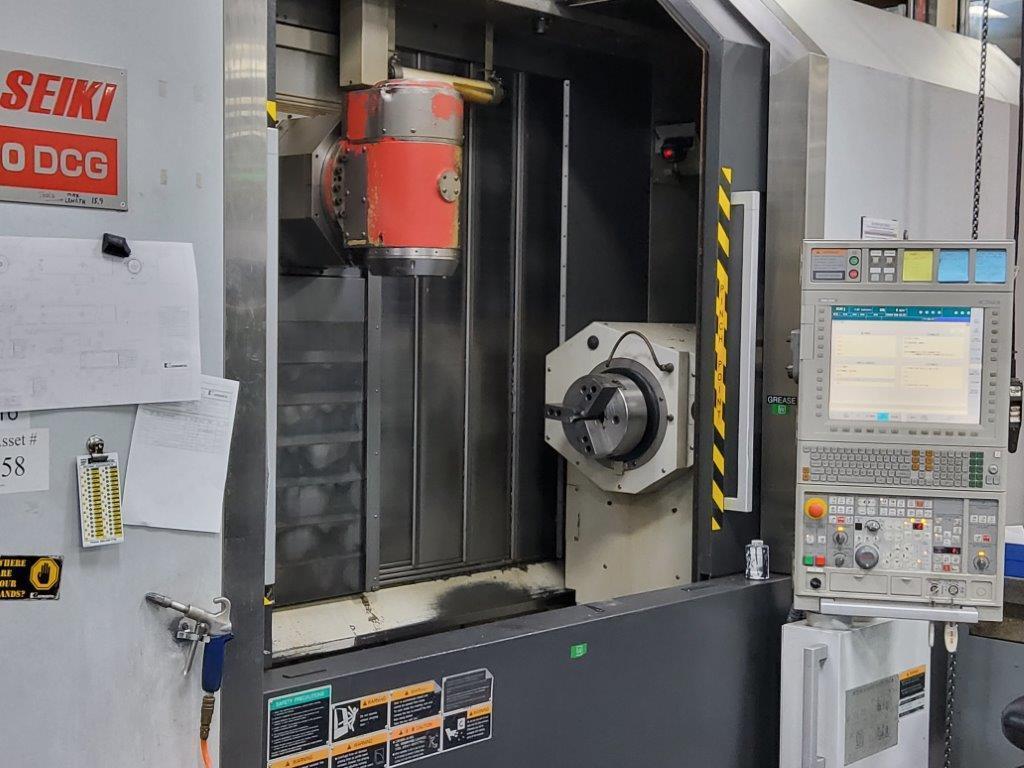

Used 2009 Mori Seiki NT4250DCG/1500SZ CNC Multi-Tasking Lathe For Sale

Name: Used 2009 Mori Seiki NT4250DCG/1500SZ CNC Multi-Tasking Lathe For Sale
Brand: MORI SEIKI
SKU: 15508
Availability: InStock

Brand

MORI SEIKI

Not specified

CNC Control	yes

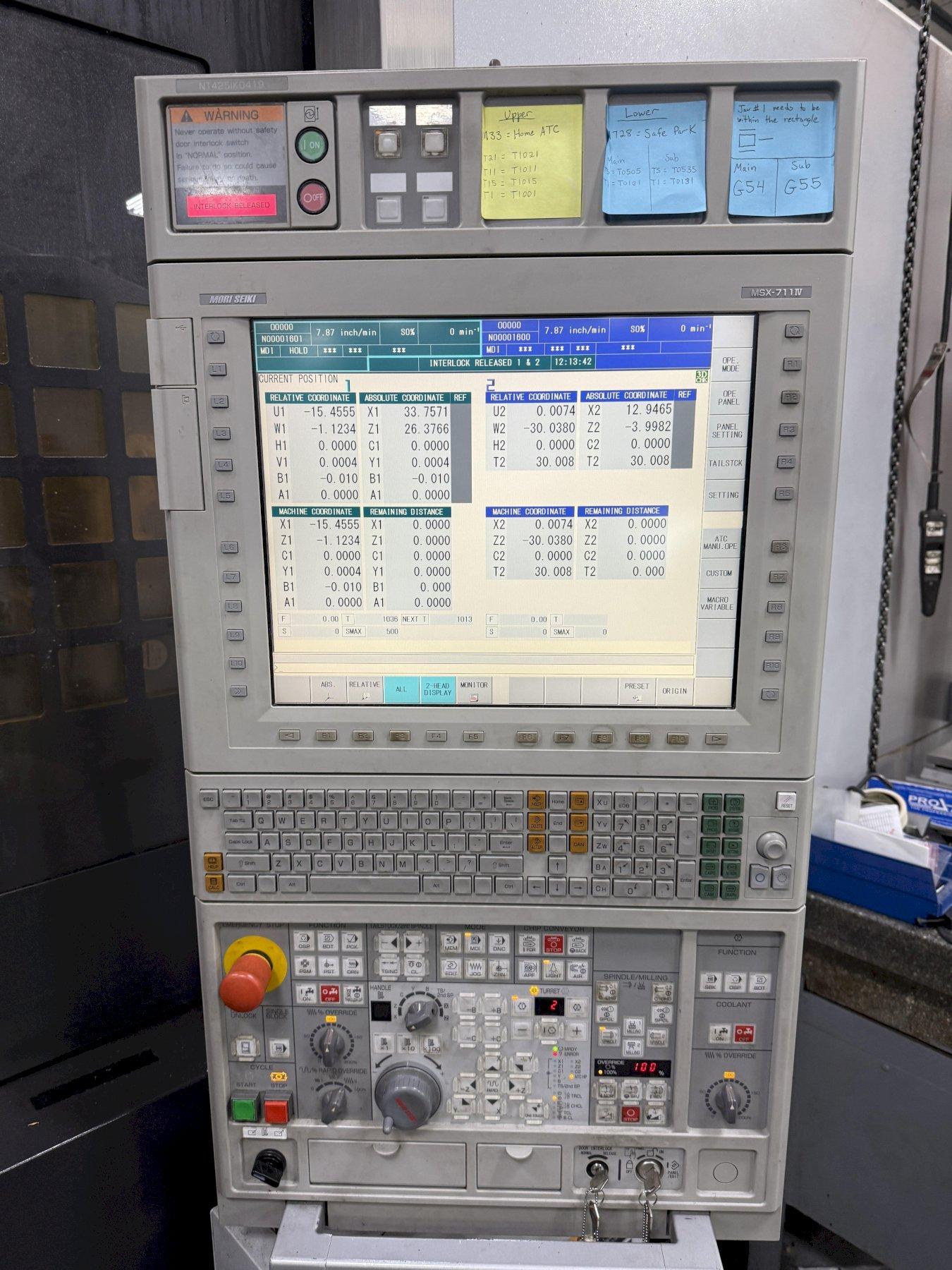

Type Of CNC Control	Mitsubishi MSX-711IV
# Axis	9
Swing	28.7 inches
Turning Diameter	25.9 inches
Turning Diameter Lower Turret	13.7"
Center Distance	61.4 inches
Bar Capacity	3.1 inches
X Axis Travel	29.5 inches
X2 Axis Travel	7.7"
Y Axis Travel	8.3 inches
Z Axis Travel	64.9 inches
Z2 Axis Travel	60"
B Axis Indexing	+/- 120° 1-Degree
C1/C2 Axis Index	0.0001°
Spindle Nose	A2-8
Spindle Speed	4,000 rpm
Main Motor	30 hp
Tailstock	no
Y Axis	yes
Live Tooling	yes

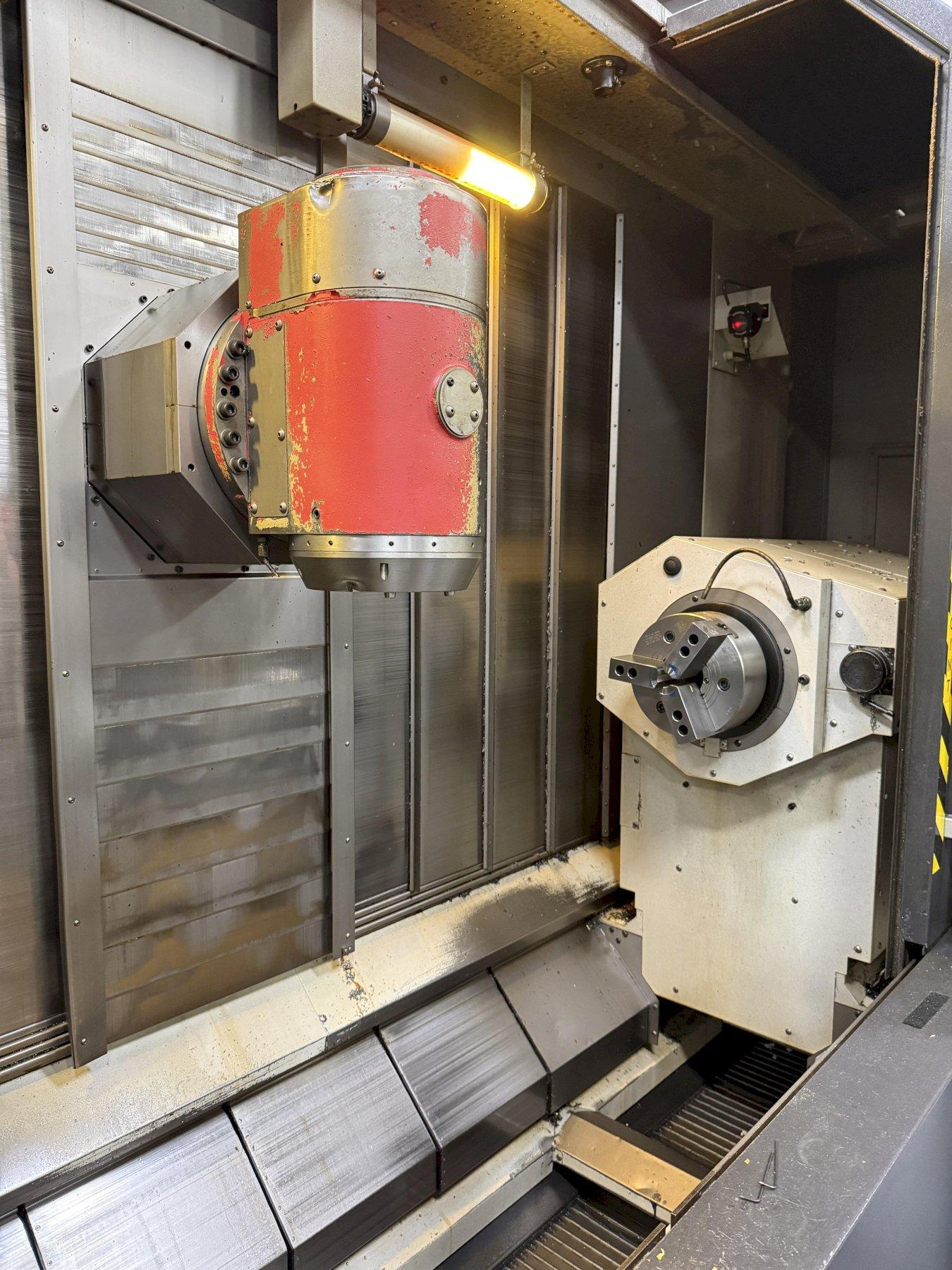

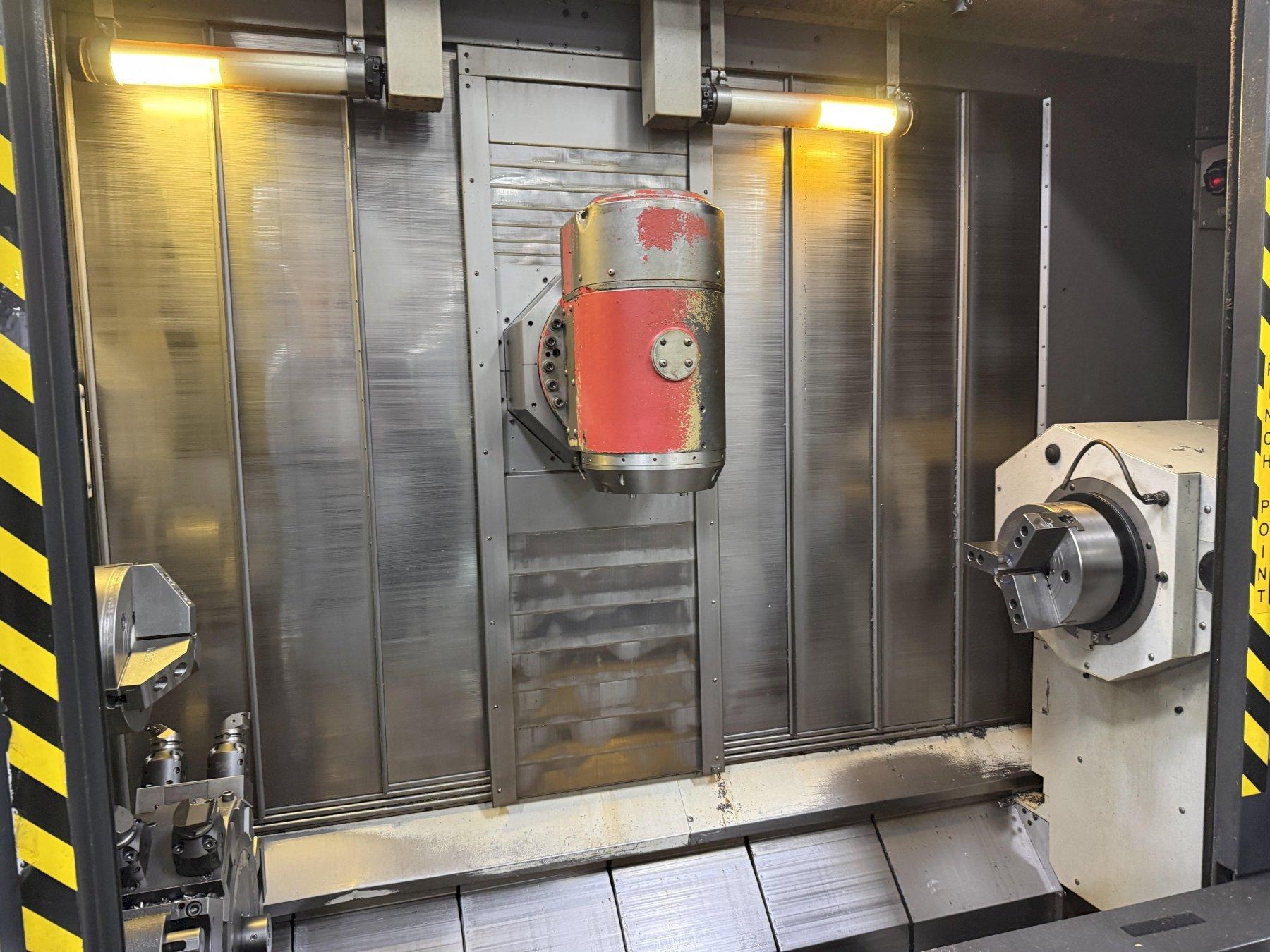

Milling Spindle Taper	KM63

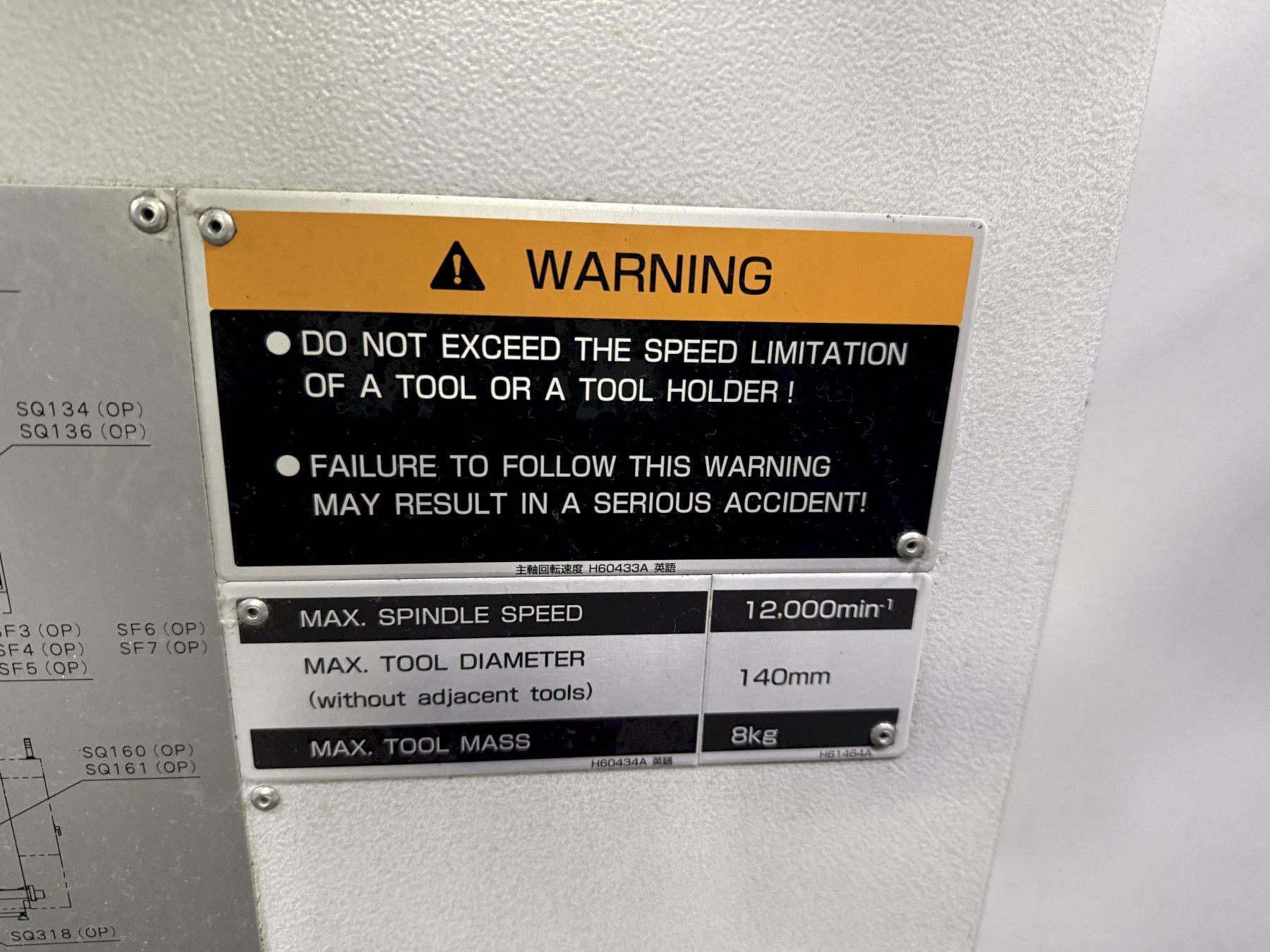

Live Tooling Speed	12,000 rpm - Milling Spindle
Live Tooling Motor	25 hp

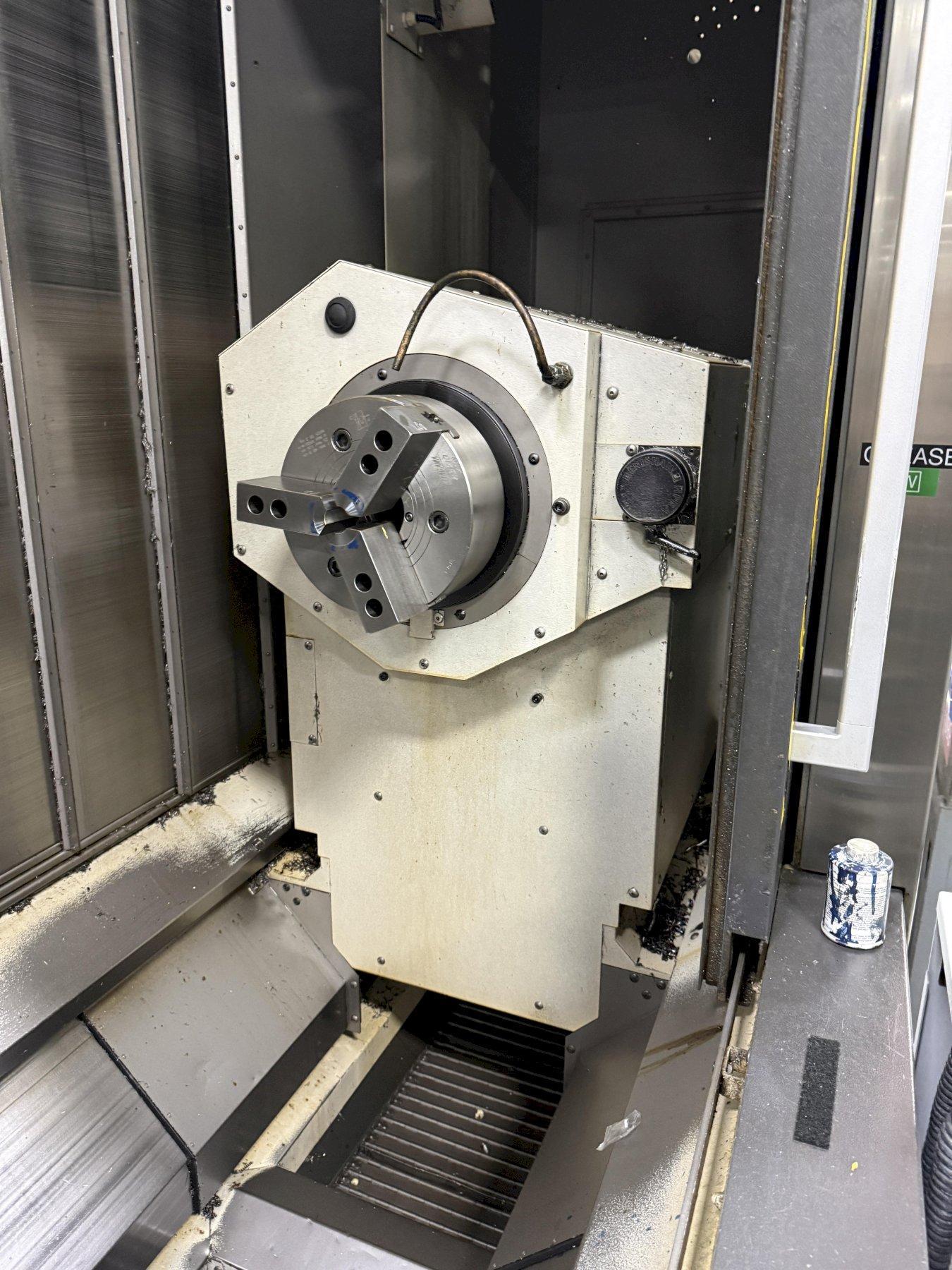

Sub Spindle	yes
Sub Spindle Bar Capacity	3.1 inches
Sub Spindle Nose	A2-8
Sub Spindle Speed	4,000 rpm
Sub Spindle Motor (HP)	30 hp

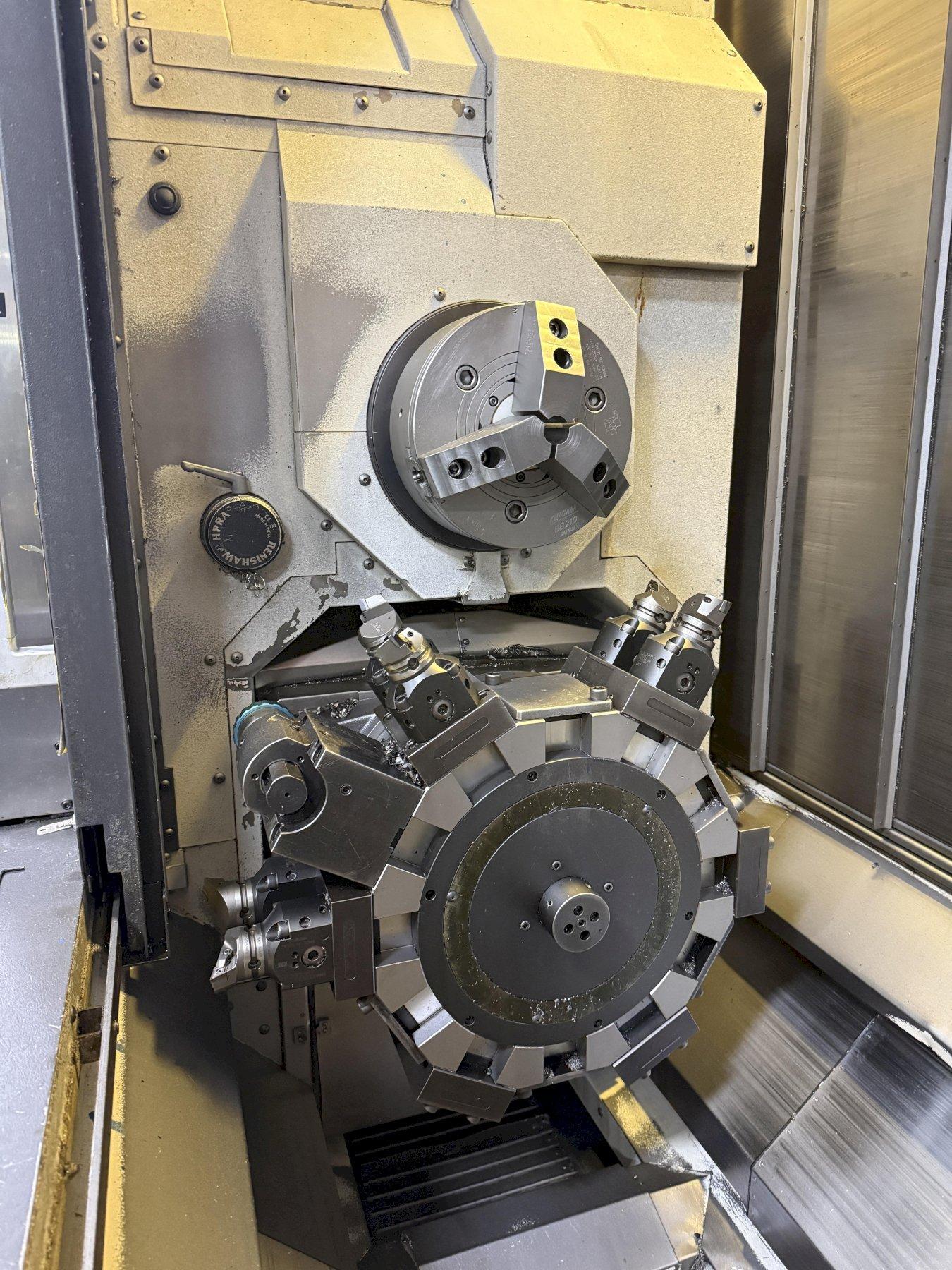

Turret Capacity	12 Stations Lower Turret
ATC Capacity	40 Stations
Machine Weight	56500 pounds

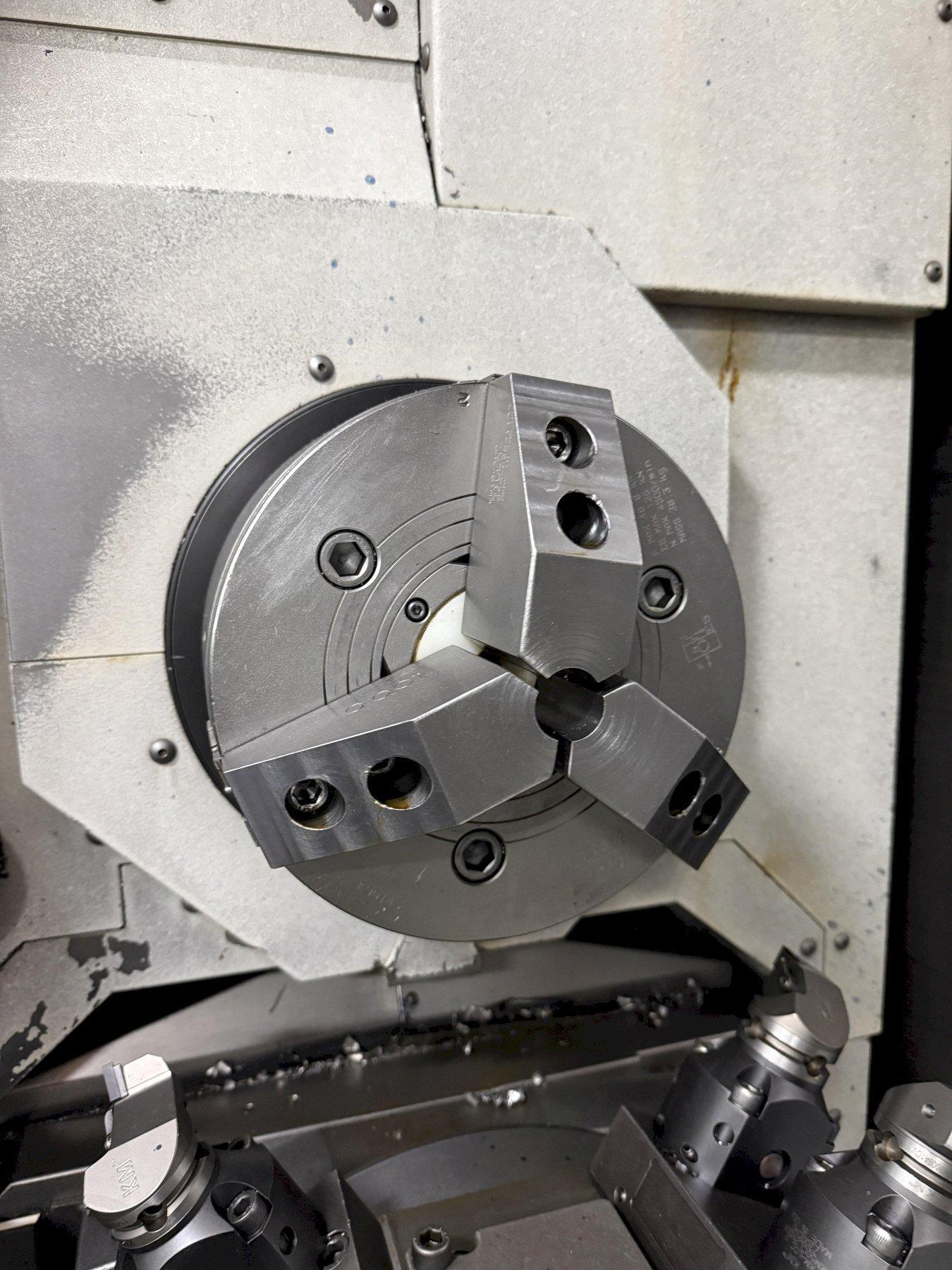

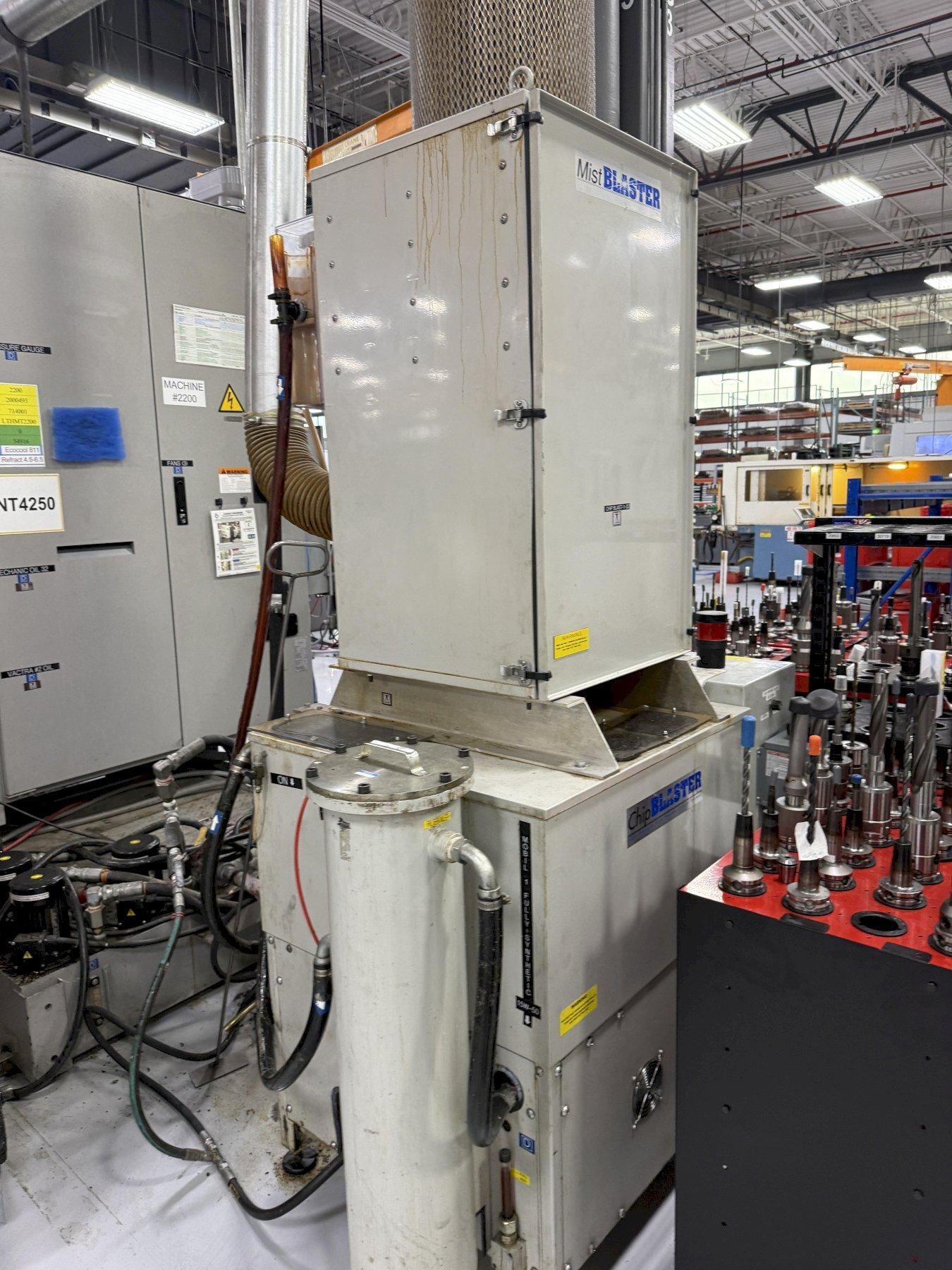

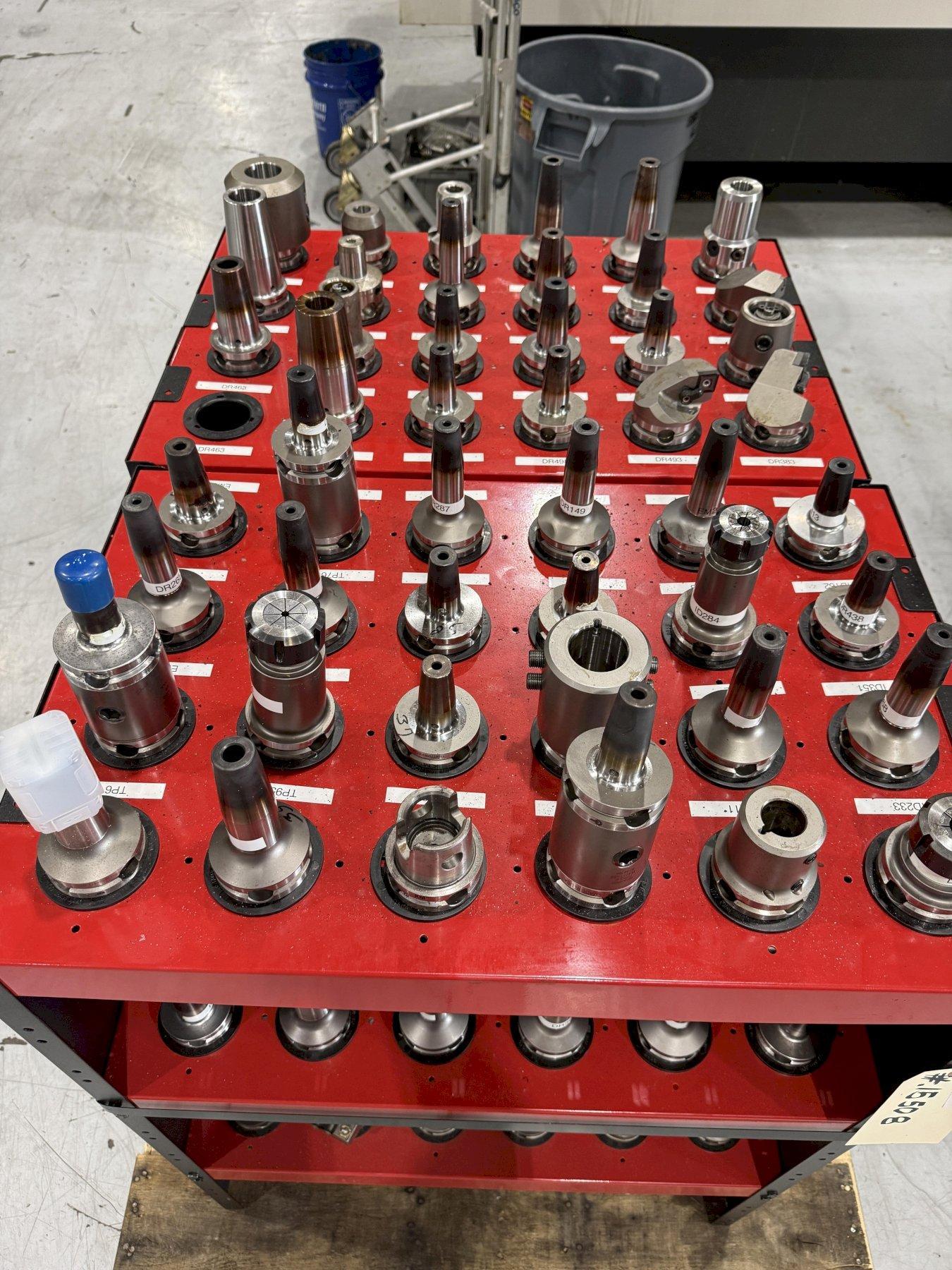

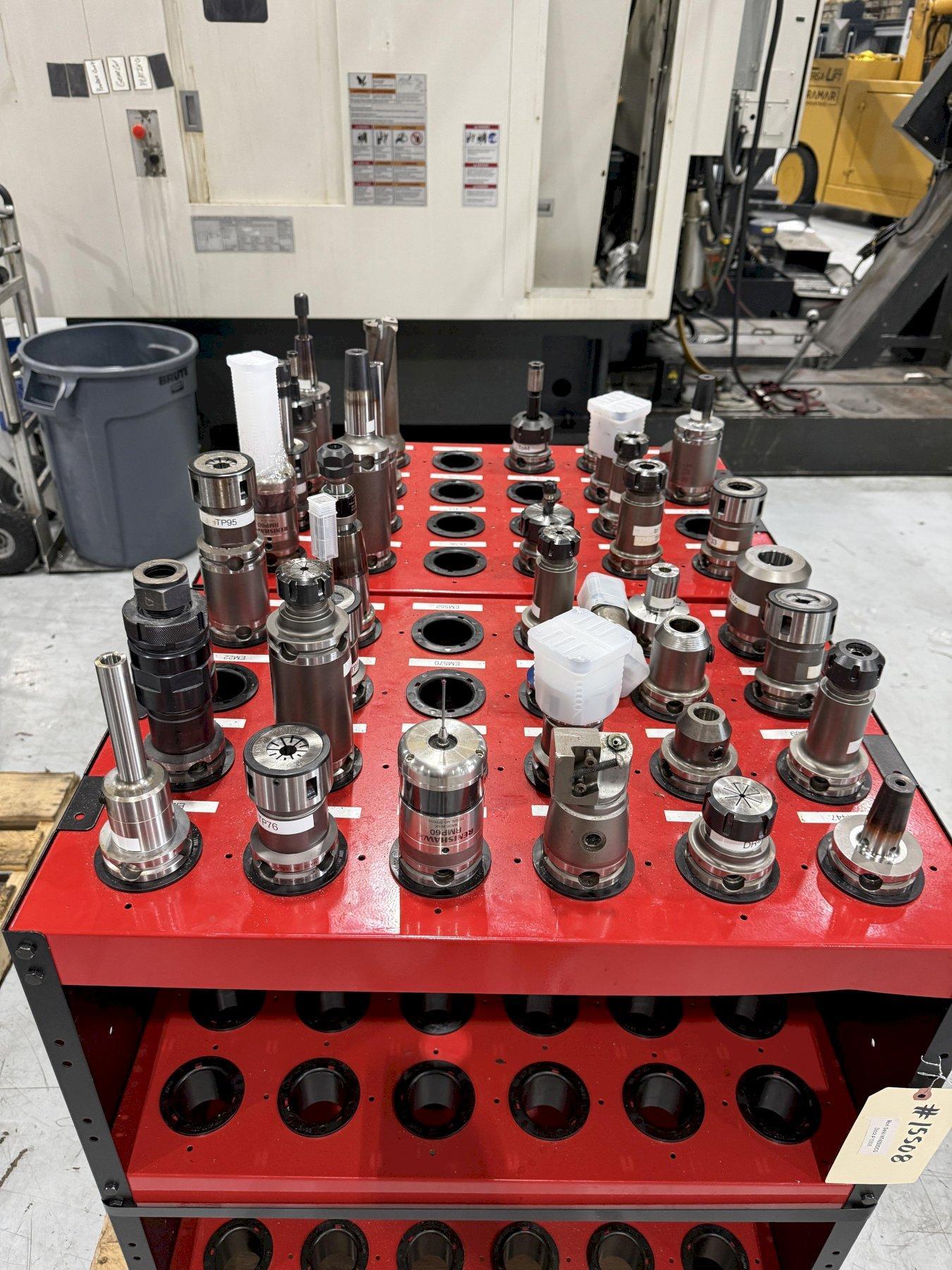

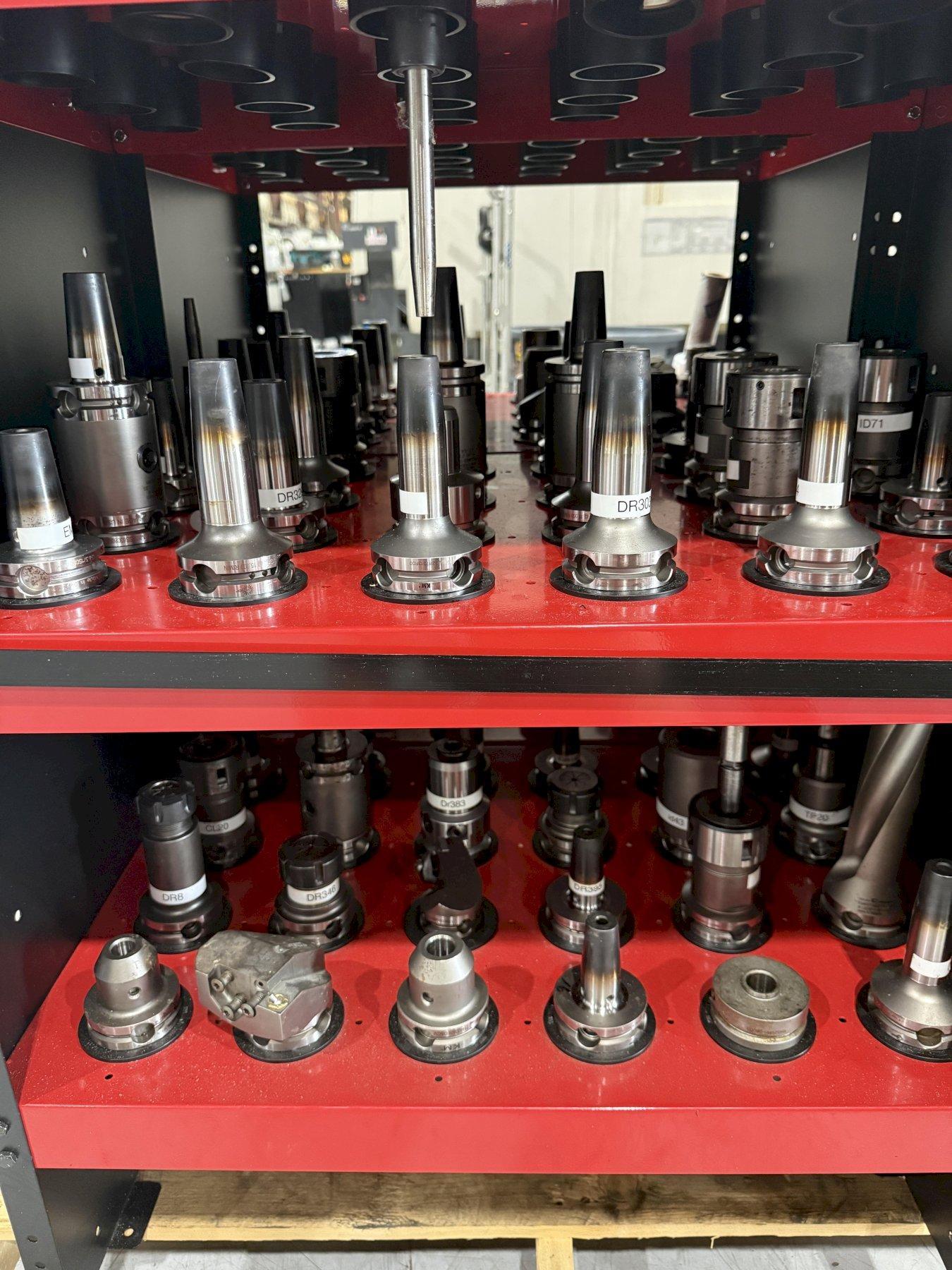

- Mitsubishi MSX-711IV CNC Control - MAPPS Conversational Programing - Chip Conveyor - Coolant Tank & Pump - Milling Spindle - Lower Turret - Sub Spindle - Y Axis - 10" Chuck on Main Spindle - 10" Chuck on Sub Spindle - Renishaw Probing - Tool Presetter - Coolant Thru Spindle - High Pressure - Chip Blaster Unit **COMES WITH ALL THE PICTURED TOOL HOLDERS-NO COSUMABLES**
