Makino A92 Horizontal Machining Center
Brand
Category
Model
A92
Stock #
Not specified
Year
2009
Condition
Very Good
Location
Michigan
|
Control Type Professional 5
# Axis 4
Pallet Length 39.4"
Pallet Width 31.5"
Pallet Load Capacity 4,409 Lbs.
Pallet Indexing (B-Axis) 0.0001°
X-Axis Travel 59.8"
Y-Axis Travel 49.2"
Z-Axis Travel 53.15"
Rapid Traverse Rate (X/Y/Z) 1,969 ipm
Spindle Taper CAT 50
Spindle Speed 10,000 rpm
Spindle Motor (HP) 50 hp

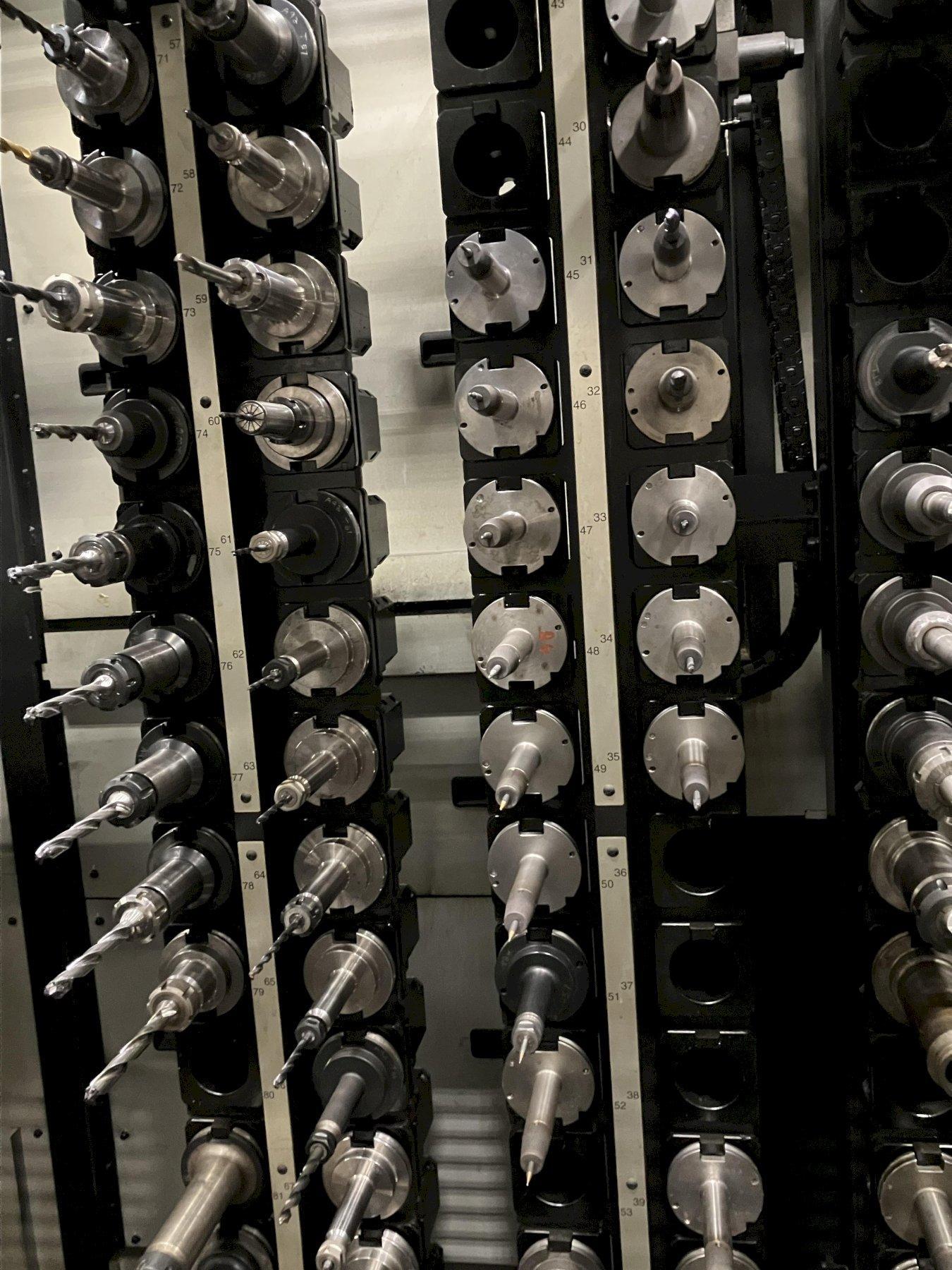

Tool Changer Capacity 99 ATC
Machine Weight 75,000 pounds Equipped With:
Makino Professional 5 CNC Control
Coolant Through Spindle - High Pressure
Chip Conveyor
Coolant Through Spindle Coolant Tank
Chip Blaster
Spindle Chiller
Air Dryer |
