2015 Makino MCC2013VG 5-Axis CNC Horizontal Machining Center

2015 Makino MCC2013VG 5-Axis CNC Horizontal Machining Center

Name: Used MAKINO MCC2013-VG For Sale iGAM0470004
Brand: MAKINO
SKU: iGAM0470004

Brand

MAKINO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

2015 Makino MCC2013VG 5-Axis CNC Horizontal Machining Center available. Features include Professional 5 CNC Control, Travels (X/Y/Z) 78.7″/51.2″/51.2″, A Axis Spindle Tilt of +/-30°, B Axis Indexing 0.00001°, 12,000 RPM spindle speed, HSK-A100, and a 120 Station ATC capacity.

Specification Table

CNC Control	Professional 5
# Axis	5
Pallet-L	59″
Pallet-W	47.2″
Max Pallet Load	22,046 lbs
Pallet Indexing (B-axis)	0.0001°
X-axis Travel	78.7″
Y-axis Travel	51.2″
Z-axis Travel	51.2″
A-axis Travel	-30° to +30°
Rapid Traverse Rate (X/Y/Z)	787 ipm
Spindle Speed	12,000 RPM
Spindle Taper	HSK-A100
Spindle Motor	40 hp

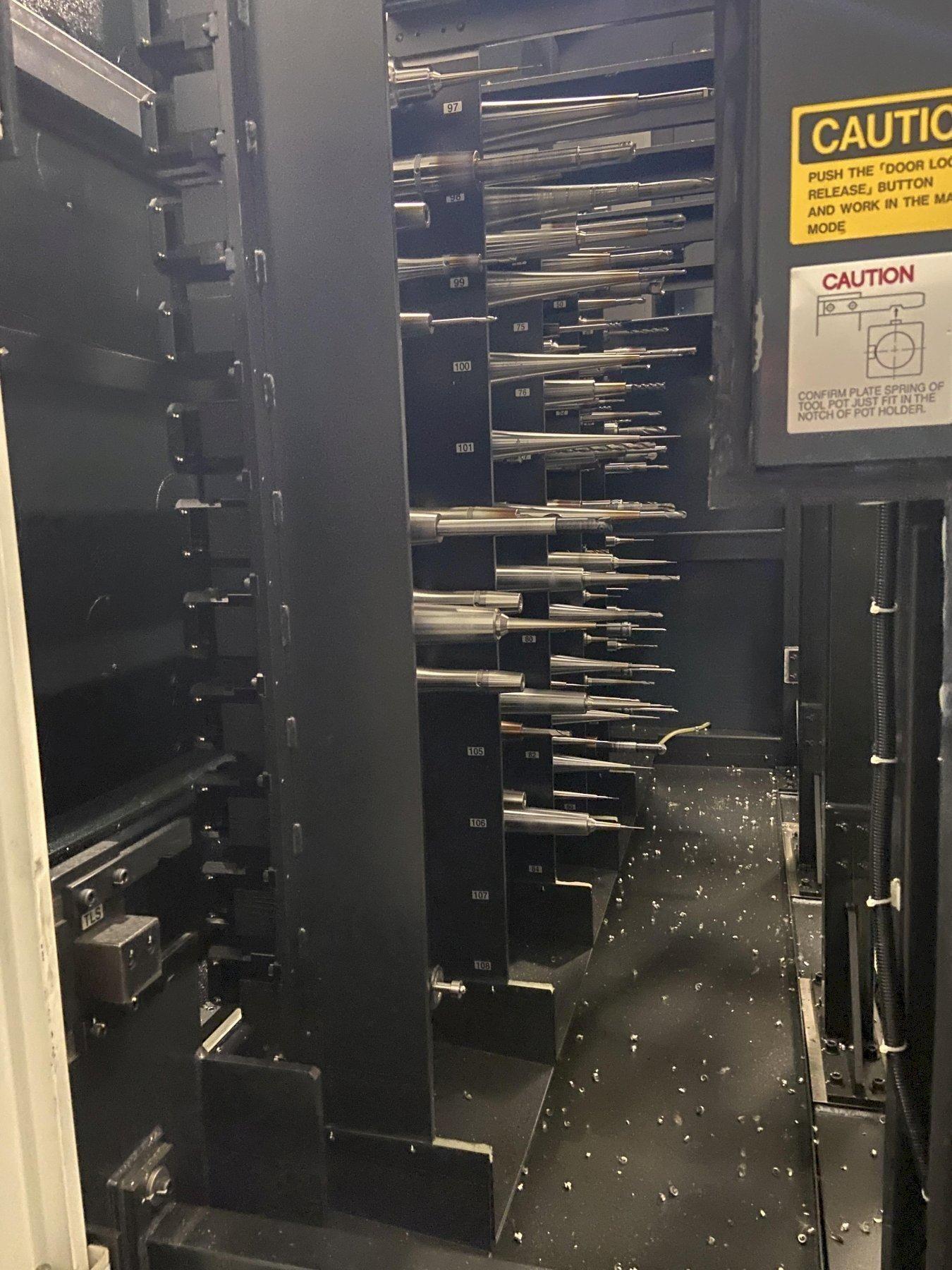

# ATC	120
Coolant Thru Spindle	Yes
Machine Weight	62,000 lbs

Equipped With

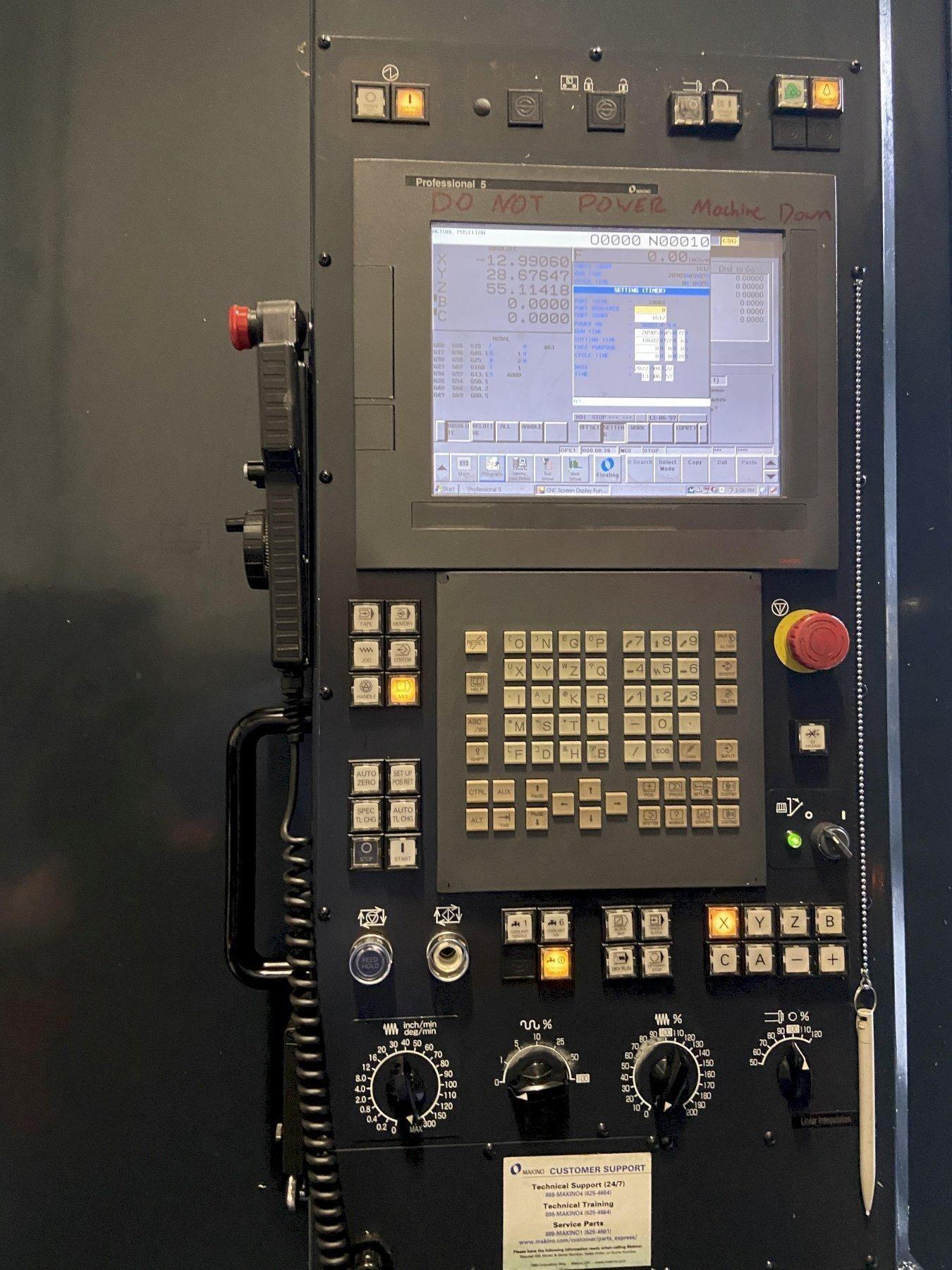

– Professional 5 CNC Control (Fanuc)

– Chip Conveyor

– Coolant Tank & Pump

– Mist Collector

– Coolant Filtration Unit

– Data Center Storage (360MB)

– Helical Interpolation (G02, G03)

– Automatic Aur Blower

– Chip Blaster Model JV-40

– Coolant Thru Spindle

– Automatic Non-Contact Tool Measuring

No files or videos to display
