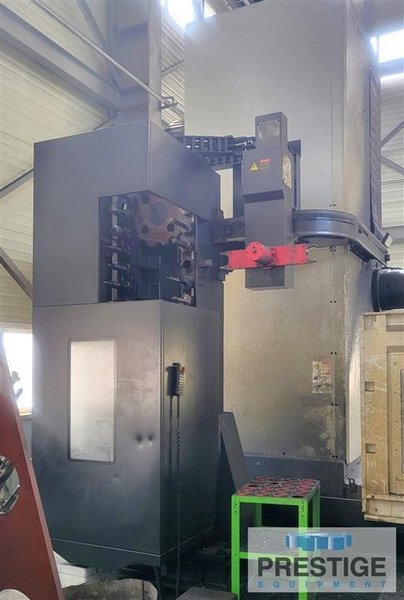

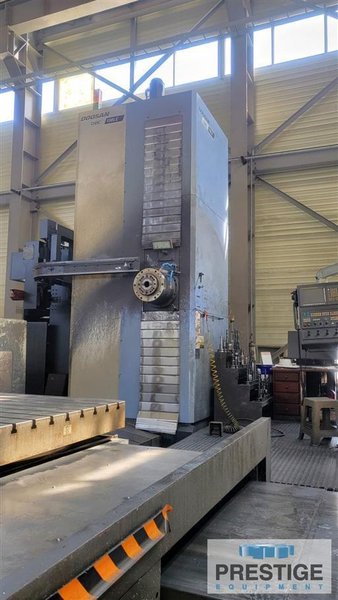

5.12" Doosan DBC130LII CNC Table Type Horizontal Boring Mill

FFEATURES:

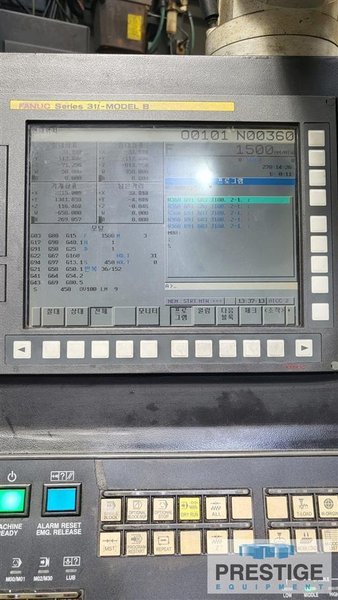

Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
B-Axis Contouring Rotary Table
SPECIFICATION:
Spindle Diameter 5.12"
Taper In Spindle #50
Vertical Headstock Travel,Y-Axis 98.42"
Table Cross Travel, X-Axis 157.48"
Spindle Travel, W-Axis 27.55"
Column Infeed Travel, Z-Axis 78.74"
Distance Spindle Center to Table Top 0-90.55"
Distance Spindle Nose to Table Center . 29.52"-108.26"

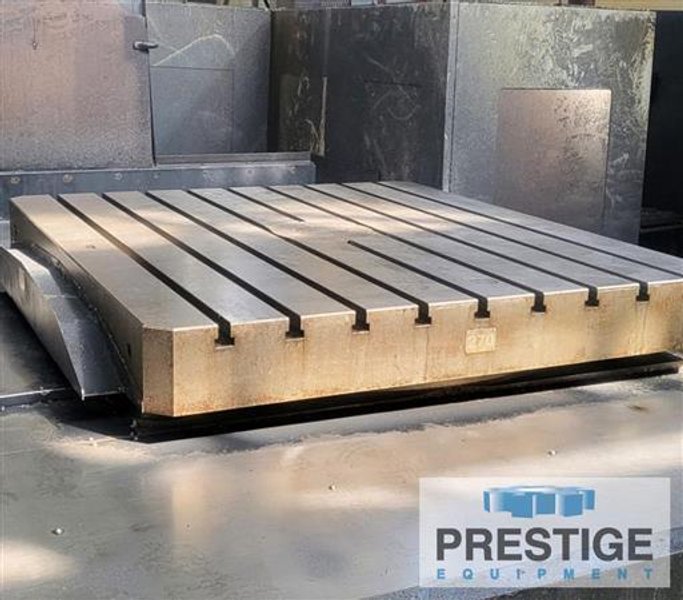

Table Size, B-Axis 86.61" x 78.74"
Rotary Table Weight Capacity 28,659 Lbs.
B-Axis Table Rotation 0.001 Degree
Spindle Speeds to 2500 RPM
Rapid Traverse Rate 393.70 IPM
Cutting Feedrate 1-157.48 IPM
Overall Height 212.6"
Floor Space 307.1" x 370.1"
Approx. Machine Weight 110,300 Lbs



Equipped With:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
B-Axis Contouring Rotary Table
Way Covers
Chip Conveyor
35 HP/ 30 HP Spindle Motor
